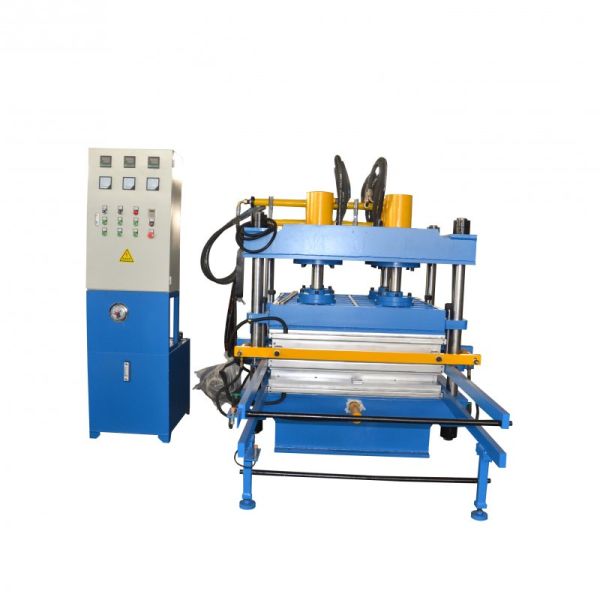

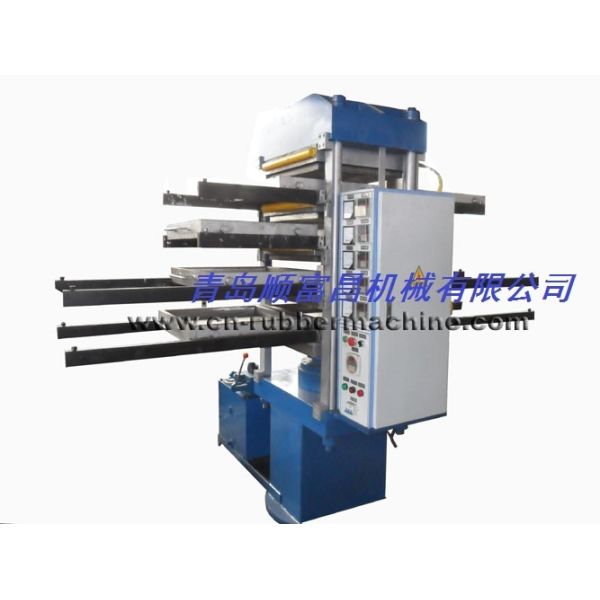

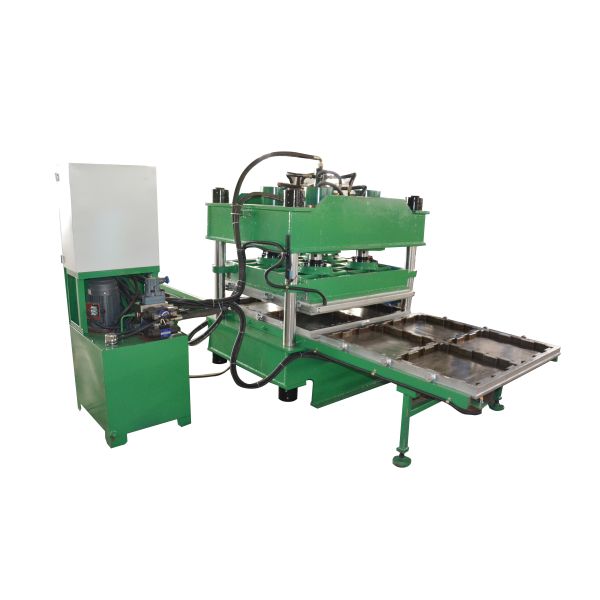

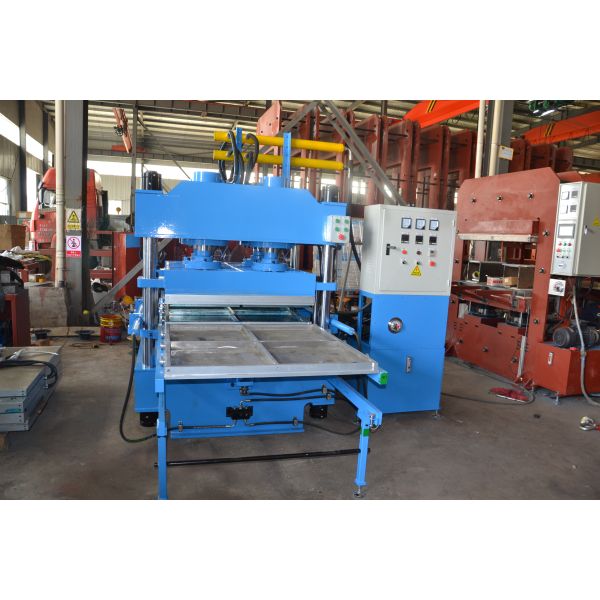

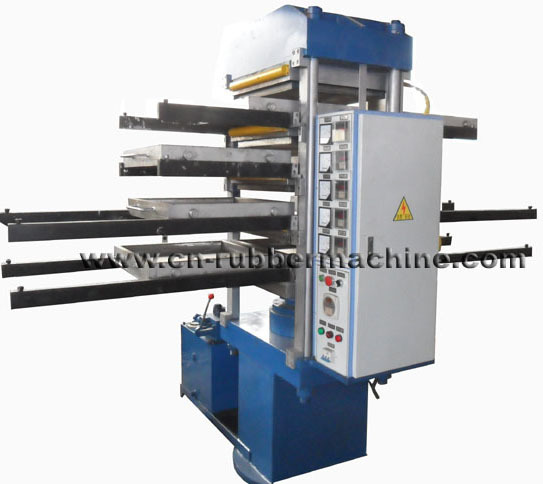

The Rubber Interlock Tiles Vulcanizing Press is designed for curing rubber tiles and mats, particularly effective for recycling rubber applications. This semi-automatic horizontal press offers high production efficiency with customizable working layers and platen sizes.

• Column type construction with hydraulic cylinder, piston, column, hot plate, and track system
• Equipped with manual push-out device and two sets of molds for high production efficiency
• Adjustable mold thickness from 20mm to 75mm to accommodate various product requirements
• Optional mixer integration available upon request
• High-quality carbon steel Q-235 construction with shot blasting treatment for enhanced durability
• Advanced welding techniques including carbon dioxide gas shielded welding and submerged arc welding
• Chilled cast iron piston with polishing and grinding treatment for superior surface smoothness and anti-abrasion properties

• Multiple heating options: Steam, oil, or electric (using high-quality heating pipes)
• Temperature range: 0-300°C (customizable up to 400°C)
• Precise plate temperature tolerance: ±0.1°C
• Optional water cooling system available

PLC-controlled hydraulic system with professional components for stable and reliable operation. Features pressure sensor control system that maintains consistent pressure without dropping.

We specialize in designing and manufacturing various kinds of non-standard rubber machinery according to client's specific requirements. Our professional R&D institutions utilize CAD-aided design to ensure precision and quality.

• Mixing Equipment: Rubber Kneader, Two Roll Mill, Rubber Sheeting Mill, Rubber Refining Mill, Rubber Crusher
• Curing Equipment: Pillar/Frame Type Plate Vulcanizing Press, Duplex Curing Press, Jaw Vulcanizing Press Machine, Large Plate Vulcanizing Machine, Automatic Plate Vulcanizing Molding Machine
• Extruding Equipment: Hot Feed Extruder, Rubber Strainer, EPDM Rubber Extrusion & Vulcanizing Line
• Calender Equipment: Two Roll Calender, Three Roll Calender, Four Roll Calender, Inner Liner & Rubber Calender Line
• Waste Tires Recycling Equipment: Semi-automatic and Full-automatic Waste Tires Recycling Lines, Fine Rubber Powder Pulverizer
• Other Equipment: Reclaimed Rubber Production Line, Batch-Off Cooler, Conveyor Belt Splicing Press
