Reclaimed Rubber Refiner Machine with Overload Protection Chilled Cast Iron Rolls and Emergency Stop Mechanism
Reclaimed Rubber Refiner Machine with Overload Protection Chilled Cast Iron Rolls and Emergency Stop Mechanism
Reclaimed Rubber Refiner Machine with Overload Protection Chilled Cast Iron Rolls and Emergency Stop Mechanism
Reclaimed Rubber Refiner Machine with Overload Protection Chilled Cast Iron Rolls and Emergency Stop Mechanism
Reclaimed Rubber Refiner Machine with Overload Protection Chilled Cast Iron Rolls and Emergency Stop Mechanism
Reclaimed Rubber Refiner Machine with Overload Protection Chilled Cast Iron Rolls and Emergency Stop Mechanism
Reclaimed Rubber Refiner Machine with Overload Protection Chilled Cast Iron Rolls and Emergency Stop Mechanism
Reclaimed Rubber Refiner Machine with Overload Protection Chilled Cast Iron Rolls and Emergency Stop Mechanism
Reclaimed Rubber Refiner Machine with Overload Protection Chilled Cast Iron Rolls and Emergency Stop Mechanism
Reclaimed Rubber Refiner Machine with Overload Protection Chilled Cast Iron Rolls and Emergency Stop Mechanism
Specifications
Brand Name :
SFC
Model Number :
XKJ-450
Certification :
CE, ISO
Place of Origin :
Qingdao, China
MOQ :
1 set
Price :
US$15,000.00-20,000.00
Payment Terms :
T/T,L/C
Supply Ability :
150 set/year
Delivery Time :
25-35 days
Description

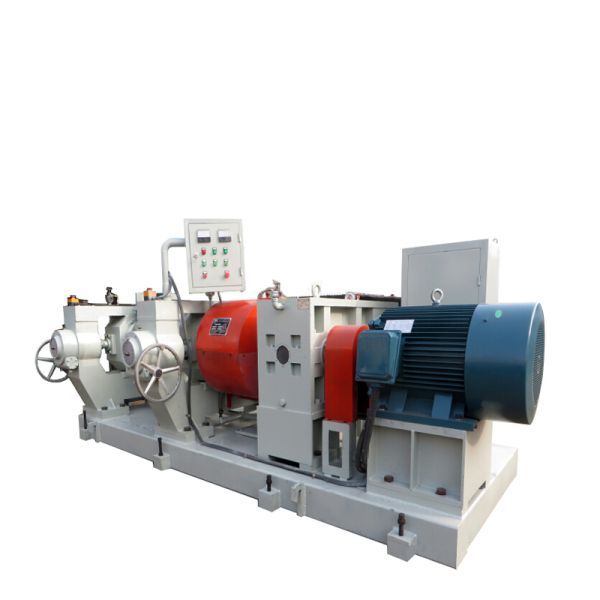

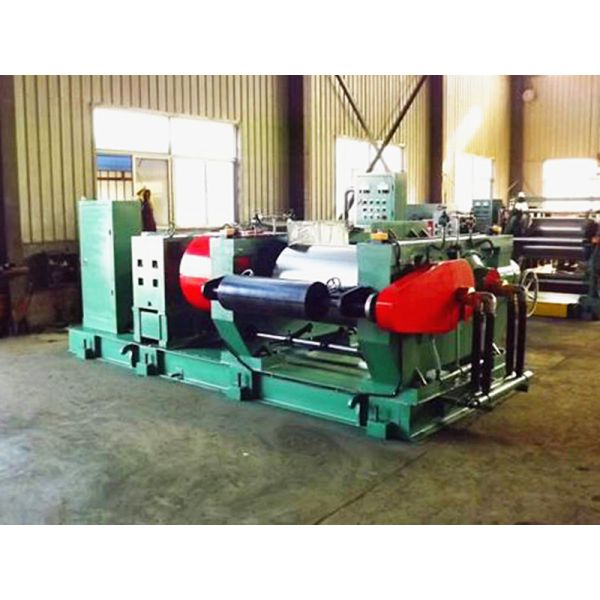

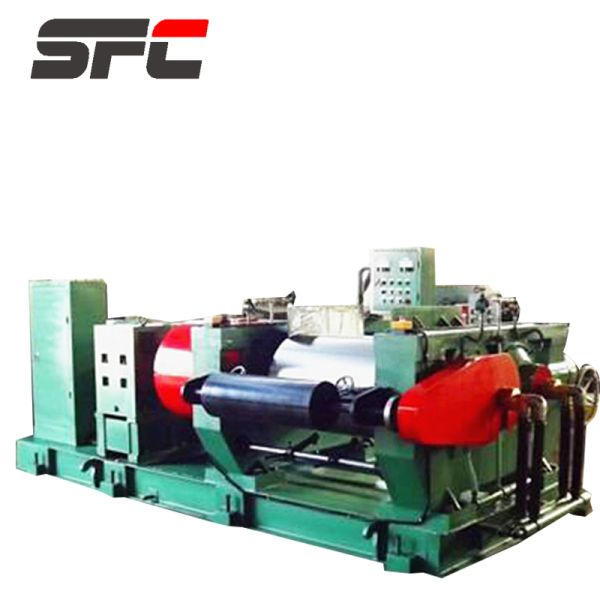

Reclaimed Rubber Refiner Machine / Tire Reclaimed Rubber Refining Mill
Reclaimed Rubber Refining Machine with Overload Protection. Specialized refining mill engineered for reclaimed rubber production, featuring high adaptability, superior output quality, and excellent energy efficiency with low noise operation.
Technical Specifications
Model XKJ-450
Certification CCC, CE, ISO
Voltage 380V
Structure Horizontal
Reducer Hard-Tooth Reducer
Origin China (Mainland)
Production Capacity 50 Sets/Month
Key Features
  • Complete base design for easy installation with right or left way transmission options
  • Chilled cast iron rolls with hardened, wear-resistant surfaces and uniform temperature distribution
  • Overload protection system to prevent component damage during excessive loads
  • Emergency stop mechanism for immediate shutdown during critical situations
  • Integrated scraper and wind-up unit for efficient rubber removal
Model Specifications
Parameter XKJ-450 XKJ-480
Front Roller Diameter (mm) 450 480
Rear Roller Diameter (mm) 510 612
Roller Working Length (mm) 900 915-1000
Front Roller Linear Speed (m/min) 28.646 32.8
Front/Rear Rolls Friction Ratio Customizable Customizable
Main Motor Power (KW) 55 55-90
Dimensions L*W*H (mm) 4500*2100*1950 4850*2100*1950
Production Process Flow
Rubber Powder → Dynamic Desulfurization Tank → Rubber Mixing Machine → Rubber Sheet → Reclaim Rubber Refining Mill → Reclaim Rubber
