Automatic Grade Rubber Band Extrusion Line with CE Certification and 110L Mixing Chamber
Automatic Grade Rubber Band Extrusion Line with CE Certification and 110L Mixing Chamber
Automatic Grade Rubber Band Extrusion Line with CE Certification and 110L Mixing Chamber
Automatic Grade Rubber Band Extrusion Line with CE Certification and 110L Mixing Chamber
Automatic Grade Rubber Band Extrusion Line with CE Certification and 110L Mixing Chamber
Automatic Grade Rubber Band Extrusion Line with CE Certification and 110L Mixing Chamber
Automatic Grade Rubber Band Extrusion Line with CE Certification and 110L Mixing Chamber
Automatic Grade Rubber Band Extrusion Line with CE Certification and 110L Mixing Chamber
Automatic Grade Rubber Band Extrusion Line with CE Certification and 110L Mixing Chamber
Automatic Grade Rubber Band Extrusion Line with CE Certification and 110L Mixing Chamber
Specifications
Brand Name :
SFC
Model Number :
SJ-90
Certification :
CE, ISO
Place of Origin :
Qingdao, China
MOQ :
1 set
Price :
US$10,000.00-20,000.00
Payment Terms :
T/T,L/C
Description
Natural Rubber Band Extrusion Line / Rubber Band Making Machine
Basic Information
Model: SJ-90
Certification: CE, ISO
Condition: New
Customized: Available
Automatic Grade: Automatic
Structure: Vertical
Voltage: As per requirement
Weight: <50 Tons
Type: General Rubber Machinery
Power: 10~100kW
Service Life: ≥15 Years
Total Mixing Chamber Volume: 110L
Technical Support: Yes
Origin: Qingdao, China
Production Capacity: 10 Sets/Month
About Qingdao Shun Cheong Rubber Machinery
Located in Qingdao city, we are specialist manufacturers of rubber machinery committed to developing and researching advanced rubber processing equipment. Our company operates under ISO9001:2008 Quality Management System with advanced manufacturing equipment and comprehensive sales service.
Rubber Band Extrusion Production Line Components
No. Item Quantity (Set)
01 Rubber Bale Cutter 1
02 Rubber Kneader Machine 1

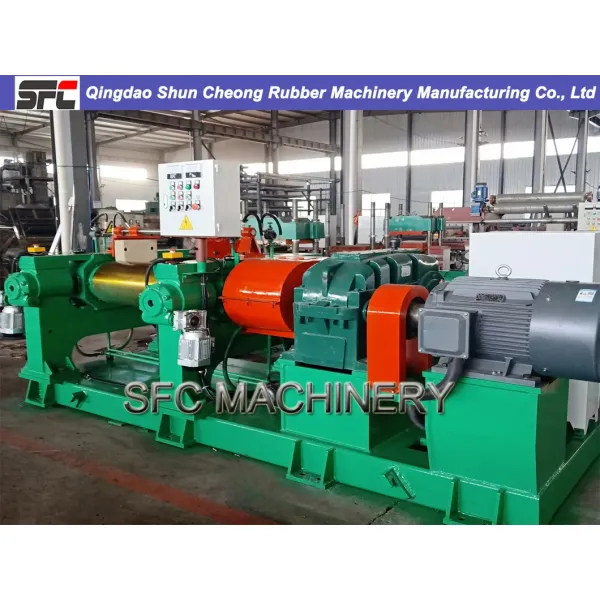

03 Rubber Mixing Mill 1
04 Hot Feeding Rubber Extruding Machine 1
05 Vulcanizing Tank 1
06 Rubber Band Cutting Machine
Automatic Grade Rubber Band Extrusion Line with CE Certification and 110L Mixing Chamber
Application
Hot feeding rubber extruder machine is used for shaping extrusion of various rubber products, rubber wrapping for wire and cable outer layers, and rubber filter extrusion applications.
Hot Feeding Extruder Specifications
Parameter/Type XJ-65 XJ-120 XJ-150 XJ-200
Screw Diameter (mm) 65 120 150 200
Length-diameter Ratio (L/D) 4 4.6 4.43 4.35
Screw Speed (r/min) 5.2~52 5.6~55.6 20~26 22.4~67.2
Production Capacity (kg/h) 50~80 100~450 700-1200 1500-2200
Stream Pressure (MPa) 0.2-0.3 0.2~0.4 0.6 0.6-0.8
Cooling Water Pressure (MPa) 0.2-0.3 0.2~0.4 0.2-0.3 0.2-0.3
Dimensions (L×W×H)(mm) 1750×550×1100 2427×750×1330 3411×814×1470 4564×1800×1750
Automatic Grade Rubber Band Extrusion Line with CE Certification and 110L Mixing Chamber
Rubber Kneader Specifications
Item Unit X(S)N-35x30 X(S)N-55x30 X(S)N-75x30 X(S)N-110x30 X(S)N-150x30 X(S)N-200x30
Total Mixing Chamber Volume (L) 75 125 170 250 325 440
Working Chamber Volume (L) 35 55 75 110 150 200
Driving Motor Power (KW) 55 75 110 185 220 280
Tilting Motor Power (KW) 2.2 2.2 4 5.5 11 11
Rotor Speed (front/rear) (r/min) 30/24.5 30/24.5 30/24.5 30/24.5 30/24.5 30/24.5
Compressed Air Pressure (m³/min) ≥0.9 ≥1.0 ≥1.0 ≥1.5 ≥2.0 ≥4.0
Cooling Water Pressure (MPa) 0.3~0.4 0.3~0.4 0.3~0.4 0.3~0.4 0.3~0.4 0.3~0.4
Heating Steam Pressure (MPa) 0.5~0.8 0.5~0.8 0.5~0.8 0.5~0.8 0.5~0.8 0.5~0.8
Dimensions (L x W x H) (mm) 3200x1900x2950 3230x1927x2958 3325x2615x3150 4075x2712x3580 4250x2750x4106 4250x3400x4215
Gross Weight (t) ~6.3 ~7.1 ~9.5 ~14.9 ~19.5 ~22.5
Automatic Grade Rubber Band Extrusion Line with CE Certification and 110L Mixing Chamber Automatic Grade Rubber Band Extrusion Line with CE Certification and 110L Mixing Chamber

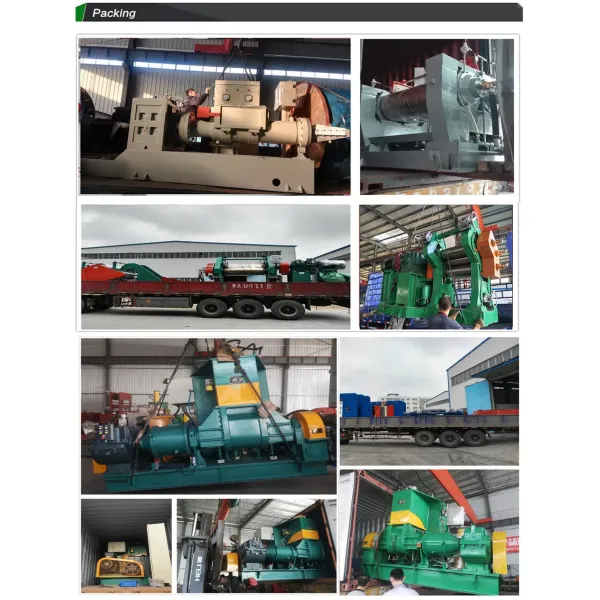

Packaging & Delivery
Equipment is painted before delivery and wrapped with stretch film to protect surface finish. Wooden packaging is customizable. Key components like electronic control boxes are protected with shockproof materials and packed in wooden cases.
Automatic Grade Rubber Band Extrusion Line with CE Certification and 110L Mixing Chamber Automatic Grade Rubber Band Extrusion Line with CE Certification and 110L Mixing Chamber Automatic Grade Rubber Band Extrusion Line with CE Certification and 110L Mixing Chamber
Our Product Range
Mixing Equipment: Rubber Kneader, Two Roll Mill, Rubber Sheeting Mill, Rubber Refining Mill, Rubber Crusher
Curing Equipment: Pillar/Frame Type Plate Vulcanizing Press, Duplex Curing Press, Rubber Tiles Vulcanizing Press, Jaw Vulcanizing Press Machine, Large Plate Vulcanizing Machine, Automatic Plate Vulcanizing Molding Machine
Extruding Equipment: Hot Feed Extruder, Rubber Strainer, EPDM Rubber Extrusion & Vulcanizing Line
Calender Equipment: Two Roll Calender, Three Roll Calender, Four Roll Calender, Inner Liner & Rubber Calender Line
Waste Tires Recycling Equipment: Semi-automatic and Full-automatic Waste Tires Recycling Lines, Fine Rubber Powder Pulverizer
Other Equipment: Reclaimed Rubber Production Line, Batch-Off Cooler, Conveyor Belt Splicing Press
Frequently Asked Questions
1. What does your factory do regarding quality control?
We implement comprehensive quality control throughout production. Every machine is fully assembled and thoroughly tested before shipment.
2. What's the machine quality guarantee?
Quality guarantee is one year. We use world-famous brand components to ensure optimal machine performance.
3. Are you able to provide overseas installation and commissioning?
Yes, we offer overseas service and technical support. Installation costs are covered by the customer. Small machines take 2-3 days, production lines about 30 days.
4. How can I trust you to deliver the right machine?
We deliver exactly as discussed and confirmed in orders. Our company culture emphasizes innovation, quality, integrity and efficiency, with proven partnerships worldwide.
5. How to visit our factory?
We are located in Qingdao City, Shandong province, China. We provide airport pickup service from Qingdao Liuting Airport.
Our Services
  • Custom machine design with engineering drawings for customer confirmation
  • Production progress photos sent to customers for tracking
  • Complete documentation including packing list, commercial invoice, and bill of lading
  • Free technical documentation: foundation drawings, installation guides, user manuals, maintenance guides, and part drawings
  • Overseas engineer services and operator training
Automatic Grade Rubber Band Extrusion Line with CE Certification and 110L Mixing Chamber
