100 Ton Pressure PLC Control Vertical Structure Rubber Vulcanizing Press Plate Vulcanizing Machine
100 Ton Pressure PLC Control Vertical Structure Rubber Vulcanizing Press Plate Vulcanizing Machine
100 Ton Pressure PLC Control Vertical Structure Rubber Vulcanizing Press Plate Vulcanizing Machine
100 Ton Pressure PLC Control Vertical Structure Rubber Vulcanizing Press Plate Vulcanizing Machine
100 Ton Pressure PLC Control Vertical Structure Rubber Vulcanizing Press Plate Vulcanizing Machine
100 Ton Pressure PLC Control Vertical Structure Rubber Vulcanizing Press Plate Vulcanizing Machine
100 Ton Pressure PLC Control Vertical Structure Rubber Vulcanizing Press Plate Vulcanizing Machine
100 Ton Pressure PLC Control Vertical Structure Rubber Vulcanizing Press Plate Vulcanizing Machine
100 Ton Pressure PLC Control Vertical Structure Rubber Vulcanizing Press Plate Vulcanizing Machine
100 Ton Pressure PLC Control Vertical Structure Rubber Vulcanizing Press Plate Vulcanizing Machine
100 Ton Pressure PLC Control Vertical Structure Rubber Vulcanizing Press Plate Vulcanizing Machine
100 Ton Pressure PLC Control Vertical Structure Rubber Vulcanizing Press Plate Vulcanizing Machine
Specifications
MOQ :
1 set
Size :
Customized
Packaging Details :
No Packing or as The Customer's Request
Cylinder :
Cast steel
Plate Daylight :
300mm
Heating Type :
Electrical or Oil or Steam
Control :
PLC
Voltage :
as Your Requirement
Supply Ability :
60set/Month
Plate Material :
45# Steel
Control Mode :
PLC automatic control
Payment Terms :
T/T,L/C
Certification :
CE, ISO
Place of Origin :
Qingdao, China
Price :
US$5,000.00-8,000.00
Model Number :
XLB-D400X400
Application :
Rubber Molding and Vulcanization
Delivery Time :
25-35 days
Layer No :
customized
Brand Name :
SFC
Description
Rubber Vulcanizing Press, Plate Vulcanizing Press
Product Description

This rubber vulcanizing press is primarily used for vulcanizing various rubber products. The plunger rises under working fluid pressure and descends (opening the hot plate) through the combined weight of the hot plate, platform, and plunger itself, allowing working fluid to return to the oil storage tank. The integrated oil pump serves as the machine's power source, supplying pressurized working fluid. Through control valve operation into the cylinder, the control handle positions determine whether the plate vulcanizing press plunger rises or falls.

100 Ton Pressure PLC Control Vertical Structure Rubber Vulcanizing Press Plate Vulcanizing Machine 100 Ton Pressure PLC Control Vertical Structure Rubber Vulcanizing Press Plate Vulcanizing Machine 100 Ton Pressure PLC Control Vertical Structure Rubber Vulcanizing Press Plate Vulcanizing Machine
Product Features
  • Working layer number can be customized according to requirements
  • Optional model pulling and pushing device to reduce work intensity
  • Multiple control options: Hand control, electrical control, and PLC control
100 Ton Pressure PLC Control Vertical Structure Rubber Vulcanizing Press Plate Vulcanizing Machine 100 Ton Pressure PLC Control Vertical Structure Rubber Vulcanizing Press Plate Vulcanizing Machine
Product Parameters
Parameter Type XLB-350*350*1/4 XLB-400*400*1/4 XLB-500*500*1/4 XLB-600*600*1/4 XLB-700*700*1/4 XLB-750*850*1/4 XLB-900*900*2Q
Total Pressure (MN) 0.25 0.5 0.63 1.00 1.20 1.60 2.00
Plate Distance (mm) 125 125 125 125 125 200 300
Working Layer No. 1-4 1-4 1-4 1-4 1-4 1-4 2
Unit Area Pressure of Hot Plate (Mpa) 2.04 3.13 2.52 2.77 2.45 2.51 2.47
Plunger Stroke (mm) 250 250 250 250/400 250 400 400
Heating Mode Electricity Electricity/Stream Electricity/Stream Electricity/Stream Stream Electricity/Stream Stream
Motor Power (KW) 2.2 2.2 2.2 2.2 2.2 3 5.5
Size (L*W*H) (mm) 1400*480*1380 1600*500*1480 1750*600*1540 1880*720*1680 2000*850*1750 2250*1200*2200 1400*900*2400

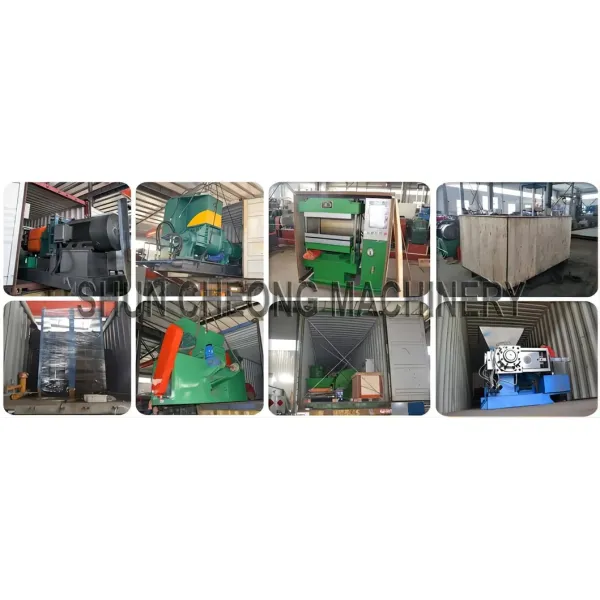

Packaging & Shipping

Equipment is painted before delivery and wrapped with stretch film to prevent surface paint damage. Custom wooden packaging is available. Key components, including electronic control boxes, are protected with shockproof materials and packed in wooden cases.

100 Ton Pressure PLC Control Vertical Structure Rubber Vulcanizing Press Plate Vulcanizing Machine
Frequently Asked Questions
What does your factory do regarding quality control?

We implement comprehensive quality control throughout production. Every machine is fully assembled and carefully tested before shipment.

What's the machine quality guarantee?

One-year quality guarantee. We use world-famous brand components to ensure optimal machine performance.

Are you able to give installation and commissioning overseas? How long will it take?

Yes, we provide overseas service and technical support (customer covers installation costs). Small machines take 2-3 days; large production lines take approximately 30 days.

How can I trust you to deliver the right machine as I ordered?

We deliver exactly as discussed and confirmed in orders. Our company culture emphasizes innovation, quality, integrity, and efficiency, with proven collaborations with world-renowned rubber manufacturers.

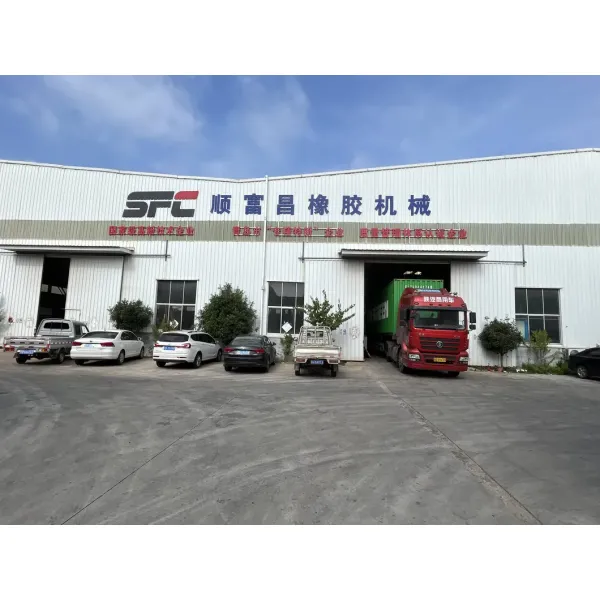

How can we visit your facility?

We're located in Qingdao City, Shandong province, China (Qingdao Jiaodong Airport). We provide airport pickup service.

Before leaving the factory, each plate vulcanizing press undergoes 24-hour pressure testing to verify hydro-cylinder bearing capacity, piston stroke, and ensure no oil leakage or seepage, preventing quality issues.

100 Ton Pressure PLC Control Vertical Structure Rubber Vulcanizing Press Plate Vulcanizing Machine
Our Service And Certifications
100 Ton Pressure PLC Control Vertical Structure Rubber Vulcanizing Press Plate Vulcanizing Machine 100 Ton Pressure PLC Control Vertical Structure Rubber Vulcanizing Press Plate Vulcanizing Machine
  • Custom machine design with confirmation drawings to optimize your costs
  • Production progress photos provided for tracking
  • Complete documentation including packing list, commercial invoice, and bill of lading
  • Free technical support: foundation DWG, installation drawings, user guides, maintenance manuals, and part drawings
  • Overseas engineer services and operator training
