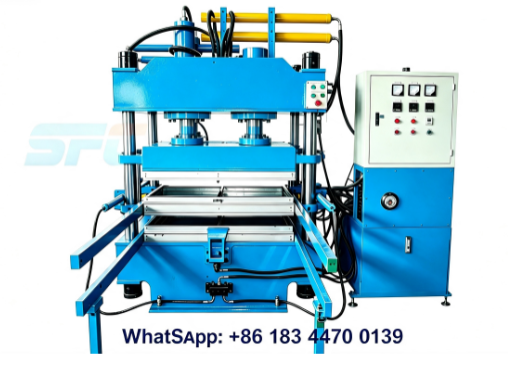

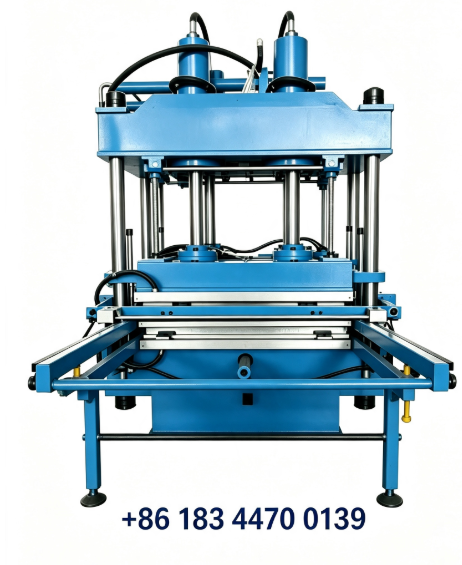

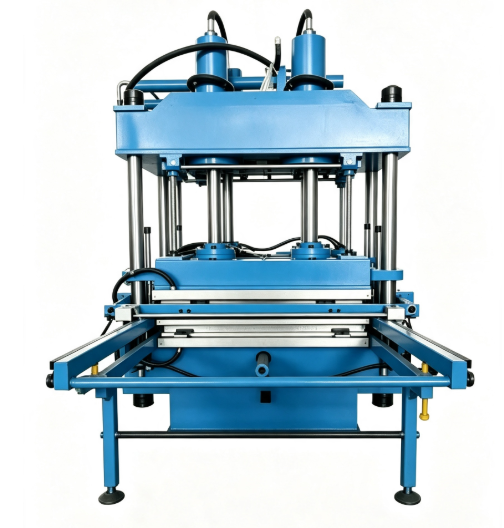

Rubber Vulcanizing Press Machine for Recycling Paving Tiles
Rubber Vulcanizing Press Machine for Recycling Paving Tiles
Rubber Vulcanizing Press Machine for Recycling Paving Tiles
Rubber Vulcanizing Press Machine for Recycling Paving Tiles
Rubber Vulcanizing Press Machine for Recycling Paving Tiles
Rubber Vulcanizing Press Machine for Recycling Paving Tiles
Rubber Vulcanizing Press Machine for Recycling Paving Tiles
Rubber Vulcanizing Press Machine for Recycling Paving Tiles
Specifications
Brand Name :
SFC
Certification :
CE, ISO
Place of Origin :
Qingdao, China
MOQ :
1 set
Price :
US$2,300.00-3,300.00
Payment Terms :
T/T,L/C
Supply Ability :
150 set/year
Delivery Time :
25-35 days
Description
Rubber Interlocking Tiles Vulcanization Press Machine
Professional machinery for curing rubber tiles and mats using recycled rubber materials.
Product Specifications
Model XLB
Certification CE, ISO, SGS
Structure Horizontal
Working Layers 2 or 4 Layer
Platen Size 1200*1200 mm
Automatic Grade Semiautomatic
Production Capacity 50 Sets/Year
Origin Qingdao, China
Rubber Vulcanizing Press Machine for Recycling Paving Tiles Rubber Vulcanizing Press Machine for Recycling Paving Tiles Rubber Vulcanizing Press Machine for Recycling Paving Tiles
Key Features
  • Column type construction with hydraulic cylinder, piston, column, hot plate, track, and mould
  • Manual push-out device with two sets of moulds for high production efficiency
  • Adjustable mould thickness from 20mm to 75mm
  • Optional mixer equipment available
  • High-quality Q-235 carbon steel construction with shot blasting treatment
  • Professional welding techniques including carbon dioxide gas shielded welding
  • Chilled cast iron piston with polishing and grinding treatment
  • Precise temperature control with ±0.1°C tolerance
  • PLC controlled hydraulic system with pressure sensor
Technical Specifications
Type XLB-D550*550*2 XLB-D660*660*2 XLB-D1200*1200*2
Total Pressure (MN) 0.50 1.00 3.15
Plate Size (mm) 550 660*660 1200*1200
Working Layers 4 2 2(4)
Piston Stroke (mm) 400 250 250(500)
Motor Power (kw) 3 3 5.5
Weight (kg) 3600 3500 9500
Rubber Vulcanizing Press Machine for Recycling Paving Tiles Rubber Vulcanizing Press Machine for Recycling Paving Tiles Rubber Vulcanizing Press Machine for Recycling Paving Tiles
Heating & Temperature Control
Steam, oil, or electric heating options available. Temperature range: 0-300°C (extendable to 400°C). Advanced water cooling system available.
Custom Manufacturing
We design and manufacture various kinds of non-standard rubber machinery according to client requirements.
Rubber Vulcanizing Press Machine for Recycling Paving Tiles Rubber Vulcanizing Press Machine for Recycling Paving Tiles Rubber Vulcanizing Press Machine for Recycling Paving Tiles Rubber Vulcanizing Press Machine for Recycling Paving Tiles
Company Capabilities
Professional R&D institution using CAD-aided design. Our machines are exported worldwide including United States, Chile, Europe, Africa, Southeast Asia, and Middle East.
Product Range
  • Mixing Equipment: Rubber Kneader, Two Roll Mill, Rubber Sheeting Mill, Rubber Refining Mill, Rubber Crusher
  • Curing Equipment: Pillar/Frame Type Plate Vulcanizing Press, Duplex Curing Press, Jaw Vulcanizing Press Machine, Large Plate Vulcanizing Machine
  • Extruding Equipment: Hot Feed Extruder, Rubber Strainer, EPDM Rubber Extrusion & Vulcanizing Line
  • Calender Equipment: Two Roll Calender, Three Roll Calender, Four Roll Calender, Inner Liner & Rubber Calender Line
  • Waste Tires Recycling Equipment: Semi-automatic and Full-automatic Waste Tires Recycling Lines
  • Other Equipment: Reclaimed Rubber Production Line, Batch-Off Cooler, Conveyor Belt Splicing Press
