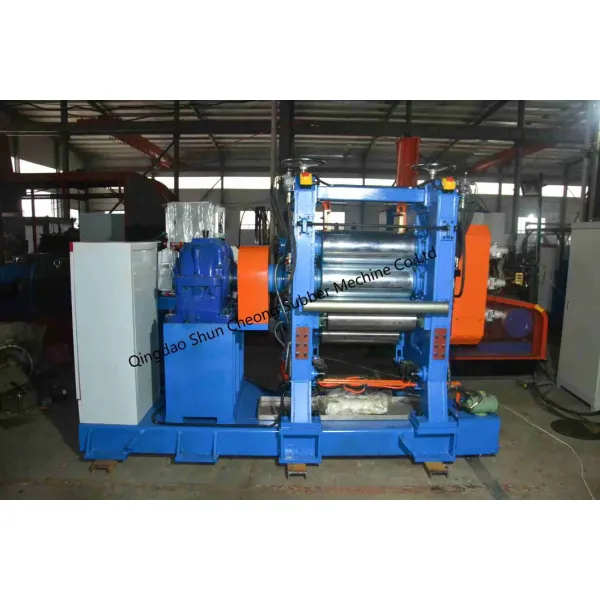

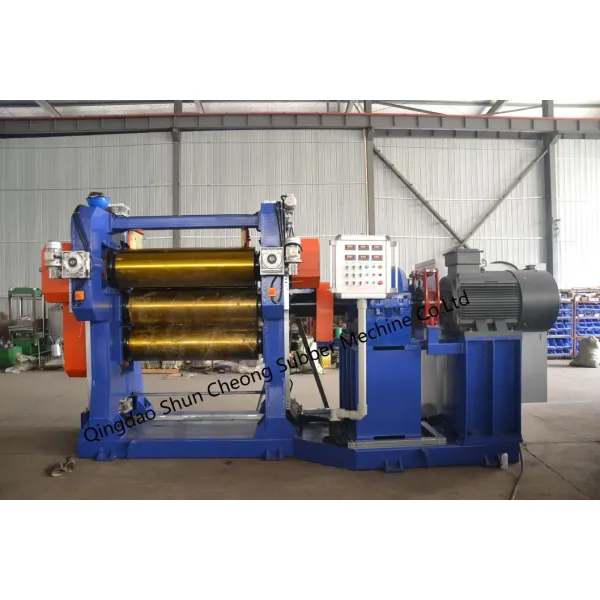

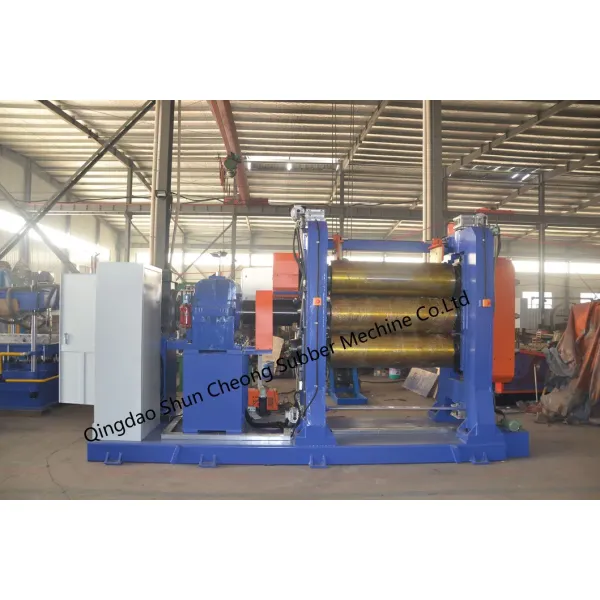

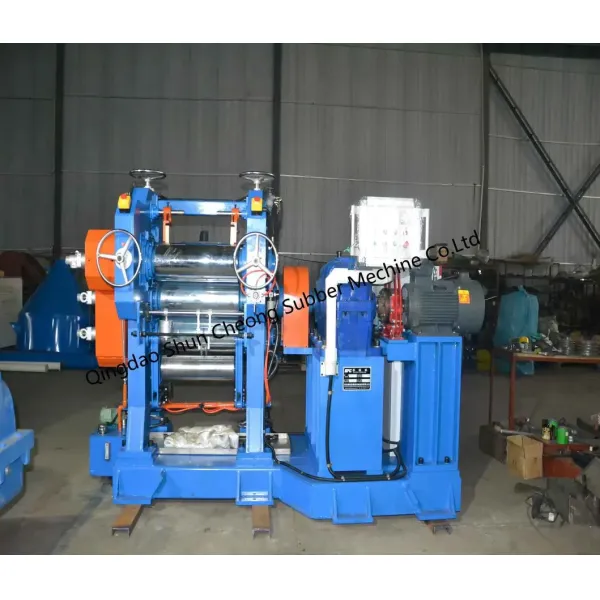

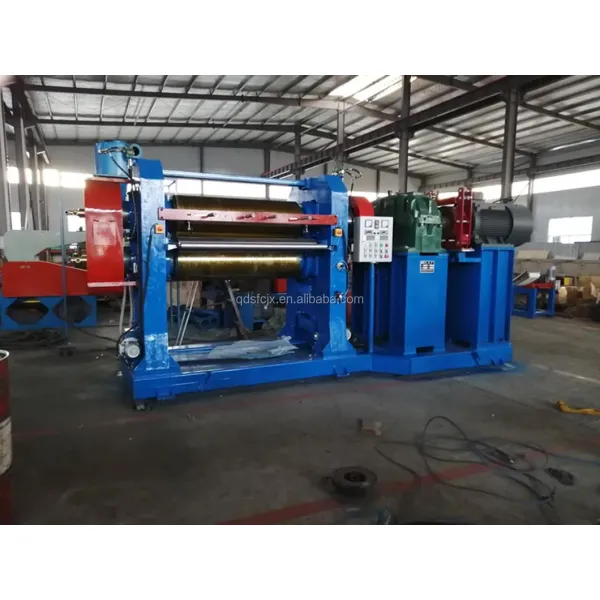

Long Life Four Roll Rubber Sheet Calendering Plant
Long Life Four Roll Rubber Sheet Calendering Plant
Long Life Four Roll Rubber Sheet Calendering Plant
Long Life Four Roll Rubber Sheet Calendering Plant
Long Life Four Roll Rubber Sheet Calendering Plant
Long Life Four Roll Rubber Sheet Calendering Plant
Long Life Four Roll Rubber Sheet Calendering Plant
Long Life Four Roll Rubber Sheet Calendering Plant
Specifications
Brand Name :
SFC
Certification :
CE, ISO
Place of Origin :
Qingdao, China
MOQ :
1 set
Price :
US$12,000.00-56,000.00
Payment Terms :
T/T,L/C
Supply Ability :
150 set/year
Delivery Time :
25-35 days
Description
Four Roll Rubber Sheet Calendering Plant
Basic Information
Model: XY (Customized)
Automatic Grade: Automatic
Structure: Vertical
Type: Rubber Sheet Calendering Machine
Roll Diameter: 360mm
Roll Working Length: 1120mm
Motor Power: 55Kw
Certification: CE, ISO
Trademark: SFC
Origin: China
Product Overview
Long Life Four Roll Rubber Sheet Calendering Plant designed for precision rubber processing applications.
Long Life Four Roll Rubber Sheet Calendering Plant
Applications
Rubberizing and fractioning of textile material, rubberizing of wirecord fabric, sheet and counter plate (embossed) of rubber material, separation of fabric and film, as well as joint of multi-layer laminate film.
Design Features
Comprises roller, rack, backplane, adjustment device, transmission system, roller temperature control device, security device, and lubricating system.
Key Features
  • Rollers made of chilled cast iron alloys with high hardness, wear-resistant surfaces and durable lifespan
  • Temperature control via steam, cooling water, or heat-conducting oil circulation
  • Roll spacing adjustable manually or electrically
  • Roller bearings lubrication compatible with drier oil or dilute oil
Technical Specifications
Parameter/Type XY-4I 630
XY-4L 630
XY-4F 630		 XY-4F1120 XY-4F1400 XY-4F1500 XY-4F1730 XY-4F2130 XY-4F2430
Roll Diameter (mm) 230 360 400 450 610 710 810
Roll Working Length (mm) 630 1120 1400 1500 1730 2130 2430
Middle Roll Speed (r/min) 2.1-21 2-20.1 3-26.3 2.5-25 8-50 8-50 2-20
Adjusting Nip Range (mm) 0-10 0-10 0-10 0-10 20 0-20 0.5-25
Min. Product Thickness (mm) 0.2 0.2 0.2 0.2 0.15 0.15 0.1
Calendering Product Width (mm) 500 920 1200 1250 1500 1900 2150
Motor Power (KW) 15 55 75 110 185 185 280
Dimension (L*W*H) (mm) 3800x930x1890 3300*940*2350 6600*162*2490 6500*1970*2740 6580*2460*2920 7010*4150*3730 9800*4260*5720
Long Life Four Roll Rubber Sheet Calendering Plant Long Life Four Roll Rubber Sheet Calendering Plant Long Life Four Roll Rubber Sheet Calendering Plant Long Life Four Roll Rubber Sheet Calendering Plant

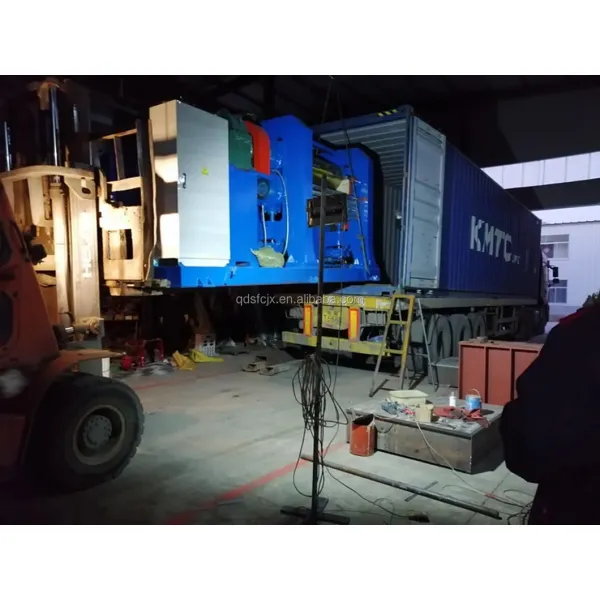

Packaging & Delivery
Equipment is painted before delivery and wrapped with stretch film to protect surface finish. Wooden packaging is customizable. Key components including electronic control boxes are protected with shockproof materials and packed in wooden cases.
Long Life Four Roll Rubber Sheet Calendering Plant
Frequently Asked Questions
What does your factory do regarding quality control?
We implement comprehensive quality control throughout production. Every machine undergoes full assembly and thorough testing before shipment.
What's the machine quality guarantee?
One-year quality guarantee. We use world-renowned brand components to ensure optimal machine performance.
Are you able to provide installation and commissioning overseas?
Yes, we offer overseas service and technical support. Installation costs are covered by the customer. Small machines typically require 2-3 days; larger production lines about 30 days.
How can I trust you to deliver the right machine as ordered?
We guarantee delivery of high-quality machines as confirmed in orders. Our company culture emphasizes innovation, quality, integrity, and efficiency, with established partnerships with renowned rubber manufacturers.
How can we visit your facility?
We are located in Qingdao City, Shandong province, China, near Qingdao Jiaodong Airport. We provide airport pickup services for visiting clients.
Long Life Four Roll Rubber Sheet Calendering Plant Long Life Four Roll Rubber Sheet Calendering Plant
