Factory Direct Sales Rubber Tile Vulcanizing Press with 4 Working Layers and 400X400X45 mm Plate Size Featuring Manual Push-Out Device
Factory Direct Sales Rubber Tile Vulcanizing Press with 4 Working Layers and 400X400X45 mm Plate Size Featuring Manual Push-Out Device
Factory Direct Sales Rubber Tile Vulcanizing Press with 4 Working Layers and 400X400X45 mm Plate Size Featuring Manual Push-Out Device
Factory Direct Sales Rubber Tile Vulcanizing Press with 4 Working Layers and 400X400X45 mm Plate Size Featuring Manual Push-Out Device
Factory Direct Sales Rubber Tile Vulcanizing Press with 4 Working Layers and 400X400X45 mm Plate Size Featuring Manual Push-Out Device
Factory Direct Sales Rubber Tile Vulcanizing Press with 4 Working Layers and 400X400X45 mm Plate Size Featuring Manual Push-Out Device
Factory Direct Sales Rubber Tile Vulcanizing Press with 4 Working Layers and 400X400X45 mm Plate Size Featuring Manual Push-Out Device
Factory Direct Sales Rubber Tile Vulcanizing Press with 4 Working Layers and 400X400X45 mm Plate Size Featuring Manual Push-Out Device
Specifications
Brand Name :
SFC
Certification :
CE, ISO
Place of Origin :
Qingdao, China
MOQ :
1 set
Price :
US$4,800.00-20,000.00
Payment Terms :
T/T,L/C
Supply Ability :
150 set/year
Delivery Time :
25-35 days
Description
Factory Direct Sales Rubber Tile Vulcanizing Press
Automatic horizontal vulcanizing press designed for rubber tile and brick production in the rubber recycling industry.
Product Specifications
Basic Information
Model: XLB-400X400X4
Certifications: CE, ISO, SGS
Condition: New
Automatic Grade: Automatic
Structure: Horizontal
Total Pressure: 0.5 MN
Plate Size: 400*400*45 mm
Plate Clearance: 125 mm
Daylight Number: 4
Overall Size: 1400*550*1500 mm
Production Capacity: 50 Sets/Year
Export Markets: Global
Key Features
  • ISO 9001:2015, CE, and SGS certified
  • Oil-free operation prevents contamination
  • Heat-resistant rubber processing capability

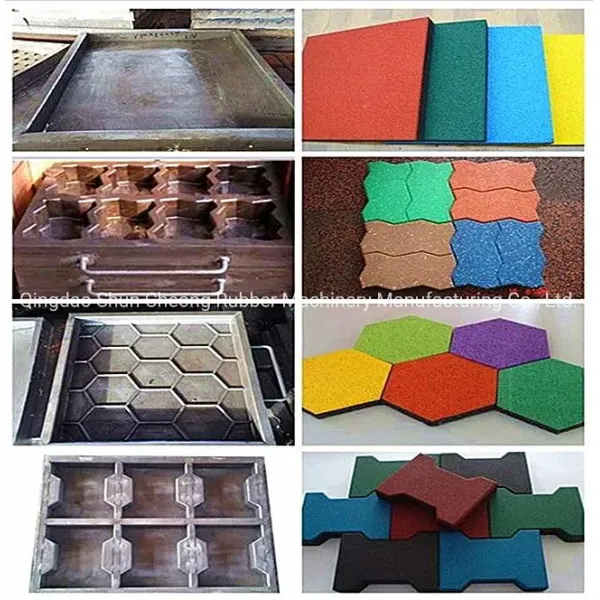

  • Designed for rubber bricks and tiles production
  • Customizable tonnage and size according to customer requirements
  • One-year quality guarantee
  • Manual push-out device included
  • Compatible with molds from 20mm to 75mm thickness

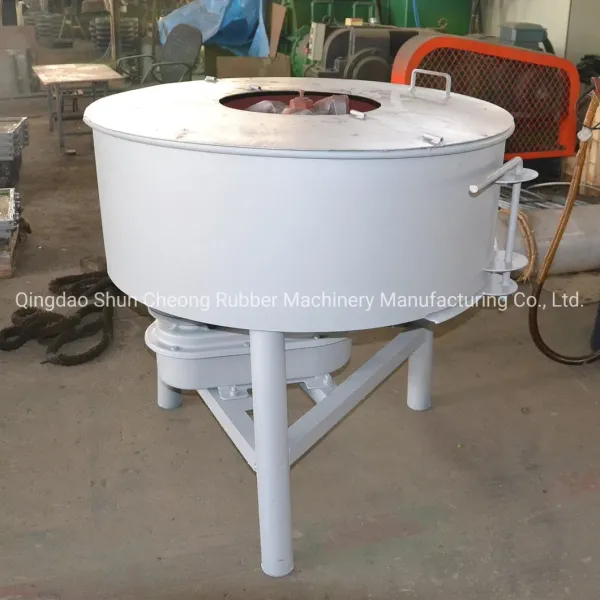

  • Optional rubber mixer available
  • Compact design for efficient shipping (8m³ flooring area)
  • Custom non-standard designs available

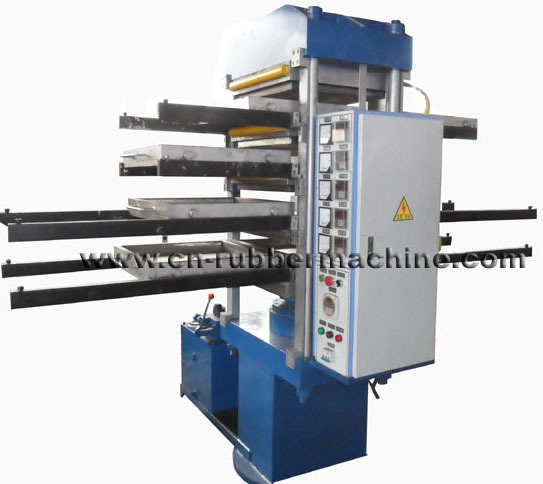

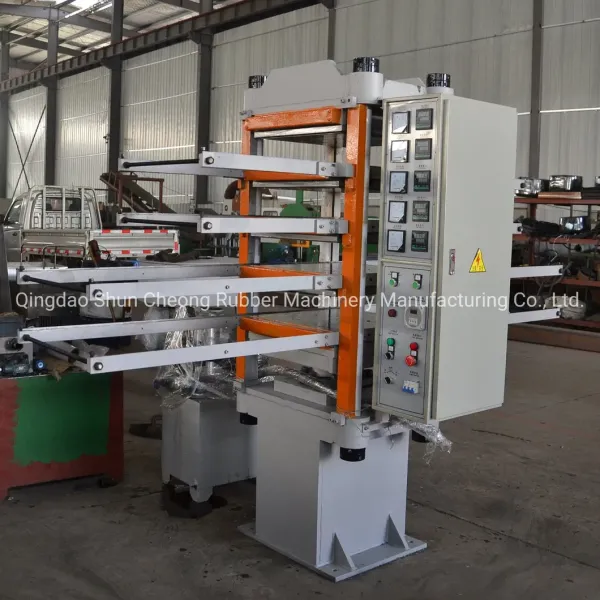

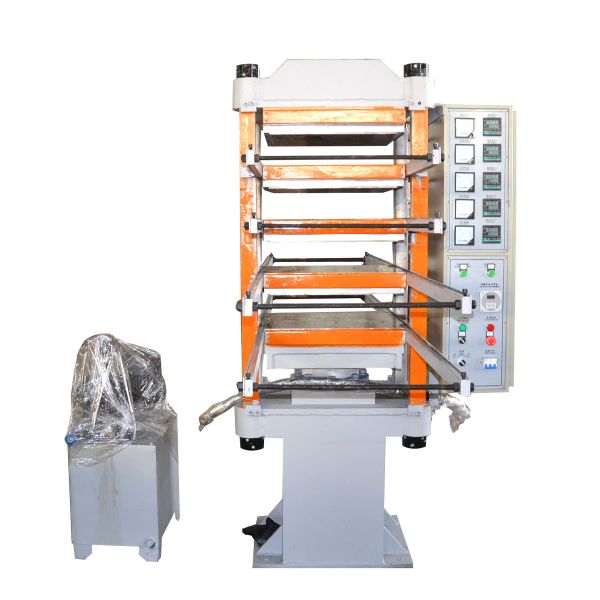

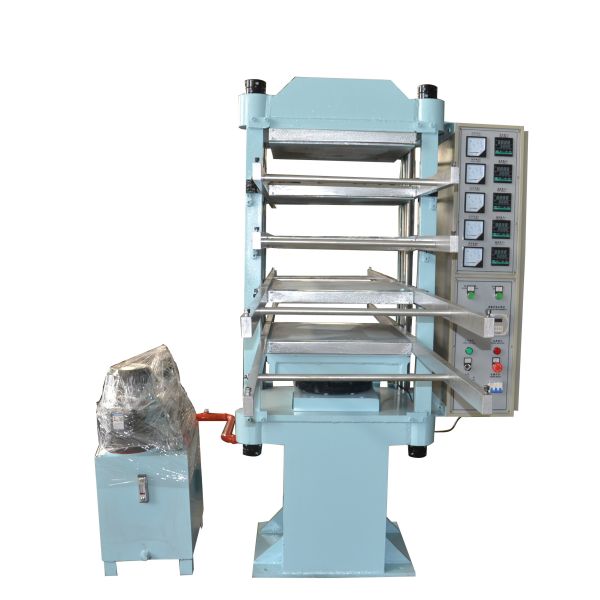

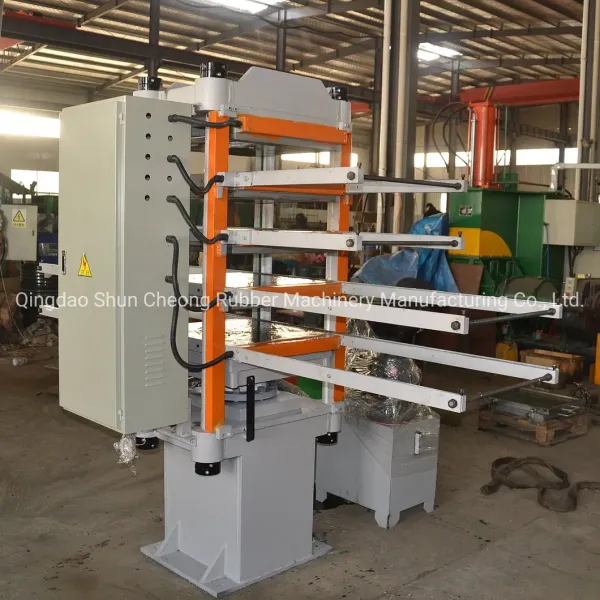

Product Images
Factory Direct Sales Rubber Tile Vulcanizing Press with 4 Working Layers and 400X400X45 mm Plate Size Featuring Manual Push-Out Device Factory Direct Sales Rubber Tile Vulcanizing Press with 4 Working Layers and 400X400X45 mm Plate Size Featuring Manual Push-Out Device Factory Direct Sales Rubber Tile Vulcanizing Press with 4 Working Layers and 400X400X45 mm Plate Size Featuring Manual Push-Out Device Factory Direct Sales Rubber Tile Vulcanizing Press with 4 Working Layers and 400X400X45 mm Plate Size Featuring Manual Push-Out Device
Technical Specifications Table
Model XLB-350X350X1(2) XLB-400X400X2(4) XLB-550X550X2(4) XLB-650X650X2(4) XLB-750X850X2(4)
Nominal pressure (MN) 0.25 0.50 0.60/0.80 1.00 1.60
Plate size (mm) 350*350 400*400 550*550 650*650 750*850
Plate clearance (mm) 125 125 125 125 125
Working layer number 1(2) 2(4) 2(4) 2(4) 2(4)
Plate unit pressure (Mpa) 1.56 3.1 3.2 2.8 2.5
Length (mm) 1200 1400 1650 1410 1900
Width (mm) 400 550 600 680 950
Height (mm) 1300 1500 1600 1750 2000
Weight (kg) 800 1300 1500 3500 6500(7500)
Company Profile
Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd is a high-tech backbone enterprise specializing in rubber machinery production, located in Huangdao New District, Qingdao City. The company holds ISO9001:2015 quality management system certification, European Union CE certification, and Switzerland SGS certification.
Industry Coverage
Tire manufacturing, rubber conveyor belt production, various rubber products, tire refurbishing manufacturing, and waste tire recycling.
Main Equipment
Rubber Kneader, Rubber Mixing Machine, Rubber Vulcanizing Press, Batch Off Cooler, Rubber Calender, Waste Tire Crusher, Rubber Extruder, Rubber Strainer, and more.
Global Reach
Products exported to over 50 countries including UK, Switzerland, USA, Germany, Brazil, Singapore, Malaysia, India, Russia, and throughout Central Asia.
Quality Commitment
  • Strict quality inspection for all components before storage
  • Comprehensive pre-shipment testing including 24-hour pressure testing at 1.25* rated pressure
  • Free technical support for all products
  • 3-year warranty on main parts, 1-year on wearing parts
  • Rapid response service with on-site technical support when needed
Certifications
Factory Direct Sales Rubber Tile Vulcanizing Press with 4 Working Layers and 400X400X45 mm Plate Size Featuring Manual Push-Out Device Factory Direct Sales Rubber Tile Vulcanizing Press with 4 Working Layers and 400X400X45 mm Plate Size Featuring Manual Push-Out Device Factory Direct Sales Rubber Tile Vulcanizing Press with 4 Working Layers and 400X400X45 mm Plate Size Featuring Manual Push-Out Device
Our Services
  • Custom machine design with engineering drawings for customer confirmation
  • Production progress photos for customer tracking
  • Complete shipping documentation (packing list, commercial invoice, bill of lading)
  • Free technical documentation (foundation DWG, installation drawings, user guides, maintenance manuals)
  • Overseas engineer service and operator training
Frequently Asked Questions
What does your factory do regarding quality control?
We implement comprehensive quality control throughout production. Every machine undergoes full assembly and rigorous testing before shipment.
What's the machine quality guarantee?
One-year quality guarantee. We use world-famous brand components to ensure optimal machine performance.
Are you able to give installation and commissioning overseas?
Yes, we provide overseas service and technical support. Small machines typically take 2-3 days, while large production lines require about 30 days.
How can I trust you to deliver the right machine?
Our company culture emphasizes innovation, quality, integrity, and efficiency. We have established partnerships with world-renowned rubber manufacturers and welcome factory visits.
How can we visit your factory?
We are located in Qingdao City, Shandong province, China, near Qingdao Jiaodong Airport. We provide airport pickup services for visiting customers.
