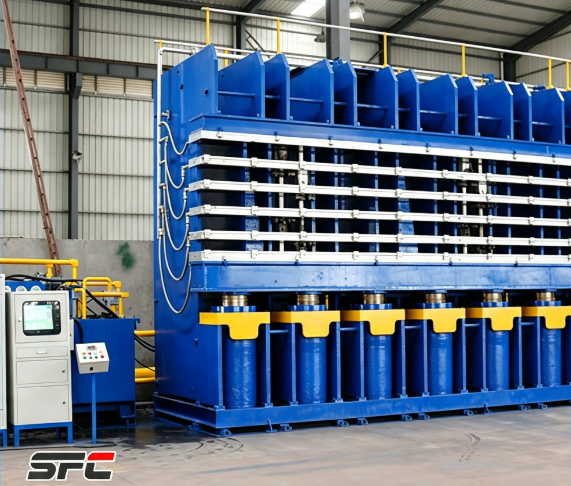

Tire Tread Vulcanizing Retreading Press with Oil or Steam Heating Automatic System and Low Energy Consumption
Tire Tread Vulcanizing Retreading Press with Oil or Steam Heating Automatic System and Low Energy Consumption
Tire Tread Vulcanizing Retreading Press with Oil or Steam Heating Automatic System and Low Energy Consumption
Tire Tread Vulcanizing Retreading Press with Oil or Steam Heating Automatic System and Low Energy Consumption
Tire Tread Vulcanizing Retreading Press with Oil or Steam Heating Automatic System and Low Energy Consumption
Tire Tread Vulcanizing Retreading Press with Oil or Steam Heating Automatic System and Low Energy Consumption
Tire Tread Vulcanizing Retreading Press with Oil or Steam Heating Automatic System and Low Energy Consumption
Tire Tread Vulcanizing Retreading Press with Oil or Steam Heating Automatic System and Low Energy Consumption
Tire Tread Vulcanizing Retreading Press with Oil or Steam Heating Automatic System and Low Energy Consumption
Tire Tread Vulcanizing Retreading Press with Oil or Steam Heating Automatic System and Low Energy Consumption
Specifications
Brand Name :
SFC
Model Number :
XLB
Certification :
CE, ISO
Place of Origin :
Qingdao, China
MOQ :
1 set
Price :
US$8,000.00-35,000.00
Payment Terms :
T/T,L/C
Supply Ability :
60set/Month
Delivery Time :
25-35 days
Packaging Details :
Safety Wood or Plywood Crates Packing
Description
Tire Tread Vulcanizing Retreading Press with Oil or Steam Heating
Basic Information
Model: XLB
Total Pressure: 10 MN
Daylight: 75 mm
Working Layer No.: 5
Transport Package: Standard Export Packages
Specification: CE1282, ISO9001:2008, SGS
Trademark: SFC
Origin: China
HS Code: 8477800000
Product Overview
Advanced tire tread vulcanizing retreading press designed for efficient tire retreading operations with oil or steam heating options.
Tire Tread Vulcanizing Retreading Press with Oil or Steam Heating Automatic System and Low Energy Consumption Tire Tread Vulcanizing Retreading Press with Oil or Steam Heating Automatic System and Low Energy Consumption Tire Tread Vulcanizing Retreading Press with Oil or Steam Heating Automatic System and Low Energy Consumption
Key Features
  • Low energy consumption
  • Convenient maintenance
  • High capacity with simple operation
  • Automatic system control
Technical Specifications
We can design various press models according to your specific requirements.
Model XLB-3000x1000x5 XLB-5500x360x5 XLB-5500x360x5 XLB-1100x420x5
Total Pressure (MN) 12 10 8 20
Daylight (mm) 140 75 75 75
Working Layer No. 5 5 5 5
Piston Stroke (mm) 500 375 375 375
Piston Diameter (mm) φ360 φ250 φ250 φ250
Hydraulic Cylinder No. 8 10 8 20
Working Hydraulic Pressure (Mpa) 14.7 20.4 20.4 20.4
Motor Power (KW) 29.5 21.5 7.5 40
Dimension (mm) 3720*3460*4120 7600*2700*3100 7600*2700*3100 15500*3400*4200
Structure Type Jaw Side-plate Side-plate Side-plate
Tire Tread Vulcanizing Retreading Press with Oil or Steam Heating Automatic System and Low Energy Consumption Tire Tread Vulcanizing Retreading Press with Oil or Steam Heating Automatic System and Low Energy Consumption
Advanced Features
  • Dual-action cylinders for fast mold open/close operation
  • Mass flow pre-fill valve for optimal performance
  • Automatic mold forward/backward movement
  • Automatic and manual switching control with power failure safety
  • Multiple layer number and table options available
  • Premium hydraulic components and electrical equipment for reliable performance
  • Automatic pressure compensation, exhaust, vulcanization digital display, and mold opening
  • Complete automated working cycle from mold pull-in to product pushing
  • Custom non-standard designs available upon request
Tire Tread Vulcanizing Retreading Press with Oil or Steam Heating Automatic System and Low Energy Consumption Tire Tread Vulcanizing Retreading Press with Oil or Steam Heating Automatic System and Low Energy Consumption
Frequently Asked Questions
What does your factory do regarding quality control?
We implement comprehensive quality control throughout production. Every machine is fully assembled and thoroughly tested before shipment.
What's the machine quality guarantee?
One-year quality guarantee. We use world-famous brand components to ensure optimal performance and reliability.
Are you able to give installation and commissioning overseas?
Yes, we provide overseas service and technical support. Small machines typically require 2-3 days installation, while production lines take approximately 30 days.
How can I trust you to deliver the right machine as I ordered?
We guarantee delivery of high-quality machines as confirmed in your order. Our company culture emphasizes innovation, quality, integrity, and efficiency.
How can we visit your facility?
We are located in Qingdao City, Shandong province, China, near Qingdao Jiaodong Airport. We provide airport pickup services for visiting clients.
Tire Tread Vulcanizing Retreading Press with Oil or Steam Heating Automatic System and Low Energy Consumption Tire Tread Vulcanizing Retreading Press with Oil or Steam Heating Automatic System and Low Energy Consumption
Our Services
  • Custom machine design with engineering drawings for customer confirmation
  • Production progress tracking with regular photo updates
  • Complete documentation including packing list, commercial invoice, and bill of lading
  • Free technical documentation: foundation DWG, installation drawings, user guides, maintenance manuals, and part drawings
  • Overseas engineer services and operator training
