Specifications
Brand Name :
SFC
Certification :
CE, ISO
Place of Origin :
Qingdao, China
MOQ :
1 set
Price :
US$20,000.00-80,000.00
Payment Terms :
T/T,L/C
Supply Ability :
120set/year
Delivery Time :
25-35 days
Description

Basic Info.

Model NO.
1200 x 830
Certification
CE, ISO
Condition
New
Customized
Customized
Automatic Grade
Automatic
Structure
Horizontal
Rating Voltage (V)
380V/660V
Power Frequency (Hz)
50Hz
Motor Power (Kw)
21.1
Applied Belt Width (mm)
1600
Type
General Rubber Machinery
Type of General Rubber Machinery
Conveyor Belts Joint Vulcanizing Machine
Type of Tire Machinery
Rubber Regeneration Machinery
Water Bag Material
Natural Rubber
Transport Package
Standard Export Packing
Specification
CE, ISO
Trademark
SFC
Origin
China
HS Code
8477800000
Production Capacity
200 Sets/Year

Product Description

Portable Type Conveyor Belt Splicing Curing Press Machine
Portable Conveyor Belt Splicing Machine with Automatic Temperature Control

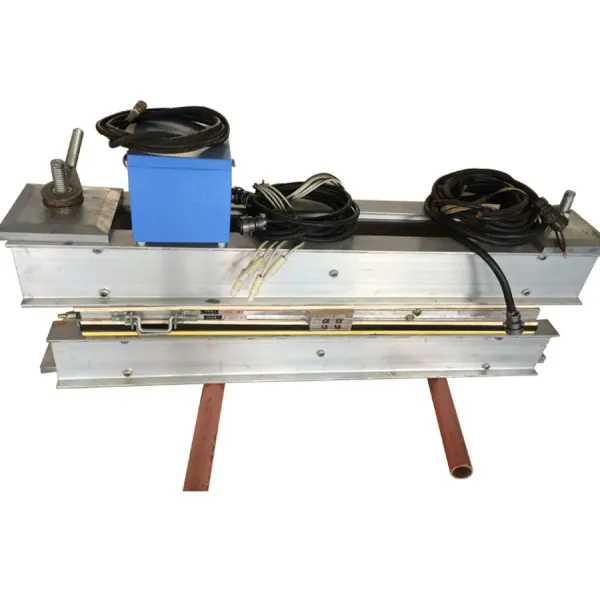

1. The rubber vulcanizing machine has light weight; About one person can move it. It consists of the following components: Rack / Pressure Bracket, fastening device, sizing block, screw, nut, gasket, high-pressure hose, hydraulic test pump, thermal baffle, on the heating plate, secondary cable, electric cabinet, cables, down the heating plate, Suppress water bag.

2. The material of main machine components made of aluminum alloy, light weight, easy installation and removal, easy to handle.

3. Suppress pressure water bladder (its function is increase pressure) technology has reached international advanced level, it has following characters:

(1)Light weight, it is the 1/4 weight of the ordinary.
(2)Large expansion amplitude.
(3)Uniform pressure and the pressure can reach 3.0MPa.
(4)No water leakage and long life.




4. The electric cabinet can automatic rise temperature, automatic control temperature and calculate time.

Conveyor Belt Jointing Press Machine, Rubber Belt Splice Machine

No.		 SPEC Rating Voltage (V) Power Frequency (HZ) Motor Power (KW) Applied Belt Width (mm)
1 ZLJ-650 380V/660V 50HZ 8.7 650
2 ZLJ-800 380V/660V 50HZ 10.6 800
3 ZLJ-1000 380V/660V 50HZ 13.5 1000
4 ZLJ-1200 380V/660V 50HZ 15.4 1200
5 ZLJ-1400 380V/660V 50HZ 18.2 1400
6 ZLJ-1600 380V/660V 50HZ 20.1 1600
7 ZLJ-1800 380V/660V 50HZ 22.1 1800
8 ZLJ-2000 380V/660V 50HZ 24.1 2000
9 ZLJ-2200 380V/660V 50HZ 27.1 2200
Portable Conveyor Belt Splicing Machine with Automatic Temperature Control
Portable Conveyor Belt Splicing Machine with Automatic Temperature Control
Portable Conveyor Belt Splicing Machine with Automatic Temperature Control
Portable Conveyor Belt Splicing Machine with Automatic Temperature Control


Packaging

Equipment painting completed before delivery, and then wrapped with stretch film, avoid rubbing the paint off the surface, wooden packaging can be customized, key parts, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in wooden cases.

FAQ

1. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment.

2. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.

3. Are you able to give installation and commissioning overseas?How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2~3 days. Big production line usually takes about 30 days.

4. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers.

If you come to our factory, we can show the user around us.

5. How can we go to your side?

We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao liuting airport. We will pick up you at the airport.

Our Services

♦ Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.

♦ In the process of production, we will take photos and send to customers for their track the progress.

♦ Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.

♦ We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.

♦ We supply overseas engineer service and help to train your workers to operate the machine.
