Specifications
HS code :
8477800000
Structure :
Vertical
Type :
Rubber Product Making Machine
customized :
customized
Specification :
According to The Customer's Requirements
Automatic Grade :
Automatic
Brand Name :
SFC
Model Number :
XLB
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T,L/C
Supply Ability :
50set/month
Delivery Time :
25-35 days
Packaging Details :
Safety Wood or Plywood Crates Packing
Price :
US$3,500.00-20,000.00
Frame Form :
Column Structure
Description

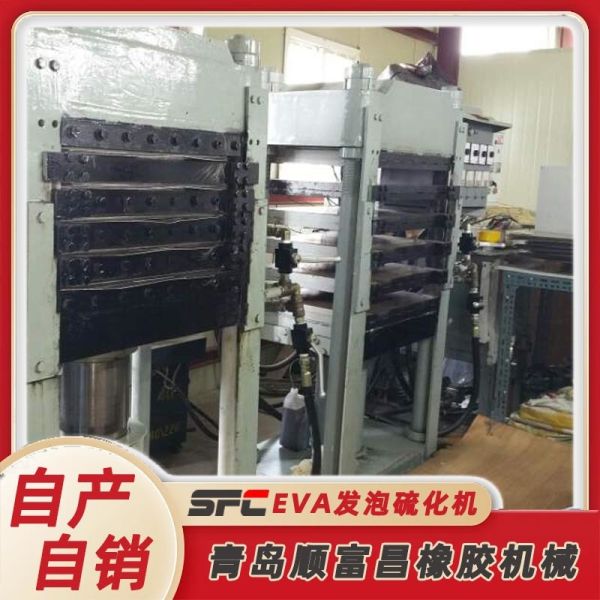

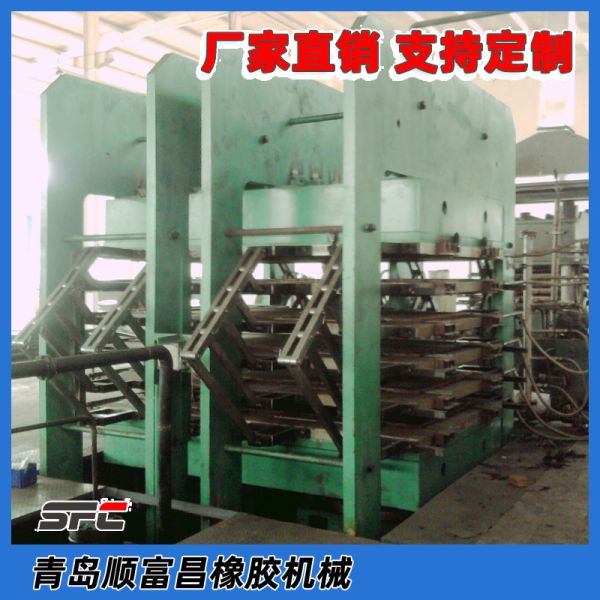

EVA Rubber Foaming Vulcanizing Press
Main Usage

EVA sheet making machine is used for foaming EVA, PE rubber, which are widely used in shoe material manufacturing, foaming floor, EVA mat, EVA puzzle, thermal insulation material, luggage liner, sporting buffer material, diving dress material and life vest material.

Main Features
  • Auto PLC or electric relay control, auto bumping
  • Fast plate closing speed, long time pressure retaining, back pressure retaining for better product quality
  • Quick release valve makes the opening speed very fast
  • Plate is designed specially, which makes temperature uniform on the plate
  • Pressure relief when opening mould satisfies the technical for high, middle and low level products
Technical Specifications
Model XLB-1200X1200X4 XLB-1400X1500X6 XLB-1500X1500X6
Total Pressure (MN) 5.0 8.0 10.0
Platen Size (mm) 1200x1200 1400x1500 1500x1500
Daylight (mm) 150 150 150
Working Layer 4 6 6
Piston Stroke (mm) 500 800 800
Platen Unit Area Pressure (kg/cm²) 35 38 45
Automatic PLC Control EVA Foaming Vulcanizing Press with Fast Plate Closing Speed and Uniform Temperature Plate Automatic PLC Control EVA Foaming Vulcanizing Press with Fast Plate Closing Speed and Uniform Temperature PlateAutomatic PLC Control EVA Foaming Vulcanizing Press with Fast Plate Closing Speed and Uniform Temperature PlateAutomatic PLC Control EVA Foaming Vulcanizing Press with Fast Plate Closing Speed and Uniform Temperature PlateAutomatic PLC Control EVA Foaming Vulcanizing Press with Fast Plate Closing Speed and Uniform Temperature Plate
Frequently Asked Questions
What does your factory do regarding quality control?

We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment.

What's the machine quality guarantee?

Quality guarantee time is one year. We choose world famous brand components to keep our machine in perfect working condition.

Are you able to give installation and commissioning overseas? How long time will it take?

Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2-3 days. Big production line usually takes about 30 days.

How can I trust you to deliver the right machine as I ordered?

We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation, quality, integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers. If you come to our factory, we can show the user around us.

How can we go to your side?

We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao Jiaodong airport. We will pick up you at the airport.

Our Services
  • Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.
  • In the process of production, we will take photos and send to customers for their track the progress.
  • Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
  • We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
  • We supply overseas engineer service and help to train your workers to operate the machine.
