Description

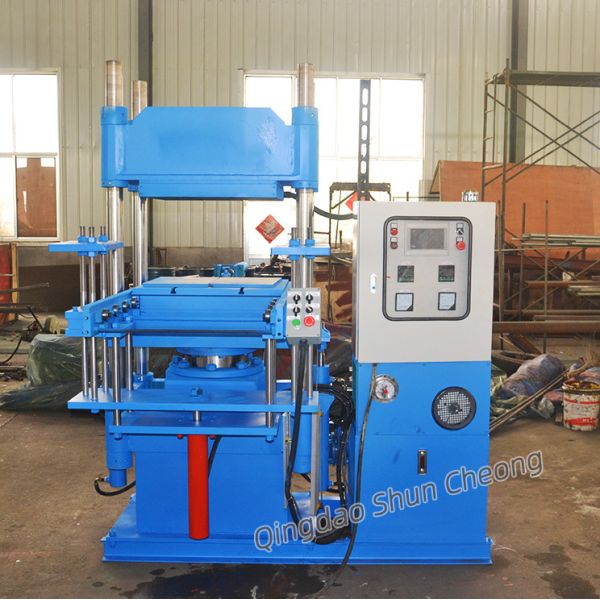

2RT Plate Rubber Vulcanizing Press with Pull-Push Device
A heavy-duty, two-way sliding mold hydraulic vulcanizing press engineered for manufacturing large rubber products. Features dual-layer hot plates, high working pressure, and mold interchangeability for flexible, high-volume production.
Key Features & Specifications
Structural Design
  • Frame & Platens: Fabricated from Q235 steel, shot-blasted, zinc-rich primed, and stress-relieved via machining
  • Hot Platens: Dual-sizing 45# steel plates, normalized; equipped with automated electric steam valves and bypass for precise temperature control (steam/water switching capability)
  • Platforms: Upper/lower platforms of Q235 steel, precision-welded using CO₂ shielded arc welding with alloy wire, followed by full furnace stress relieving to prevent deformation
Hydraulic & Actuation
  • Cylinder Assembly: ZG270-500 cast cylinder with chilled alloy cast iron plunger
  • Sealing System: Dual seals + integrated dust ring for extended service life

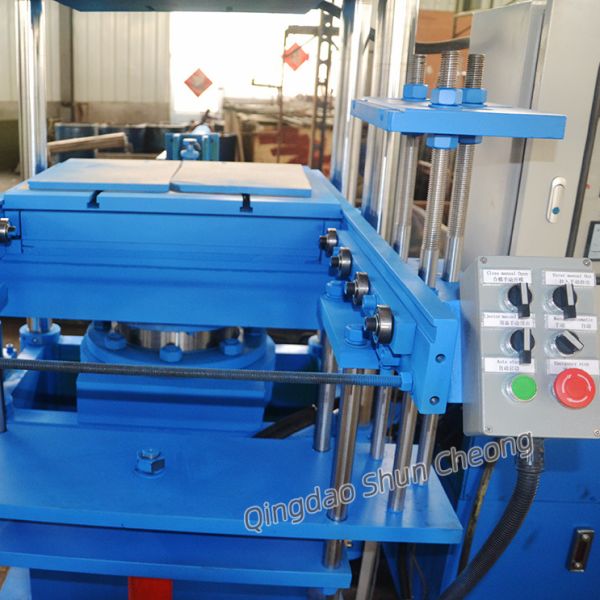

  • Mold Movement: Front/rear sliding mold device supports hydraulic or mechanical actuation, capable of handling molds of any weight
Control System
  • Automation: PLC-based full-automatic control for clamping, mold opening, exhaust setting, and manual override capability
Production Advantages
  • Flexibility: Quick mold changeover for diverse rubber product lines
  • Efficiency: Two working layers enable high throughput
  • Precision: Camber-compensated rolls ensure uniform product thickness
Safety & Reliability
  • Emergency stop system, bearing lubrication failure alarm, and robust construction for continuous industrial operation
Applications
Ideal for vulcanizing large-scale rubber products such as seals, mats, industrial components, and customized molded rubber items.
Alternate Naming Conventions
Rubber Vulcanizing Press Plate Vulcanizing Press Hydraulic Rubber Vulcanizing Press Vulcanizing Machine / Press
Quality Assurance & Customization
  • The Vulcanizing Press undergoes a 24-hour pressure test to verify cylinder plunger bearing capacity, ensuring no oil spill or leakage to prevent equipment quality issues
  • Custom design of non-standard rubber molding machines available according to specific customer requirements
Technical Specifications
Parameter / Type XLB240*240*2 XLB350*350*2 XLB400*400*2 XLB500*500*2 XLB600*600*2/4 XLB700*700*2 XLB750*850*2/4 XLB900*900*2Q
Total Pressure (MN) 0.15 0.25 0.5 0.63 1.00 1.20 1.60 2.00
Plate Distance (mm) 125 125 125 125 125 125 200 300
Working Layer NO. 2 2 2 2 2-4 2 2-4 2
Unit Area Pressure of Hot Plate (Mpa) 2.60 2.04 3.13 2.52 2.77 2.45 2.51 2.47
Plunger Stroke (mm) 250 250 250 250 250/400 250 400 400
Heating Mode Electric Electric Electric/Stream Electric/Stream Electric/Stream Stream Electric/Stream Stream
Motor Power (kw) 2.2 2.2 2.2 2.2 2.2 2.2 3 5.5
Size: (L*W*H) (mm) (Mainframe) 1200*350*1300 1400*480*1380 1600*500*1480 1750*600*1540 1880*720*1680 2000*850*1750 2250*1200*2200 1400*900*2400
