5 Layer Heating Plate Tire Retreading Machine with Low Energy Consumption and Automatic System
5 Layer Heating Plate Tire Retreading Machine with Low Energy Consumption and Automatic System
5 Layer Heating Plate Tire Retreading Machine with Low Energy Consumption and Automatic System
5 Layer Heating Plate Tire Retreading Machine with Low Energy Consumption and Automatic System
5 Layer Heating Plate Tire Retreading Machine with Low Energy Consumption and Automatic System
5 Layer Heating Plate Tire Retreading Machine with Low Energy Consumption and Automatic System
5 Layer Heating Plate Tire Retreading Machine with Low Energy Consumption and Automatic System
5 Layer Heating Plate Tire Retreading Machine with Low Energy Consumption and Automatic System
5 Layer Heating Plate Tire Retreading Machine with Low Energy Consumption and Automatic System
5 Layer Heating Plate Tire Retreading Machine with Low Energy Consumption and Automatic System
Specifications
Brand Name :
SFC
Model Number :
XLB
Certification :
CE, ISO
Place of Origin :
Qingdao, China
MOQ :
1 set
Price :
US$8,000.00-35,000.00
Payment Terms :
T/T,L/C
Supply Ability :
60set/Month
Delivery Time :
25-35 days
Packaging Details :
Safety Wood or Plywood Crates Packing
Description

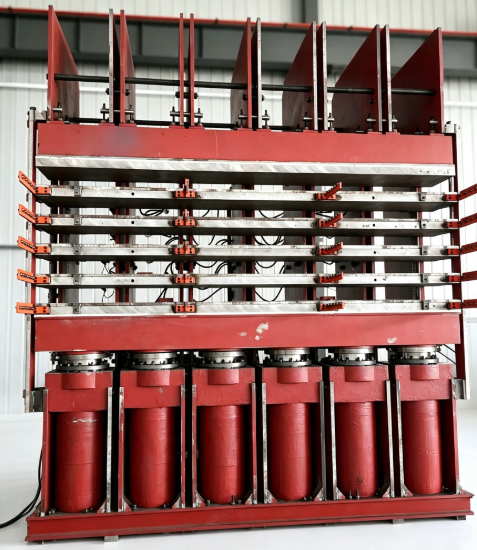

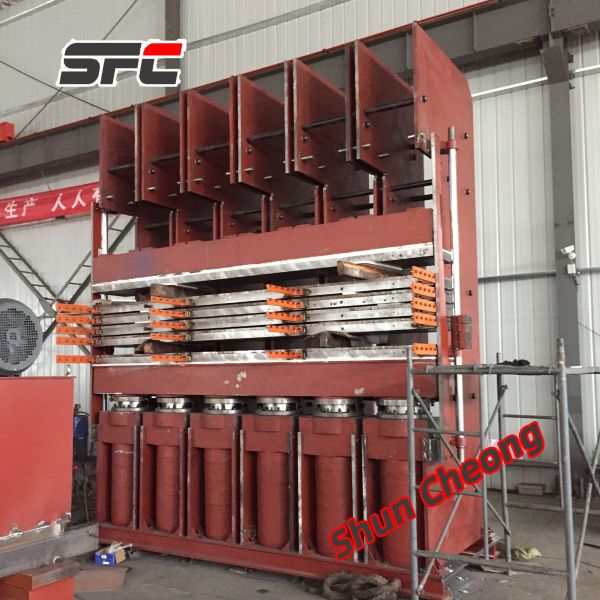

5 Layer Heating Plate Tire Retreading Repairing Machine
Product Overview
Model: XLB
Type: C Type Vulcanizing Press
Power: 7.5-40kw
Working Layers: 5
Piston Diameter: Customized
Certifications: CE1282, ISO9001:2008, SGS
5 Layer Heating Plate Tire Retreading Machine with Low Energy Consumption and Automatic System 5 Layer Heating Plate Tire Retreading Machine with Low Energy Consumption and Automatic System 5 Layer Heating Plate Tire Retreading Machine with Low Energy Consumption and Automatic System
Application
This machine is primarily used for truck tread vulcanization processes in tire retreading operations.
Key Features
  • Low energy consumption
  • Convenient maintenance
  • High capacity with simple operation
  • Automatic control system
Technical Specifications
We can design various presses according to your specific requirements.
Model XLB-3000x1000x5 XLB-5500x360x5 XLB-5500x360x5 XLB-1100x420x5
Total Pressure (MN) 12 10 8 20
Daylight (mm) 140 75 75 75
Working Layers 5 5 5 5
Piston Stroke (mm) 500 375 375 375
Piston Diameter (mm) φ360 φ250 φ250 φ250
Hydraulic Cylinders 8 10 8 20
Working Pressure (Mpa) 14.7 20.4 20.4 20.4
Motor Power (KW) 29.5 21.5 7.5 40
Dimensions (mm) 3720*3460*4120 7600*2700*3100 7600*2700*3100 15500*3400*4200
Structure Type Jaw Side-plate Side-plate Side-plate
Advanced Features
  • Dual-action cylinders for fast mold open/close operation
  • Mass flow pre-fill valve system
  • Automatic mold forward/backward movement
  • Automatic and manual switching control with power failure safety
  • Multiple layer number and table configuration options
  • Premium hydraulic and electrical components for reliable performance
  • Automatic pressure compensation, exhaust, and digital vulcanization display
  • Complete automated working cycle from mold pull-in to product pushing
  • Custom non-standard designs available upon request
5 Layer Heating Plate Tire Retreading Machine with Low Energy Consumption and Automatic System 5 Layer Heating Plate Tire Retreading Machine with Low Energy Consumption and Automatic System 5 Layer Heating Plate Tire Retreading Machine with Low Energy Consumption and Automatic System 5 Layer Heating Plate Tire Retreading Machine with Low Energy Consumption and Automatic System
Packaging & Shipping
Equipment is painted and wrapped with protective stretch film before delivery. Custom wooden packaging available. Electronic control boxes and key components are secured with shockproof materials and packed in wooden cases.
5 Layer Heating Plate Tire Retreading Machine with Low Energy Consumption and Automatic System
Frequently Asked Questions
  • What does your factory do regarding quality control?
    We implement comprehensive quality control throughout production. Every machine is fully assembled and thoroughly tested before shipment.
  • What's the machine quality guarantee?
    One-year quality guarantee. We use world-famous brand components to ensure optimal performance.
  • Are you able to give installation and commissioning overseas?
    Yes, we provide overseas service and technical support. Small machines take 2-3 days, production lines approximately 30 days.
  • How can I trust you to deliver the right machine?
    We deliver exactly as confirmed in orders. Our company culture emphasizes innovation, quality, integrity, and efficiency.
  • How can we visit your facility?
    We're located in Qingdao City, Shandong province, China. We provide airport pickup from Qingdao Jiaodong airport.
5 Layer Heating Plate Tire Retreading Machine with Low Energy Consumption and Automatic System
Our Services
  • Custom machine design with engineering drawings for approval
  • Production progress photos and updates
  • Complete shipping documentation
  • Free technical documentation including installation drawings and manuals
  • Overseas engineer service and operator training
5 Layer Heating Plate Tire Retreading Machine with Low Energy Consumption and Automatic System 5 Layer Heating Plate Tire Retreading Machine with Low Energy Consumption and Automatic System
