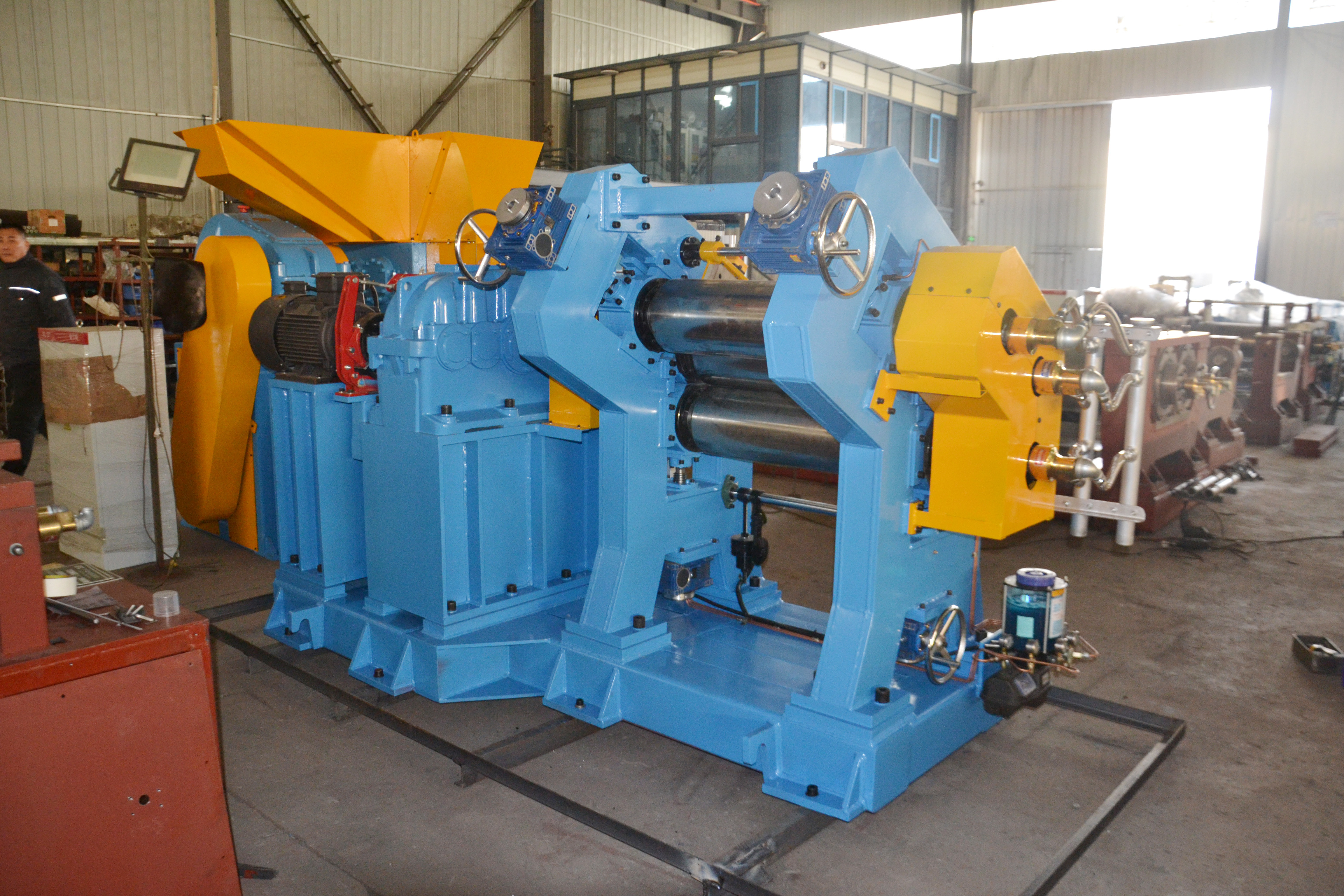

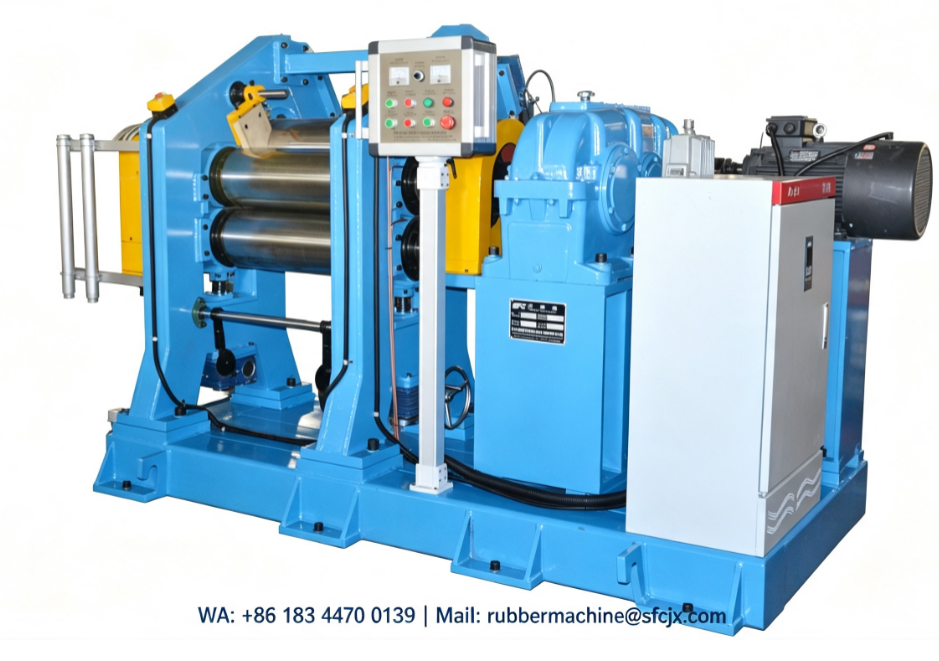

Automatic Grade Three Rollers Rubber Calender
Automatic Grade Three Rollers Rubber Calender
Automatic Grade Three Rollers Rubber Calender
Automatic Grade Three Rollers Rubber Calender
Automatic Grade Three Rollers Rubber Calender
Automatic Grade Three Rollers Rubber Calender
Automatic Grade Three Rollers Rubber Calender
Automatic Grade Three Rollers Rubber Calender
Specifications
Brand Name :
SFC
Model Number :
XY
Certification :
CE, ISO
Place of Origin :
Qingdao, China
MOQ :
1 set
Price :
US$10,000.00-20,000.00
Payment Terms :
T/T,L/C
Supply Ability :
60set/Month
Delivery Time :
25-35 days
Packaging Details :
Safety Wood or Plywood Crates Packing
Description

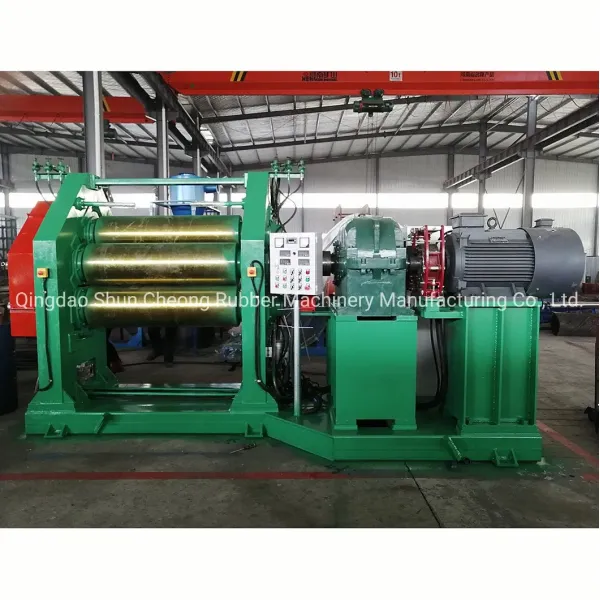

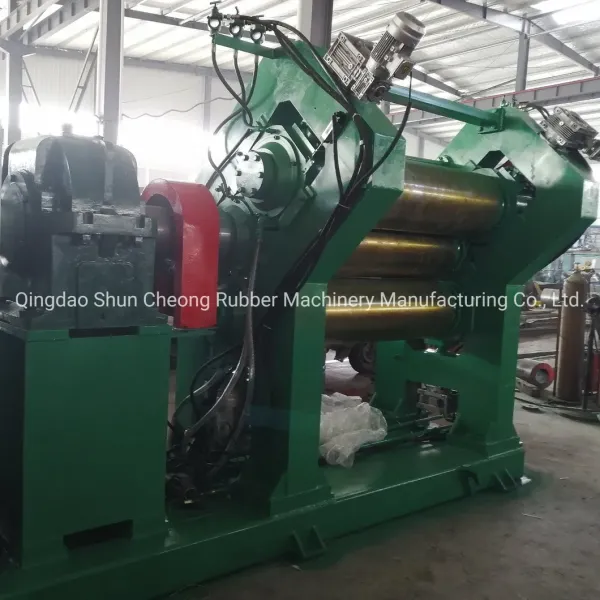

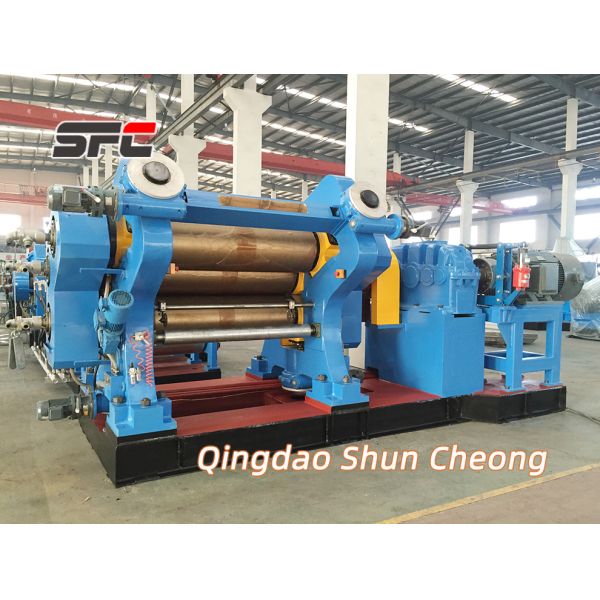

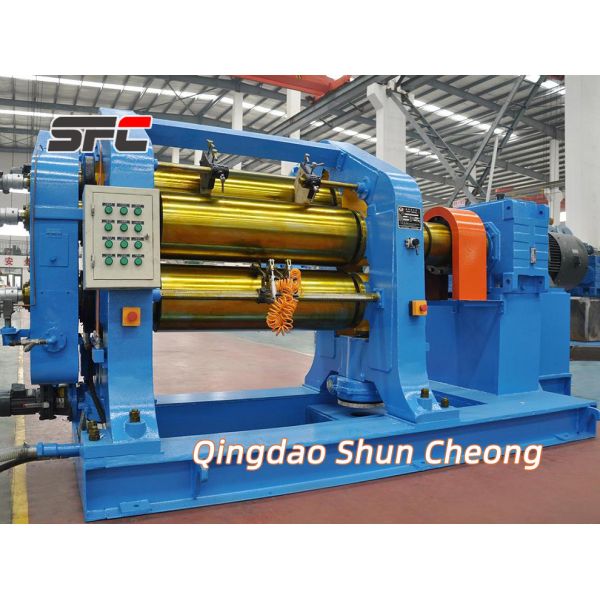

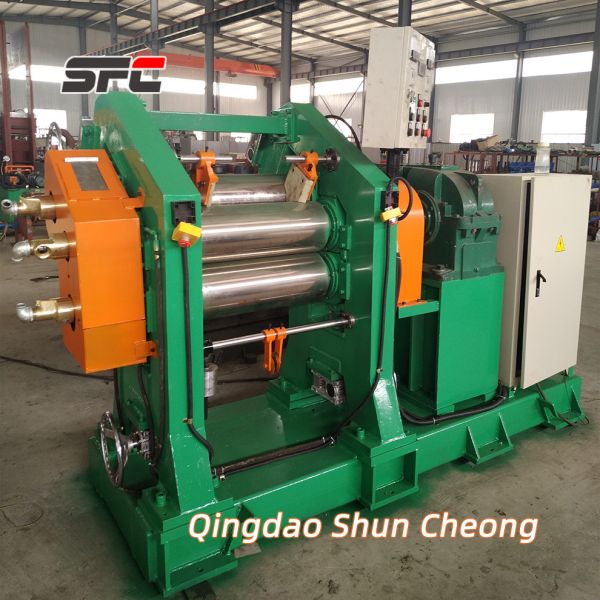

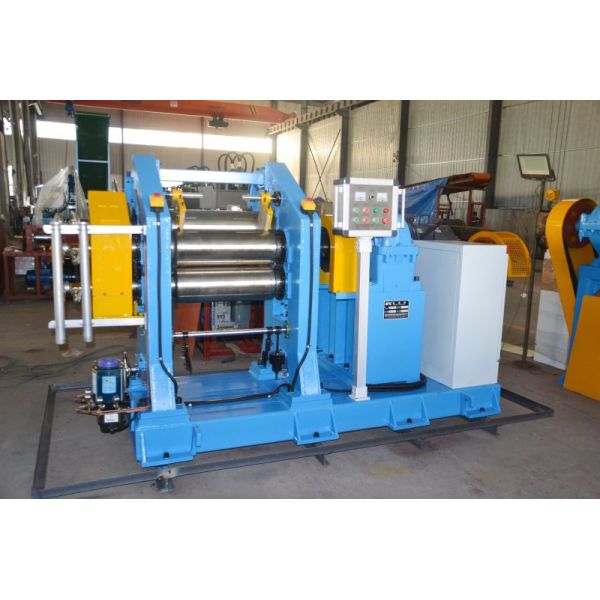

Three Rollers Rubber Calender
Professional calender roll mill for rubber processing with automatic operation and horizontal structure.
Product Specifications
Model XY-3I 1500
Certification CE, ISO
Roll Diameter 450 mm
Power 10-100kw
Adjusting Nip Range 0-20 mm
Production Capacity 100 Sets/Year
Working Conditions
  • Operating Environment: Temperature 7-40°C, Maximum Relative Humidity 95%
  • Power Supply: 380V 50HZ 3 Phase
  • Compressed Air: 0.6-0.8MPa
  • Cooling Water Pressure: 0.4MPa
Automatic Grade Three Rollers Rubber Calender Automatic Grade Three Rollers Rubber Calender
Technical Features
Body Structure
  • Body Frame: Welded construction, annealed and precision machined for high rigidity and deformation resistance
  • Base: Welded base with annealing and machining for superior stability
Rolls and Bearing Group
  • Roll Structure: Hollow smooth rolls
  • Material: Alloy cold hardened cast iron LTH-H
  • Hardness: 68-72HSD
  • Cold Hardened Layer: 10-25mm
  • Main Bearing: Cylindrical roller bearings
  • Bearing Seats: Cast iron with labyrinth ring oil seals

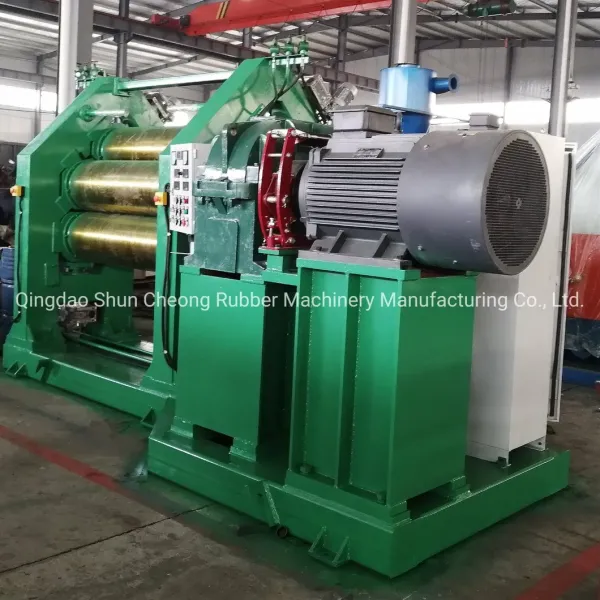

Drive System
  • Drive Mode: Motor → Reducer → Coupler → Driving Gears → Rolls
  • Reducer: Hard gear surface, closed oil immersed type
  • Main Motor: Inverter motor with frequency converter speed control
Safety Features
  • Emergency Braking: Electro-hydraulic block brake
  • Brake Capability: Roller skidding ≤ 1/4 circumference after braking
  • Emergency Stop Buttons: Installed at left, right, front and back positions
Automatic Grade Three Rollers Rubber Calender Automatic Grade Three Rollers Rubber Calender
Technical Specifications Table
Model Item XY-3I 630 XY-3I1120A XY-3I 1400 XY-3I 1500 XY-3I 1730 XY-3I 2130 XY-3I 2430
Roll diameter (mm) 230 360 400 450 610 710 810
Roll working length (mm) 630 1120 1400 1500 1730 2130 2430
Middle roll speed (r/min) 0.8-8 3-21.06 3-26.39 2.62-26.2 5.4-54 8-50 2-20
Adjusting nip range (mm) 0-7 0-10 0-10 0-6 0-20 0-20 0.5-25
Motor power (KW) 7.5 45 55 75 132 185 220

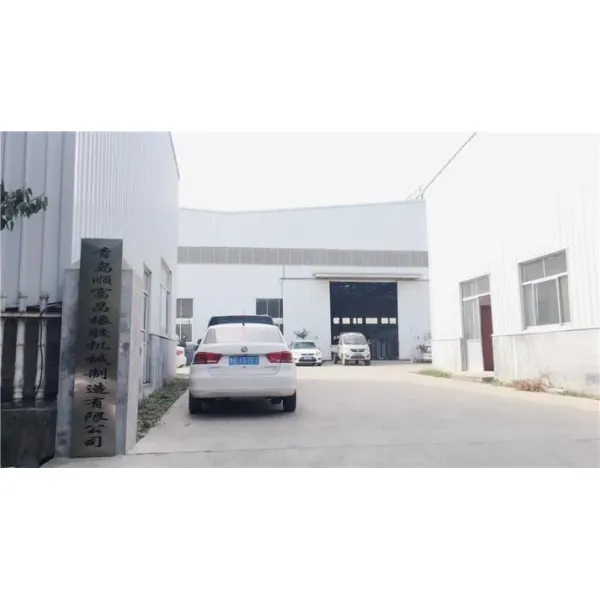

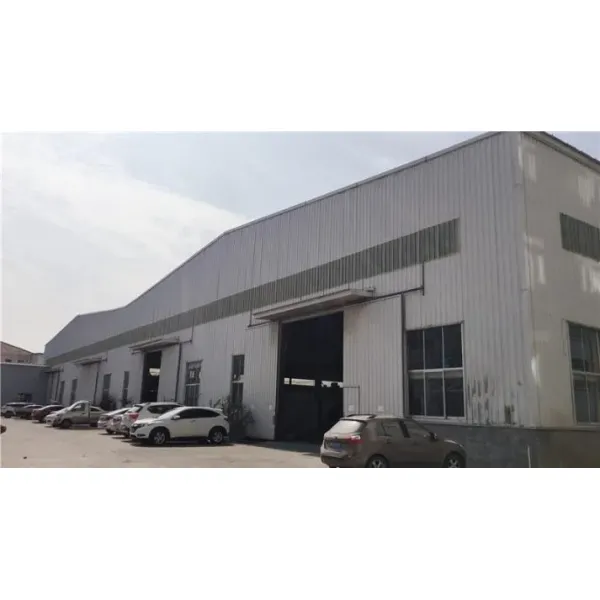

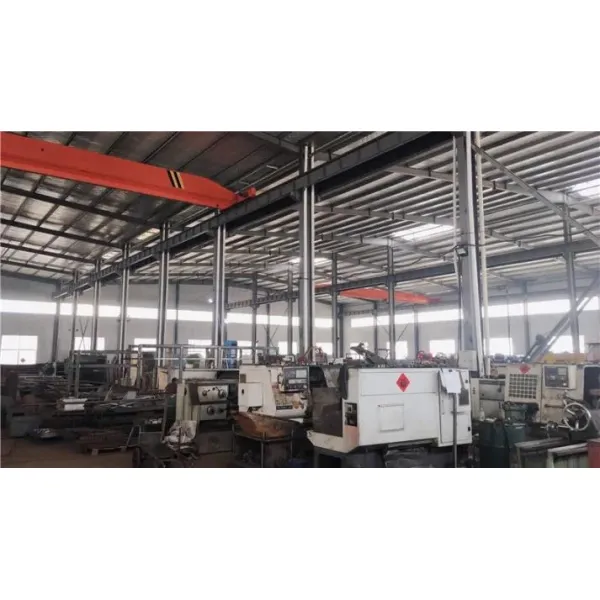

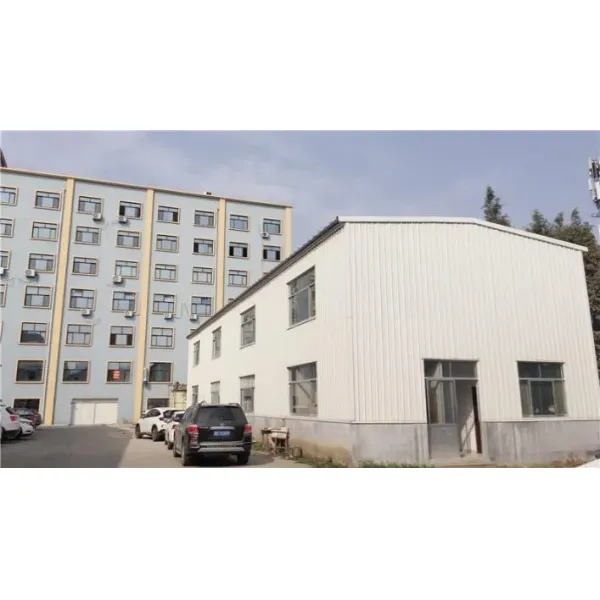

Manufacturer Profile
Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd specializes in high-tech rubber machinery production with ISO9001:2015, CE, and SGS certifications. Our products serve tire manufacturing, rubber conveyor belt production, and waste tire recycling industries.
Automatic Grade Three Rollers Rubber Calender Automatic Grade Three Rollers Rubber Calender Automatic Grade Three Rollers Rubber Calender Automatic Grade Three Rollers Rubber Calender
Quality Commitment
  • All parts undergo strict quality inspection before storage
  • Comprehensive overload testing before shipment
  • 3-year warranty for main parts, 1-year for wearing parts
  • Free technical support and on-site service available
Automatic Grade Three Rollers Rubber Calender
Certifications
Automatic Grade Three Rollers Rubber Calender Automatic Grade Three Rollers Rubber Calender Automatic Grade Three Rollers Rubber Calender
Our Services
  • Custom machine design and engineering drawings
  • Production progress photos and updates
  • Complete documentation and technical drawings
  • Overseas installation and operator training
Frequently Asked Questions
What does your factory do regarding quality control?
Every machine undergoes comprehensive quality control and full assembly testing before shipment to ensure optimal performance.
What's the machine quality guarantee?
We provide a one-year quality guarantee using world-renowned brand components for reliable operation.
Are you able to provide overseas installation support?
Yes, we offer overseas installation and technical support. Small machines typically require 2-3 days, while production lines may take about 30 days.
How can I trust your product quality?
We maintain a company culture focused on innovation, quality, integrity, and efficiency, with proven partnerships with world-renowned rubber manufacturers.
