Column Type Table Tennis Racket Vulcanizing Machine with 1.40 MN Clamping Force, 220°C Heating Temperature, and Full-Automatic Control
Column Type Table Tennis Racket Vulcanizing Machine with 1.40 MN Clamping Force, 220°C Heating Temperature, and Full-Automatic Control
Column Type Table Tennis Racket Vulcanizing Machine with 1.40 MN Clamping Force, 220°C Heating Temperature, and Full-Automatic Control
Column Type Table Tennis Racket Vulcanizing Machine with 1.40 MN Clamping Force, 220°C Heating Temperature, and Full-Automatic Control
Column Type Table Tennis Racket Vulcanizing Machine with 1.40 MN Clamping Force, 220°C Heating Temperature, and Full-Automatic Control
Column Type Table Tennis Racket Vulcanizing Machine with 1.40 MN Clamping Force, 220°C Heating Temperature, and Full-Automatic Control
Column Type Table Tennis Racket Vulcanizing Machine with 1.40 MN Clamping Force, 220°C Heating Temperature, and Full-Automatic Control
Column Type Table Tennis Racket Vulcanizing Machine with 1.40 MN Clamping Force, 220°C Heating Temperature, and Full-Automatic Control
Column Type Table Tennis Racket Vulcanizing Machine with 1.40 MN Clamping Force, 220°C Heating Temperature, and Full-Automatic Control
Column Type Table Tennis Racket Vulcanizing Machine with 1.40 MN Clamping Force, 220°C Heating Temperature, and Full-Automatic Control
Specifications
Brand Name :
SFC
Model Number :
XLB-D600X600X4/1.40MN
Certification :
CE/SGS/ISO9001
Place of Origin :
China
MOQ :
1set
Price :
5,000.00-15,000.00USD(FOB)
Payment Terms :
T/T,L/C
Supply Ability :
500sets/year
Delivery Time :
50 days
Packaging Details :
wooden
Description

Column Type Table Tennis Racket Vulcanizing Machine — Precision Vulcanization, Forging Core Performance of Rackets

As a core equipment in table tennis racket production, an efficient and stable vulcanizing machine directly determines the bonding strength, elastic toughness and service life of racket rubber sheets. Our column type table tennis racket vulcanizing machine, with industrial-grade precision control and humanized design, adapts to the vulcanization molding needs of various table tennis racket rubbers and sponges, providing protection for mass production while balancing quality consistency and production efficiency.

Core Advantages: Comprehensive Breakthroughs from Process to Performance

▶ Strong Pressure Support for Tighter Vulcanization

The equipment is equipped with a nominal clamping force of 1.40 MN (140t), combined with a pressure of 39kg/cm² (3.9MPa) per square centimeter. The column structure bears pressure stably, ensuring tight bonding between racket rubber, base plate and sponge without bubbles or delamination, greatly improving the force transmission efficiency of the racket during hitting, and making each vulcanization meet industrial standards.

▶ Multi-Dimensional Temperature Control System for Diverse Needs

Adopting heat transfer oil heating method, 5 heating platens form 4 working layers, with a maximum heating temperature of up to 220℃ and automatic constant temperature control, ensuring stable and controllable temperature precision. Whether it is low-temperature vulcanization of soft rubber sheets or high-temperature shaping of special materials, it can accurately match process parameters to ensure consistent performance of each batch of products. The 150mm platen spacing and 600x600x60mm large-size heating platen can adapt to the vulcanization needs of rackets of different sizes, featuring flexibility and high efficiency.

▶ Full-Automatic Intelligent Control, Reducing Labor Costs

Equipped with a full-automatic control system, it integrates full-process functions such as automatic mold clamping, automatic venting, automatic pressure compensation, vulcanization timing, alarm upon completion and automatic mold opening, without manual intervention in core processes. Driven by a 3kW motor, with a mold opening/closing speed of 30mm/s, combined with 1 main oil cylinder and 2 auxiliary oil cylinders, it operates stably and efficiently, greatly shortening the production cycle of a single batch, reducing manual operation errors, and facilitating large-scale mass production.

▶ Stable Structural Design, Durable and Worry-Free

Adopting a column-type structure design, the oil cylinder has a diameter of Φ300mm and a stroke of 600mm, with a maximum operating system pressure of 19.8MPa. The structure is stable and has strong load-bearing capacity, and is not easy to deform after long-term high-frequency operation. The overall dimension of the main machine is 1800×700×2650mm, with a compact layout that does not occupy too much workshop space, easy installation and simple daily maintenance, saving space and operation and maintenance costs for the production workshop.

Core Parameters: Defining Professionalism with Data

Column Type Table Tennis Racket Vulcanizing Machine

XLB-D600X600X4/1.40MN

序号

名称

参数

备注

1

Nominal Clamping Force

1.40 MN

140t

2

Heating Platen Size

600x600x60mm

3

Number of Heating Platen

5pcs

4

Working Layers

4 layers

5

Heating Method

Heat Transfer Oil

6

Max. Heating Temperature

220°C

7

Pressure kg/cm²

39kg/cm²(3.9Mpa)

8

Platen Spacing

150mm

9

Cylinder Diameter

Φ300mm

10

Cylinder Stroke

600mm

11

Number of Cylinders

1set

12

Max. Operating System Pressure

19.8Mpa

13

Structure Type

Column Type

14

Motor Power

3kw

15

Opening/Closing Speed

30mm/s

16

Number of Auxiliary Cylinders

2 pcs

17

Control Mode

Automatic Control

18

Overall Dimension

1800(L)×700(W)×2650(H)

Note

This machine is equipped with functions including automatic clamping, automatic venting, automatic pressure compensation, vulcanization timing, automatic constant temperature, alarm upon completion, and automatic mold opening.

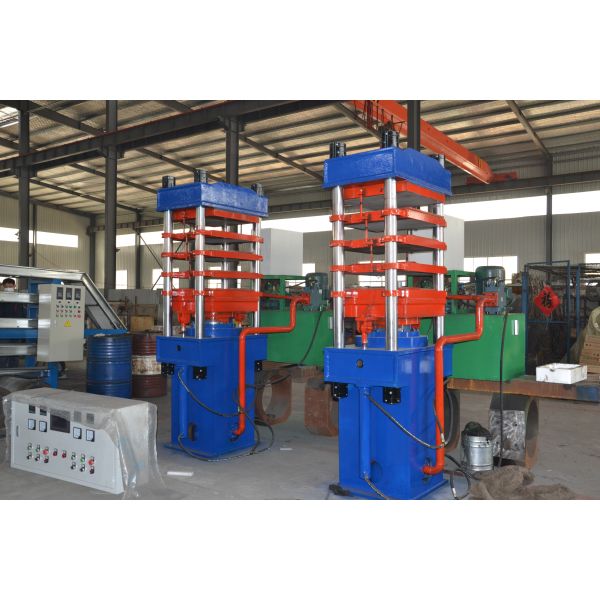

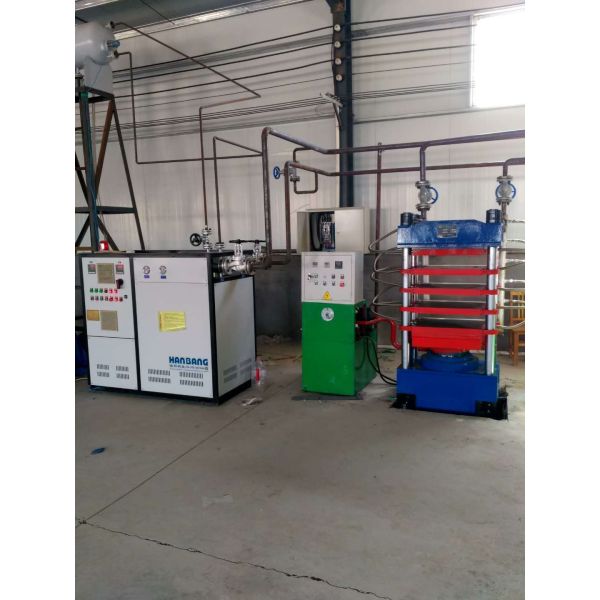

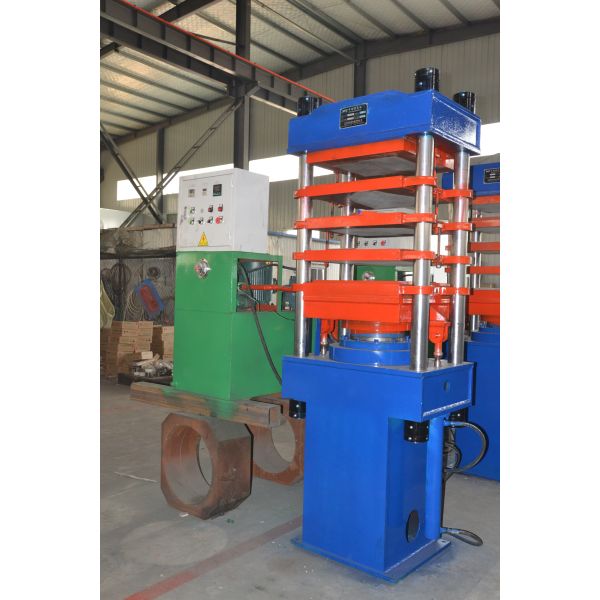

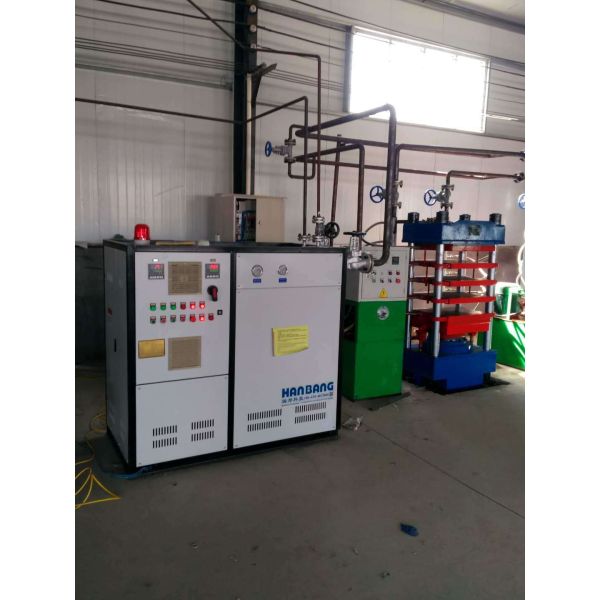

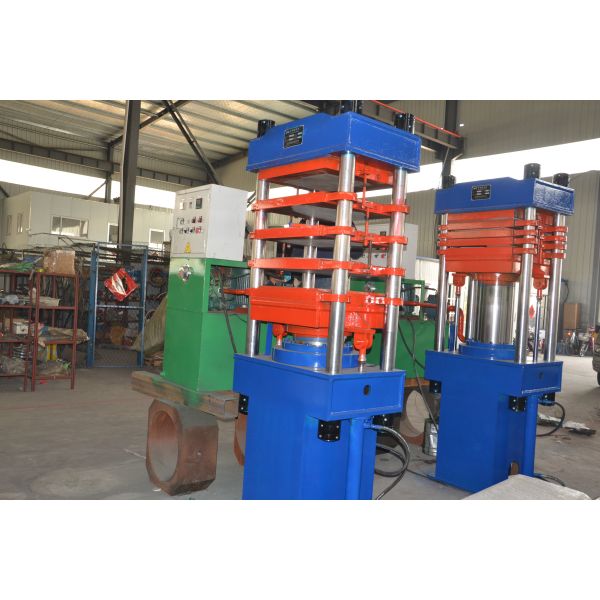

reference photoes


Column Type Table Tennis Racket Vulcanizing Machine with 1.40 MN Clamping Force, 220°C Heating Temperature, and Full-Automatic Control

Column Type Table Tennis Racket Vulcanizing Machine with 1.40 MN Clamping Force, 220°C Heating Temperature, and Full-Automatic Control

Column Type Table Tennis Racket Vulcanizing Machine with 1.40 MN Clamping Force, 220°C Heating Temperature, and Full-Automatic Control

Column Type Table Tennis Racket Vulcanizing Machine with 1.40 MN Clamping Force, 220°C Heating Temperature, and Full-Automatic Control

Column Type Table Tennis Racket Vulcanizing Machine with 1.40 MN Clamping Force, 220°C Heating Temperature, and Full-Automatic Control
