Rubber Conveyor Belt Vulcanizing Hot Joint Machine / Rubber Conveyor Belt Jointing Tool
Rubber Conveyor Belt Vulcanizing Hot Joint Machine / Rubber Conveyor Belt Jointing Tool
Rubber Conveyor Belt Vulcanizing Hot Joint Machine / Rubber Conveyor Belt Jointing Tool
Rubber Conveyor Belt Vulcanizing Hot Joint Machine / Rubber Conveyor Belt Jointing Tool
Rubber Conveyor Belt Vulcanizing Hot Joint Machine / Rubber Conveyor Belt Jointing Tool
Rubber Conveyor Belt Vulcanizing Hot Joint Machine / Rubber Conveyor Belt Jointing Tool
Specifications
Brand Name :
SFC
Model Number :
ZLJ-1600×830
Certification :
ISO9001:2015/CE/SGS
Place of Origin :
China
MOQ :
1 Set
Price :
5000-6000 USD per Set
Payment Terms :
L/C,T/T
Supply Ability :
15 Sets per Month
Delivery Time :
25 days
Packaging Details :
Wooden Case
Suitable Conveyor Width (mm) :
1400
Heating Time (min) :
<40
Working Pressure (Mpa) :
1~2
Motor Power (KW) :
18.6
Working Area (Lxw) (mm) :
1400×830
Dimension (Lxwxh) (mm) :
1930×830×760
Description

Rubber Conveyor Belt Vulcanizing Hot Joint Machine / Rubber Conveyor Belt Jointing Tool

Rubber Conveyor Belt Vulcanizing Hot Joint Machine / Rubber Conveyor Belt Jointing Tool

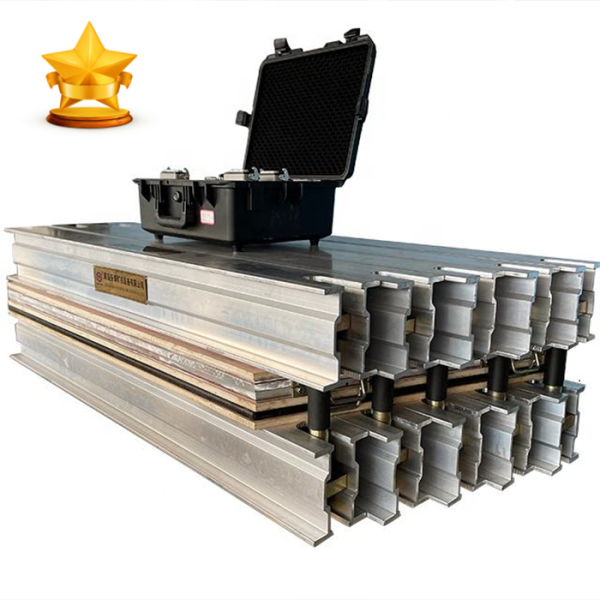

Conveyor Belt Vulcanizing Press is composed of Pressure Bag, Steel Bolts, High Grade Aluminum Platens and Beams. This belt splicing system is designed to be portable, easy to set-up and remove from the site.
Press Features
  • Suitable for different fabric belt and wire rope belts of various sizes with working pressure up to 200 PSI or above
  • Perfect assembly of top and bottom frames, steel construction easily adjustable to different belt thicknesses
  • Efficient heating system with silicone heating elements for fast, even heating and temperature compensation
  • Water cooling system with closed copper circuit for rapid temperature reduction and reduced cycle times
  • Bolts and nuts made of 45# steel, easily adjustable to different belt thickness requirements
Rubber Conveyor Belt Vulcanizing Hot Joint Machine / Rubber Conveyor Belt Jointing Tool
Quality & Specifications
  • Certified with ISO9001:2015, CE, and SGS certifications
  • Electrical heating and water press method for efficient operation
  • Heating time ≤ 40 minutes for rapid processing
  • Designed for splicing belts and creating endless belts
  • Fast water cooling and natural cooling options available
  • Over 40 years of experience in the rubber machine industry
Rubber Conveyor Belt Vulcanizing Hot Joint Machine / Rubber Conveyor Belt Jointing Tool Rubber Conveyor Belt Vulcanizing Hot Joint Machine / Rubber Conveyor Belt Jointing Tool
Technical Specifications
Model Applied Width (mm) Motor Power (KW) Dimension (L*W*H) (mm) Weight (KG)
ZLJ-800*830 800 11.2 1280*830*630 650
ZLJ-1000*830 1000 14.1 1480*830*630 700
ZLJ-1200*830 1200 16.5 1680*830*710 900
ZLJ-1400*830 1400 18.6 1930*830*760 1100
ZLJ-1600*830 1600 21.1 2140*830*800 1320
ZLJ-1800*830 1800 23.3 2300*830*850 1480
ZLJ-2000*830 2000 25.6 2600*830*950 1860
About Our Company
Rubber Conveyor Belt Vulcanizing Hot Joint Machine / Rubber Conveyor Belt Jointing Tool Rubber Conveyor Belt Vulcanizing Hot Joint Machine / Rubber Conveyor Belt Jointing Tool Rubber Conveyor Belt Vulcanizing Hot Joint Machine / Rubber Conveyor Belt Jointing Tool Rubber Conveyor Belt Vulcanizing Hot Joint Machine / Rubber Conveyor Belt Jointing Tool
Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd. is a Chinese manufacturer established in 2007 with over 10 years of experience in producing various rubber machines. Our company holds ISO 9001:2008, SGS, and CE certifications.
Our factory specializes in rubber kneader/rubber mixing mill; various plate vulcanizing presses; 2-roll/3-roll/4-roll rubber calenders; rubber batch off coolers; waste tire recycling lines; reclaimed rubber production lines; conveyor belt production lines; and rubber seals extruding & vulcanizing lines.
Our machinery has been exported to America, Mexico, India, Vietnam, South Africa, Singapore, Malaysia, Indonesia, Australia, Sri Lanka and many other countries and regions.
Our Services
  • Custom machine design with engineering drawings for customer confirmation
  • Production progress tracking with regular photo updates
  • Complete documentation including packing list, commercial invoice, and bill of lading
  • Free technical support with English foundation DWG, installation drawings, user guides, maintenance manuals and part drawings
  • Overseas engineer service and worker training for machine operation
Frequently Asked Questions
What does your factory do regarding quality control?
We implement comprehensive quality control throughout the entire production process. Every machine is fully assembled and carefully tested before shipment.
What's the machine quality guarantee?
We provide a one-year quality guarantee and use world-famous brand components to ensure optimal machine performance.
Are you able to give installation and commissioning overseas? How long time will it take?
Yes, we provide overseas service and technical support (customer covers installation costs). Small machines typically take 2-3 days, while large production lines require about 30 days.
How can I trust you to deliver the right machine as I ordered?
We guarantee delivery of high-quality machines as confirmed in orders. Our company culture emphasizes innovation, quality, integrity and efficiency, with established partnerships with world-renowned rubber production manufacturers.
How can we go to your side?
We are located in Qingdao City, Shandong province, China, near Qingdao Jiaodong Airport. We provide airport pickup services for visiting clients.
