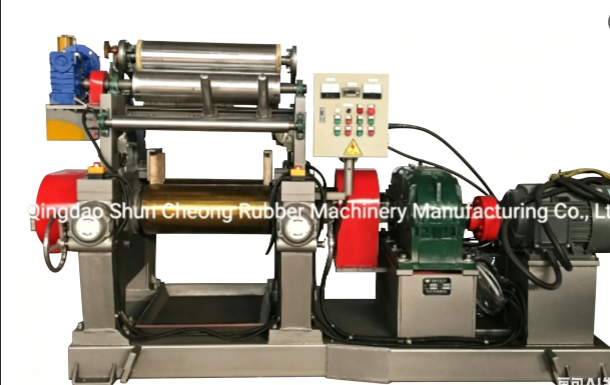

Automatic Grade XK-560 Two Roll Mixing Mill
Automatic Grade XK-560 Two Roll Mixing Mill
Automatic Grade XK-560 Two Roll Mixing Mill
Automatic Grade XK-560 Two Roll Mixing Mill
Automatic Grade XK-560 Two Roll Mixing Mill
Automatic Grade XK-560 Two Roll Mixing Mill
Automatic Grade XK-560 Two Roll Mixing Mill
Automatic Grade XK-560 Two Roll Mixing Mill
Specifications
Brand Name :
SFC
Model Number :
XK-560
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 set
Price :
US$5,000.00-20,000.00
Payment Terms :
T/T,L/C
Supply Ability :
60set/Month
Delivery Time :
25-35 days
Packaging Details :
Safety Wood or Plywood Crates Packing
Description
Two Roll Mixing Mill for Rubber Compound XK-560
Basic Information
Model: XK-560
Automatic Grade: Automatic
Power Source: Electric
Type: General Rubber Machinery
Certification: ISO
Speed Reducer: Hard Tooth Surface
Weight: 11400kg
Bush: Rolling Bearing
Production Capacity: 50 sets/Month
Origin: China
Technical Specifications
Item XK-160 XK-250 XK-360 XK-400 XK-450 XK-550 XK-560 XK-660 XK-710
Roll diameter (mm) 160 250 360 400 450 550 560-510 660 710
Roll working length (mm) 320 620 900 1000 1200 1500 1530 2130 2200
Front roll linear speed (r/min) 9 16.3 16.7 19.3 21.8 22.5 27.2 28 31.9
Speed ratio of rolls 1:1.4 1:1.1 1:1.3 1:1.3 1:1.3 1:1.2 1:1.2 1:1.2 1:1.5
Max roll space (mm) 4.5 8 10 10 12 16 15 0.5-15 0.5-15
Compound feeding capacity (kg) 1-2 10-15 20-25 18-35 50 50-65 50-65 165 190
Motor power (kW) 5.5 18.5 30 45 55 110 90 240 280
Dimensions L*W*H (mm) 1133*920*1394 2722*1115*1345 4200*1780*1760 4920*1780*1800 5405*1740*1790 6646*2736*2105 6270*2282*2000 7280*3400*2530 8185*3910*2270
Gross weight (T) ~2 ~3.2 ~6.5 ~8 ~11.4 ~22 ~22.5 ~49 ~51
Automatic Grade XK-560 Two Roll Mixing Mill
Key Features
  • Constructed with LTG-H alloy chilled cast iron for superior durability
  • Hard tooth speed reducer ensures low noise operation and extended lifespan
  • Special refining seal structure prevents lubricating oil leakage
  • Optional hydraulic or mechanical automatic mixing for reduced labor and time
  • Manual or electrical roll nip adjustment capability
  • Emergency stop button for enhanced safety
  • Pre-tested with 8-hour non-stop full load operation
Salient Features
  • Superior mixing performance with high productivity
  • Compact construction for maximum floor utilization
  • Latest technology meeting current world standards
  • Maintenance-free operation with reliable service backup
  • Easy installation and ready-to-run capability
  • No continuous lubrication required
  • Auto reversing electric panel
  • Simple and easy maintenance procedures
Quality Assurance & Testing
Every rubber mixing mill undergoes comprehensive 4-6 hour load testing before delivery to ensure optimal performance and reduce on-site debugging time and costs.
Frequently Asked Questions
Delivery Time: 25-35 days for custom-designed machines
Quality Control: Rigorous testing throughout production with full assembly inspection
Warranty: 1-year quality guarantee with world-famous brand components
Overseas Installation: Available with technical support (2-3 days for small machines, ~30 days for large plants)
Factory Location: Qingdao City, Shandong province, China
Packaging & Shipping
Equipment is painted, wrapped with stretch film, and packed in customized wooden cases with shockproof packaging for electronic components. Our machinery has been successfully exported to numerous countries worldwide including America, Mexico, India, Vietnam, and many others.
