Specifications
Brand Name :
SFC
Model Number :
LSJ
Certification :
CE, ISO
Place of Origin :
Qingdao, China
MOQ :
1 set
Price :
US$5,000-11,000.00
Payment Terms :
T/T,L/C
Supply Ability :
60set/month
Delivery Time :
25-35 days
Packaging Details :
No Packing or as The Customer's Request
Voltage :
As your requirements
Capacity :
200-3000kg/H
Description

Product Description

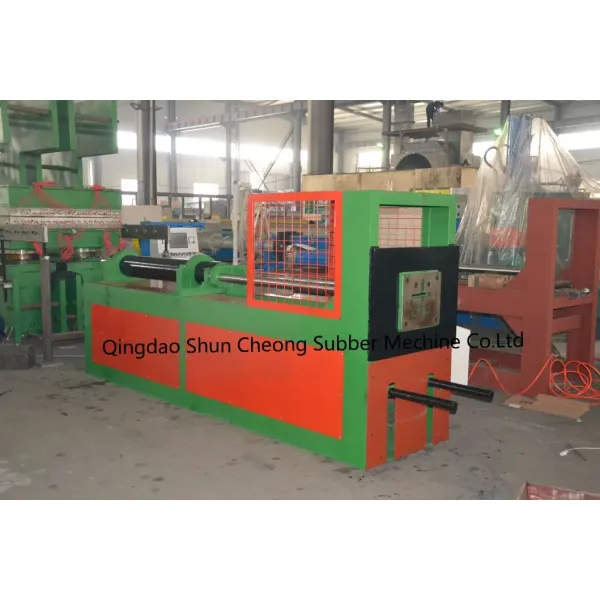

Single Hook Debeader/Waste tire recycling machine

Single Hook Debeader LSJ-1200
Structural features
The blade of cutter is made of alloy welding and the surface is hard wear-resisting.
On safety factor, this machine have protective frame, which can effectively guarantee safety in the process of pulling out wire loop.
Motor and reducer, and as a whole, the structure is compact.
The machine occupies the whole floor, convenient installation.
Use:
Pulling out the wire loops from the mouth of waste tires.


Low Price Tyre Steel Wire Separator Double Hook Tire Wire Debeader for Waste Tyre Recycling

Automatic old Tire Recycling Line Machine

Low Price Tyre Steel Wire Separator Double Hook Tire Wire Debeader for Waste Tyre Recycling

Low Price Tyre Steel Wire Separator Double Hook Tire Wire Debeader for Waste Tyre Recycling

Low Price Tyre Steel Wire Separator Double Hook Tire Wire Debeader for Waste Tyre Recycling

Feature:
This machine is a compact structure, advanced technology, low energy consumption, high efficiency, smashing off the test room for the structure, maintenance is particularly convenient; tools with carbide surfacing technology, high hardness, high wear resistance, and repeated repair using, so has a longer service life; rotary screen for the lattice structure of steel mesh, blanking large area, enabling the screening of qualified rubber. After the partition of large tires can achieve the effect of the same!
Mechanical description: the tires of 800mm diameter and rubber ring can directly be broken into 50*50 mm of rubber block.

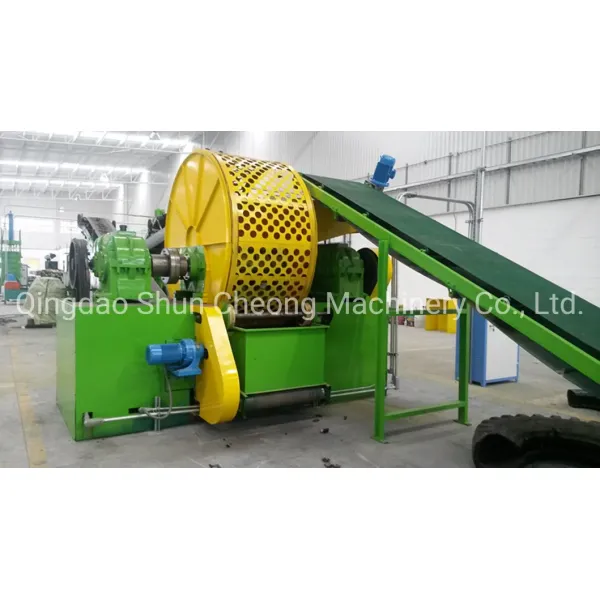

Notes for using whole tire shredder:
a. Inject gear oil into gearbox oil (hypoid gear oil), main bearings use calcium-based grease lubrication, three months after the operation of the machine, the oil should be replaced and clean the fuel tank. Since then change the oil once time every year.
b After deal with 3,000 tons of waste rubber (in normal circumstances),the buyer should grind the blade cutting edge once time. The blades is the wear parts, the general service life is 5-6 years, when delivering the machine to the buyer, the shredder will be equipped with edge hardness layer patching material (electrodes).

Low Price Tyre Steel Wire Separator Double Hook Tire Wire Debeader for Waste Tyre Recycling

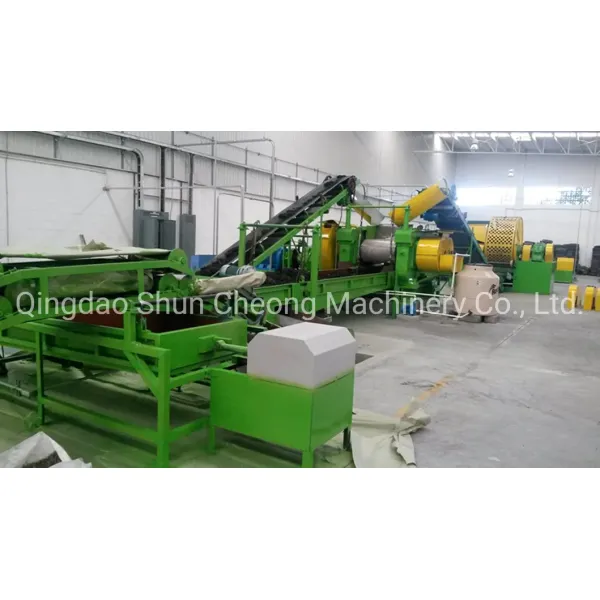

High automatic recycling system.

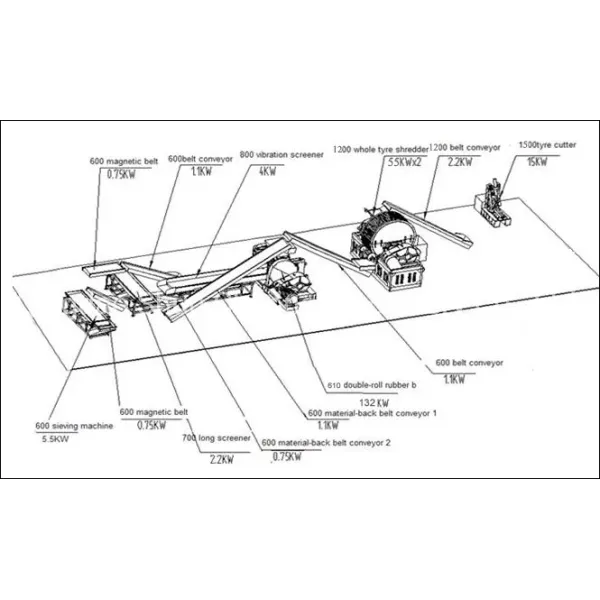

Waste Tires-Single Hook Debeader-Tire Cutter-Whole Tire Shredder-Rubber Crushing Mill-Oscillating Screen-Fiber Separator(Rubber Granules Diameter 1.7mm~0.55mm)-Fine Rubber Pulverizing Machine-Rubber Powder(Small Rubber Granules Diameter 0.55mm~0.12mm).


For the whole recycling recycling sytem, we can design a suitable system exactly according to your detailed requests.
No. Name Model Qty.
(Qty)		 Motor Power (KW)
1 Single hook debeader LSJ-1200 1 11
2 Whole tyre cutter QDJ-1200 1 5.5
3&4 Whole tyre shredder
(with conveyor)		 ZPS-900 1 61.5
5 Double Rolls
Rubber Crusher		 XKP560 1 75
6 Big conveyor equipment BCL-8 1 2
7 Small conveyor equipment BCL-3 1 1.1
8 Big Magnet separator BMS22 1 2.2
9 Small Magnet separator SMS-1 1 1.1
10 Big Shaking screen BSS-8 1 7.5
11 Small Shaking screen SSS-3 1 3
12 Fiber separator FS110 1 5.5
13 Fine Rubber Powder Pulverizing Machine XJFS-420 1 29.25
14. Vibrating screen
1 0.75
