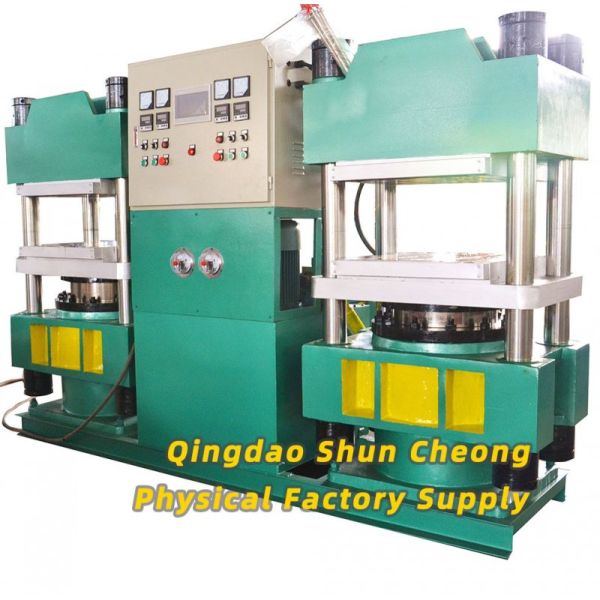

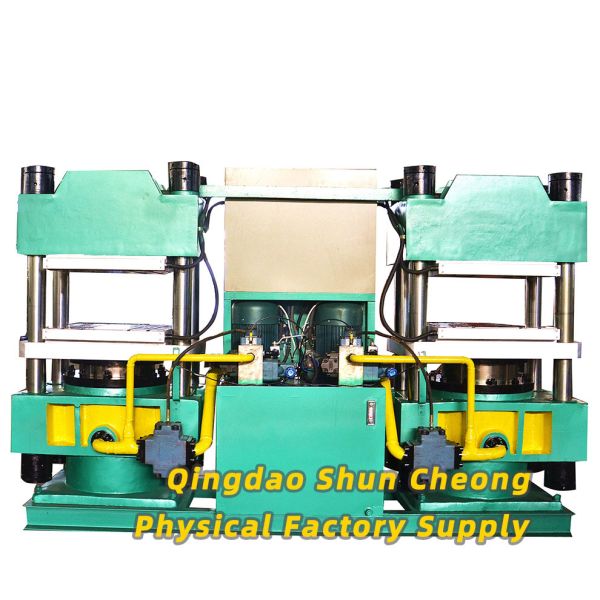

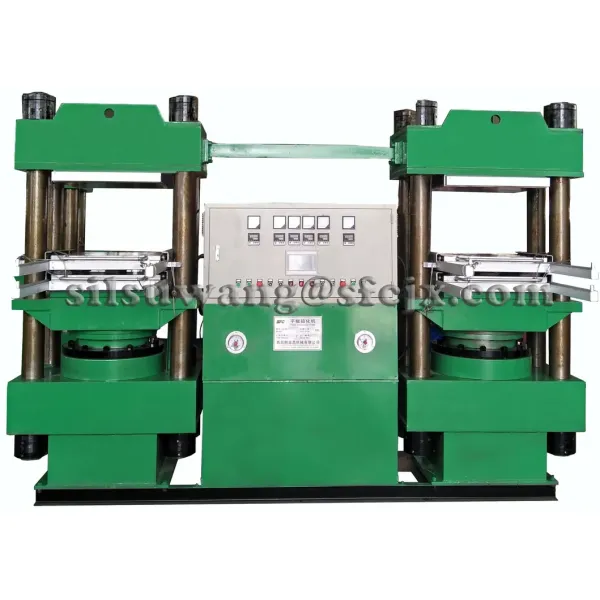

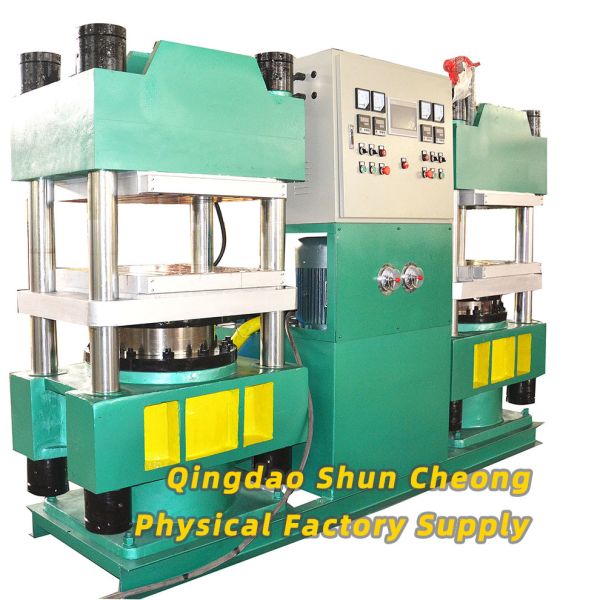

Column Type Double Rubber Vulcanizing Press | PLC Hydraulic Press
Column Type Double Rubber Vulcanizing Press | PLC Hydraulic Press
Column Type Double Rubber Vulcanizing Press | PLC Hydraulic Press
Column Type Double Rubber Vulcanizing Press | PLC Hydraulic Press
Column Type Double Rubber Vulcanizing Press | PLC Hydraulic Press
Column Type Double Rubber Vulcanizing Press | PLC Hydraulic Press
Column Type Double Rubber Vulcanizing Press | PLC Hydraulic Press
Column Type Double Rubber Vulcanizing Press | PLC Hydraulic Press
Column Type Double Rubber Vulcanizing Press | PLC Hydraulic Press
Column Type Double Rubber Vulcanizing Press | PLC Hydraulic Press
Column Type Double Rubber Vulcanizing Press | PLC Hydraulic Press
Column Type Double Rubber Vulcanizing Press | PLC Hydraulic Press
Specifications
Brand Name :
SFC
Model Number :
XLB-600×600×2
Certification :
CE, ISO
Place of Origin :
Qingdao, China
MOQ :
1 set
Price :
US$6,000.00-50,000.00
Payment Terms :
T/T,L/C
Supply Ability :
60set/month
Delivery Time :
25-35 days
Packaging Details :
No Packing or as The Customer's Request
Automatic Grade :
Automatic
Power :
15kw
Piston Stoke :
300mm
Control Mode :
PLC Full Automatic
Customized :
Customized
Weight :
7ton
Daylight :
300mm
Piston Diameter :
450mm
Description

Product Description

Twin Vulcanizing Press, Double Vulcanizing Press, Dual Vulcanizing Press 650x650

Column Type Double Rubber Vulcanizing Press | PLC Hydraulic Press


Column Type Double Rubber Vulcanizing Press | PLC Hydraulic Press







Technical Parameters:
Parameter XLB-240×240×2 XLB-350×350×2 XLB-400×400×2 XLB-500×500×2 XLB-600×600×2 XLB-700×700×2 XLB-750×850×2 XLB-900×900×2
Total Pressure (MN) 0.15 0.25 0.5 0.63 1.00 1.20 1.60 2.00
Plate Distance (mm) 125 125 125 125 125 125 200 300
Working Layer NO. 2 2 2 2 2-4 2 2-4 2
Unit Pressure
(Mpa)
 2.60 2.04 3.13 2.52 2.77 2.45 2.51 2.47
Plunger Stroke (mm) 250 250 250 250 250/400 250 400 400
Heating Mode Electricity Electricity Electricity/
Stream		 Electricity/
Stream		 Electricity/
Stream		 Stream Electricity/
Stream		 Stream
Motor Power (KW) 2.2 2.2 2.2 2.2 2.2 2.2 3 5.5
Size: (L× W× H)(mm) 1200×350×1300 1400×480×1380 1600×500×1480 1750×600×1540 1880×720×1680 2000×850×1750 2250×1200×2200 1400×900×2400

1. 20 years on rubber vulcanizing press manufacturing and exporting.
2. Delivery within 30 days.
3. Safety wood or plywood crates packing.
4. Full transportation insurance.
5. Sell to 126 countries on 6 continents.
6. One-stop rubber machinery solution in Qingdao Shun Cheong
7. This Rubber Vulcanizing Press is used to manufacture the special seal rings in petroleum mechanical.
8. PLC control Method.
9. Customers can choose according to their needs.
10. The new design concept, strong technical force and advanced manufacturing processes of the company ensure that each rubber vulcanizing press can be manufactured to meet customer's individual requests.

Column Type Double Rubber Vulcanizing Press | PLC Hydraulic Press

Test Before Delivery

Before leaving factory, this rubber vulcanizing press needs to pass 24 hours' pressure test, pressure maintaining to test the bearing of the hydro-cylinder and piston stroke and guarantee no oil leakage and seeping to avoid unnecessary quality problems.

We can design and manufacture all kinds of non-standard rubber vulcanizing press according to the customers' definite requirements.

Column Type Double Rubber Vulcanizing Press | PLC Hydraulic Press


Packaging

Equipment painting completed before delivery, and then wrapped with stretch film, avoid rubbing the paint off the surface, wooden packaging can be customized, key parts, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in wooden cases.

There are 15 experienced engineers and 108 skilled workers in our company, guaranteeing delivery on time as stipulated in the contract. At the same time, the company established a long-term cooperative relation with cosco, for ensuring the goods arriving port on time.

Column Type Double Rubber Vulcanizing Press | PLC Hydraulic Press
In addition, our rubber vulcanizing press have exported to America, Mexico, India, Vietnam, South Africa, Singapore, Malaysia, Indonisia, Australia, Sri Lanka and many other countries.

If you interested in our products mentioned above. Kindly let us know by return email. Then I will supply you with further information.

Welcome to visit our factory!
