Specifications
Brand Name :
SFC
Model Number :
XLB-600X600
Certification :
CE, ISO
Place of Origin :
Qingdao, China
MOQ :
1 set
Price :
US$10,000.00-17,000.00
Payment Terms :
L/C,T/T
Supply Ability :
900set/year
Delivery Time :
25-35 days
Packaging Details :
Safety Wood or Plywood Crates Packing
Customized :
Customized
Automatic Grade :
Automatic
Export Markets :
Global
Structure :
Vertical
Heating mode :
Electric/ Stream/Oil
Description

Basic Info.

Model NO.
XLB-600X600 XLB-650X650
Certification
CE, ISO
Condition
New
Customized
Customized
Automatic Grade
Automatic
Structure
Vertical
Transport Package
Suitable for Ocean Transportation
Trademark
SFC
Origin
Qingdao, China
HS Code
8477800000
Production Capacity
100set/Month

Product Description

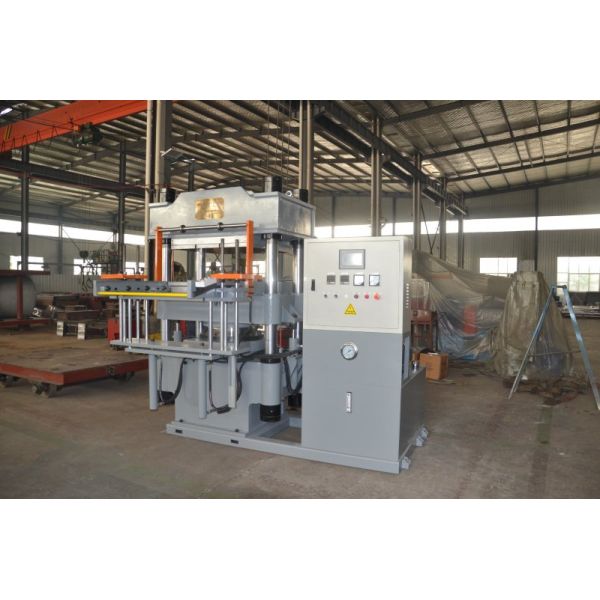

Solid Tire Vulcanizing Press Hydraulic Vulcanizing PressSolid Tire Vulcanizing Press Hydraulic Vulcanizing PressSolid Tire Vulcanizing Press Hydraulic Vulcanizing PressSolid Tire Vulcanizing Press Hydraulic Vulcanizing PressSolid Tire Vulcanizing Press Hydraulic Vulcanizing Press Solid Tire Curing Press &Solid Tire Vulcanizing Machine
Detailed Photos


Solid Tire Vulcanizing Press Hydraulic Vulcanizing PressSolid Tire Vulcanizing Press Hydraulic Vulcanizing PressSolid Tire Vulcanizing Press Hydraulic Vulcanizing Press
1 Total pressure 2.00MN 200t
2 Plate size 800×800×56mm Material:Q235 High quality carbon steel
3 Quantity of hot plate 2 pcs
4 Working layer 1 Layer
5 Heating mode Electrical heating
6 Heating temperature 0-300°C
7 Plate pressure 31.25kg/cm²
8 Daylight 750mm
9 Piston stroke 540mm
10 Diameter of piston φ360mm/ φ280mm
11 Quantity of main oil cylinder 1 Set(upper)
12 Push and pull mode hydraulic push and pull
13 Diameter of push and pull cylinder Φ50mm/ φ25mm
14 Quantity of push and pull cylinder 1 pcs
15 Ejector cylinder diameter Φ80mm/ φ45mm
16 Quantity of ejector cylinder 1 pcs Finished parts
17 Motor power 6-5.5
18 Maximum operating system pressure 20Mpa
19 Control mode PLC Automatic control Mitsubishi
20 Major electrical device brands Chint
21 Structure style Pillar type,upper cylinder
Note
  1. The machine has the functions of automatic mold clamping, automatic exhaust, automatic pressure supplement, vulcanization timing, automatic constant temperature, time alarm, automatic mold opening and so on.
Company Profile

Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd is located in Kangting Road No. 1, West Coast New District,Qingdao, China.Who is a specializing in the production of rubber machinery of high and new technology backbone enterprises, the company passed the ISO9001:2015 quality management system certification, the European Union CE certification and Switzerland SGS certification.
Company's products mainly cover the following industry: tire manufacturing, rubber conveyor belt production, all kinds of rubber products, tires refurbished manufacturing, waste tire recycling.
The main equipment are: Rubber Kneader, Rubber Mixing Machine, Rubber Vulcanizing Press, Batch Off Cooler, Rubber Calender, Waste Tire crusher, Rubber Extruder, Rubber Strainer,etc.
Company's products are exported to Britain, Switzerland, USA, Germany, Brazil, Singapore, Malaysia, India, Russia, Ukraine,Uzbekistan, Kazakhstan and so on,more than 50 countries and regions, has won the domestic and foreign customers praise and cooperation for years.Meanwhile,they also introduced new customers to cooperate.

Our Advantages


Product quality and after-sales service is the key to survival of Qingdao Shun Cheong Machinery Co.,Ltd, and also are top priorities of management of the company, the company commitment to all customers as follows:
1. Every parts pass strict quality inspection before storage.
2. All the products overload trial running before shipment, such as Plate Vulcanizing Press,to test pressure for 24 hours under 1.25 times the rated working pressure. Rubber Mixing Mill, rubber mixing 20 minutes under 1.1 times amount of the rated mixing rubber etc.
3. The whole body of all products are with free technical support.
4. The warranty period of 3 years for main parts, wearing parts for 1 year warranty.
5. The products issues quality problems in the use process, first of all, our sales staff and engineers through the Internet or telephone guidance service, if not solve we will find a local agent or factory's engineer to door repair for the first time! In order to better serve customers, the company provides conveyor belt, waste tire recycling line and tire and other rubber products production site for customers to visit, consultation.

Solid Tire Vulcanizing Press Hydraulic Vulcanizing PressSolid Tire Vulcanizing Press Hydraulic Vulcanizing PressSolid Tire Vulcanizing Press Hydraulic Vulcanizing PressSolid Tire Vulcanizing Press Hydraulic Vulcanizing PressSolid Tire Vulcanizing Press Hydraulic Vulcanizing PressSolid Tire Vulcanizing Press Hydraulic Vulcanizing Press
