Specifications
Brand Name :
SFC
Model Number :
XLB-350*350*1/4
Certification :
CE, ISO
Place of Origin :
Qingdao, China
MOQ :
1 set
Price :
US$5,000.00-50,000.00
Payment Terms :
T/T,L/C
Supply Ability :
150 set/year
Delivery Time :
25-35 days
Description
Laboratory Natural Rubber Plate Vulcanizing Press Machine
Automatic horizontal rubber plate vulcanizing press machine designed for laboratory and industrial applications. Model XLB-350x350x1 with CE and ISO certifications.
Technical Specifications
Model: XLB-350*350*1/4
Total Pressure: 0.25 MN
Main Motor Power: 2.2 Kw
Plate Unit Area Pressure: 2.04 MPa
Overall Dimensions: 1400*480*1380 mm
Heating Methods: Electricity, Oil, Steam
Plate Distance: 125 mm
Working Layers: 1-4
Plunger Stroke: 250 mm
Certifications: CE, ISO9001:2015, SGS
Applications
Ideal for vulcanization of various silicone products including silicone bracelets, mobile phone cases, watch straps, and other rubber components.
Key Features
  • Frame structure with upward pressing form for efficient operation
  • Nodular cast iron oil cylinder for enhanced compressive strength and wear resistance
  • Oil-proof rubber seal rings for effective sealing during operation
  • Combined oil pump with precise control valve system
  • Tubular electric-heating components reduce air pollution
  • PLC control method for automated operation
  • Customizable design to meet specific production requirements

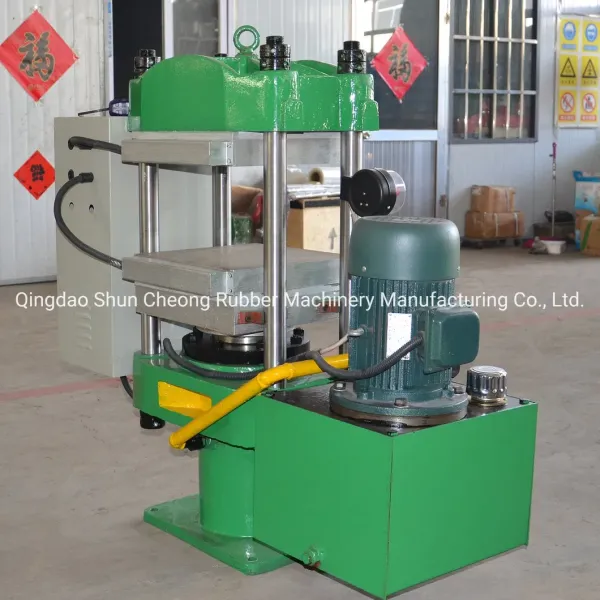

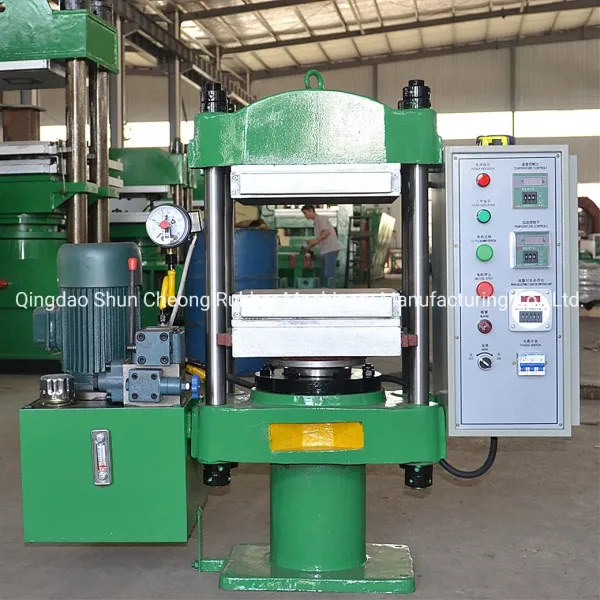

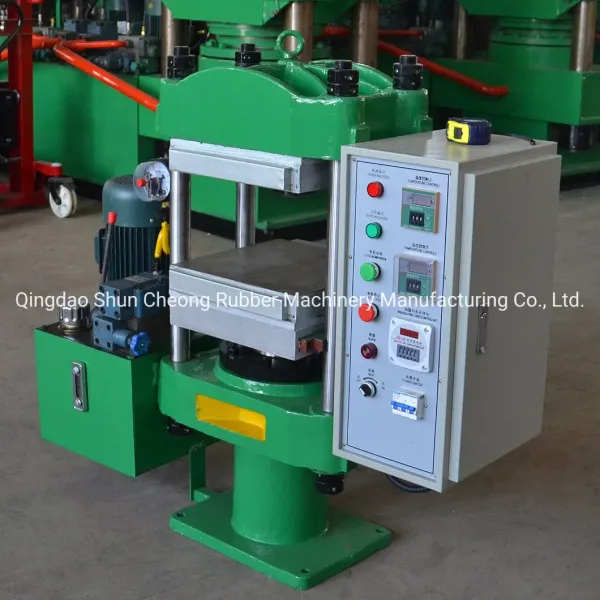

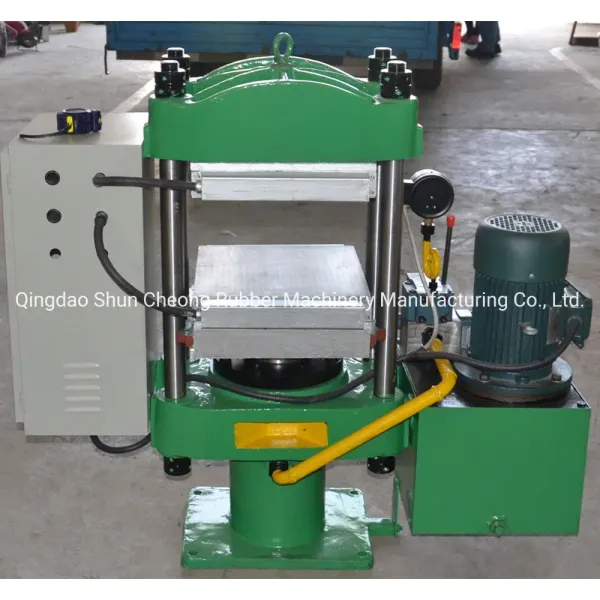

Product Images
XLB-350x350x1 Rubber Vulcanizing Press Machine with PLC Control and CE ISO Certification for Efficient Rubber Curing XLB-350x350x1 Rubber Vulcanizing Press Machine with PLC Control and CE ISO Certification for Efficient Rubber Curing XLB-350x350x1 Rubber Vulcanizing Press Machine with PLC Control and CE ISO Certification for Efficient Rubber Curing XLB-350x350x1 Rubber Vulcanizing Press Machine with PLC Control and CE ISO Certification for Efficient Rubber Curing
Technical Parameters Comparison
Parameter Type XLB-240*240*1/4 XLB-350*350*1/4 XLB-400*400*1/4 XLB-500*500*1/4 XLB-600*600*1/4 XLB-700*700*1/4 XLB-750*850*1/4 XLB-900*900*2Q
Total Pressure (MN) 0.15 0.25 0.5 0.63 1.00 1.20 1.60 2.00
Plate Distance (mm) 125 125 125 125 125 125 200 300
Working Layer No. 1-4 1-4 1-4 1-4 1-4 1-4 1-4 2
Unit Area Pressure of Hot Plate (Mpa) 2.60 2.04 3.13 2.52 2.77 2.45 2.51 2.47
Plunger Stroke (mm) 250 250 250 250 250/400 250 400 400
Heating Mode Electricity Electricity Electricity/Stream Electricity/Stream Electricity/Stream Stream Electricity/Stream Stream
Motor Power (KW) 2.2 2.2 2.2 2.2 2.2 2.2 3 5.5
Size (L*W*H) (mm) 1200*350*1300 1400*480*1380 1600*500*1480 1750*600*1540 1880*720*1680 2000*850*1750 2250*1200*2200 1400*900*2400
Quality Assurance
  • Every component undergoes strict quality inspection before storage
  • All products undergo overload trial running before shipment
  • Plate Vulcanizing Press tested for 24 hours under 1.25 times rated working pressure
  • 3-year warranty for main parts, 1-year warranty for wearing parts
  • Comprehensive technical support and maintenance services
Company Profile
Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd specializes in high-technology rubber machinery production. With ISO9001:2015, CE, and SGS certifications, we serve global markets including tire manufacturing, rubber conveyor belt production, and waste tire recycling.
Our Services
  • Custom machine design and engineering drawings
  • Production progress tracking with regular photo updates
  • Complete documentation including installation drawings and user guides
  • Overseas engineer service and operator training
  • Comprehensive after-sales support and technical assistance
