Tire Tread Making Machine Manufacture/Vulcanizer Machine for Splicing Conveyor Belt
Tire Tread Making Machine Manufacture/Vulcanizer Machine for Splicing Conveyor Belt
Tire Tread Making Machine Manufacture/Vulcanizer Machine for Splicing Conveyor Belt
Tire Tread Making Machine Manufacture/Vulcanizer Machine for Splicing Conveyor Belt
Tire Tread Making Machine Manufacture/Vulcanizer Machine for Splicing Conveyor Belt
Tire Tread Making Machine Manufacture/Vulcanizer Machine for Splicing Conveyor Belt
Tire Tread Making Machine Manufacture/Vulcanizer Machine for Splicing Conveyor Belt
Tire Tread Making Machine Manufacture/Vulcanizer Machine for Splicing Conveyor Belt
Tire Tread Making Machine Manufacture/Vulcanizer Machine for Splicing Conveyor Belt
Tire Tread Making Machine Manufacture/Vulcanizer Machine for Splicing Conveyor Belt
Tire Tread Making Machine Manufacture/Vulcanizer Machine for Splicing Conveyor Belt
Tire Tread Making Machine Manufacture/Vulcanizer Machine for Splicing Conveyor Belt
Specifications
Brand Name :
SFC
Model Number :
XLB-3000x1000x5
Certification :
CE, ISO9001, SGS
Place of Origin :
Qingdao, China
MOQ :
1 set
Price :
US$8,000.00-35,000.00
Payment Terms :
T/T,L/C
Supply Ability :
250 set/year
Delivery Time :
25-35 days
Description

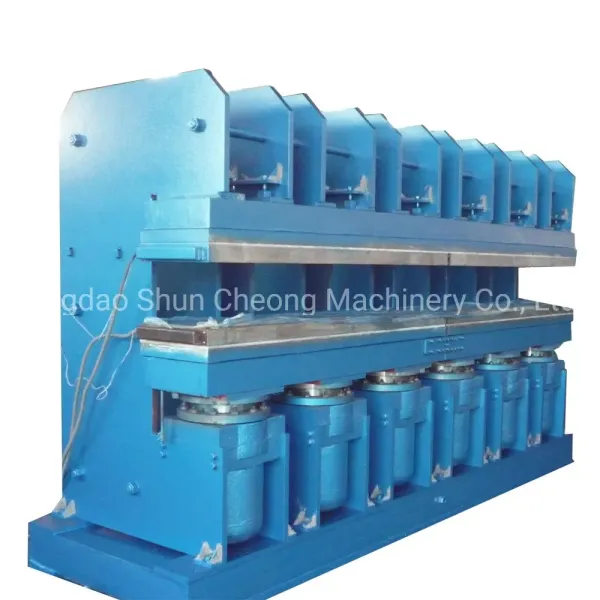

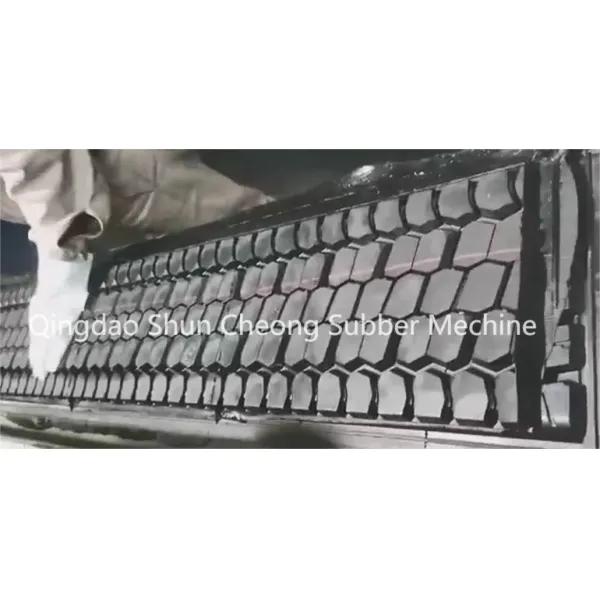

Tire Tread Making Machine Manufacture / Jaw Type Rubber Tire Tread Making Machine

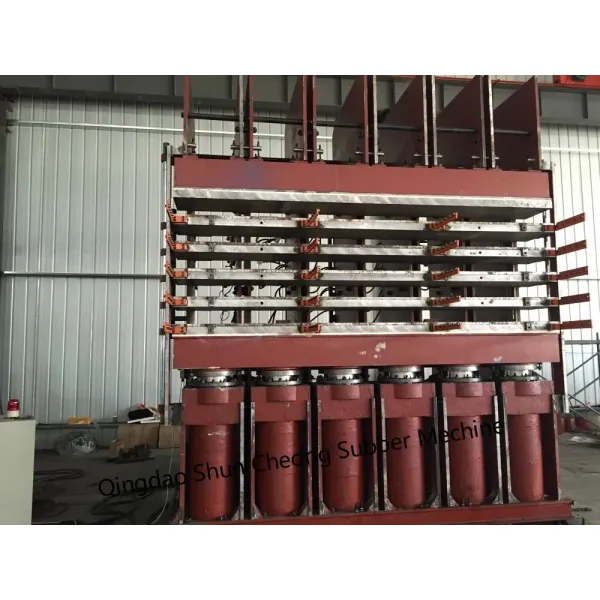

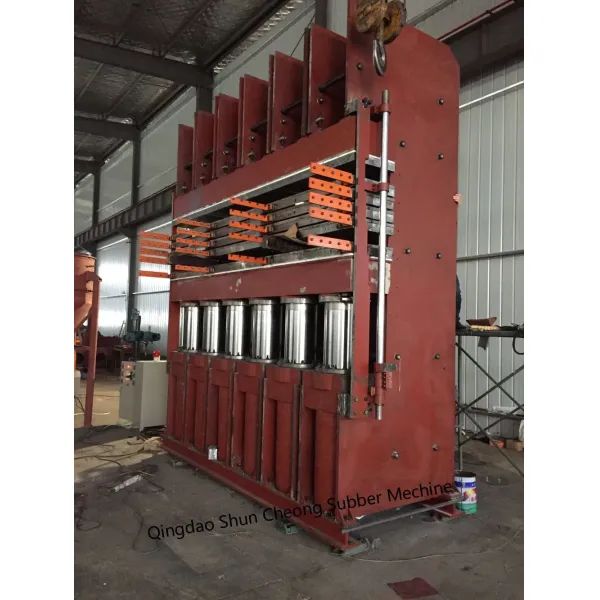

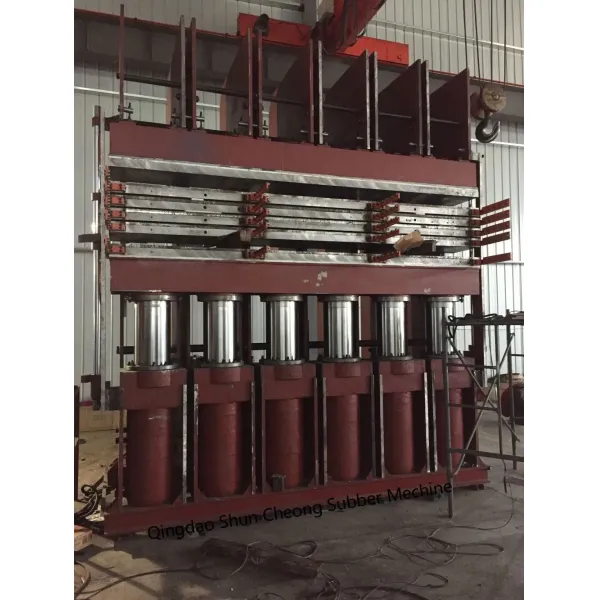

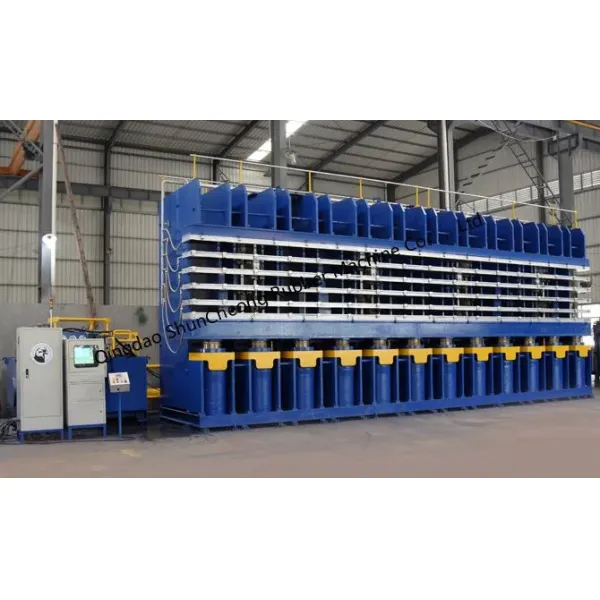

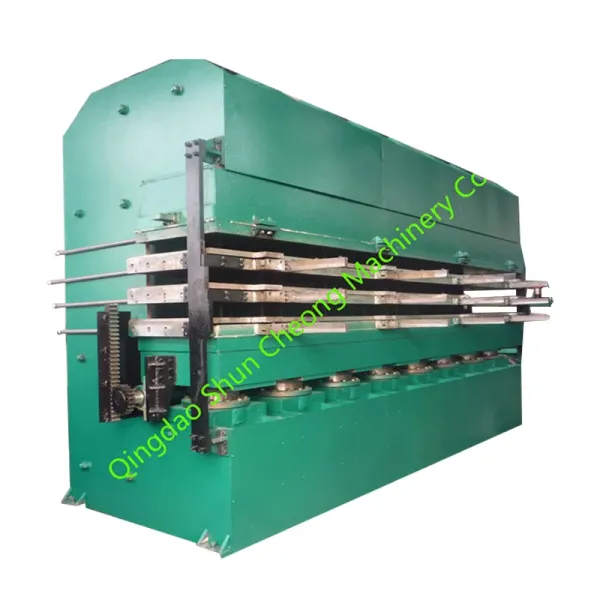

Five Layer Plate Tire Tread Vulcanizing Press
Advanced truck tire retreading and repair plant designed for efficient vulcanization processes with automated operation and reliable performance.
Basic Specifications
ModelXLB
Total Pressure (MN)12
Daylight (mm)140
Working Layers5
Piston Stroke (mm)500
Hydraulic Cylinders8
Motor Power (KW)29.5
Structure TypeJaw
CertificationsCE1282, ISO9001:2008, SGS
OriginChina
Key Features
  • Low energy consumption design
  • Convenient maintenance access
  • High capacity with simple operation
  • Fully automated control system
Tire Tread Making Machine Manufacture/Vulcanizer Machine for Splicing Conveyor Belt Tire Tread Making Machine Manufacture/Vulcanizer Machine for Splicing Conveyor Belt Tire Tread Making Machine Manufacture/Vulcanizer Machine for Splicing Conveyor Belt
Technical Parameters
We can design various presses according to your specific requirements.
Model XLB-3000x1000x5 XLB-5500x360x5 XLB-5500x360x5 XLB-1100x420x5
Total Pressure (MN) 12 10 8 20
Daylight (mm) 140 75 75 75
Working Layers 5 5 5 5
Piston Stroke (mm) 500 375 375 375
Piston Diameter (mm) φ360 φ250 φ250 φ250
Hydraulic Cylinders 8 10 8 20
Working Pressure (Mpa) 14.7 20.4 20.4 20.4
Motor Power (KW) 29.5 21.5 7.5 40
Dimensions (mm) 3720*3460*4120 7600*2700*3100 7600*2700*3100 15500*3400*4200
Structure Type Jaw Side-plate Side-plate Side-plate
Tire Tread Making Machine Manufacture/Vulcanizer Machine for Splicing Conveyor Belt Tire Tread Making Machine Manufacture/Vulcanizer Machine for Splicing Conveyor Belt Tire Tread Making Machine Manufacture/Vulcanizer Machine for Splicing Conveyor Belt Tire Tread Making Machine Manufacture/Vulcanizer Machine for Splicing Conveyor Belt Tire Tread Making Machine Manufacture/Vulcanizer Machine for Splicing Conveyor Belt
Advanced Features
  • Dual-action cylinders for fast mold open/close operation
  • Mass flow pre-fill valve for optimal performance
  • Automatic mold forward/backward movement
  • Manual/automatic switching control with power failure safety
  • Multiple layer number and table configuration options
  • Premium imported hydraulic and electrical components
  • Automatic pressure compensation and exhaust systems
  • Complete automated working cycle from mold pull-in to product pushing
  • Custom non-standard designs available
Tire Tread Making Machine Manufacture/Vulcanizer Machine for Splicing Conveyor Belt Tire Tread Making Machine Manufacture/Vulcanizer Machine for Splicing Conveyor Belt
Quality Assurance
Comprehensive quality control throughout production with full assembly testing before shipment. One-year quality guarantee using world-famous brand components.
Technical Support
  • Overseas installation and commissioning services available
  • Small machines: 2-3 days installation
  • Production lines: approximately 30 days installation
  • Free technical documentation including drawings and manuals
  • Worker training and operational support
Tire Tread Making Machine Manufacture/Vulcanizer Machine for Splicing Conveyor Belt Tire Tread Making Machine Manufacture/Vulcanizer Machine for Splicing Conveyor Belt
Customer Services
  • Custom machine design with engineering drawings
  • Production progress tracking with regular photo updates
  • Complete shipping documentation provided
  • Free technical drawings and maintenance manuals
  • Overseas engineer support and operator training
