Dispension Kneader for Rubber and Plastic:


Working Condition
1. Equipment of application: The machine is mainly used for plasticating and mixing of rubber and plastics.
2. The rubber viscosity≤ 80.
3. Power source: AC380, 50Hz; Production water pressure for 0.3~0.4MPa, air pressure for 0.6~0.8MPa.
The scope of supply
1. Main machine part 1set
2. Control system 1set

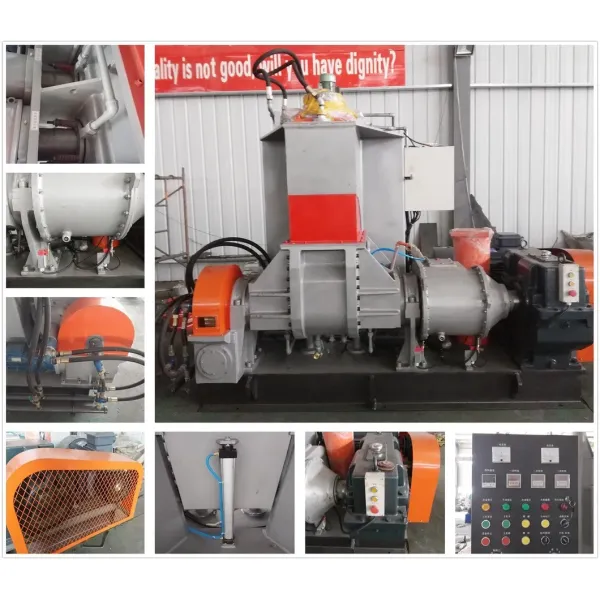

Structure brief

1. Pressure on top materials adopted pneumatic switch.
2. The rotor are adopts two wings shear. Working edges parts are adopts alloy surfacing welding, rotor block of working parts for hard chrome plating, the inter rotor through water forced cooling or heating.
3. Mixed chamber adopts clip set of welding structure type, can be through the water for cooling or heating, mixer chamber of working surface adopt hard chrome plating. Mixing bottom with thermocouple temperature measure, refine in control.
4. The tilting discharging, unloading action by flip motor drives turbine worm provide motivation, electrical automatic control.
5. Reducer gear tooth surface of the hard.
6. Control parts adopts PLC, easy operation, can realize pinch of mixing mill action requires.



1. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment.

2. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.

3. Are you able to give installation and commissioning overseas?How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2~3 days. Big production line usually takes about 30 days.

4. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers.
If you come to our factory, we can show the user around us.

5. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao liuting airport. We will pick up you at the airport.
