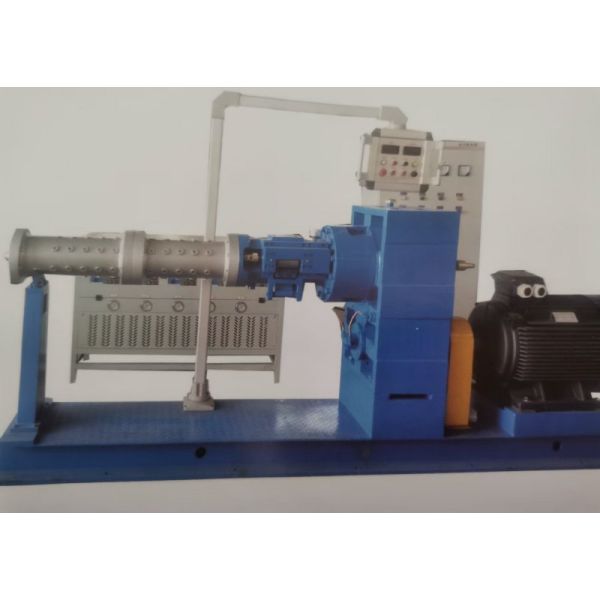

Pin-type Cold Feed Rubber Extruder with Multi-row Pins for Low Extrusion Temperature and Cold Feed Design
Pin-type Cold Feed Rubber Extruder with Multi-row Pins for Low Extrusion Temperature and Cold Feed Design
Pin-type Cold Feed Rubber Extruder with Multi-row Pins for Low Extrusion Temperature and Cold Feed Design
Pin-type Cold Feed Rubber Extruder with Multi-row Pins for Low Extrusion Temperature and Cold Feed Design
Pin-type Cold Feed Rubber Extruder with Multi-row Pins for Low Extrusion Temperature and Cold Feed Design
Pin-type Cold Feed Rubber Extruder with Multi-row Pins for Low Extrusion Temperature and Cold Feed Design
Pin-type Cold Feed Rubber Extruder with Multi-row Pins for Low Extrusion Temperature and Cold Feed Design
Pin-type Cold Feed Rubber Extruder with Multi-row Pins for Low Extrusion Temperature and Cold Feed Design
Pin-type Cold Feed Rubber Extruder with Multi-row Pins for Low Extrusion Temperature and Cold Feed Design
Pin-type Cold Feed Rubber Extruder with Multi-row Pins for Low Extrusion Temperature and Cold Feed Design
Pin-type Cold Feed Rubber Extruder with Multi-row Pins for Low Extrusion Temperature and Cold Feed Design
Pin-type Cold Feed Rubber Extruder with Multi-row Pins for Low Extrusion Temperature and Cold Feed Design
Specifications
Brand Name :
SFC
Model Number :
XJD-90 XJD-120 XJD-150 XJD-200 XJD-250
Certification :
CE,ISO9001,SGS
Place of Origin :
China
MOQ :
1set
Price :
69990.00-69999.00USD/set
Payment Terms :
T/T
Supply Ability :
500 sets/year
Delivery Time :
60 days
Packaging Details :
Fumigation-free plywood case & steel reinforced base
Hs Code :
8477800000
Operation Mode :
Automatic
Warranty :
1 Year
Core Components :
PLC, Pressure Vessel, Other
Material :
Rubber
Description
Pin-type Cold Feed Rubber Extruder & Pin Barrel Cold Feed Rubber Extruder
Advanced Pin Barrel Cold Feed Rubber Extruder
Ideal for continuous extrusion of rubber compounds. With pin barrel mixing system, it enables cold feeding without pre-heating, delivers excellent plastication, uniform mixing, low temperature extrusion and high output.
Key Features
  • Multi-row pins enhance shearing & mixing, eliminate dead zones
  • Cold feed design saves labor & energy, no warm-up needed
  • Low extrusion temperature prevents scorch, ensures high density
  • Stable pressure & consistent dimension for quality products
  • Wide application: tire tread, rubber hose, seals, conveyor belt, wire & cable
Applications
Tire manufacturing, rubber products, hose & belt, sealing parts, wire and cable industry.
Product Gallery
Pin-type Cold Feed Rubber Extruder with Multi-row Pins for Low Extrusion Temperature and Cold Feed Design Pin-type Cold Feed Rubber Extruder with Multi-row Pins for Low Extrusion Temperature and Cold Feed Design Pin-type Cold Feed Rubber Extruder with Multi-row Pins for Low Extrusion Temperature and Cold Feed Design Pin-type Cold Feed Rubber Extruder with Multi-row Pins for Low Extrusion Temperature and Cold Feed Design Pin-type Cold Feed Rubber Extruder with Multi-row Pins for Low Extrusion Temperature and Cold Feed Design Pin-type Cold Feed Rubber Extruder with Multi-row Pins for Low Extrusion Temperature and Cold Feed Design
Technical Specifications
Item XJD-90 XJD-120 XJD-150 XJD-200 XJD-250
Screw Diameter (mm) 90 120 150 200 250
L/D Ratio 12 12; 14 14; 16 12; 14; 16 12; 14; 16
Max. Screw Rotational Speed (r/min) 60 50 43 35 26; 30
Feeding Port (mm) 120*90 164*130 220*130 260*190 310*220
Number of Pin Rows 8 8; 10 10 10; 12 10; 12
Pins per Row 6 6 8 10 12
Motor Power (KW) 75-90 90-110 200-220 315-355 400-500
Zone of Hot Water Circulation 4 4 4 4 4
Total Heating Power of Hot Water Circulation (KW) 48 48 48 48-64 48-64
Capacity (kg/h) (Temperature Control System) 250-360 600-800 1000-1500 1600-2600 3000-3500
Overall Dimensions (mm) 2800 * 1400 * 1500 3450 * 1320 * 1500 4000 * 1810 * 1620 5500 * 2100 * 1850 6000 * 2400 * 1850
About Weight (T) ~4.5 ~6 ~7.25 ~12 ~17
Manufacturer Profile
Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd is located in Kangting Road No. 1, West Coast New District, Qingdao, China. We are a specialized manufacturer of high-technology rubber machinery and have passed ISO9001:2015 quality management system certification, European Union CE certification and Switzerland SGS certification.
Product Range
Our products mainly cover: tire manufacturing, rubber conveyor belt production, various rubber products, tire refurbished manufacturing, and waste tire recycling.
Main Equipment
Rubber Kneader, Rubber Mixing Machine, Rubber Vulcanizing Press, Batch Off Cooler, Rubber Calender, Waste Tire Crusher, Rubber Extruder, Rubber Strainer, and more.
Global Reach
Our products are exported to over 50 countries and regions including Britain, Switzerland, USA, Germany, Brazil, Singapore, Malaysia, India, Russia, Ukraine, Uzbekistan, and Kazakhstan, earning praise and long-term cooperation from domestic and international customers.
Quality Commitment
  • Every component passes strict quality inspection before storage
  • All products undergo overload trial running before shipment
  • Complete technical support included with all products
  • 3-year warranty for main parts, 1-year warranty for wearing parts
  • Immediate technical support via internet or phone, with on-site repair services when needed
