Hydraulic Automatic Rubber Plate Vulcanizing Press Rubber Molding Press Machine
Hydraulic Automatic Rubber Plate Vulcanizing Press Rubber Molding Press Machine
Hydraulic Automatic Rubber Plate Vulcanizing Press Rubber Molding Press Machine
Hydraulic Automatic Rubber Plate Vulcanizing Press Rubber Molding Press Machine
Hydraulic Automatic Rubber Plate Vulcanizing Press Rubber Molding Press Machine
Hydraulic Automatic Rubber Plate Vulcanizing Press Rubber Molding Press Machine
Hydraulic Automatic Rubber Plate Vulcanizing Press Rubber Molding Press Machine
Hydraulic Automatic Rubber Plate Vulcanizing Press Rubber Molding Press Machine
Hydraulic Automatic Rubber Plate Vulcanizing Press Rubber Molding Press Machine
Hydraulic Automatic Rubber Plate Vulcanizing Press Rubber Molding Press Machine
Hydraulic Automatic Rubber Plate Vulcanizing Press Rubber Molding Press Machine
Hydraulic Automatic Rubber Plate Vulcanizing Press Rubber Molding Press Machine
Specifications
Brand Name :
SFC
Model Number :
XLB-500x500x1
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 set
Price :
US$2,000.00-3,000.00
Payment Terms :
T/T,L/C
Supply Ability :
50set/month
Delivery Time :
25-35 days
Packaging Details :
Safety Wood or Plywood Crates Packing
Automatic Grade :
Automatic
Daylight :
125mm
Piston Stroke :
125mm
Working Layer :
1
Heating mode :
Electric
Type :
General Rubber Machinery
Customized :
Customized
Description

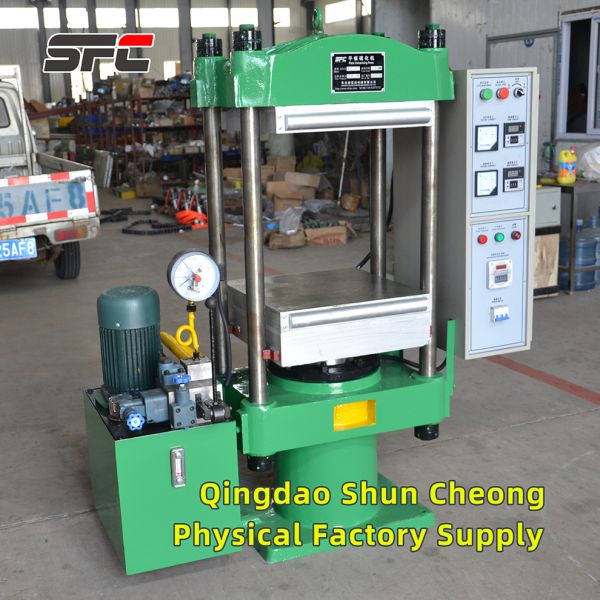

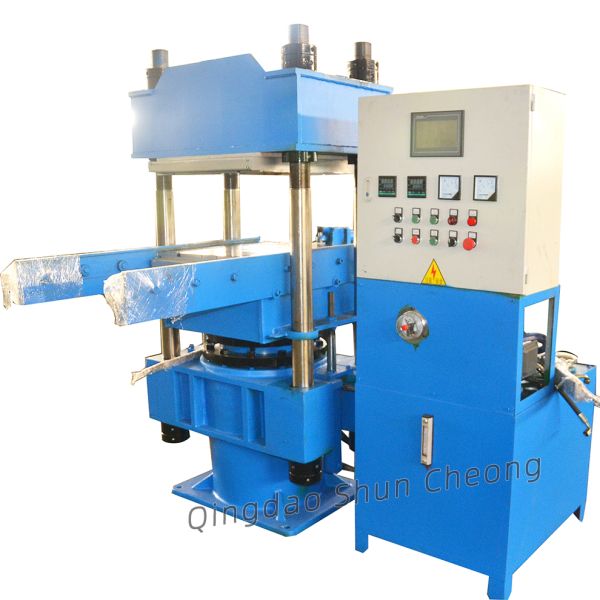

Rubber Plate Vulcanizing Press
Professional Rubber Vulcanizing Solutions

We specialize in designing and manufacturing custom pillar type, frame type, and C type vulcanizing presses tailored to meet specific client requirements.

Key Features & Benefits
  • High-quality plate press construction
  • Beautiful modeling with compact structure
  • High-speed mold opening/closing for enhanced production efficiency
  • Mold protection system
  • Simple structure with wide application range
  • Easy to operate and maintain
Technical Specifications
Type Total Pressure (MN) Platen Size (mm) Daylight (mm) No of Daylights Piston Stroke (mm) Plate Unit Area Pressure (kg/cm²) Main Motor Power (kw) Overall Dimension (L*W*H mm) Weight (kg)
XLB-DQ1200*1200*2 315t 1200*1200 200 2 400 22 3 1685*1320*2450 9500
XLB-DQ1300*2000*1 560t 1300*2000 400 1 400 21.5 8 2000*1860*2500 17000
XLB-Q1200*2500*1 750t 1200*2500 400 1 400 25 9.5 2560*1700*2780 20000
XLB-Q1500*2000*1 1000t 1500*2500 400 1 400 33.5 11 2810*1550*3325 24000
XLB-Q2000*3000*1 1800t 2000*3000 400 1 400 30 26 2900*3200*2860 66000
XLB-Q1400*5700*1 2800t 1400*5700 400 1 400 35 43.5 2400*5800*3600 110000
Product Images
Hydraulic Automatic Rubber Plate Vulcanizing Press Rubber Molding Press Machine Hydraulic Automatic Rubber Plate Vulcanizing Press Rubber Molding Press Machine

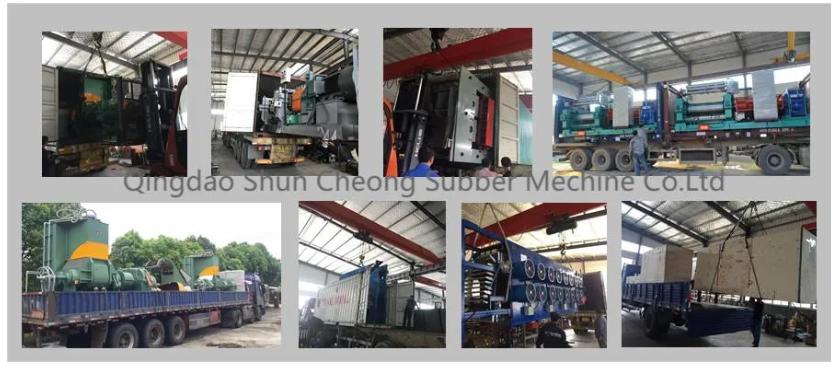

Packaging & Delivery

Equipment is painted before delivery and wrapped with stretch film to protect the surface finish. Custom wooden packaging is available. Key components, including electronic control boxes, are protected with shockproof materials and packed in wooden cases.

Our team of 15 experienced engineers and 108 skilled workers ensures timely delivery as per contract terms. We maintain long-term cooperation with COSCO to guarantee on-time port arrival.

Hydraulic Automatic Rubber Plate Vulcanizing Press Rubber Molding Press Machine Hydraulic Automatic Rubber Plate Vulcanizing Press Rubber Molding Press Machine Hydraulic Automatic Rubber Plate Vulcanizing Press Rubber Molding Press Machine
Frequently Asked Questions
Delivery time of the rubber machines?
Custom-designed machines require approximately 25-35 days from engineering design to production completion.
What does your factory do regarding quality control?
We implement comprehensive quality control throughout production. Every machine is fully assembled and thoroughly tested before shipment.
What's the machine quality guarantee?
One-year quality guarantee. We use world-famous brand components to ensure optimal machine performance.
Are you able to give installation and commissioning overseas?
Yes, we provide overseas installation services and technical support. Small machines typically take 2-3 days, while larger plants require about 30 days.
How can I trust you to deliver the right machine as I ordered?
We are committed to delivering high-quality machines as specified in your order. Our company culture emphasizes innovation, quality, integrity, and efficiency, with proven collaborations with world-renowned rubber manufacturers.
How can we go to your side?
We are located in Qingdao City, Shandong province, China, near Qingdao Liuting Airport. We provide airport pickup services for visiting clients.
Contact Information

Name: Sharmin khatun

WhatsApp: +8618344700139

Email: rubbermachine@sfcjx.com
