Specifications
Price :
5000.00-6000.00 USD/SET
Certification :
CE/ISO9001/SGS
Packaging Details :
Container
Model Number :
XPG-400,XPG-600,XPG-800
Brand Name :
SFC
Delivery Time :
45days
Supply Ability :
20set/month
Payment Terms :
T/T
Place of Origin :
QingDao/China
MOQ :
1set
Description

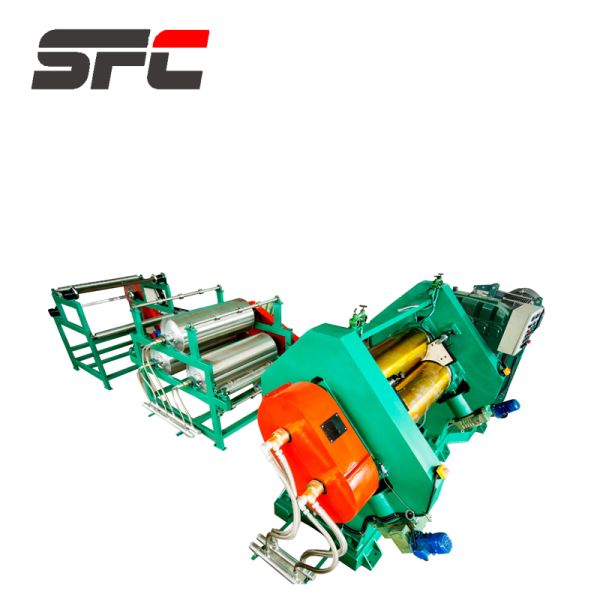

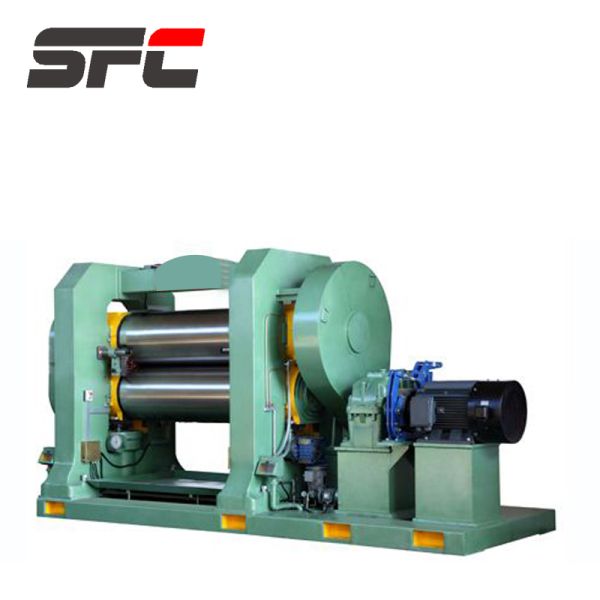

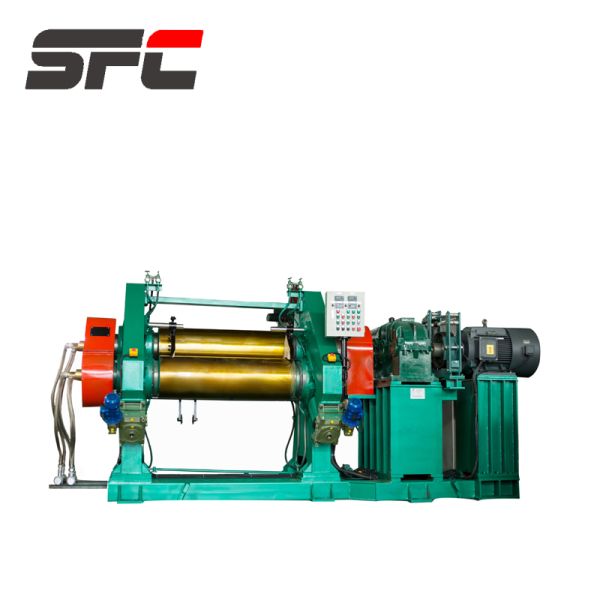

Two-Roll Calender Machine,Two-Roll Rubber Calender
Product Overview

A two-roll calender is a forming machine composed of two parallel rollers rotating in opposite directions. Relying on the pressure and shear force generated at the roll gap, it compresses viscous materials such as rubber, plastic, silicone and graphite into continuous sheets or films with uniform thickness and smooth surfaces. Unlike the two-roll mixing mill (for rubber mixing and plasticating), its core function is precision thickness setting and sheet extrusion.

Two-Roll Rubber Calender Machine ,wo-Roll Rubber Calender Two-Roll Rubber Calender Machine ,wo-Roll Rubber Calender Two-Roll Rubber Calender Machine ,wo-Roll Rubber Calender Two-Roll Rubber Calender Machine ,wo-Roll Rubber Calender Two-Roll Rubber Calender Machine ,wo-Roll Rubber Calender
Technical Specifications
Model XY-2I 320 XY-2I 630 XY-2I 1120 XY-2I 1500 XY-2I 1830 XY-2I 1730
Roller Diameter (mm) 160 230 360 450 550 610
Roller Working Length (mm) 320 630 1120 1500 1830 1730
Speed Ratio 1:1 1:1 1:1 1:1 1:1 1:1
Roller Linear Speed (r/mm) 7:79 14.8 3-20.2 2.5-24.8 2-18.7 4-36
Min. Thickness of Products (mm) 0.2 0.2 0.2 0.2 0.2 0.2
Products Width (mm) 250 580 920 1250 1600 1500
Main Motor Power (KW) 5.5 15 37 45 75 90
Company Profile

Qingdao Shun Cheong Rubber Machinery Manufacturing Co., LTD is located in Qingdao west coast new economic district, which is a high-tech enterprise "specializing and New" Enterprise, Nation "High-tech" Enterprise, etc. has been achieved, trademark "顺富昌" registered, and has passed ISO9001:2015 quality system certification, Swiss SGS certification and CE export certification. All the machines are designed with 3D software and are not only sold all over the country, but also exported to the United States, Britain, Russia, the Netherlands, Thailand, Malaysia, Indonesia, Chile, Mexico, Uzbekistan, France and many other countries and regions.

The main products of our company including new banbury mixer, rubber mixing mill, vulcanizing press, rubber calender, batch of cooler, rubber kneader, forced feeding straining extruder, new waste tire recycling line, reclaimed rubber equipment etc., and can design and manufacture various special rubber machinery according to customer requirements.

Two-Roll Rubber Calender Machine ,wo-Roll Rubber Calender
Certifications
Two-Roll Rubber Calender Machine ,wo-Roll Rubber Calender
Our Services
  • Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost
  • In the process of production, we will take photos and send to customers for their track the progress.
  • Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
  • We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
  • We supply overseas engineer service and help to train your workers to operate the machine.
