Product instruction

This machine is mainly used for hot pressing and curing molding of carbon fiber prepregs, glass fiber composites, carbon fiber blended rubber and resin-based composite materials under high temperature and high pressure.

It can process various carbon fiber structural parts, carbon fiber sheets and carbon fiber-rubber composite seals. The equipment can effectively discharge internal air of materials, reduce defects such as air bubbles, delamination and material shortage, and ensure dimensional accuracy, flat surface and mechanical strength of finished products.

Main Applications

It is widely applied to manufacture sports equipment components, lightweight auto parts, UAV housings, medical carbon fiber panels, rail transit interior parts, marine composite accessories, electronic equipment casings and other products.

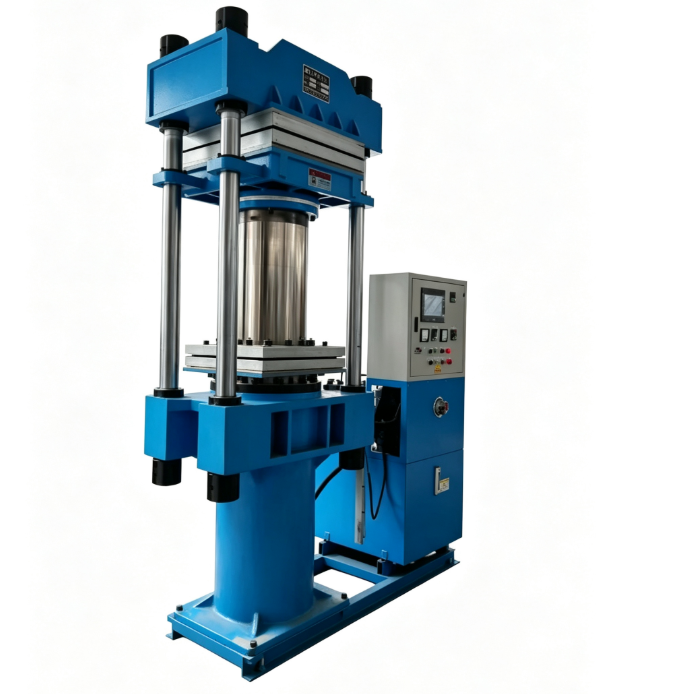

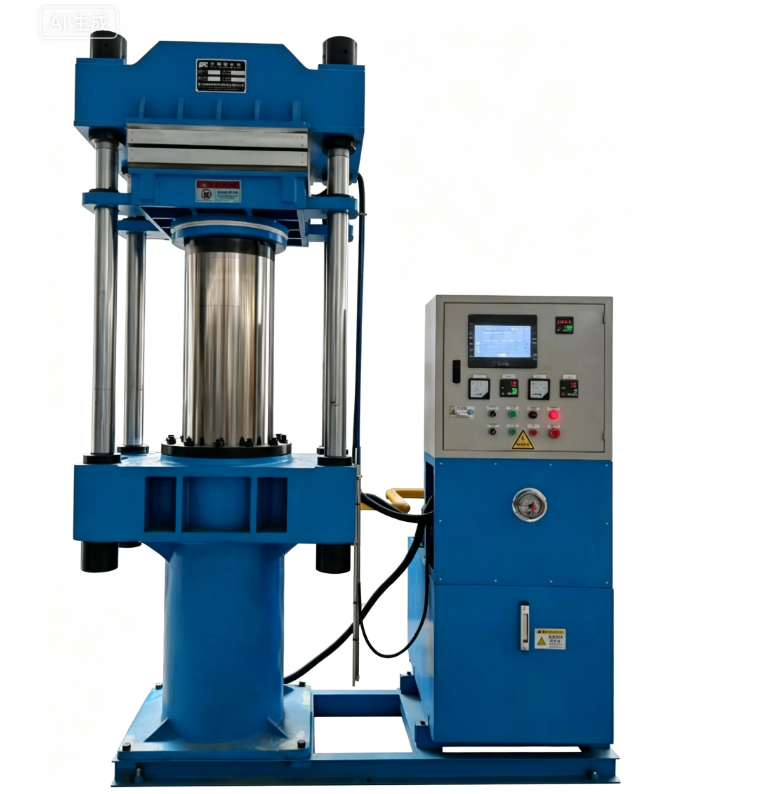

Product picture

Features

1.The machine supports button-triggered automatic mold closing, automatic venting, automatic pressure compensation, vulcanization timing, automatic constant temperature, completion alarm and automatic mold opening functions.

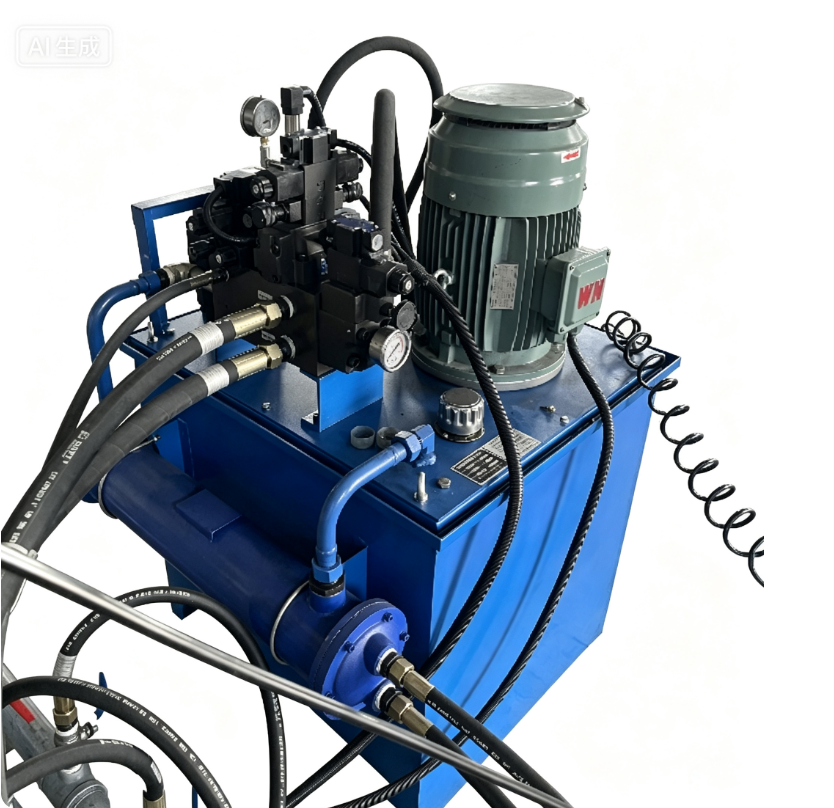

2.The heating rate of hot plates is adjustable from 1℃/min to 5℃/min. It supports multi-stage temperature control and multi-stage pressure control, equipped with a servo hydraulic system.

3.The PLC can store process recipes, and recipe data can be exported and printed.

Company instruction

Qingdao Shun Cheong Rubber Machinery Manufacturing Co,LTD is located in Qingdao west coast new economic distrect,witch is a high-tech enterprise “specializing and New “ ENterprise,Nation”High-tech”Enterprise,etc. has been achieved,trademark “顺富昌” registered, and has passed ISO9001:2015 quality system certification , Swiss SGS certification and CE export certication . All the machines are designed with 3D software and are not only sold all over the country ,but also exported to the United States ,Britain ,Russia , the Netherlands , Thailang ,Malaysia , Indonesia , Chile , Mexico , Uzbekistan , France and many other countries and regions .

The main products of our company including new banbury mixer , rubber mixing mill ,vulcanizing press , rubber calender , batch of cooler , rubber kneader , forced feeding straining extruder ,new waste tire recycling line , reclaimed rubber equipment etc . , and can design and manufacture various special rubber machinery according to customer requirements.

Certificates

Our Services
♦ Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.

♦ In the process of production, we will take photos and send to customers for their track the progress.

♦ Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.

♦ We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.

♦ We supply overseas engineer service and help to train your workers to operate the machine.
