Cold Feed Rubber Extrusion Machine for EPDM Rubber Strip Production Line with 150mm Screw Diameter and 500-800Kg/h Output
Cold Feed Rubber Extrusion Machine for EPDM Rubber Strip Production Line with 150mm Screw Diameter and 500-800Kg/h Output
Cold Feed Rubber Extrusion Machine for EPDM Rubber Strip Production Line with 150mm Screw Diameter and 500-800Kg/h Output
Cold Feed Rubber Extrusion Machine for EPDM Rubber Strip Production Line with 150mm Screw Diameter and 500-800Kg/h Output
Cold Feed Rubber Extrusion Machine for EPDM Rubber Strip Production Line with 150mm Screw Diameter and 500-800Kg/h Output
Cold Feed Rubber Extrusion Machine for EPDM Rubber Strip Production Line with 150mm Screw Diameter and 500-800Kg/h Output
Cold Feed Rubber Extrusion Machine for EPDM Rubber Strip Production Line with 150mm Screw Diameter and 500-800Kg/h Output
Cold Feed Rubber Extrusion Machine for EPDM Rubber Strip Production Line with 150mm Screw Diameter and 500-800Kg/h Output
Cold Feed Rubber Extrusion Machine for EPDM Rubber Strip Production Line with 150mm Screw Diameter and 500-800Kg/h Output
Cold Feed Rubber Extrusion Machine for EPDM Rubber Strip Production Line with 150mm Screw Diameter and 500-800Kg/h Output
Cold Feed Rubber Extrusion Machine for EPDM Rubber Strip Production Line with 150mm Screw Diameter and 500-800Kg/h Output
Cold Feed Rubber Extrusion Machine for EPDM Rubber Strip Production Line with 150mm Screw Diameter and 500-800Kg/h Output
Cold Feed Rubber Extrusion Machine for EPDM Rubber Strip Production Line with 150mm Screw Diameter and 500-800Kg/h Output
Cold Feed Rubber Extrusion Machine for EPDM Rubber Strip Production Line with 150mm Screw Diameter and 500-800Kg/h Output
Cold Feed Rubber Extrusion Machine for EPDM Rubber Strip Production Line with 150mm Screw Diameter and 500-800Kg/h Output
Cold Feed Rubber Extrusion Machine for EPDM Rubber Strip Production Line with 150mm Screw Diameter and 500-800Kg/h Output
Cold Feed Rubber Extrusion Machine for EPDM Rubber Strip Production Line with 150mm Screw Diameter and 500-800Kg/h Output
Cold Feed Rubber Extrusion Machine for EPDM Rubber Strip Production Line with 150mm Screw Diameter and 500-800Kg/h Output
Cold Feed Rubber Extrusion Machine for EPDM Rubber Strip Production Line with 150mm Screw Diameter and 500-800Kg/h Output
Cold Feed Rubber Extrusion Machine for EPDM Rubber Strip Production Line with 150mm Screw Diameter and 500-800Kg/h Output
Cold Feed Rubber Extrusion Machine for EPDM Rubber Strip Production Line with 150mm Screw Diameter and 500-800Kg/h Output
Cold Feed Rubber Extrusion Machine for EPDM Rubber Strip Production Line with 150mm Screw Diameter and 500-800Kg/h Output
Cold Feed Rubber Extrusion Machine for EPDM Rubber Strip Production Line with 150mm Screw Diameter and 500-800Kg/h Output
Cold Feed Rubber Extrusion Machine for EPDM Rubber Strip Production Line with 150mm Screw Diameter and 500-800Kg/h Output
Cold Feed Rubber Extrusion Machine for EPDM Rubber Strip Production Line with 150mm Screw Diameter and 500-800Kg/h Output
Cold Feed Rubber Extrusion Machine for EPDM Rubber Strip Production Line with 150mm Screw Diameter and 500-800Kg/h Output
Cold Feed Rubber Extrusion Machine for EPDM Rubber Strip Production Line with 150mm Screw Diameter and 500-800Kg/h Output
Cold Feed Rubber Extrusion Machine for EPDM Rubber Strip Production Line with 150mm Screw Diameter and 500-800Kg/h Output
Specifications
Brand Name :
SFC
Model Number :
XKJ
Certification :
CE,ISO9001,SGS
Place of Origin :
China
MOQ :
1 set
Price :
USD6999.00-100000.00/set
Payment Terms :
T/T
Supply Ability :
50 Sets/month
Delivery Time :
50 days
Packaging Details :
Standard export package
Description
Cold Feed Rubber Extrusion Machine For EPDM Rubber Strip Production Line
Production Process Overview

EPDM rubber seals production line process: Raw materials → Mixer → Rubber Mixing Mill → Extruder → Vulcanizing Box cooling and traction → Packaging and storage.

Technical Specifications
Model XJL-150 XJL-200 XJL-250
Screw diameter (mm) 150mm 200mm 250mm
Length:Diameter (L/D) 6.3 6 5.4
Feeding length 500mm 600mm 600mm
Max. screw speed (r/min) 60r/min 50r/min 40r/min
Main motor 45KW 75KW 110KW
Feeding motor 5.5KW 7.5KW 7.5KW
Cropping motor 1.5kw 1.5kw 1.5kw
Hydraulic motor 3.7kw 3.7kw 3.7kw
Output(kg/h) 500-800Kg/h 900-1500 Kg/h 1500-2000Kg/h
Steam pressure(Mpa) 0.2-0.4MPa
Cooling water pressure(Mpa) 0.2-0.4MPa
Oversize 3500×1650×1520 3700×1850×1750 4800×2150×1850

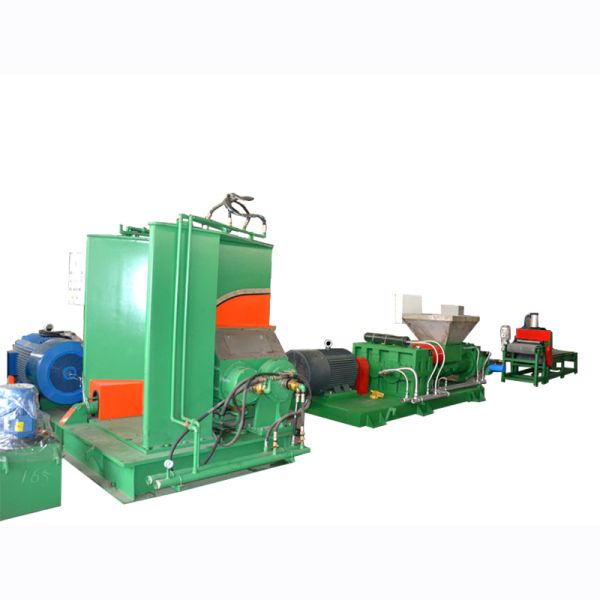

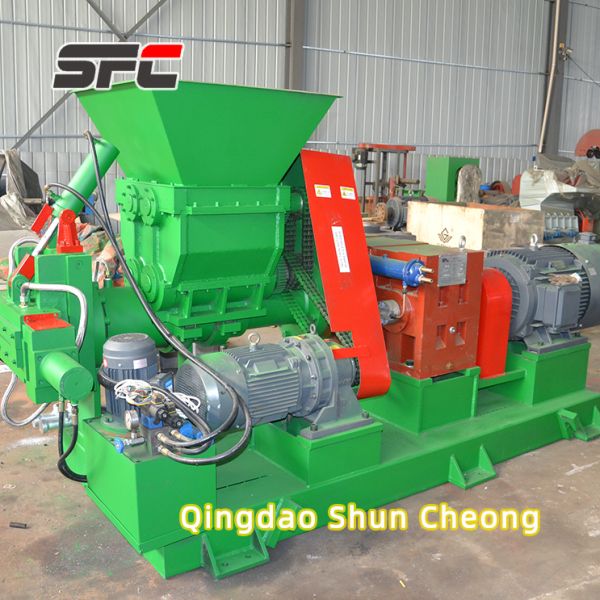

Reference Photos
Cold Feed Rubber Extrusion Machine for EPDM Rubber Strip Production Line with 150mm Screw Diameter and 500-800Kg/h Output Cold Feed Rubber Extrusion Machine for EPDM Rubber Strip Production Line with 150mm Screw Diameter and 500-800Kg/h Output Cold Feed Rubber Extrusion Machine for EPDM Rubber Strip Production Line with 150mm Screw Diameter and 500-800Kg/h Output Cold Feed Rubber Extrusion Machine for EPDM Rubber Strip Production Line with 150mm Screw Diameter and 500-800Kg/h Output
Key Features
  • Used in production of band, strip and tubular shape of dense and foam rubber products for building, electrical, mechanical, and water conservancy industries
  • Uniform vulcanization, quick vulcanizing speed, high efficiency, and high product quality
  • Low production costs, environmental protection and energy saving
  • Automatic thermostat circulating vulcanizing box with smooth and tidy appearance
EPDM Rubber Extrusion Line Highlights
Cold Feed Rubber Extrusion Machine for EPDM Rubber Strip Production Line with 150mm Screw Diameter and 500-800Kg/h Output
  • Extruder Screw & Tube: Made from 38 CrMoAIA nitrogen steel with surface nitrogen treatment, hardness HRC60-65, depth 0.5-0.7 mm
  • Rotation Speed: Adjustable screw speed to match related machines
  • Gearbox: Hard tooth reduction gearbox with low noise and long service life
  • Vulcanizing Systems: Hot air vulcanizing box & microwave oven vulcanizer with automatic thermostat circulating system
  • Temperature Control: Accuracy of +/-2°C, range from room temperature to 260 degrees
  • Water Cooling Tank: Automatic thermostat circulating system for optimal cooling
Additional Production Line Images
Cold Feed Rubber Extrusion Machine for EPDM Rubber Strip Production Line with 150mm Screw Diameter and 500-800Kg/h Output Cold Feed Rubber Extrusion Machine for EPDM Rubber Strip Production Line with 150mm Screw Diameter and 500-800Kg/h Output Cold Feed Rubber Extrusion Machine for EPDM Rubber Strip Production Line with 150mm Screw Diameter and 500-800Kg/h Output Cold Feed Rubber Extrusion Machine for EPDM Rubber Strip Production Line with 150mm Screw Diameter and 500-800Kg/h Output Cold Feed Rubber Extrusion Machine for EPDM Rubber Strip Production Line with 150mm Screw Diameter and 500-800Kg/h Output Cold Feed Rubber Extrusion Machine for EPDM Rubber Strip Production Line with 150mm Screw Diameter and 500-800Kg/h Output Cold Feed Rubber Extrusion Machine for EPDM Rubber Strip Production Line with 150mm Screw Diameter and 500-800Kg/h Output Cold Feed Rubber Extrusion Machine for EPDM Rubber Strip Production Line with 150mm Screw Diameter and 500-800Kg/h Output
Delivery & Payment Terms
  • Delivery Lead Time: 35-40 days since receiving deposit
  • Packing Methods:
    • Wrapped with stretch film to protect surface paint
    • Custom wooden packaging available
    • Key parts (electronic control box) wrapped with shockproof materials and packed in wooden cases
  • Payment Terms: T/T (30% deposit, 70% balance of B/L); L/C
Our Services
  • Overseas service and technical support
  • Timely machine dispatch within stipulated time
  • 24 hours online service with immediate response
  • Testing machine available to ensure customer satisfaction
  • Design assistance, drawing creation, and OEM rubber machine acceptance
  • Shipment arrangement with 7-day advance notification before order completion
About Our Company
  • Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd. established in 2007
  • 10+ years experience in rubber machinery manufacturing
  • ISO 9001, SGS, and CE certified
  • Specializes in rubber kneader/mixing mill, plate vulcanizing press, rubber calenders, batch off cooler, waste tire recycling lines, and rubber seals extruding & vulcanizing lines
  • Global market presence: America, Mexico, India, Vietnam, South Africa, Singapore, Malaysia, Indonesia, Australia, Sri Lanka and more
  • Professional engineering team accepting OEM/ODM machines with overseas engineer service
Cold Feed Rubber Extrusion Machine for EPDM Rubber Strip Production Line with 150mm Screw Diameter and 500-800Kg/h Output
