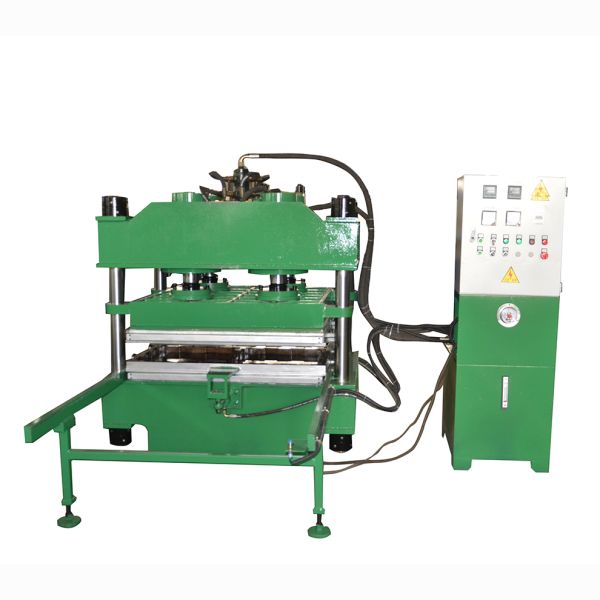

550x550mm Heating Plate 4 Working Layers CE Certified Rubber Floor Tile Production Line and Rubber Tile Vulcanizing Press
550x550mm Heating Plate 4 Working Layers CE Certified Rubber Floor Tile Production Line and Rubber Tile Vulcanizing Press
550x550mm Heating Plate 4 Working Layers CE Certified Rubber Floor Tile Production Line and Rubber Tile Vulcanizing Press
550x550mm Heating Plate 4 Working Layers CE Certified Rubber Floor Tile Production Line and Rubber Tile Vulcanizing Press
550x550mm Heating Plate 4 Working Layers CE Certified Rubber Floor Tile Production Line and Rubber Tile Vulcanizing Press
550x550mm Heating Plate 4 Working Layers CE Certified Rubber Floor Tile Production Line and Rubber Tile Vulcanizing Press
550x550mm Heating Plate 4 Working Layers CE Certified Rubber Floor Tile Production Line and Rubber Tile Vulcanizing Press
550x550mm Heating Plate 4 Working Layers CE Certified Rubber Floor Tile Production Line and Rubber Tile Vulcanizing Press
Specifications
Brand Name :
SFC
Model Number :
XLB-D550x550
Certification :
ISO9001/CE/SGS
Place of Origin :
China
MOQ :
1 Set
Price :
3500.00-29999.00 USD per Set
Payment Terms :
T/T
Supply Ability :
50 Sets per Month
Delivery Time :
45 days
Packaging Details :
Wooden Case
Total Pressure (Ton) :
50
Heating Plate Size (mm) :
550x550x45
Daylight (mm) :
125
Layer No. :
4
Motor Power (KW) :
3
Overall Diameter (L*W*H) (mm) :
1650x600x1600mm
Weight (KG) :
1500
After-sales Service :
Video Technical Support
Customized Services :
Support Customization
Description
Exercise Room Rubber Floor Tile Production Line With Preferential Price
Our Exercise Room Rubber Floor Tile Production Line offers exceptional value with competitive pricing, designed to meet diverse manufacturing requirements.
Product Introduction

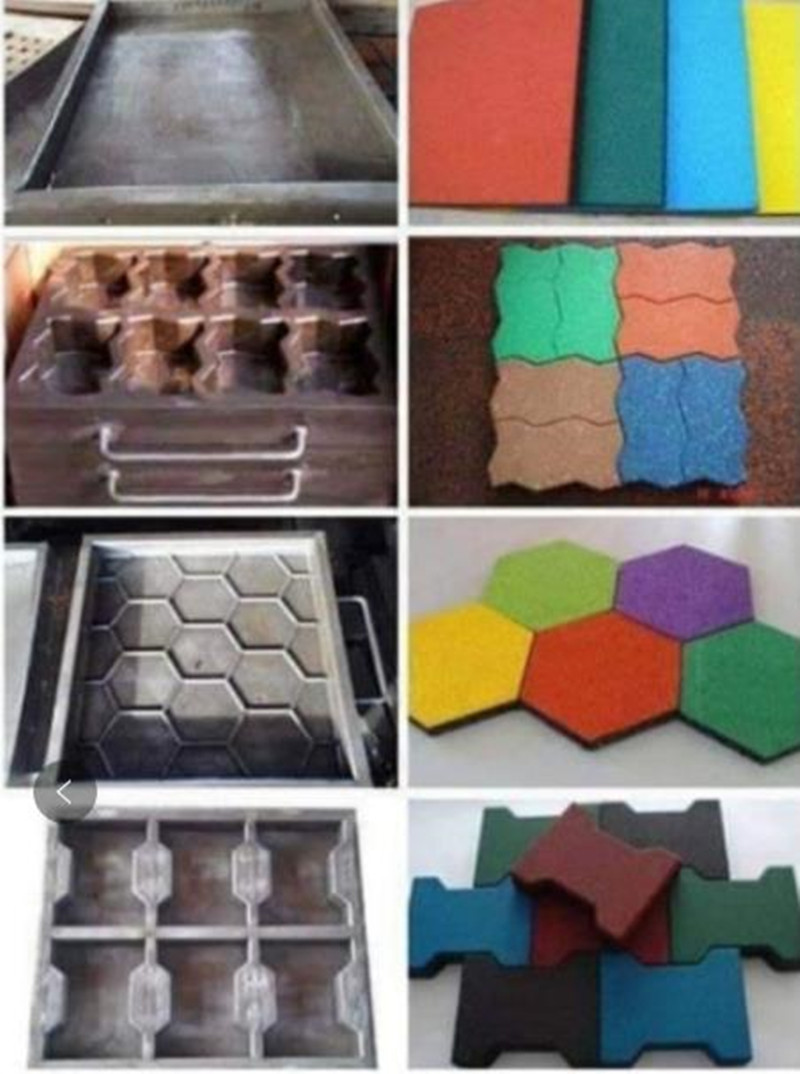

  • Rubber tile making machine produces various floor tile diameters by simply changing molds with one vulcanizing machine
  • Custom molds available to meet specific requirements
  • Available in three types: frame type, pillar type, and jaw type - all featuring high efficiency, large output, automatic control, easy operation, and safety guarantees
  • Working layers customizable (2, 4, 6, etc.) per customer request
  • Certified with CE, ISO, and SGS standards
Production Process
  1. Mixing: Combine rubber granules, coloring pigment, and adhesive in mixing machine (4-6 minutes)
  2. Weighing: Measure stirred rubber powder according to desired tile thickness
  3. Paving and Pressing: Pour rubber powder into mold, float with trowel - coarse black powder at bottom, fine colored powder on surface
  4. Vulcanization Molding: Place mold on vulcanizer layer (3-8 minutes depending on thickness), automatic separation, then drying
  5. Inspecting: Check tile surface for aberrations or flaws to ensure high quality
Technical Specifications
Model XLB-D350x350 XLB-D400x400 XLB-D550x550 XLB-D650x650 XLB-D750x850
Nominal pressure (MN) 0.25 0.50 0.50 1.00 1.60
Plate size (mm) 350×350 400×400 550×550 650×650 750×850
Plate clearance (mm) 125 125 125 125 125
Working layer number 1(2) 2(4) 2(4) 2(4) 2(4)
L (mm) 1200 1400 1650 1410 1900
W (mm) 400 550 600 680 950
H (mm) 1300 1500 1600 1750 2000
Weight (kg) 800 1300 1500 3500 6500(7500)
Product Gallery
550x550mm Heating Plate 4 Working Layers CE Certified Rubber Floor Tile Production Line and Rubber Tile Vulcanizing Press 550x550mm Heating Plate 4 Working Layers CE Certified Rubber Floor Tile Production Line and Rubber Tile Vulcanizing Press 550x550mm Heating Plate 4 Working Layers CE Certified Rubber Floor Tile Production Line and Rubber Tile Vulcanizing Press 550x550mm Heating Plate 4 Working Layers CE Certified Rubber Floor Tile Production Line and Rubber Tile Vulcanizing Press 550x550mm Heating Plate 4 Working Layers CE Certified Rubber Floor Tile Production Line and Rubber Tile Vulcanizing Press 550x550mm Heating Plate 4 Working Layers CE Certified Rubber Floor Tile Production Line and Rubber Tile Vulcanizing Press 550x550mm Heating Plate 4 Working Layers CE Certified Rubber Floor Tile Production Line and Rubber Tile Vulcanizing Press
Packaging and Shipping
Equipment is painted before delivery and wrapped with stretch film to protect surface finish. Wooden packaging is customizable. Key components including electronic control boxes are protected with shockproof materials and packed in wooden cases.
Company Overview
550x550mm Heating Plate 4 Working Layers CE Certified Rubber Floor Tile Production Line and Rubber Tile Vulcanizing Press 550x550mm Heating Plate 4 Working Layers CE Certified Rubber Floor Tile Production Line and Rubber Tile Vulcanizing Press 550x550mm Heating Plate 4 Working Layers CE Certified Rubber Floor Tile Production Line and Rubber Tile Vulcanizing Press 550x550mm Heating Plate 4 Working Layers CE Certified Rubber Floor Tile Production Line and Rubber Tile Vulcanizing Press
Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd, located at Kangting Road No. 1, Huangdao New District, Qingdao City, specializes in high-tech rubber machinery production. The company holds ISO9001:2015 quality management system certification, European Union CE certification, and Switzerland SGS certification.
Product Range: Tire manufacturing, rubber conveyor belt production, various rubber products, tire refurbishing, waste tire recycling equipment.
Main Equipment: Rubber Kneader, Rubber Mixing Machine, Rubber Vulcanizing Press, Batch Off Cooler, Rubber Calender, Waste Tire Crusher, Rubber Extruder, Rubber Strainer.
Global Reach: Exported to over 50 countries including UK, Switzerland, USA, Germany, Brazil, Singapore, Malaysia, India, Russia, and throughout Central Asia.
Quality Commitment
  • All components undergo strict quality inspection before storage
  • All products undergo overload trial running before shipment
  • Comprehensive free technical support included
  • 3-year warranty on main parts, 1-year warranty on wearing parts
Customer Services
  • Custom machine design with engineering drawings for customer confirmation
  • Production progress photos provided during manufacturing
  • Complete documentation including packing list, commercial invoice, and bill of lading
  • Free technical documentation: foundation DWG, installation drawings, user guides, maintenance manuals, and part drawings
Frequently Asked Questions
What does your factory do regarding quality control?
We implement comprehensive quality control throughout production. Every machine is fully assembled and carefully tested before shipment.
What's the machine quality guarantee?
One-year quality guarantee. We use world-famous brand components to ensure optimal machine performance.
Are you able to give installation and commissioning overseas? How long will it take?
Yes, we provide overseas service and technical support (customer covers installation costs). Small machines: 2-3 days. Large production lines: approximately 30 days.
How can I trust you to deliver the right machine as I ordered?
We guarantee delivery of quality machines as confirmed in orders. Our company culture emphasizes innovation, quality, integrity, and efficiency. We have established partnerships with world-renowned rubber manufacturers and welcome factory visits.
How can we go to your side?
We are located in Qingdao City, Shandong province, China. The nearest airport is Qingdao Jiaodong Airport. We provide airport pickup services.
