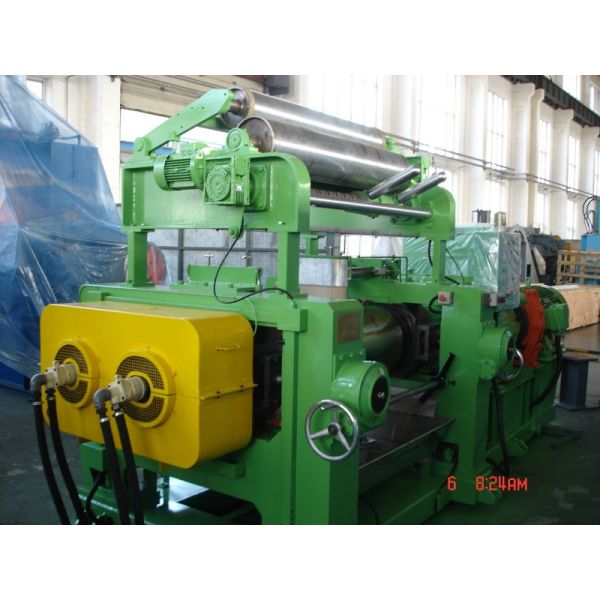

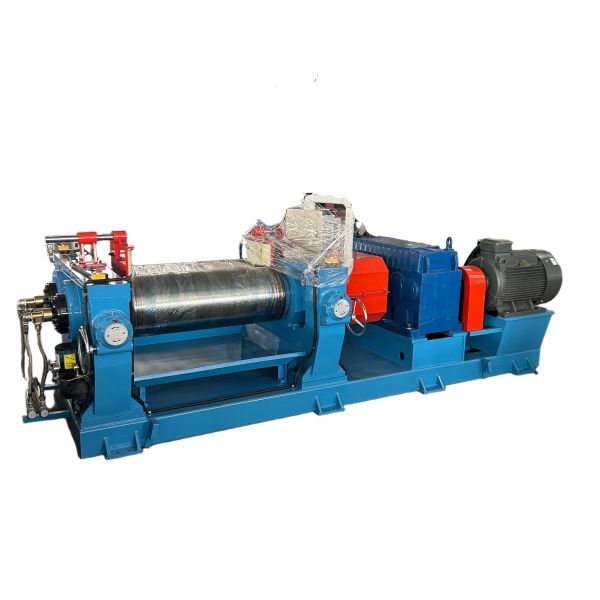

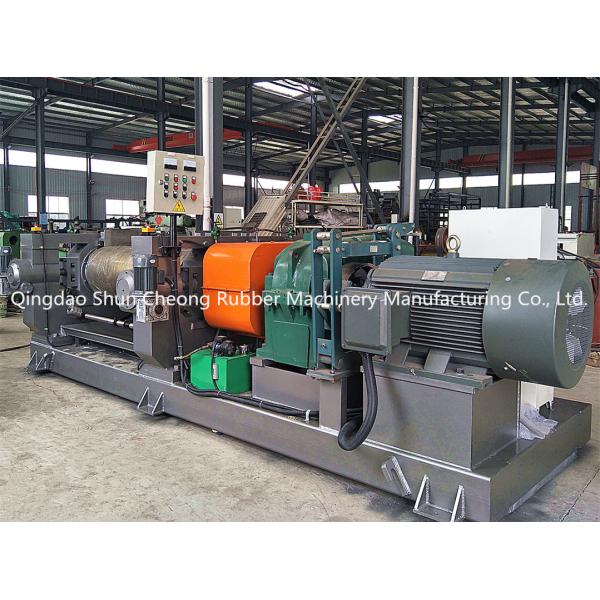

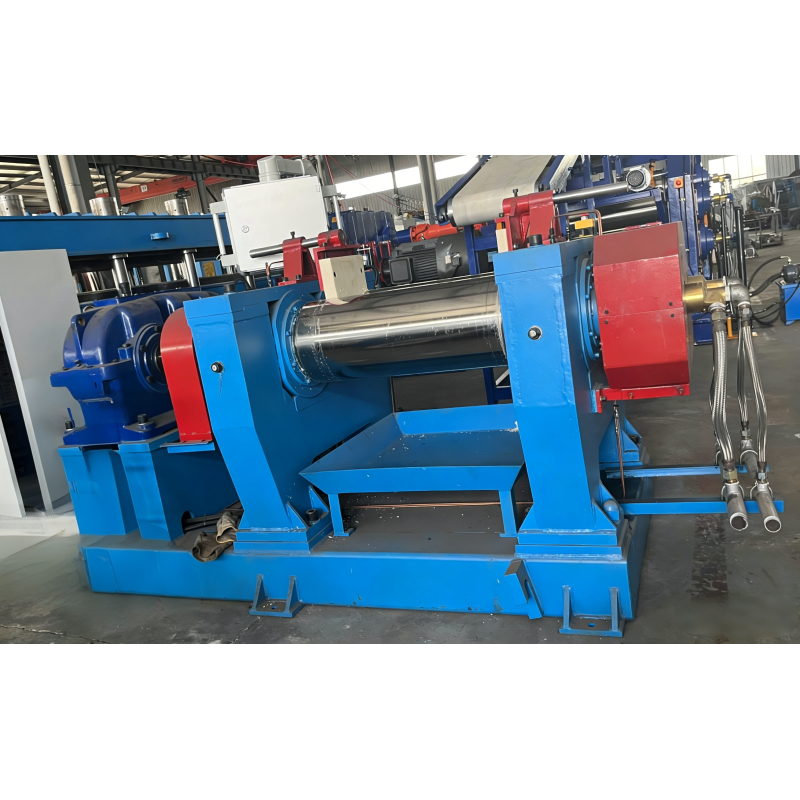

XK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling System
XK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling System
XK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling System
XK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling System
XK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling System
XK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling System
XK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling System
XK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling System
XK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling System
XK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling System
XK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling System
XK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling System
XK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling System
XK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling System
XK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling System
XK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling System
XK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling System
XK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling System
XK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling System
XK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling System
XK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling System
XK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling System
XK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling System
XK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling System
XK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling System
XK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling System
Specifications
Brand Name :
SFC
Model Number :
XK-660
Certification :
ISO9001/CE/SGS
Place of Origin :
China
MOQ :
1 Set
Price :
5,000.00-60,000.00 USD per Set
Payment Terms :
T/T
Supply Ability :
50 Sets per Month
Delivery Time :
45 days
Packaging Details :
wooden cases or container
Model :
XK-660
Roller (D*L) (mm) :
Φ660*2130
Front Roller Linear Speed (m/min) :
28.6
Friction Ratio :
1:1.09
Motor Power (KW) :
165
Overall Dimension (L*W*H) (mm) :
7465*3662*2080
Description
Factory Direct Supply Rubber Mixing Mill with High Quality
XK-660 Rubber Mixing Mill / 24 Inch Lab Mixing Mill / New Type Lab Mixing Mill / Lab Rubber Mixing Mill
Technical Specifications
  • Roller Material: Chilled Alloy Cast Iron
  • Gear Material Hardness: 65-70 HRC
  • Cooling System: Water Cooling
  • Control Mode: Manual or automatic optional
  • Compact Structure, Low noise
  • Roll gap adjustment adopts manual or electric mode, with high precision and sensitivity
  • Optional configuration: oil heating and cooling system, AC double frequency conversion speed regulation system, independent stepless speed change of each drum, automatic adjustment of drum clearance, man-machine interface
  • The equipment can be customized according to customer requirements to meet customer parameter requirements
Key Features
  • Superior Mixing Performance
  • Low Operating Cost with High Productivity
  • Compact Construction, maximum Floor Utilization
  • Latest Technology Update, Meets Current World Standards
  • Maintenance Free
  • Reliable and Experienced Service Back Up
  • Easy to Install & Ready to Run
  • No continuous Lubrication hence heavy saving on lubrication cost, wear & tear and maintenance
  • Auto reversing electric Panel
  • Simple & easy maintenance
XK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling SystemXK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling SystemXK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling SystemXK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling SystemXK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling SystemXK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling SystemXK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling SystemXK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling SystemXK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling SystemXK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling SystemXK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling SystemXK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling SystemXK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling System
Product Parameters
ModelXK-230XK-250XK-300XK-360XK-400XK-450XK-560XK-550BXK-660
Working Diameter of rolls (mm)230250300360400450560/510550660
Working Length of Rolls (mm)60062075090010001200153015002130
Front Roll Surface Speed (m/min)10.2114.115.116.2518.6524.2627.7227.9428.6
Friction Ratio1:1.191:1.171:1.251:1.251:1.271:1.21:1.221:1.241:1.09
Max. nip (mm)7810101015151515
Capacity per Batch(kg)6-108-1515-2020-2518-3525-5035-5050-60165
Motor Power (kw)1518.52230375590110245
Dimensions L (mm)280034003400378043505200584558707465
Dimensions W (mm)120015001500185018502380228424753662
Dimensions H (mm)112015001550175017851840197820452080
Packing and Shipping

Equipment painting completed before delivery, and then wrapped with stretch film, avoid rubbing the paint off the surface, wooden packaging can be customized, key parts, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in wooden cases.

About Us
XK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling SystemXK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling SystemXK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling SystemXK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling SystemXK-660 Rubber Mixing Mill with Φ660*2130 Roller 165KW Motor Power and Water Cooling System

Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd is a Chinese manufacturer established in 2007, with over 10 years of experience in making various rubber machines. We have passed ISO 9001:2008, SGS, and CE certifications.

Our factory specializes in rubber kneader/rubber mixing mill; various plate vulcanizing presses; 2 roll/3 roll/4 roll rubber calenders; rubber batch off coolers; waste tire recycling lines; reclaimed rubber production lines; conveyor belt production lines; rubber seals extruding & vulcanizing lines, etc.

Market: Our machinery has been exported to America, Mexico, India, Vietnam, South Africa, Singapore, Malaysia, Indonesia, Australia, Sri Lanka and many other countries and regions.

Our Service
  • Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.
  • In the process of production, we will take photos and send to customers for their track the progress.
  • Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
  • We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
