CE / ISO 9001 Certified Rubber Tile Vulcanizing Machine with 4 Working Layers and Manual Push-Out Device
CE / ISO 9001 Certified Rubber Tile Vulcanizing Machine with 4 Working Layers and Manual Push-Out Device
CE / ISO 9001 Certified Rubber Tile Vulcanizing Machine with 4 Working Layers and Manual Push-Out Device
CE / ISO 9001 Certified Rubber Tile Vulcanizing Machine with 4 Working Layers and Manual Push-Out Device
CE / ISO 9001 Certified Rubber Tile Vulcanizing Machine with 4 Working Layers and Manual Push-Out Device
CE / ISO 9001 Certified Rubber Tile Vulcanizing Machine with 4 Working Layers and Manual Push-Out Device
CE / ISO 9001 Certified Rubber Tile Vulcanizing Machine with 4 Working Layers and Manual Push-Out Device
CE / ISO 9001 Certified Rubber Tile Vulcanizing Machine with 4 Working Layers and Manual Push-Out Device
Specifications
Brand Name :
SFC
Model Number :
XLB-D
Certification :
CE,ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
10000-12000
Payment Terms :
T/T
Supply Ability :
50 Sets/month
Delivery Time :
50 days
Packaging Details :
Standard export package
Type :
Vulcanizer
Voltage :
220v/360V or customized
Working layer :
2-4 layers
Product name :
Rubber Tile Making Machine with CE ISO certificate
Description
Rubber Tile Vulcanizing Machine with CE / ISO 9001 Certificate
Product Overview

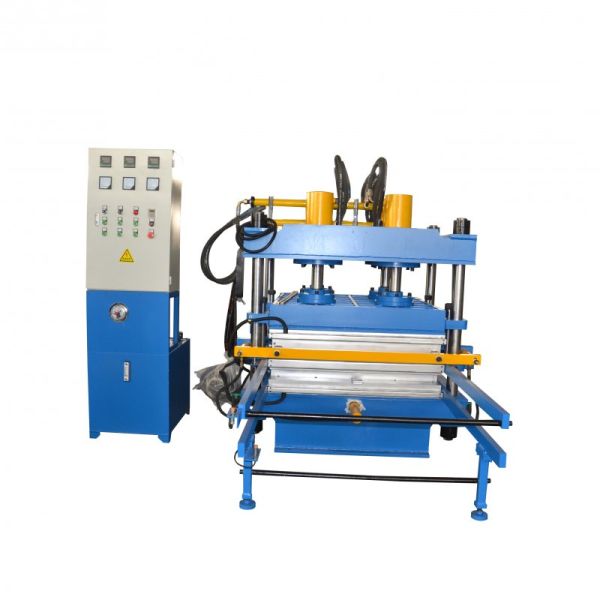

This specialized rubber tile vulcanizing press is designed specifically for manufacturing rubber tiles with enhanced efficiency and operational convenience.

  • Specifically engineered for rubber tile production

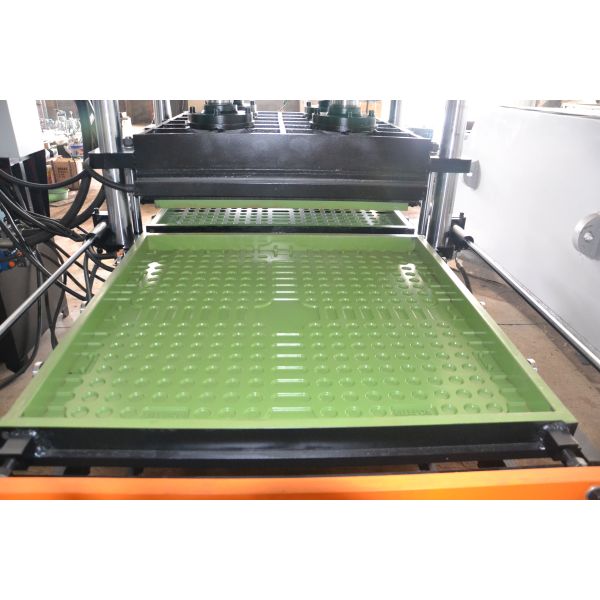

  • Each layer accommodates two sets of molds for batch vulcanization and improved efficiency
  • Equipped with manual mold push-out device for convenient operation
Technical Features
  • Customizable design based on client product requirements and specifications
  • Standard 4 working layers configuration producing 8 rubber floor pieces per hour
  • Working layers can be adjusted according to production needs
  • Manual push-out device included
  • Available molds for thickness ranging from 20mm to 75mm
  • Optional rubber mixer available
  • Compact footprint: complete press with 12 molds and rubber mixer occupies only 8m³
  • Suitable for LCL shipping with cost-effective sea freight
Company Credentials
  • 20 years of manufacturing and exporting experience in rubber tile vulcanizing presses
  • 35-day delivery commitment
  • Secure packaging with safety wood or plywood crates
  • Comprehensive transportation insurance
  • Global reach: products sold to 126 countries across 6 continents
  • One-stop rubber machinery solutions provider
  • CE-QA-1218/13 vulcanizing press quality certification
CE Certified
ISO 9001 Certified
Product Images
CE / ISO 9001 Certified Rubber Tile Vulcanizing Machine with 4 Working Layers and Manual Push-Out Device CE / ISO 9001 Certified Rubber Tile Vulcanizing Machine with 4 Working Layers and Manual Push-Out Device CE / ISO 9001 Certified Rubber Tile Vulcanizing Machine with 4 Working Layers and Manual Push-Out Device CE / ISO 9001 Certified Rubber Tile Vulcanizing Machine with 4 Working Layers and Manual Push-Out Device CE / ISO 9001 Certified Rubber Tile Vulcanizing Machine with 4 Working Layers and Manual Push-Out Device
Technical Specifications
Model XLB-D550*550 XLB-D1100*1100
Total Pressure (Ton) 50 120
Heating Plate Size (mm) 550*550*45 1100*1100*50
Layer No. 4 1 or 2
Motor Power (KW) 3.0 4
