Frame-type Plate Rubber Vulcanizing Press Machine with Temperature Profile Programming and PLC Control System
Frame-type Plate Rubber Vulcanizing Press Machine with Temperature Profile Programming and PLC Control System
Frame-type Plate Rubber Vulcanizing Press Machine with Temperature Profile Programming and PLC Control System
Frame-type Plate Rubber Vulcanizing Press Machine with Temperature Profile Programming and PLC Control System
Frame-type Plate Rubber Vulcanizing Press Machine with Temperature Profile Programming and PLC Control System
Frame-type Plate Rubber Vulcanizing Press Machine with Temperature Profile Programming and PLC Control System
Frame-type Plate Rubber Vulcanizing Press Machine with Temperature Profile Programming and PLC Control System
Frame-type Plate Rubber Vulcanizing Press Machine with Temperature Profile Programming and PLC Control System
Frame-type Plate Rubber Vulcanizing Press Machine with Temperature Profile Programming and PLC Control System
Frame-type Plate Rubber Vulcanizing Press Machine with Temperature Profile Programming and PLC Control System
Frame-type Plate Rubber Vulcanizing Press Machine with Temperature Profile Programming and PLC Control System
Frame-type Plate Rubber Vulcanizing Press Machine with Temperature Profile Programming and PLC Control System
Frame-type Plate Rubber Vulcanizing Press Machine with Temperature Profile Programming and PLC Control System
Frame-type Plate Rubber Vulcanizing Press Machine with Temperature Profile Programming and PLC Control System
Specifications
Brand Name :
SFC
Model Number :
XLB-1300x2000 x1
Certification :
CE、ISO、SGS
Place of Origin :
China
MOQ :
1
Price :
US$29999.00-89999.00
Payment Terms :
L/C,T/T
Supply Ability :
500sets/year
Delivery Time :
45 days
Packaging Details :
Safety wood or plywood crates packaging.
Control System :
PLC
Cylinder Stroke :
Customized
Heating Method :
Electric/Steam/Oil
Material :
Carbon Steel/Stainless Steel
Operation Mode :
Manual/Semi-automatic/Automatic
Power :
7.5-75KW
Pressure Range :
0-100MPa
Product Name :
Rubber Vulcanizing Press Machine
Size :
Customized
Temperature Range :
0-400℃
Voltage :
220V/380V/440V
Warranty :
1 Year
Weight :
Customized
Description

Frame-type plate Rubber Vulcanizing Press Machine May Temperature Profile Programming
Customization options include the ability to program temperature profiles for each zone. This allows for defining specific temperature ramp-up rates, dwell times, and cooling phases to match the curing characteristics of different rubber compounds or specific production requirements. The customization should allow for storing and recalling multiple temperature profiles for different products or processes



  1. Automation and Control: Depending on the customer's requirements, the machine can be customized with advanced automation and control features. This can include programmable logic controllers (PLCs), touch-screen interfaces, data logging capabilities, and remote monitoring options for improved operational efficiency and ease of use.

  2. Temperature sensors: Install temperature sensors in each zone to monitor and control the temperature accurately. Thermocouples or resistance temperature detectors (RTDs) can be used for temperature measurement. The sensors provide feedback to the control system, which adjusts the heating elements accordingly to maintain the desired temperature in each zone



Depending on your specific needs, you may want to consider additional customization options such as data logging, recipe management systems, touchscreen interfaces, or remote monitoring capabilities. These features can enhance process control and ease of operation

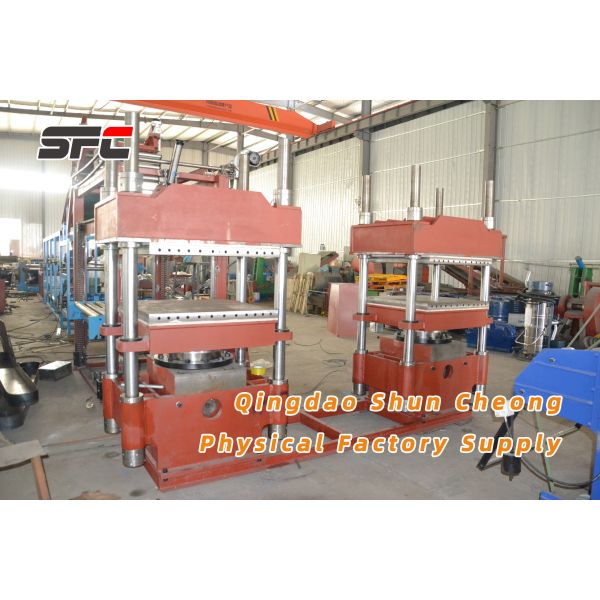

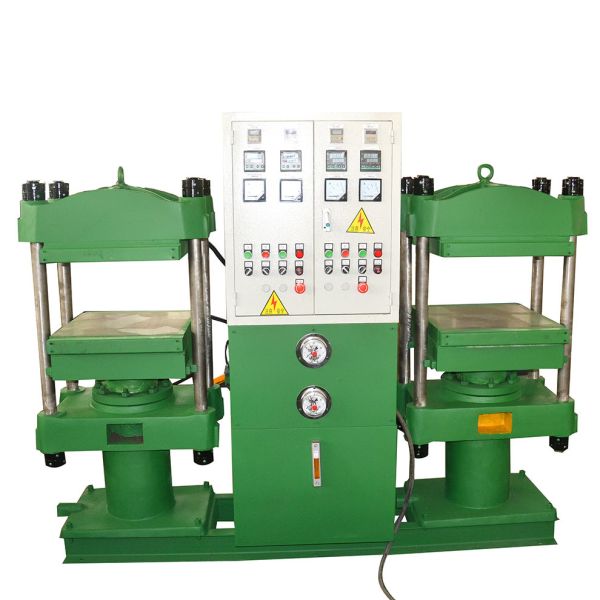

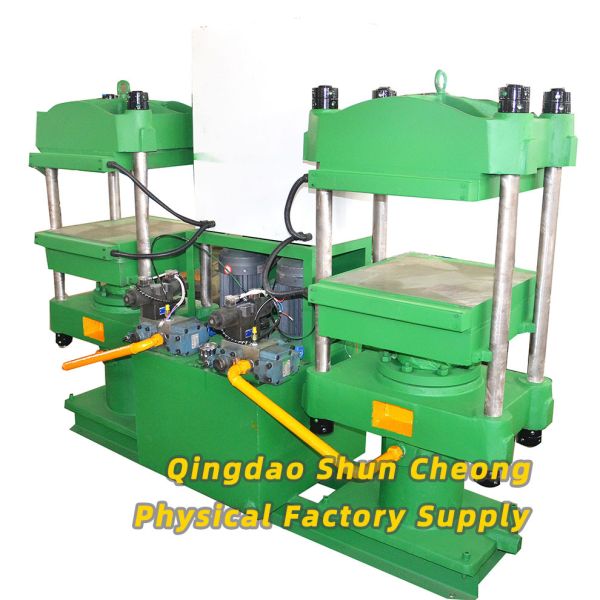

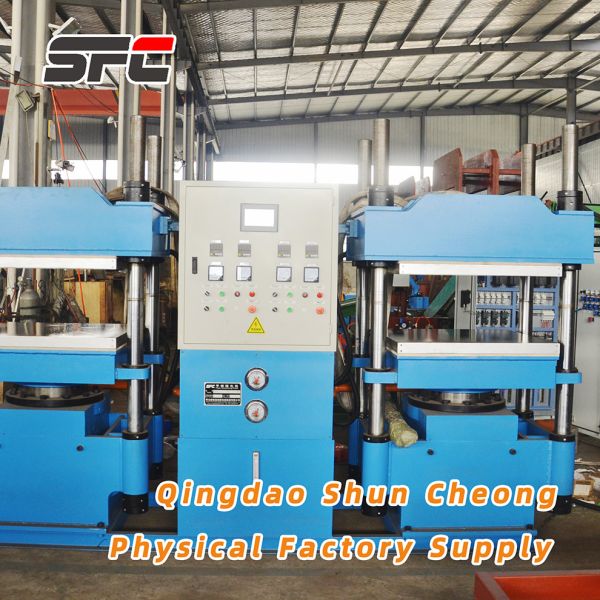

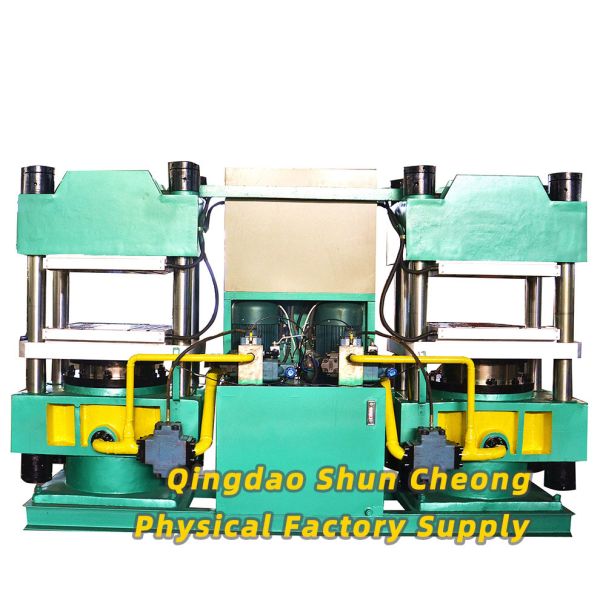

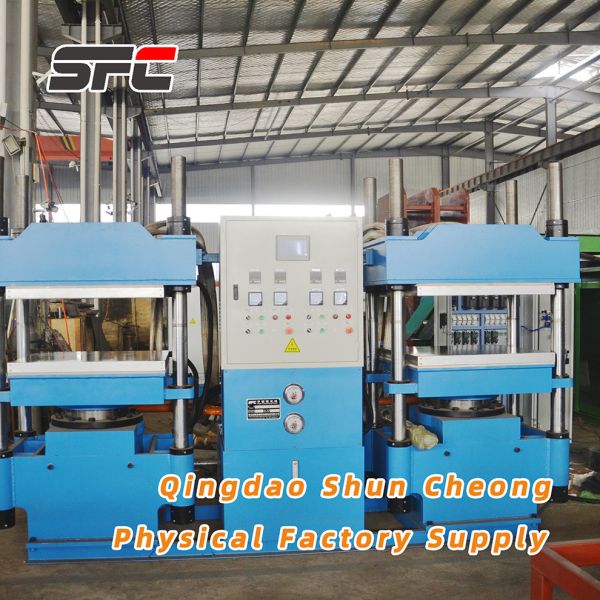

reference photos

Frame-type Plate Rubber Vulcanizing Press Machine with Temperature Profile Programming and PLC Control System

Frame-type Plate Rubber Vulcanizing Press Machine with Temperature Profile Programming and PLC Control System

Frame-type Plate Rubber Vulcanizing Press Machine with Temperature Profile Programming and PLC Control System

Frame-type Plate Rubber Vulcanizing Press Machine with Temperature Profile Programming and PLC Control System

Frame-type Plate Rubber Vulcanizing Press Machine with Temperature Profile Programming and PLC Control System

Frame-type Plate Rubber Vulcanizing Press Machine with Temperature Profile Programming and PLC Control System


Frame-type Plate Rubber Vulcanizing Press Machine with Temperature Profile Programming and PLC Control System



The technical parameters for some models frame vulcanizing machines:

Product Model XLB-1300x2000 x1 XLB-1500x1500x1 XLB-1500x2500x1 XLB-2000x2000x1
Total Press (MN) 5.60 8.00 15.00 20.00
Plate Size(mm) 1300x2000 1500x1500 1500x2500 2000x2000
Plate Daylight (mm) 400 800 400 400
Working Layer 1 1 1 1
Piston Stroke(mm) 400 800 400 400
Unit Press(Mpa) 2.2 3.6 4.0 5.0
Main Motor Power(kw) 8 16.5 11 11
Overall Size(mm) 2000x1860x2500 2200x2200x4300 3000x2500x3300 3600x3000x3300
