Specifications
Brand Name :
SFC
Model Number :
XLB-1400*6000
Certification :
CE、ISO9001、SGS
Place of Origin :
China
MOQ :
1
Price :
US$5999.00-89999.00/set(FOB)
Payment Terms :
L/C,T/T
Supply Ability :
500 sets/year
Delivery Time :
45 days
Packaging Details :
Export Standard packaging.
Control System :
PLC
Cylinder Stroke :
400
Heating Method :
Electric/Steam/Oil
Material :
Carbon Steel/Stainless Steel
Operation Mode :
Automatic
Pressure Range :
16.8(mpa)
Product Name :
Coveyor belt Vulcanizing Machine
Size :
1400*6000*75
Voltage :
380V
Warranty :
1 Year
Weight :
Customized
Description
Independent Temperature Adjustment Conveyor Belt Rubber Vulcanizing Press Customization
Ayla - Business Manager
sales-6@sfcjx.com
Key Features
  • Multiple heating zones with independent temperature adjustment for precise vulcanization control
  • Customizable size and configuration to accommodate different belt widths and thicknesses
  • Optional accessories including cooling systems, water bags, and pressure bags
Product Overview

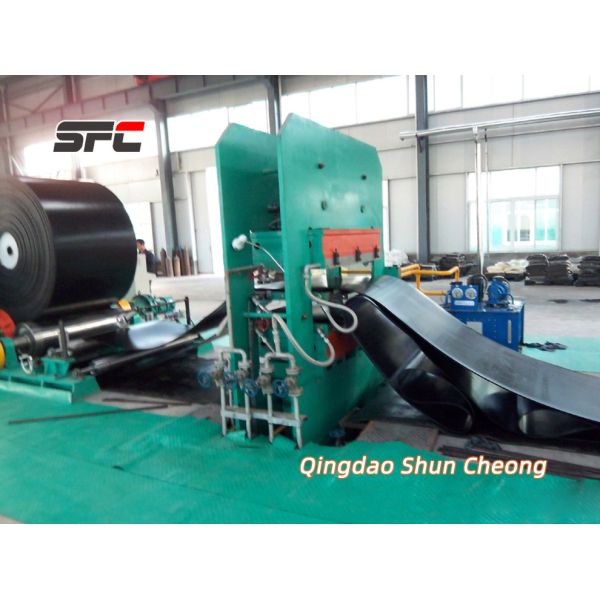

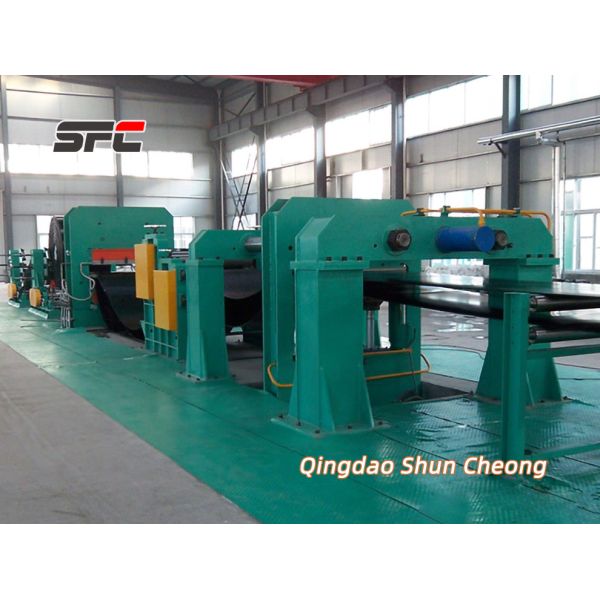

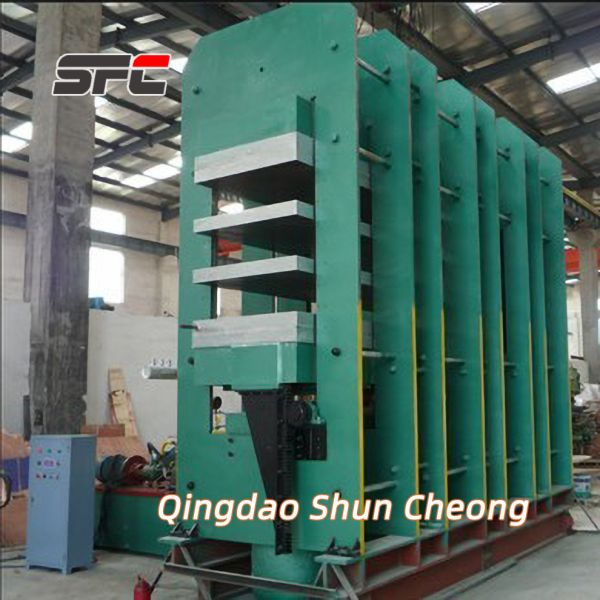

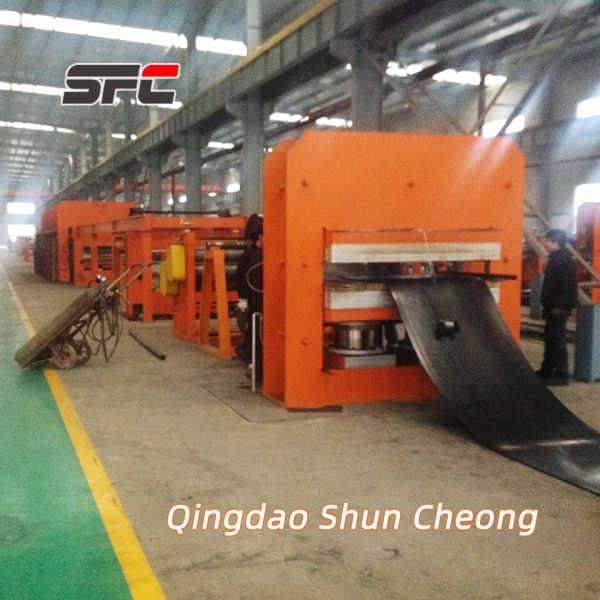

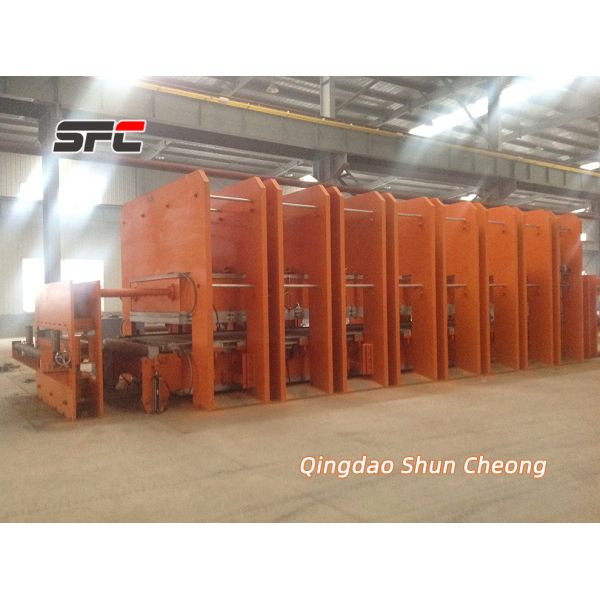

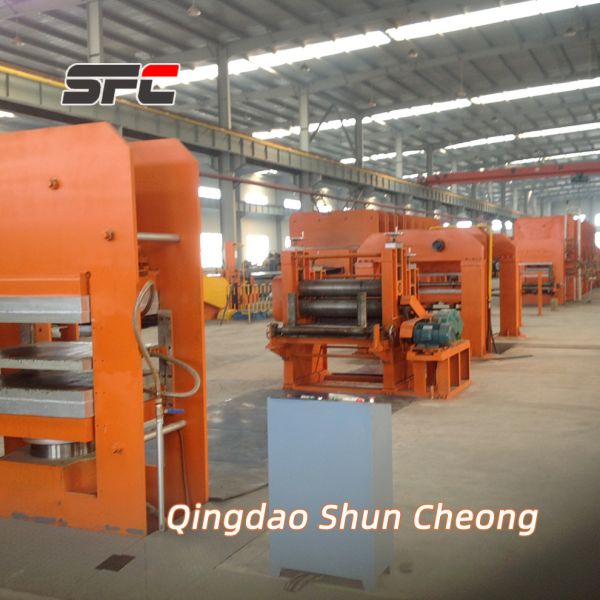

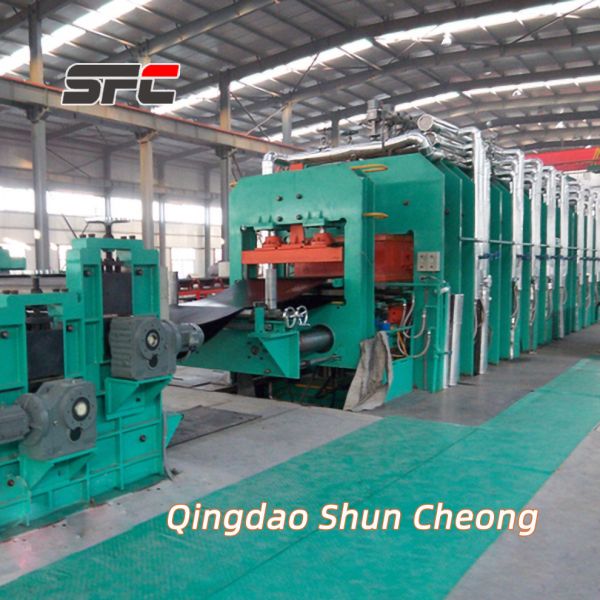

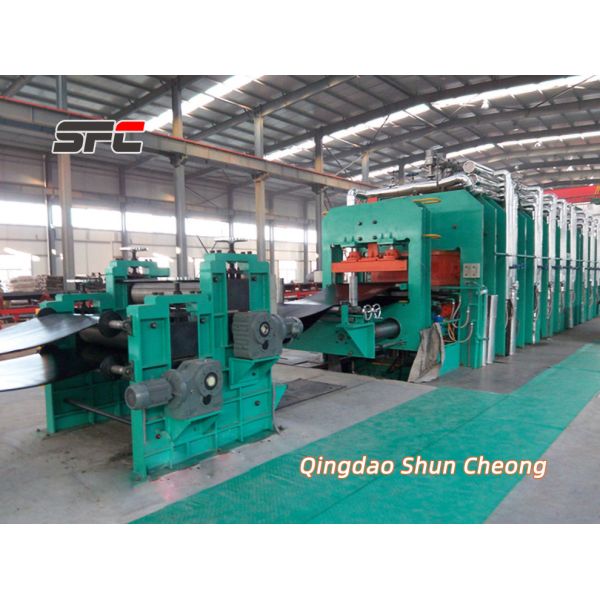

The conveyor belt vulcanizing unit is suitable for vulcanizing ordinary rubber conveyor belts, nylon conveyor belts, PVG conveyor belts, wire rope conveyor belts and other fabric core parallel tapes. The main machine features a frame structure with hot plates and plungers made of high-quality materials that are precisely processed for durability and corrosion resistance.

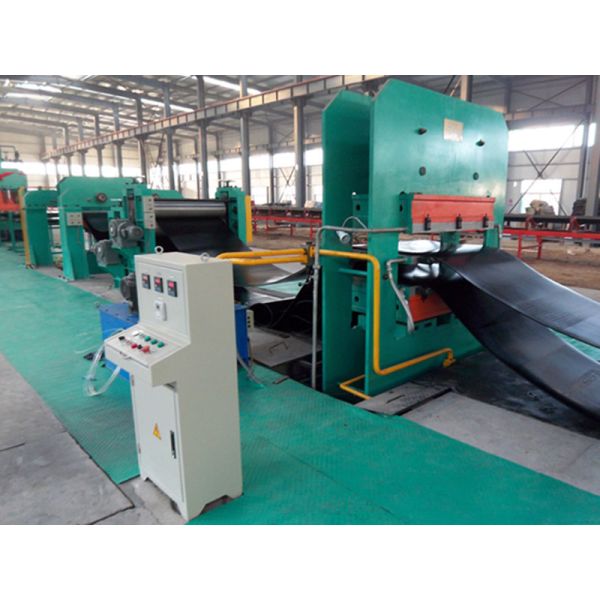

Using PLC control, the vulcanization process can realize multi-program automatic control with automatic temperature detection and adjustment. This advanced control system improves the conveyor belt vulcanization unit's performance, reduces labor intensity, and enhances production efficiency.

The conveyor belt is designed to withstand high temperatures and pressures involved in vulcanization, made from heat-resistant materials that handle repeated exposure to elevated temperatures without degradation. Customization includes variable speed control and adjustable belt tension mechanisms to optimize the vulcanization process.

Product Gallery
Independent Temperature Adjustment Conveyor Belt Vulcanizing Machine with PLC Control and Customization Options Independent Temperature Adjustment Conveyor Belt Vulcanizing Machine with PLC Control and Customization Options Independent Temperature Adjustment Conveyor Belt Vulcanizing Machine with PLC Control and Customization Options Independent Temperature Adjustment Conveyor Belt Vulcanizing Machine with PLC Control and Customization Options Independent Temperature Adjustment Conveyor Belt Vulcanizing Machine with PLC Control and Customization Options Independent Temperature Adjustment Conveyor Belt Vulcanizing Machine with PLC Control and Customization Options Independent Temperature Adjustment Conveyor Belt Vulcanizing Machine with PLC Control and Customization Options Independent Temperature Adjustment Conveyor Belt Vulcanizing Machine with PLC Control and Customization Options Independent Temperature Adjustment Conveyor Belt Vulcanizing Machine with PLC Control and Customization Options
Technical Specifications
Product Model DLB-1400x6000 DLB-1400x8000 DLB-14000x10000 DLB-1600x6000
Heating plate specification L*W*H (mm) 1400*6000*75 1400*8000*80 1400*10000*90 1600*1600*80
Unit pressure (mpa) 3 3 3 3
Nominal pressure (kn) 25200 33600 4200 28800
Operating pressure (mpa) 16.8 19.1 21 19.1
Oil cylinder (mm) 400 400 400 400
Oil cylinder (qty) 12 14 16 12
Max stroke (mm) 400 400 400 500
Layer numbers 1~2 1~2 1~2 1~2
Company Profile

Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd is located in Kangting Road No. 1, West Coast New District, Qingdao, China. We are a specialized producer of rubber machinery and high-technology backbone enterprises. The company has passed ISO9001:2015 quality management system certification, European Union CE certification, and Switzerland SGS certification.

Product Range: Tire manufacturing, rubber conveyor belt production, various rubber products, tire refurbished manufacturing, waste tire recycling.

Main Equipment: Rubber Kneader, Rubber Mixing Machine, Rubber Vulcanizing Press, Batch Off Cooler, Rubber Calender, Waste Tire Crusher, Rubber Extruder, Rubber Strainer, etc.

Global Reach: Our products are exported to over 50 countries and regions including Britain, Switzerland, USA, Germany, Brazil, Singapore, Malaysia, India, Russia, Ukraine, Uzbekistan, and Kazakhstan, earning praise and long-term cooperation from domestic and international customers.

Quality Commitment
  • Every component passes strict quality inspection before storage
  • All products undergo overload trial running before shipment
  • Comprehensive free technical support for all products
  • 3-year warranty for main parts, 1-year warranty for wearing parts
  • Immediate technical support via internet or telephone, with on-site repair services when needed
  • Production site visits available for customer consultation and inspection
