Specifications
Brand Name :
SFC
Model Number :
XK-400
Certification :
CE、ISO9001、SGS
Place of Origin :
China
MOQ :
1
Price :
US$20000.00-80000.00/set
Payment Terms :
T/T
Supply Ability :
500sets/year
Delivery Time :
45 days
Packaging Details :
Standard packaging.
Capacity :
50-100kg/h
Control System :
PLC
Material :
Stainless Steel
Operation Mode :
Automatic
Origin :
China
Power :
37kw
Size :
4250*1850*1870mm
Type :
Rubber Making Machine
Voltage :
220V/380V/440V
Warranty :
1 Year
Weight :
7000kg
Description

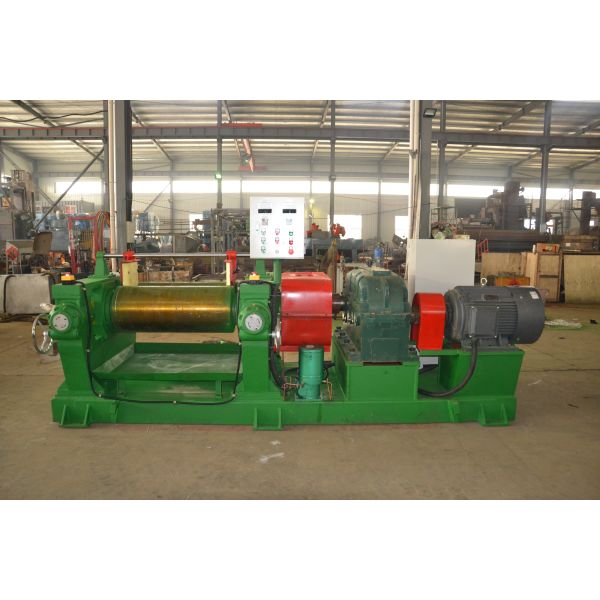

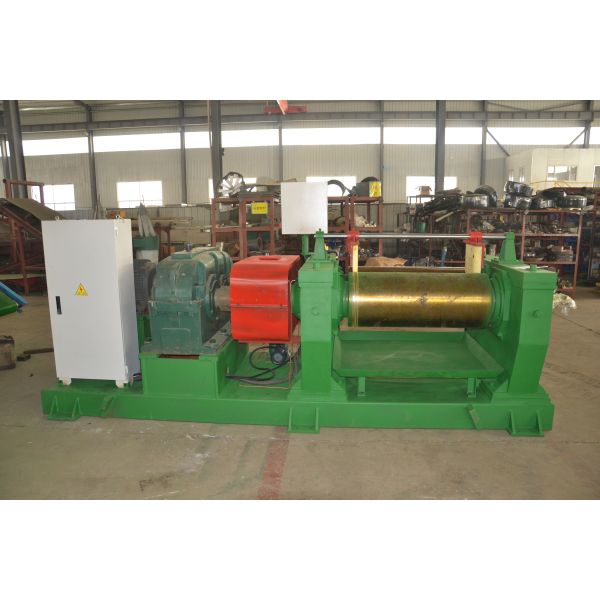

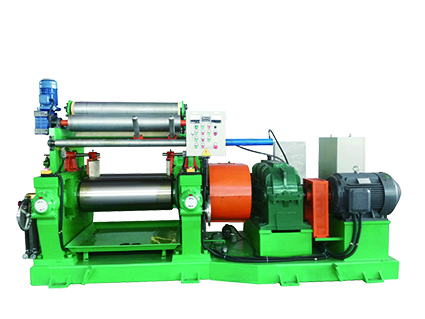

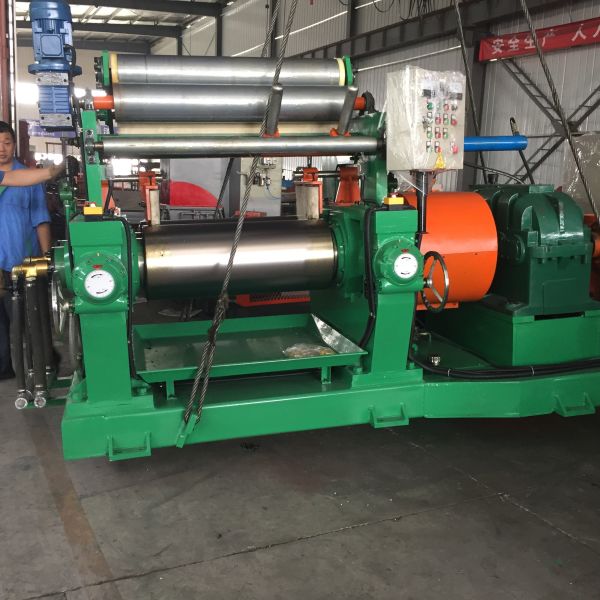

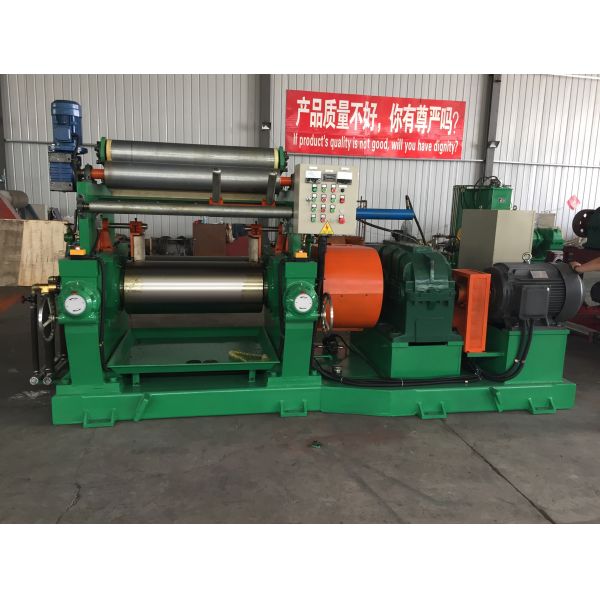

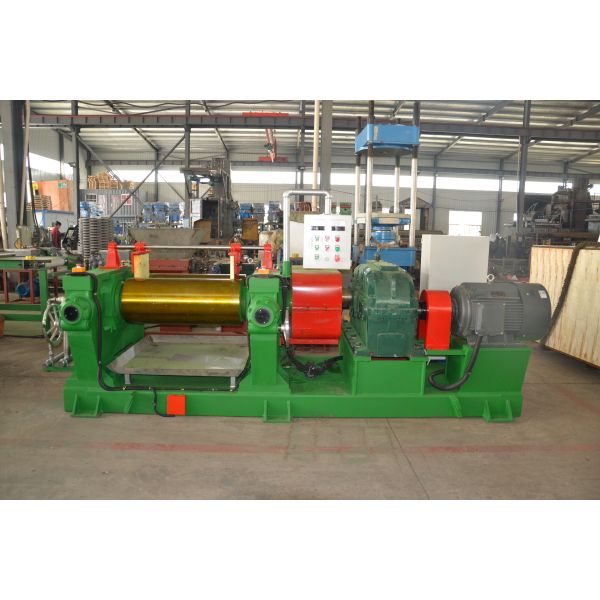

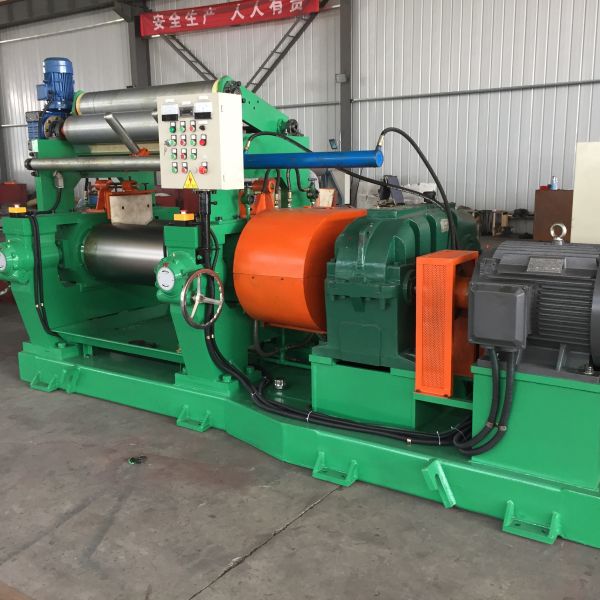

Variable Speed Control 2 Roll Rubber Mixing Machine, 16" Open Rubber Mixing Mill
This professional rubber mixing machine is engineered for precise blending and mixing of rubber compounds, including raw rubber, additives, fillers, and other ingredients. The material is fed between two rotating rolls where it undergoes shearing and compression to ensure uniform dispersion of all components.
Ayla - Business Manager
sales-6@sfcjx.com
Key Features
  • Variable Roll Speeds: Independent control of roll speeds enables precise adjustment of shear rate and residence time for optimal blending efficiency across various rubber compounds
  • Temperature Control: Heated or cooled rolls maintain rubber material at desired temperature ranges, enhancing malleability and preventing heat buildup
  • Customization Options: Available with choices of roll diameter, surface texture, material, and additional features including pneumatic/hydraulic adjustments and automated systems
Variable Speed Control 16 Variable Speed Control 16 Variable Speed Control 16 Variable Speed Control 16 Variable Speed Control 16 Variable Speed Control 16 Variable Speed Control 16 Variable Speed Control 16 Variable Speed Control 16 Variable Speed Control 16 Variable Speed Control 16
Construction & Design

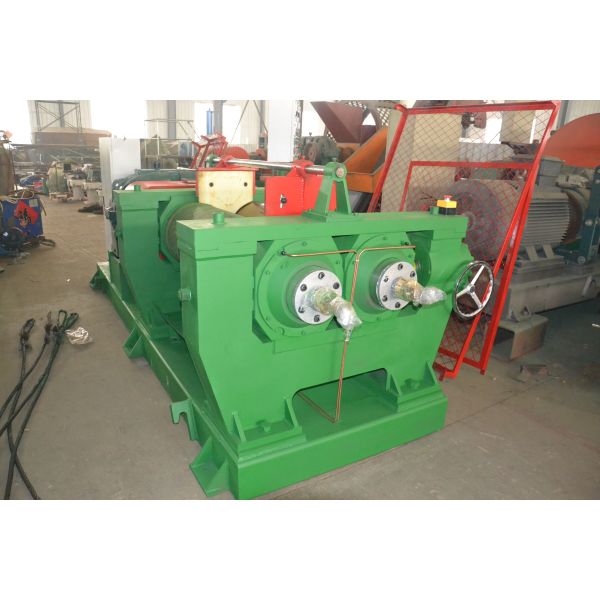

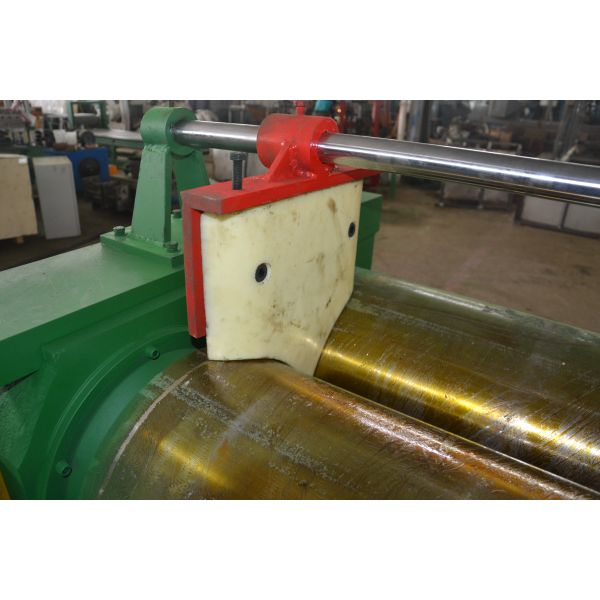

Main components include rollers, frame, base plate, distance adjustment device, transmission system, roller temperature control, safety systems, and lubrication systems. The rollers are manufactured from alloy chilled cast iron with high hardness, exceptional wear resistance, and durability. Temperature control is achieved through steam, cooling water, or heat transfer oil circulating within the roller cavities. Roller gap adjustment is available in manual or electric configurations, with lubrication provided via dry oil or thin oil systems.
Technical Specifications
Model XK-400 XK-450 XK-560 XK-610 XK-660
Working diameter of rollers (mm) Ф400 Ф450 Ф560/Ф510 Ф610 Ф660
Working length of rollers 1000 1200 1530/1830 2000 2130
Linear speed of front and rear roller 1:1.27 1:1.27 1:1.2 1:1.29 1:1.24
Capacity per batch 18~35 25~50 50~100 90~120 130~165
Motor power (kw) 37 55 90/110 160 185/250
Overall size L*W*H 4250*1850*1870 5200*1800*2000 6500*2300*2640 7500*2500*2640 7600*3400*2500
Weight (kg) 7000 10000 20000 28000 47000
