Specifications
Brand Name :
SFC
Model Number :
XK-400
Certification :
CE、ISO9001、SGS
Place of Origin :
China
MOQ :
1
Price :
US$9999.00-69999.00/set
Payment Terms :
L/C,T/T
Supply Ability :
500 sets/year
Delivery Time :
40 days
Packaging Details :
Export standard packaging.
Capacity :
50-100kg/h
Control System :
PLC
Material :
Stainless Steel
Operation Mode :
Automatic
Origin :
China
Power :
37kw
Size :
4250*1850*1870mm
Type :
Rubber Making Machine
Voltage :
220V/380V/440V
Warranty :
1 Year
Weight :
7000kg
Description
Customized With Different Mixing Chamber Configurations Two Roller Rubber Mixing Machine, 16" Open Mixing Mill
Product Overview

The rubber mixing machine is designed to blend and mix rubber compounds, including raw rubber, additives, fillers, and other ingredients. The rubber material is fed into the nip between the two rolls. As the rolls rotate, the rubber is sheared and compressed, promoting the dispersion of additives and ensuring a uniform distribution of ingredients throughout the mixture.

Key Features
  • Variable Roll Speeds: Independent control of roll speeds enables precise adjustment of the mixing process, including shear rate and residence time, to achieve optimal blending and dispersion for various rubber compounds.
  • Temperature Control: Heating and cooling capabilities maintain rubber material at desired temperature ranges. Heating softens the compound for better malleability, while cooling prevents excessive heat buildup in sensitive materials.
  • Customization Options: Available customization includes roll diameter, surface texture, roll material, pneumatic/hydraulic roll adjustments, automated batch feeding systems, and discharge mechanisms.

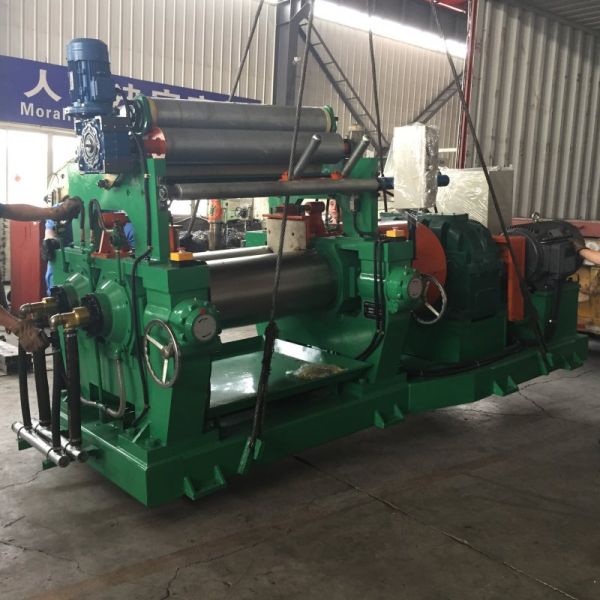

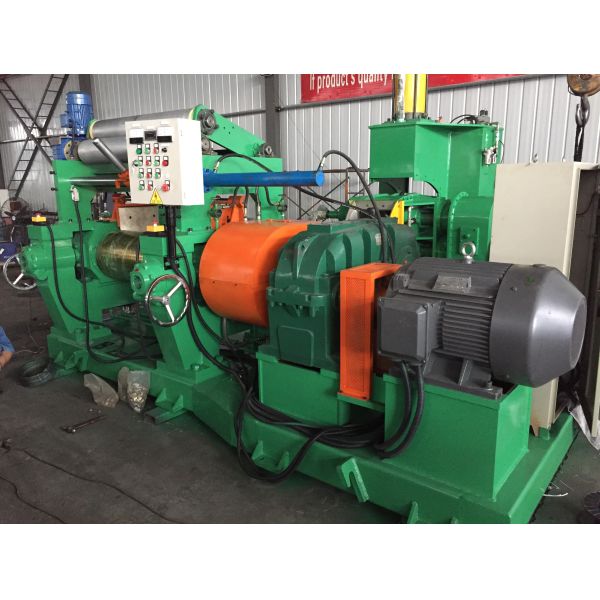

Product Images
16 16 16 16 16 16 16 16 16 16
Machine Specifications

Open Rubber Mixing Mill: Features a 16" open rubber mixing mill with easy access to rolls for feeding materials, additives, and fillers. The open design facilitates efficient cooling and discharge of mixed rubber compounds.

Customizable Size: Available in various roll sizes including 16", 18", or other specific dimensions to meet production requirements. Roll size directly affects production capacity and batch processing capabilities.

Technical Parameters
Model XK-400 XK-450 XK-560 XK-610 XK-660
Working diameter of rollers (mm) Ф400 Ф450 Ф560/Ф510 Ф610 Ф660
Working length of rollers 1000 1200 1530/1830 2000 2130
Linear speed of front and rear roller 1:1.27 1:1.27 1:1.2 1:1.29 1:1.24
Capacity per batch 18~35 25~50 50~100 90~120 130~165
Motor power (kw) 37 55 90/110 160 185/250
Overall size L*W*H 4250*1850*1870 5200*1800*2000 6500*2300*2640 7500*2500*2640 7600*3400*2500
Weight (kg) 7000 10000 20000 28000 47000
Additional Documentation
16 16 16
