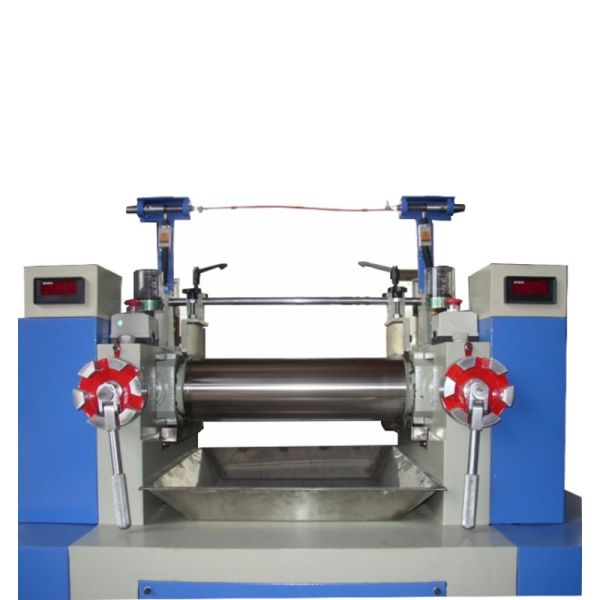

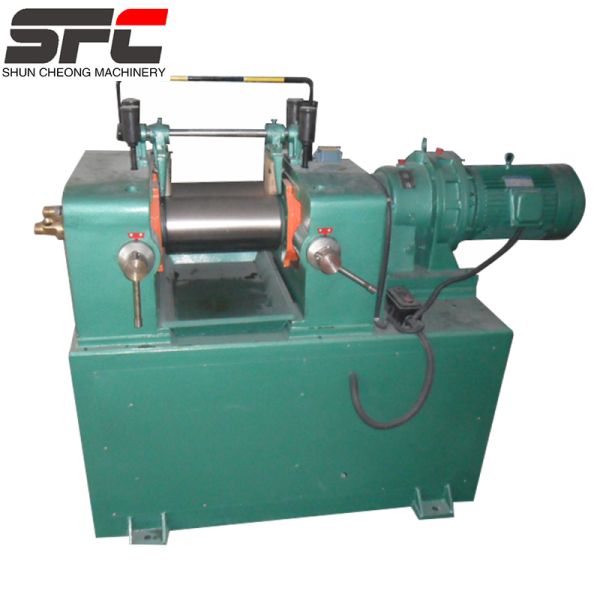

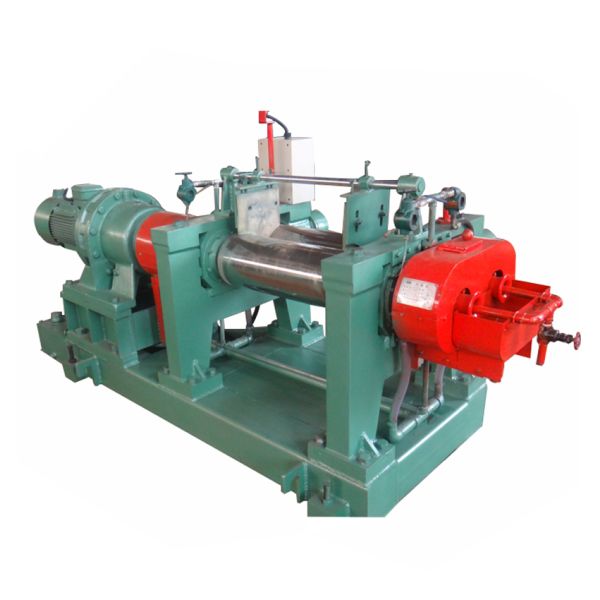

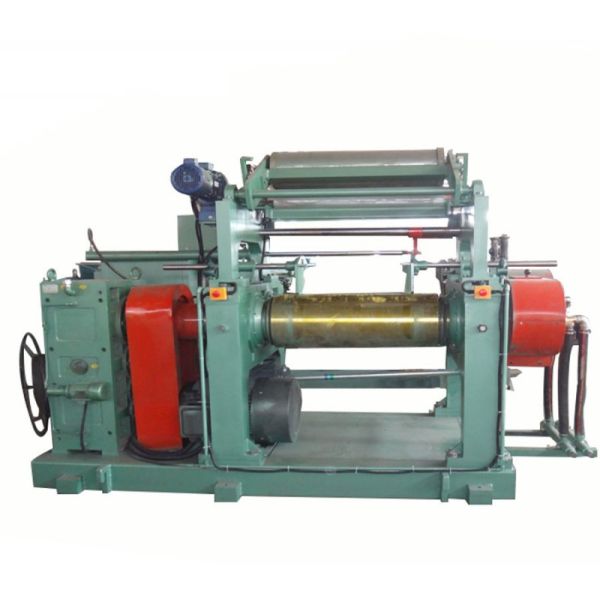

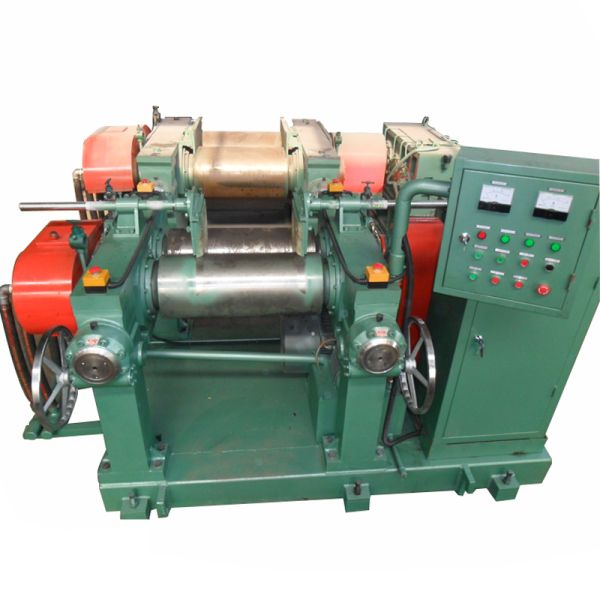

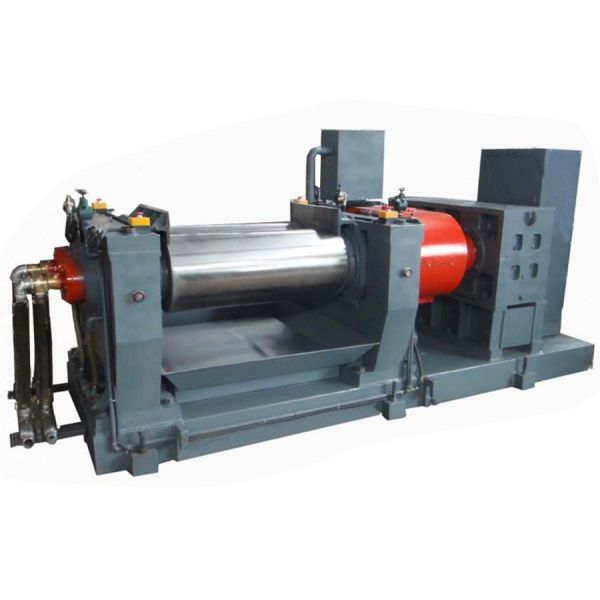

PLC Controlled Stainless Steel Two Roll Rubber Mixing Machine with 50-100kg/h Capacity
PLC Controlled Stainless Steel Two Roll Rubber Mixing Machine with 50-100kg/h Capacity
PLC Controlled Stainless Steel Two Roll Rubber Mixing Machine with 50-100kg/h Capacity
PLC Controlled Stainless Steel Two Roll Rubber Mixing Machine with 50-100kg/h Capacity
PLC Controlled Stainless Steel Two Roll Rubber Mixing Machine with 50-100kg/h Capacity
PLC Controlled Stainless Steel Two Roll Rubber Mixing Machine with 50-100kg/h Capacity
PLC Controlled Stainless Steel Two Roll Rubber Mixing Machine with 50-100kg/h Capacity
PLC Controlled Stainless Steel Two Roll Rubber Mixing Machine with 50-100kg/h Capacity
PLC Controlled Stainless Steel Two Roll Rubber Mixing Machine with 50-100kg/h Capacity
PLC Controlled Stainless Steel Two Roll Rubber Mixing Machine with 50-100kg/h Capacity
PLC Controlled Stainless Steel Two Roll Rubber Mixing Machine with 50-100kg/h Capacity
PLC Controlled Stainless Steel Two Roll Rubber Mixing Machine with 50-100kg/h Capacity
PLC Controlled Stainless Steel Two Roll Rubber Mixing Machine with 50-100kg/h Capacity
PLC Controlled Stainless Steel Two Roll Rubber Mixing Machine with 50-100kg/h Capacity
PLC Controlled Stainless Steel Two Roll Rubber Mixing Machine with 50-100kg/h Capacity
PLC Controlled Stainless Steel Two Roll Rubber Mixing Machine with 50-100kg/h Capacity
PLC Controlled Stainless Steel Two Roll Rubber Mixing Machine with 50-100kg/h Capacity
PLC Controlled Stainless Steel Two Roll Rubber Mixing Machine with 50-100kg/h Capacity
PLC Controlled Stainless Steel Two Roll Rubber Mixing Machine with 50-100kg/h Capacity
PLC Controlled Stainless Steel Two Roll Rubber Mixing Machine with 50-100kg/h Capacity
PLC Controlled Stainless Steel Two Roll Rubber Mixing Machine with 50-100kg/h Capacity
PLC Controlled Stainless Steel Two Roll Rubber Mixing Machine with 50-100kg/h Capacity
PLC Controlled Stainless Steel Two Roll Rubber Mixing Machine with 50-100kg/h Capacity
PLC Controlled Stainless Steel Two Roll Rubber Mixing Machine with 50-100kg/h Capacity
Specifications
Brand Name :
SFC
Model Number :
XK-400
Certification :
CE、ISO、SGS
Place of Origin :
China
MOQ :
1
Price :
US$5000.00-89999.00/set
Payment Terms :
L/C,T/T
Supply Ability :
500sets/year
Delivery Time :
60 days
Packaging Details :
Safety wood or plywood crates packaging.
Capacity :
50-100kg/h
Control System :
PLC
Material :
Stainless Steel
Operation Mode :
Automatic
Origin :
China
Power :
37kw
Size :
4250*1850*1870mm
Type :
Rubber Making Machine
Voltage :
220V/380V/440V
Warranty :
1 Year
Weight :
7000kg
Description
Automatic Feeders 2 Roll Rubber Mixing Machine with Customization
Advanced rubber mixing machine featuring automatic feeders and comprehensive customization options for optimal production efficiency.
Roll Configuration Options
Drilled Rolls: Enhanced mixing and dispersion of additives with improved distribution of fillers within the rubber matrix.
Grooved Rolls: Available with parallel or helical patterns to increase mixing efficiency through additional shear and kneading action.
Advanced Control Features
  • Variable Roll Speeds: Independent control of roll speeds for precise adjustment of shear rate and residence time
  • Temperature Control: Heated or cooled rolls to maintain optimal rubber compound temperature
  • Custom Roll Specifications: Choice of diameter, surface texture, material, and adjustment mechanisms
Machine Specifications
Open Rubber Mixing Mill: 16" mill design allowing easy access for material feeding and efficient cooling/discharge processes.
Customizable Sizes: Available in 16", 18", or other specific dimensions to match production requirements.
Technical Parameters
Model Roller (D × L) (mm) Front Roller Linear Speed (m/min) Speed Ratio Motor Power (KW)
XK-160φ160 × 3208.951:1.375.5
XK-230φ230 × 60010.211:1.1915
XK-250φ250 × 62014.11:1.1718.5
XK-300φ300 × 75015.11:1.2522
XK-360φ360 × 90016.251:1.2530
XK-400φ400 × 100018.651:1.2737
XK-450φ450 × 120024.261:1.2755
XK-560φ560×φ510×153027.721:1.290
XK-550Bφ550 × 150027.941:1.22110
XK-610φ610 × 200028.421:1.17160
XK-660φ660 × 213028.61:1.24246
XK-710φ710 × 2200301:1.09280
PLC Controlled Stainless Steel Two Roll Rubber Mixing Machine with 50-100kg/h Capacity PLC Controlled Stainless Steel Two Roll Rubber Mixing Machine with 50-100kg/h Capacity PLC Controlled Stainless Steel Two Roll Rubber Mixing Machine with 50-100kg/h Capacity PLC Controlled Stainless Steel Two Roll Rubber Mixing Machine with 50-100kg/h Capacity PLC Controlled Stainless Steel Two Roll Rubber Mixing Machine with 50-100kg/h Capacity PLC Controlled Stainless Steel Two Roll Rubber Mixing Machine with 50-100kg/h Capacity
Contact Information
Business Manager: Ayla
Email: sales-6@sfcjx.com
Manufacturer Profile
Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd specializes in high-technology rubber machinery production. The company holds ISO9001:2015 quality management system certification, European Union CE certification, and Switzerland SGS certification.
Product Range
  • Rubber Kneader and Mixing Machines
  • Rubber Vulcanizing Press
  • Batch Off Cooler
  • Rubber Calender
  • Waste Tire Crusher
  • Rubber Extruder and Strainer
Quality Assurance
  • Strict quality inspection for all components
  • Overload trial running before shipment
  • 3-year warranty for main parts
  • 1-year warranty for wearing parts
  • Comprehensive technical support
