Specifications
Brand Name :
SFC
Model Number :
20
Certification :
CE、ISO9001、SGS
Place of Origin :
China
MOQ :
1
Price :
US$20000.00-80000.00/set
Payment Terms :
T/T
Supply Ability :
500 sets/year
Delivery Time :
45 days
Packaging Details :
Standard packaging.
Control System :
PLC
Material :
Carbon Steel/Stainless Steel
Operation Mode :
Automatic
Product Name :
Rubber Batch Off Cooler
Voltage :
380V
Warranty :
1 Year
Weight :
Customized
Description

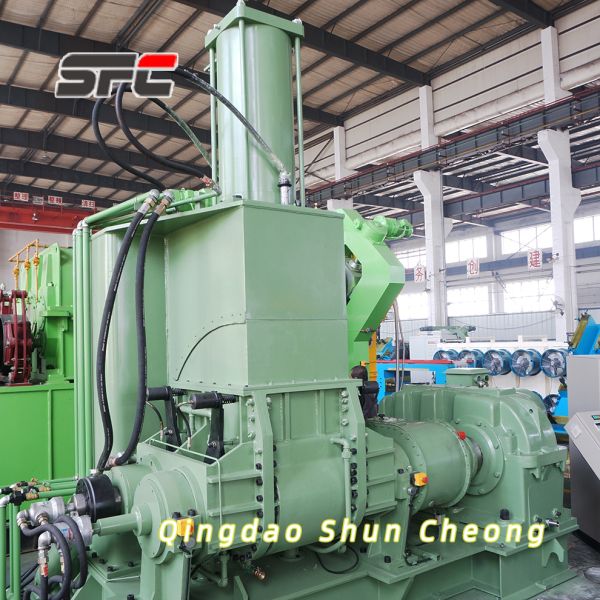

20L Precise Temperature Control Intensive Rubber Mixing Machine
Key Features
  • Tipping type mixing tank with dry mechanical shaft seal for easy cleaning and color changes
  • High efficiency with mixing cycles of 6-10 minutes per batch
  • Durable construction with low failure rate, easy installation, operation, and maintenance
  • Built-in timer and alarm systems for process completion and operational alerts
  • Precise material addition and dispensing systems for rubber additives, fillers, and curing agents
  • Safety enclosures with sound insulation for operator protection and noise reduction
  • Accurate automatic temperature and time control system for optimal dispersion and uniform mixing
Technical Specifications
Parameter 20L Model 35L Model 55L Model 75L Model 110L Model
Mixing chamber volume 20L 35L 55L 75L 110L
Main motor power (KW) 37KW 55KW 75KW 110KW 160KW
Tilting motor power (KW) 1.5KW 1.5KW 2.2KW 3.75KW 5.5KW
Diameter of cylinder (mm) Φ200 Φ250 Φ300 Φ350 Φ420
Dust collector motor power (KW) 0.375KW 1.5KW 1.5KW 1.5KW 2.2KW
Tilting angle (°) 110 110 110 110 110
Feed mode (F/R) F F F/B F/B F/B
Steam/cooling shift mode Automatic Automatic Automatic Automatic Automatic
Shipping volume (m³) 12m³ 20m³ 26m³ 29m³ 32m³
Install dimension (mm) 2350×1550×2400 2570×2180×2570 3370×2460×3180 3550×2560×3220 4245×2950×3380
Chum up shaft forward speed (RPM) 38/32 38/32 38/32 38/32 38/32
Chum shaft backward speed (RPM) 29/25 29/25 29/25 29/25 29/25
Ayla
Business Manager
sales-6@sfcjx.com
Company Profile

Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd is located in Kangting Road No. 1, West Coast New District, Qingdao, China. We are a specialized high-tech backbone enterprise in rubber machinery production, certified with ISO9001:2015 quality management system, European Union CE certification, and Switzerland SGS certification.

Our products serve multiple industries including tire manufacturing, rubber conveyor belt production, various rubber products, tire refurbished manufacturing, and waste tire recycling.

Main equipment includes: Rubber Kneader, Rubber Mixing Machine, Rubber Vulcanizing Press, Batch Off Cooler, Rubber Calender, Waste Tire Crusher, Rubber Extruder, Rubber Strainer, and more.

Our products are exported to over 50 countries and regions including Britain, Switzerland, USA, Germany, Brazil, Singapore, Malaysia, India, Russia, Ukraine, Uzbekistan, and Kazakhstan, earning praise and long-term cooperation from domestic and international customers.

Quality Commitment & Warranty
  • Every component undergoes strict quality inspection before storage
  • All products undergo overload trial running before shipment
  • Comprehensive free technical support for all products
  • 3-year warranty for main parts, 1-year warranty for wearing parts
  • Immediate technical support via internet or telephone, with on-site engineer dispatch if needed
  • Customer visits and consultation services available for production sites
