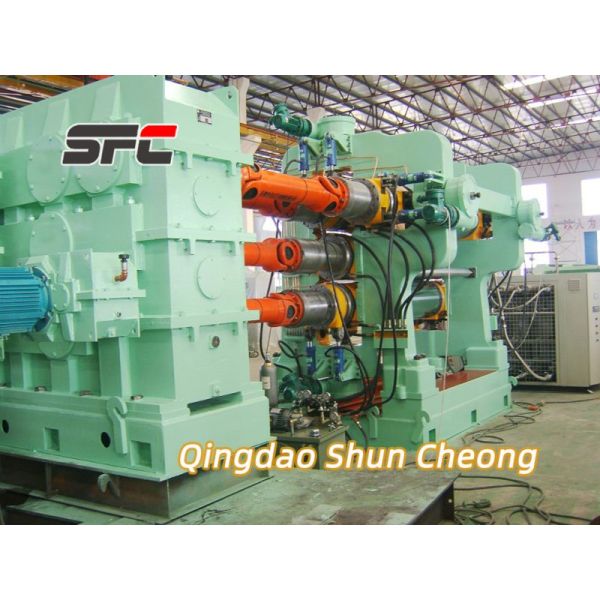

Precise Control Rubber Calender Machine with PLC Control System Electric Heating and Automatic Operation

Specifications

Brand Name :

SFC

Model Number :

XY-1400

Certification :

CE、ISO9001、SGS

Place of Origin :

China

MOQ :

Price :

US$16999.00-99999.00/set

Payment Terms :

L/C,T/T

Supply Ability :

500sets/year

Delivery Time :

70 days

Packaging Details :

Safety wood or plywood crates packaging.

Control System :

PLC

Heating Method :

Electric

Material :

Carbon Steel/Stainless Steel

Operation Mode :

Automatic

Power :

110

Product Name :

Rubber Calender Machine

Size :

6500*1970*2740

Voltage :

380V

Warranty :

1 Year

Description

Precise Control Rubber Calender

Our precision rubber calender machines deliver exceptional control over sheet thickness and quality for industrial manufacturing applications.

Key Features & Capabilities

Precision Thickness Control: Advanced mechanisms including adjustable roll gaps, hydraulic/mechanical screw-down systems, and integrated measurement devices ensure consistent final sheet thickness
Temperature Management: Integrated temperature control systems and cooling mechanisms maintain optimal processing conditions
Automated Process Control: Modern control systems for temperature, speed, and thickness monitoring with recipe management and data logging capabilities
Efficient Cooling & Winding: Air or water cooling systems stabilize sheet properties before winding onto rolls or cutting to specified lengths
Customization Options: Available with additional rolls for specialized processes, custom surface patterns, and auxiliary equipment for edge trimming and surface finishing

Ayla

Business Manager

sales-6@sfcjx.com

Two Roller Calender Specifications

Model	Roller Diameter (mm)	Roller Working Length (mm)	Speed Ratio	Roller Linear Speed (r/mm)	Min. Thickness of Products (mm)	Products Width (mm)	Main Motor Power (KW)
XY-2I 320	160	320	1:1	7.79	0.2	250	5.5
XY-2I 630	230	630	1:1	14.8	0.2	580	15
XY-2I 1120	360	1120	1:1	3-20.2	0.2	920	37
XY-2I 1500	450	1500	1:1	2.5-24.8	0.2	1250	45
XY-2I 1830	550	1830	1:1.08	2-18.7	0.2	1600	75
XY-2I 1730	610	1730	1:1	4-36	0.2	1500	90

Three Roller Calender Specifications

Model	Roller Diameter × Length (mm)	Speed Ratio	Middle Roller Linear Speed (RPM)	Min. Thickness of Products (mm)	Product Width (mm)	Motor Power (KW)
XY-630	230 × 630	1:1:1 1:1.42:1	0.8-8	0.2	100-500	7.5
XY-900	360 × 900	1:1:1 0.733:1:1 0.733:1:0.733	3-21.06	0.2	700	45
XY-1120	360 × 1120	1:1:1	1.5-15	0.2	920	45
XY-1400	400 × 1400	1:1:1 1:1.383:1.383 1:1.383:1	3-26.39	0.2	1200	55
XY-1500	450 × 1500	1:1:1 1:1.5:1	2.62-26.2	0.2	1300	75
XY-1730	610 × 1730	1:1:1 1:1.4:1	5.4-54	0.15	1530	132
XY-2130	710 × 2130	1:1:1	8-50	0.15	1900	185
XY-2430	810 × 2430	1:1:1 1:1.5:1	2-20	0.15	2150	220

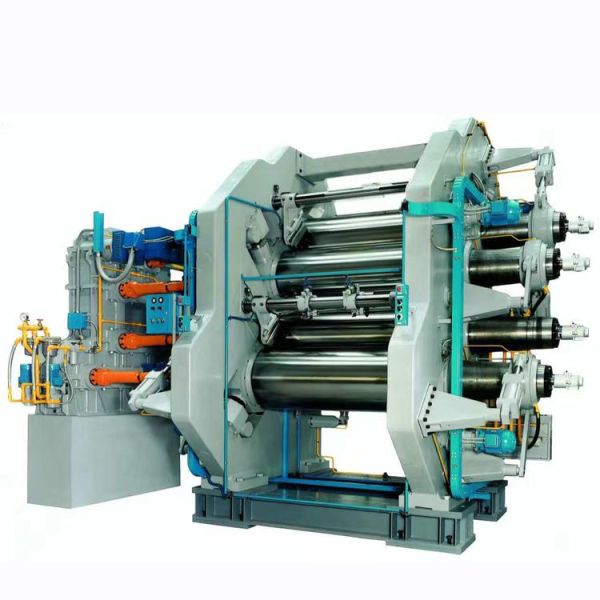

Four Roller Calender Specifications

Model	Roller Size (mm)	Speed Ratio	Middle Roller Speed (RPM)	Min. Thickness of Product (mm)	Products Width (mm)	Main Motor Power (KW)
XY-4 630	230×630	1:1:1:1	2.1-21	0.2	100-500	55
XY-4 1120	360×1120	0.73:1:1:0.73	2-20.1	0.2	500-920	55
XY-4 1400	400×1400	1:1.383:1.383:1	3-26.3	0.2	1200	75
XY-4 1500	450×1500	1:1.5:1.5:1	2.5-25	0.2	1250	110
XY-4 1730	610×1730	1:1.4:1.4:1 1:1.4:1.4:1.4	8-50	0.15	1500	160
XY-4 2130	710×2130	1:1.48:1.48:1 1:1.48:1.48:1.4	8-50	0.15	1900	185
XY-4 2430	810×2430	1:1.5:1.5:1	2-20	0.15	2150	280
