Specifications
Brand Name :
SFC
Model Number :
XK-400
Certification :
CE、ISO9001、SGS
Place of Origin :
China
MOQ :
1
Price :
US$5999.00-80000.00/set
Payment Terms :
L/C,T/T
Supply Ability :
500sets/year
Delivery Time :
50 days
Packaging Details :
Safety wood or plywood crates packaging.
Capacity :
50-100kg/h
Control System :
PLC
Material :
Stainless Steel
Operation Mode :
Automatic
Origin :
China
Power :
37kw
Size :
4250*1850*1870mm
Type :
Rubber Making Machine
Voltage :
220V/380V/440V
Warranty :
1 Year
Weight :
7000kg
Description
Advanced Control Systems 2 Roll Rubber Mixing Machine
16" Open Rubber Mixing Mill designed for efficient blending and mixing of rubber compounds with precision control and advanced features.
Core Mixing Functionality
This rubber mixing machine expertly blends rubber compounds, including raw rubber, additives, fillers, and other ingredients. Material is fed into the nip between two rotating rolls where shearing and compression actions promote uniform dispersion and distribution of all components throughout the mixture.
Advanced Control Features
  • Variable Roll Speeds: Independent control of roll speeds enables precise adjustment of shear rate and residence time for optimal blending and dispersion across various rubber compound types.
  • Temperature Control: Integrated heating and cooling systems maintain rubber material within desired temperature ranges. Heating enhances malleability for improved blending, while cooling protects heat-sensitive compounds and prevents excessive heat buildup.
  • Customization Options: Available customizations include roll diameter selection, surface texture variations, roll material choices, plus optional pneumatic/hydraulic roll adjustments, automated batch feeding systems, and specialized discharge mechanisms.
Machine Construction & Components
Main assembly includes rollers, frame, bottom plate, distance adjustment device, transmission system, roller temperature adjustment device, safety systems, and lubrication systems.
Key Construction Features
  • Rollers manufactured from alloy chilled cast iron with high hardness, exceptional wear resistance, and extended durability
  • Roller internal cavities accommodate steam, cooling water, or heat transfer oil to precisely control working temperatures for specific process requirements
  • Track gauge adjustment available in manual or electric configurations
  • Roller bearing body lubrication compatible with both dry oil and thin oil systems

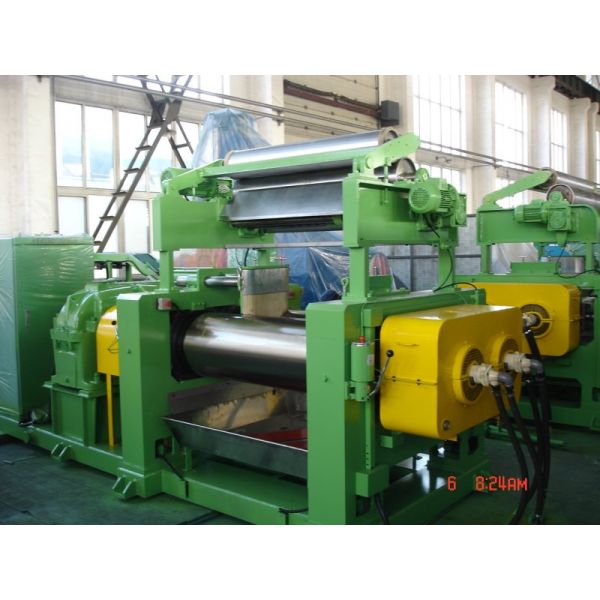

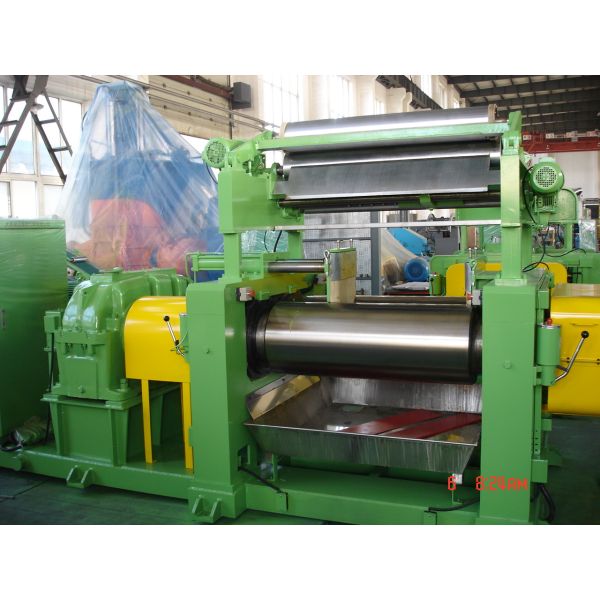

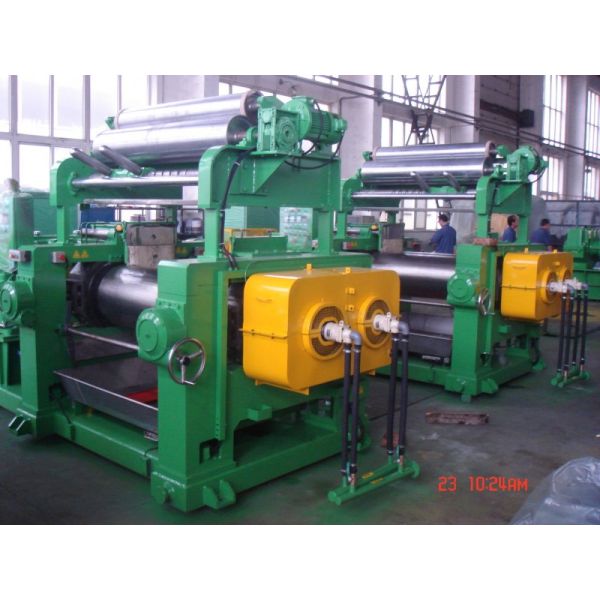

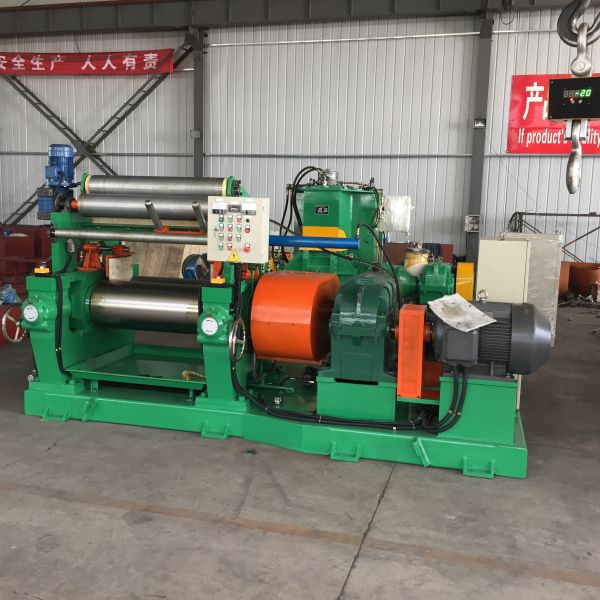

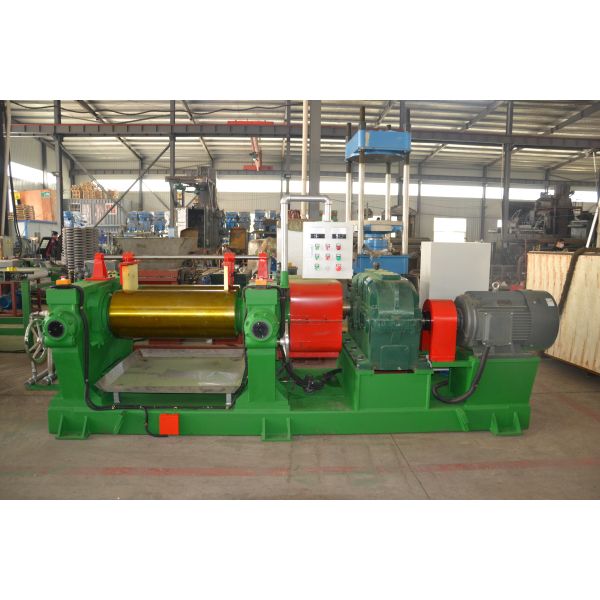

Product Reference Photos
PLC Controlled 16 PLC Controlled 16 PLC Controlled 16 PLC Controlled 16 PLC Controlled 16 PLC Controlled 16
Technical Specifications
Model Roller (D × L) (mm) Front Roller Linear Speed (m/min) Speed Ratio Motor Power (KW)
XK-160 φ160 × 320 8.95 1:1.37 5.5
XK-230 φ230 × 600 10.21 1:1.19 15
XK-250 φ250 × 620 14.1 1:1.17 18.5
XK-300 φ300 × 750 15.1 1:1.25 22
XK-360 φ360 × 900 16.25 1:1.25 30
XK-400 φ400 × 1000 18.65 1:1.27 37
XK-450 φ450 × 1200 24.26 1:1.27 55
XK-560 φ560×φ510×1530 27.72 1:1.2 90
XK-550B φ550 × 1500 27.94 1:1.22 110
XK-610 φ610 × 2000 28.42 1:1.17 160
XK-660 φ660 × 2130 28.6 1:1.24 246
XK-710 φ710 × 2200 30 1:1.09 280
