Specifications
Brand Name :
SFC
Model Number :
XLB-1300x2000 x1
Certification :
CE、ISO9001、SGS
Place of Origin :
China
MOQ :
1
Price :
USD:$8000.00-80000.00/set
Payment Terms :
T/T
Supply Ability :
500 sets/year
Delivery Time :
45 days
Packaging Details :
Standard packaging.
Control System :
PLC
Cylinder Stroke :
Customized
Heating Method :
Electric/Steam/Oil
Material :
Carbon Steel/Stainless Steel
Operation Mode :
Manual/Semi-automatic/Automatic
Power :
7.5-75KW
Pressure Range :
0-100MPa
Product Name :
Rubber Vulcanizing Press Machine
Size :
Customized
Temperature Range :
0-400℃
Voltage :
220V/380V/440V
Warranty :
1 Year
Weight :
Customized
Description
High Standard Hydraulic Frame Rubber Vulcanizing Press Machine Customized
Custom-Designed Hydraulic Frame Vulcanizing Machine
This frame plate vulcanizing machine is engineered and manufactured according to your specific product dimensions and requirements. We require customers to provide plate size, plate daylight, piston stroke, working hydraulic pressure, and other specifications for producing specialized plate vulcanizing machines.
Key Features & Advantages
  • 20 years of experience in rubber vulcanizing press manufacturing and exporting
  • 30-day delivery timeframe
  • Safety wood or plywood crates packaging
  • Full transportation insurance coverage
  • Global reach with sales to 126 countries across 6 continents
  • One-stop rubber machinery solutions
  • Advanced PLC control system
  • Customizable options to meet specific needs
  • Innovative design concepts supported by strong technical expertise
  • CE, SGS, and ISO9001:2008 certifications
  • High production efficiency with PLC control
  • Custom height design from floor to underside of top heated platen
  • Daylight specifications designed per client requirements
  • Independent control panel
  • Competitive pricing structure
  • Hot plates manufactured from HT200 with surface grinding processing
  • Pre-wired for immediate operation upon power connection
Manufacturing Excellence & Quality Assurance
Qingdao Shun Cheong Machinery Co., Ltd specializes in manufacturing various vulcanizing presses and press machines. Our company holds ISO9001:2008 Quality Management System Certification, along with Swedish SGS and CE Certifications.
Machine Components & Construction
The frame plate vulcanizing press consists of hot plates, plates, up and down platforms, piston stroke, hydro-cylinder, hydraulic station, and electrical control system. Optional push-pull mould devices are available for moving moulds on the machine.
Plates: Constructed from welded Q235 steel plates with mechanical ball blast rust removal, zinc-rich series paint spraying, stress relief shaking, and mechanical production.
Hot Plates: Made from 35# steel plates after normalizing treatment and double scale rolling. Equipped with electric control valves for automatic steam temperature adjustment.
PLC Control Hydraulic Vulcanizing Press Machine with Customized Size and 0-100MPa Pressure Range
Up and Down Platforms: Utilize Q235 steel plates with automatic cutting baiting, mechanical slicer production for welded grooves, and carbon dioxide gas shielded welding. All welding employs alloy welding wire with comprehensive heat treatment to eliminate welding stress.
PLC Control Hydraulic Vulcanizing Press Machine with Customized Size and 0-100MPa Pressure Range
Hydro-Cylinder & Piston Stroke: Hydro-cylinder uses ZG270-500 material while piston stroke employs hard cold chilled alloy cast iron. Sealing structure features combined double sealing ring with one dustproof ring for extended service life.
PLC Control Hydraulic Vulcanizing Press Machine with Customized Size and 0-100MPa Pressure Range
Electrical Control System: Features PLC automatic control for automatic closing, opening mould, and gas exit equipment. Includes manual control switching capability.
Quality Testing & Custom Manufacturing
Before leaving the factory, each vulcanizing press undergoes rigorous 24-hour pressure testing and pressure maintaining to verify hydro-cylinder and piston stroke bearing capacity, ensuring no oil leakage or seepage to prevent quality issues.
We specialize in designing and manufacturing all types of non-standard vulcanizing machines according to specific customer requirements.

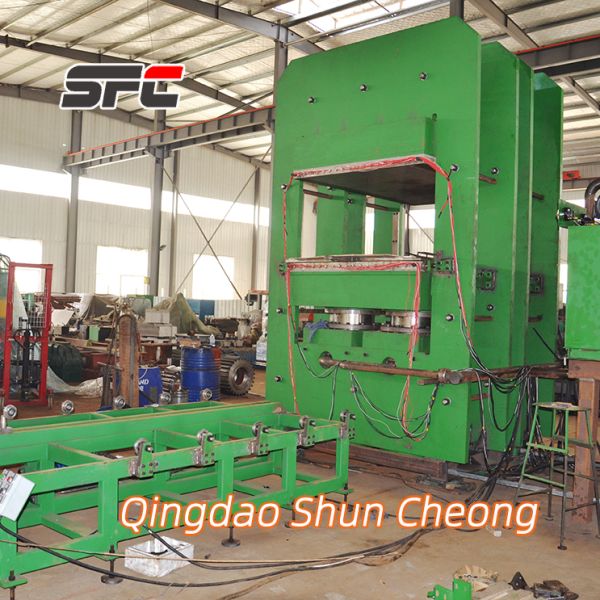

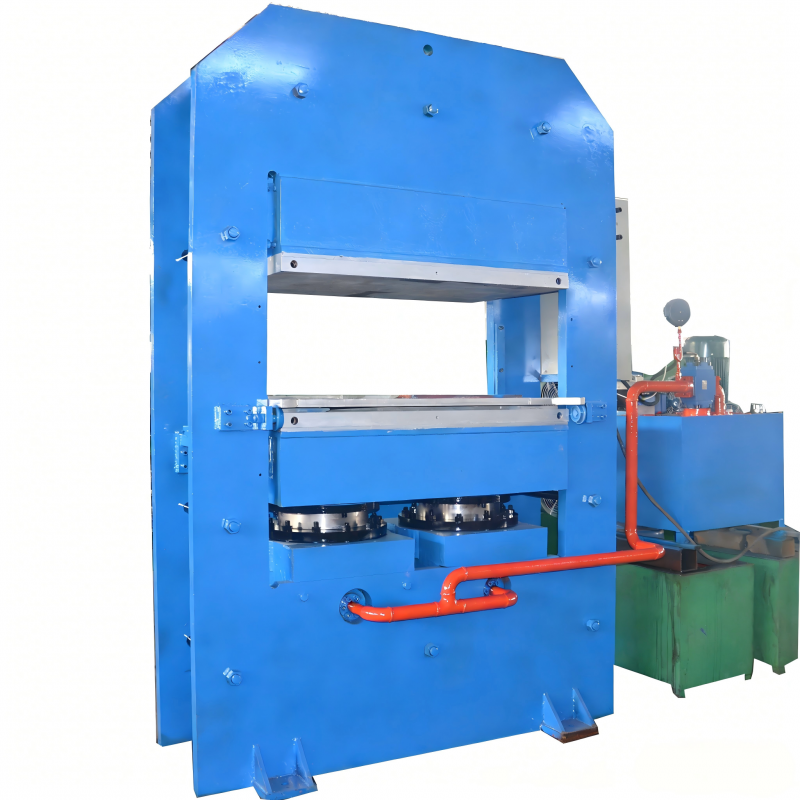

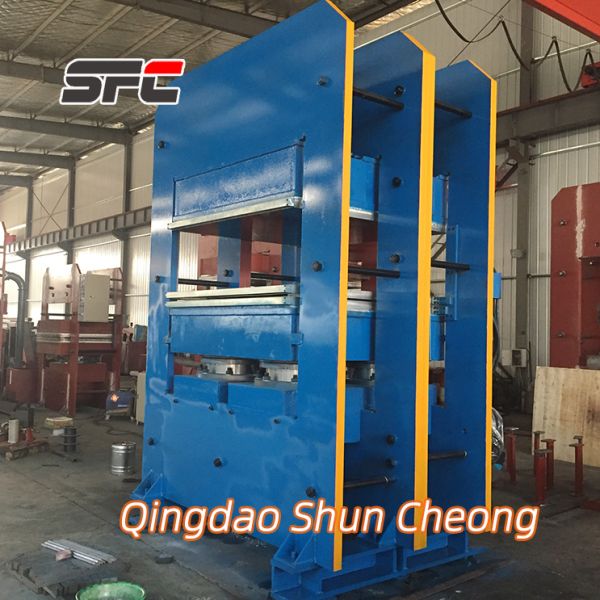

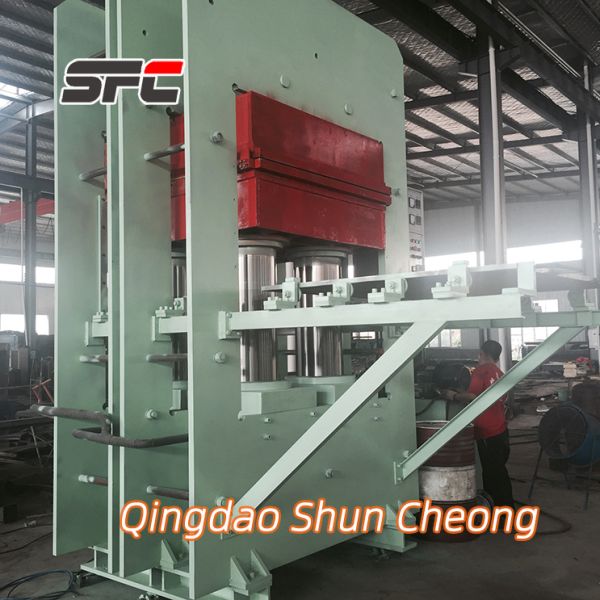

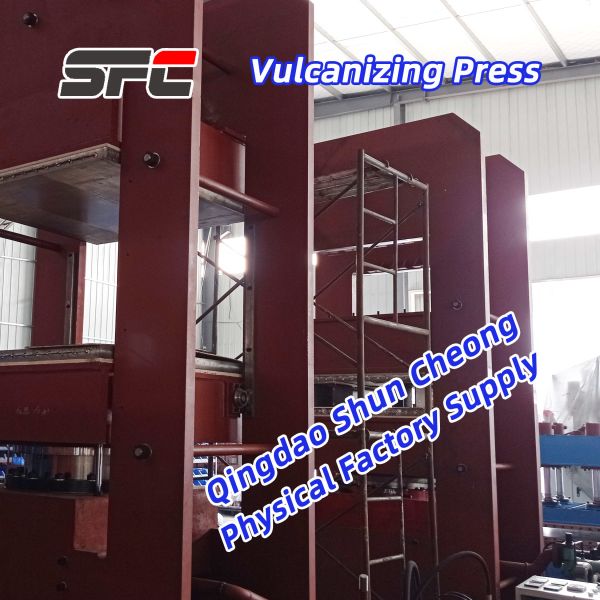

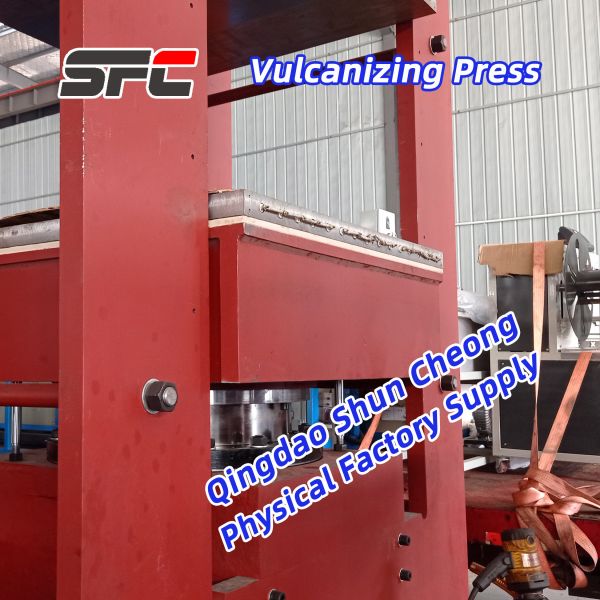

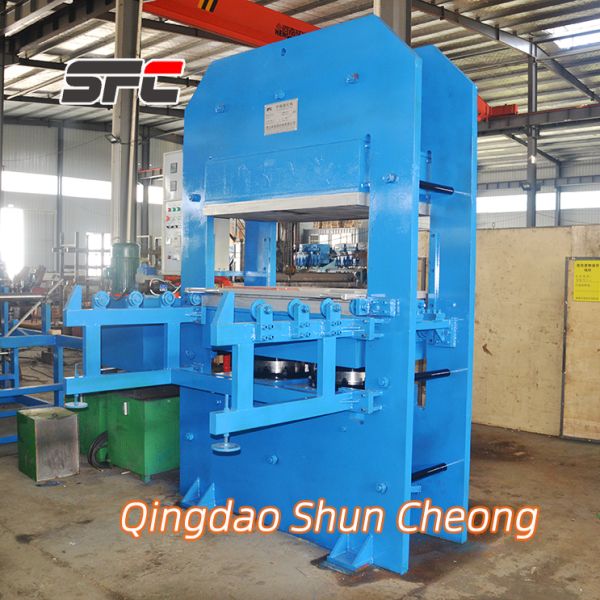

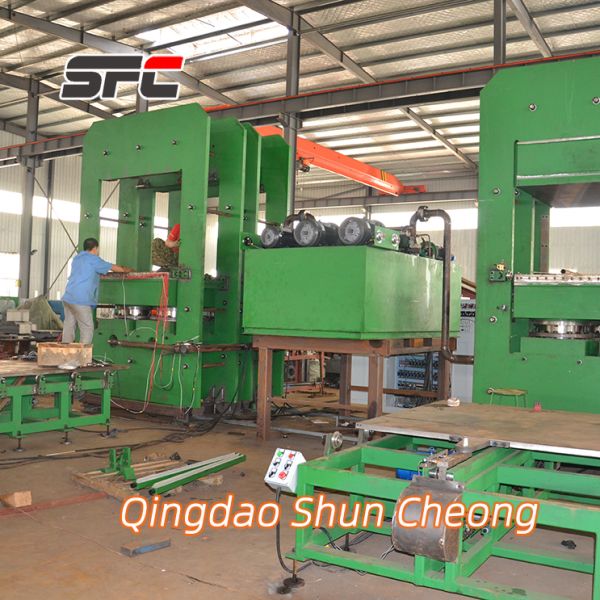

Product Reference Photos
PLC Control Hydraulic Vulcanizing Press Machine with Customized Size and 0-100MPa Pressure Range PLC Control Hydraulic Vulcanizing Press Machine with Customized Size and 0-100MPa Pressure Range PLC Control Hydraulic Vulcanizing Press Machine with Customized Size and 0-100MPa Pressure Range PLC Control Hydraulic Vulcanizing Press Machine with Customized Size and 0-100MPa Pressure Range PLC Control Hydraulic Vulcanizing Press Machine with Customized Size and 0-100MPa Pressure Range PLC Control Hydraulic Vulcanizing Press Machine with Customized Size and 0-100MPa Pressure Range PLC Control Hydraulic Vulcanizing Press Machine with Customized Size and 0-100MPa Pressure Range PLC Control Hydraulic Vulcanizing Press Machine with Customized Size and 0-100MPa Pressure Range PLC Control Hydraulic Vulcanizing Press Machine with Customized Size and 0-100MPa Pressure Range PLC Control Hydraulic Vulcanizing Press Machine with Customized Size and 0-100MPa Pressure Range PLC Control Hydraulic Vulcanizing Press Machine with Customized Size and 0-100MPa Pressure Range PLC Control Hydraulic Vulcanizing Press Machine with Customized Size and 0-100MPa Pressure Range
Technical Parameters
Product Model XLB-1300x2000 x1 XLB-1500x1500x1 XLB-1500x2500x1 XLB-2000x2000x1
Total Press (MN) 5.60 8.00 15.00 20.00
Plate Size (mm) 1300x2000 1500x1500 1500x2500 2000x2000
Plate Daylight (mm) 400 800 400 400
Working Layer 1 1 1 1
Piston Stroke (mm) 400 800 400 400
Unit Press (Mpa) 2.2 3.6 4.0 5.0
Main Motor Power (kw) 8 16.5 11 11
Overall Size (mm) 2000x1860x2500 2200x2200x4300 3000x2500x3300 3600x3000x3300
Company Profile
Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd is located at Kangting Road No. 1, West Coast New District, Qingdao, China. We are a specialized high-technology backbone enterprise in rubber machinery production, holding ISO9001:2015 quality management system certification, European Union CE certification, and Swiss SGS certification.
Product Range & Industries Served
Our products primarily serve: tire manufacturing, rubber conveyor belt production, various rubber products, tire refurbished manufacturing, and waste tire recycling.
Main Equipment Portfolio:
  • Rubber Kneader
  • Rubber Mixing Machine
  • Rubber Vulcanizing Press
  • Batch Off Cooler
  • Rubber Calender
  • Waste Tire Crusher
  • Rubber Extruder
  • Rubber Strainer
Our products are exported to over 50 countries and regions including Britain, Switzerland, USA, Germany, Brazil, Singapore, Malaysia, India, Russia, Ukraine, Uzbekistan, and Kazakhstan, earning consistent praise and long-term cooperation from domestic and international customers.
Quality Commitment & After-Sales Service
Product quality and after-sales service are fundamental to Qingdao Shun Cheong Machinery Co., Ltd's success and remain our top management priorities.
Our Commitment to Customers:
  • Every component undergoes strict quality inspection before storage
  • All products undergo overload trial running before shipment
  • Comprehensive free technical support for all products
  • 3-year warranty for main parts, 1-year warranty for wearing parts
  • Immediate technical support via internet or telephone for quality issues
  • On-site engineer repair services when required
  • Customer visits to production sites for consultation and observation
PLC Control Hydraulic Vulcanizing Press Machine with Customized Size and 0-100MPa Pressure Range PLC Control Hydraulic Vulcanizing Press Machine with Customized Size and 0-100MPa Pressure Range PLC Control Hydraulic Vulcanizing Press Machine with Customized Size and 0-100MPa Pressure Range
