Fully Automatic Rubber Hydraulic Vulcanizing Press Machine Rubber Press Machine
Fully Automatic Rubber Hydraulic Vulcanizing Press Machine Rubber Press Machine
Fully Automatic Rubber Hydraulic Vulcanizing Press Machine Rubber Press Machine
Fully Automatic Rubber Hydraulic Vulcanizing Press Machine Rubber Press Machine
Fully Automatic Rubber Hydraulic Vulcanizing Press Machine Rubber Press Machine
Fully Automatic Rubber Hydraulic Vulcanizing Press Machine Rubber Press Machine
Specifications
Brand Name :
HHS
Model Number :
XLB50-300
Certification :
CE
Place of Origin :
Qingdao Shangdong
MOQ :
1 set
Price :
USD 4000-10000
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60 sets/Year
Delivery Time :
15-30 work days
Packaging Details :
standard wood package or based on clients request
Type :
Vulcanizer
Colour :
blue white,customized
Voltage :
customized
Power(W) :
5.5KW
Temperature :
300 degree
Working Layers :
1-4layers
Plates :
300-2100mm
Hot Plates Material :
Q-235 material.
Heating :
electricity , steam heating , conduction oil heating .
Weight :
3000 kg
advantage :
high production
Description

Fully Automatic Rubber Hydraulic Vulcanizing Press Machine/Rubber Press Machine

1. Structure:

♥ This machine is frame and four colomn structure, including main machine, hydraulic station, electric controlling cabinet

♥ Main machine is composed by base, plunger piston, platform, beam, automatic mold pushing-out device and compulsory mold opening device; used as hydraulic press machine.

2. Technical Parameters

Parameters/version

 XLB350*350*2 XLB400*400*2 XLB500*500*2 XLB600*600*2/4 XLB750*850*2 XLB1000*1000*2
Mould closing force 0.25MN 0.5MN 0.8MN 1.0MN 1.6MN 2.5MN
Hot plate spacing 125mm 125mm 125mm 125mm 125mm 200mm
Hot plate layer 2 2 2 2/4 2 2
Plunger stroke 250mm 250mm 250mm 250/500mm 250mm 400mm
Heating way Electricity/stream Electricity/stream Electricity/stream Electricity/stream Electricity/Stream Electricity/stream
Main motor power 2.2kw 2.2kw 2.2kw 2.2kw 3kw 5.5kw
The thermal power 2.4kw/board 3kw/board 3kw 7.5kw/board 9kw/board 10.8kw/board
Size(L*W*H)mm 1450*400*1350 1600*400*1440 1450*690*1818 1880*780*1660 2100*1010*1900 2400*960*2500
Weight(kg) 1200 1500 1700 2500/3100 3560/4300 8300

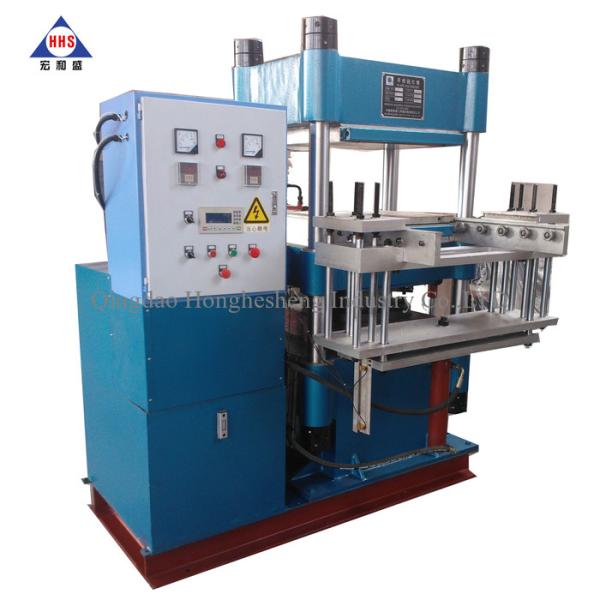

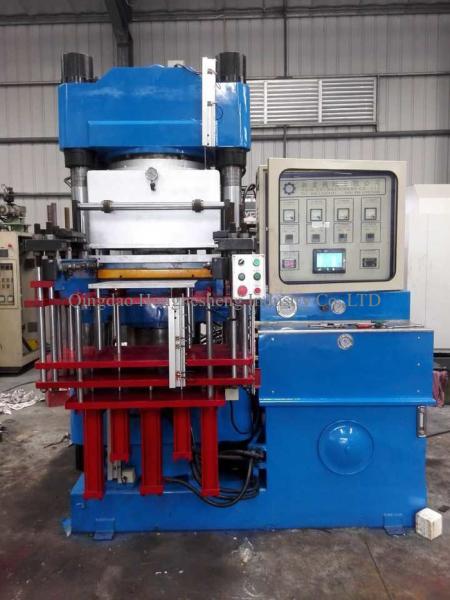

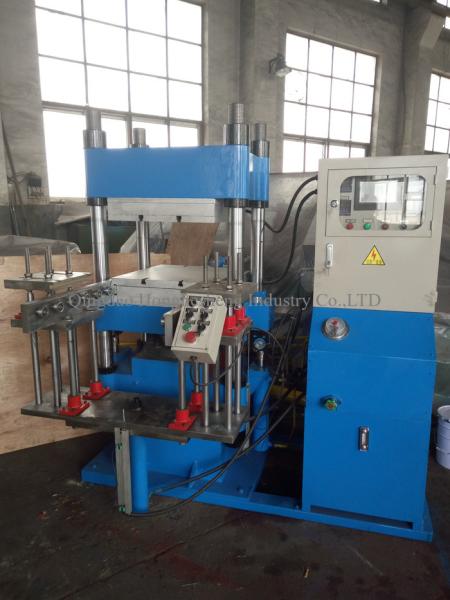

3. Detailed Pictures

Fully Automatic Rubber Hydraulic Vulcanizing Press Machine Rubber Press Machine

Fully Automatic Rubber Hydraulic Vulcanizing Press Machine Rubber Press Machine

Fully Automatic Rubber Hydraulic Vulcanizing Press Machine Rubber Press MachineFully Automatic Rubber Hydraulic Vulcanizing Press Machine Rubber Press Machine

Fully Automatic Rubber Hydraulic Vulcanizing Press Machine Rubber Press MachineFully Automatic Rubber Hydraulic Vulcanizing Press Machine Rubber Press MachineFully Automatic Rubber Hydraulic Vulcanizing Press Machine Rubber Press MachineFully Automatic Rubber Hydraulic Vulcanizing Press Machine Rubber Press Machine
