Specifications
Brand Name :
HHS
Model Number :
DN0509
Certification :
ASME CE, ASME CE
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
USD:8000-78000 /SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 sets/month
Delivery Time :
20 working days
Packaging Details :
wood package /20-40 container
Max Working Press :
0.65MPa
Warranty :
1 years
Core Components :
PLC, Pressure vessel
Color :
Customer's Requirements
Advantage :
full automatic
Key Selling Points :
Easy to Operate
Voltage :
220V/380V/450V
Dimension(L*W*H) :
3200*2200*2300MM
Weight :
64000 KG
Curing time :
2.6~3h
Power :
110 kW
Temperature :
95~120℃
Description

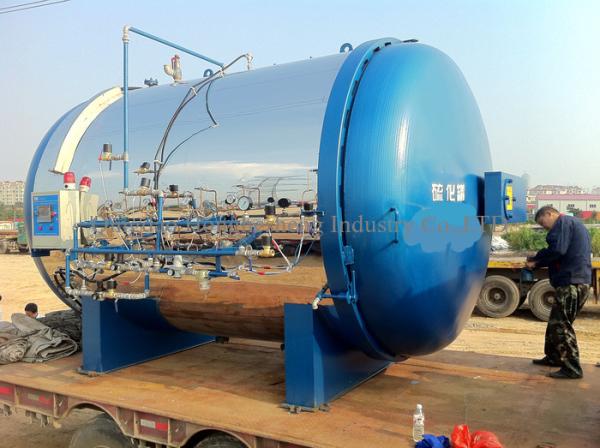

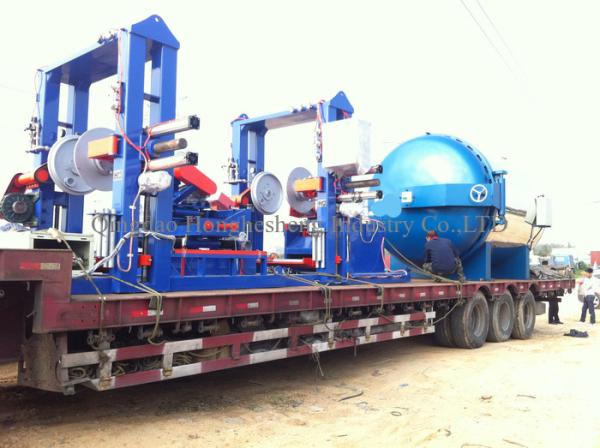

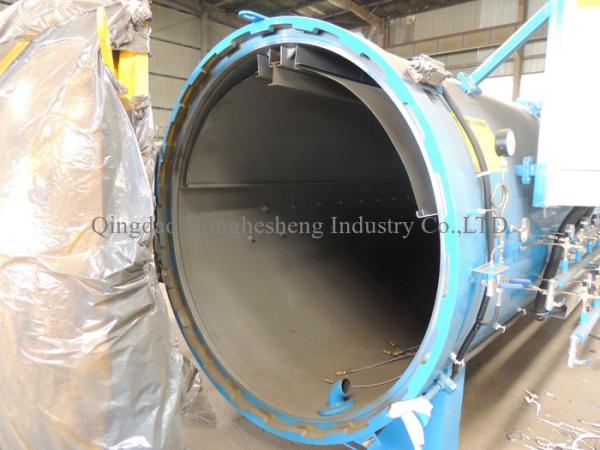

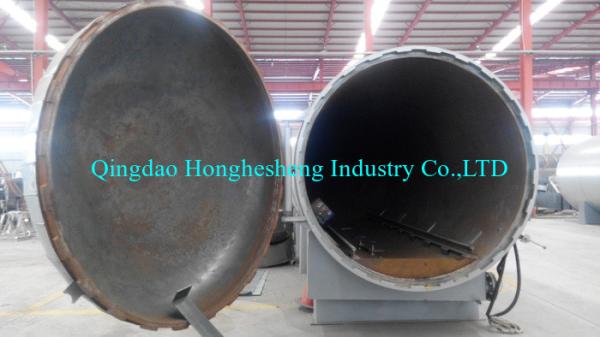

Tire retreading equipment OTR Chamber

introduction

1, Automatic temperature, pressure and timing controlling. Automatic curing data recording and saving. Equipped with data searching and printing function.

2, The DPC pressure is accurately controlled. The warning and error detecting functions work well, due to the joint working of several security devices .

3, Heating method of the chamber can be customized to electrical heating, steam heating or oil heating.

4, Customize the size according to customer requirements,From 13.00-24 "to 40.00 x57"

Tyre number12.00R20 12 14 16 18 22 25
Theoretical steam consumptionkcal/h 43000 52000 60000 65000 70000 90000
Electric hot-tube power--electrickw 50 60 70 75 80 100
Electric hot-tube power--steamkw 8 8 9 9 12.5 12.5
Fan motor powerkw 4 4 5 5 11 11
Width--uncovered mm 5900 6600 7400 7800 8900 9900
Width--covered mm 5100 5800 6600 7100 8100 9100
Practicable work widthmm 3600 4200 5000 5500 6800 7500
heightmm 2200
depthmm 2900
weightt 4.6 4.9 5.3 5.52 5.9 6.4
Designed pressureMPa 0.9
Maximum work pressureMPa 0.8
Experimental pressureMPa 1.1
Designed temperature(c) 180
Power supply AC380V,AC220V,50HZ
Compressed air sourceMPa 0.8
