XJ-65/75/85/115 Alloy Steel Rubber Extruding Machine With DC Motor
XJ-65/75/85/115 Alloy Steel Rubber Extruding Machine With DC Motor
XJ-65/75/85/115 Alloy Steel Rubber Extruding Machine With DC Motor
XJ-65/75/85/115 Alloy Steel Rubber Extruding Machine With DC Motor
XJ-65/75/85/115 Alloy Steel Rubber Extruding Machine With DC Motor
XJ-65/75/85/115 Alloy Steel Rubber Extruding Machine With DC Motor
XJ-65/75/85/115 Alloy Steel Rubber Extruding Machine With DC Motor
XJ-65/75/85/115 Alloy Steel Rubber Extruding Machine With DC Motor
Specifications
Brand Name :
HHS
Model Number :
YF180-1000
Certification :
CE; ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
USD:20000-80000 /SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
50 sets/month
Delivery Time :
20 working days
Packaging Details :
wood package /20-40 container
Plastic Processed :
PVC, WPC, PP PE PVC WPC
Screw diamete :
65mm
Screw L/D Ratio :
22
L/D :
4.8
Voltage :
380V/50HZ or as your requirements
Dimension(L*W*H) :
2300x2500x3200
Power (kW) :
80
Weight (KG) :
10000 KG
Description

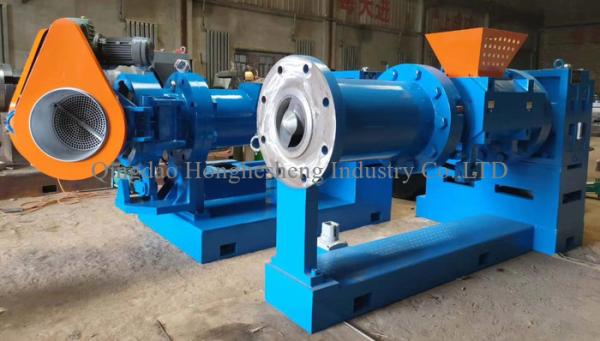

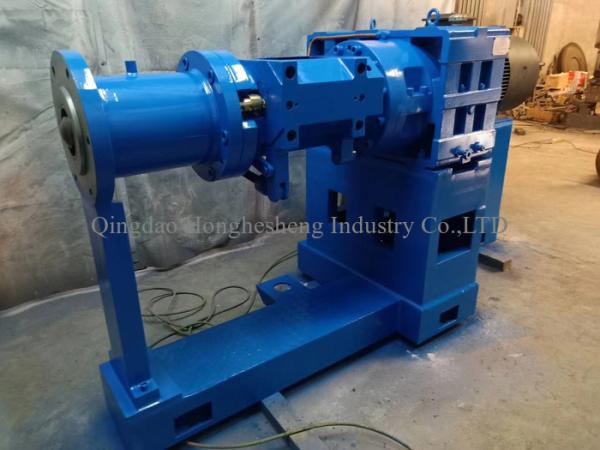

XJ-65/75/85/115 rubber extruding machine/rubber extruder

Product Description

Good quality cold feed rubber extruder

1. The barrel is composed of several zones. In the feed zone of barrel with the spiral slots. In the plasticity and extrusion zone different number of pins are fitted which enhance mixing and plastic capacity for extrusion material.

2. The screws and barrels made of high quality alloy steel with nitrogen hardening makes it more wear-resistant and more corrosion protection.

3. According to requirement of process the temperature in each zone may be automatically probing and control for each zone with good sensitivity.

4. The extruder is driven by a change frequency motor or D.C motor, which achieve continuous and smooth speed regulation.

5. Owing to the screw with higher efficiency and pin-barrel are fitted. The extruders include better mixing and plasticity result, higher extrusion, capacity, and lower temperature of the outgoing rubber. So that the output of production and the quality of product are raise.

XJ-65/75/85/115 Alloy Steel Rubber Extruding Machine With DC Motor

Technical Parameter:

Model
Items		 GE65KS×12D GE90KS×14D GE120KS×14D GE150KS×14D GE200KS×12D GE200KS×18D GE250KS×12D
Diameter of screw(mm) 65 90 120 150 200 200 250
Rate of screw length with diameter(L/D) 12 14 14 16 12 18 18
Speed of screw(r/min) 7-70 6-60 5.5-55 4.4-44 3-30 3.3-33 2.2-22
Rows of male pins ×number of pins per row 6×6 8×6 10×6 12×8 10×10 12×10 12×12
power of main motor(KW) 22 55 90 185 250 315 450
power for hot water heating(KW) 18 24 42 48 42 54 68
Extrusion capacity(kg/h) -150 250-350 500-750 1000-1800 1500-2300 1800-2500 2600-3000
Control mode The speed change byregulate frequency of motor. The speed change with D.C motor.
Overall dimensions(mm) L 2350 2500 4000 6100 6250 7800
W 1400 1500 1600 2650 3000 3000
H 1300 1400 1780 1800 2050 2050

XJ-65/75/85/115 Alloy Steel Rubber Extruding Machine With DC MotorXJ-65/75/85/115 Alloy Steel Rubber Extruding Machine With DC MotorXJ-65/75/85/115 Alloy Steel Rubber Extruding Machine With DC Motor
XJ-65/75/85/115 Alloy Steel Rubber Extruding Machine With DC MotorXJ-65/75/85/115 Alloy Steel Rubber Extruding Machine With DC Motor
XJ-65/75/85/115 Alloy Steel Rubber Extruding Machine With DC Motor

XJ-65/75/85/115 Alloy Steel Rubber Extruding Machine With DC MotorXJ-65/75/85/115 Alloy Steel Rubber Extruding Machine With DC MotorXJ-65/75/85/115 Alloy Steel Rubber Extruding Machine With DC Motor
