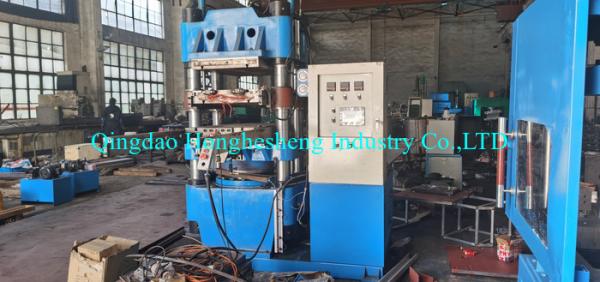

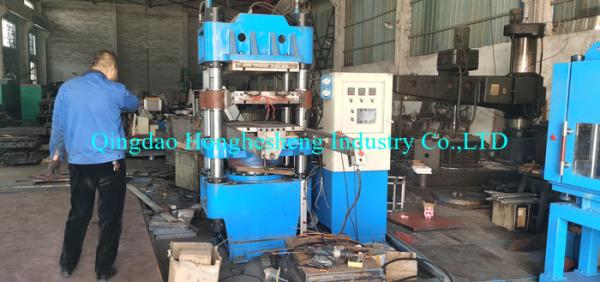

Rubber O Ring Seal Making Machine/Rubber Vulcanizing Press
Rubber O Ring Seal Making Machine/Rubber Vulcanizing Press
Rubber O Ring Seal Making Machine/Rubber Vulcanizing Press
Rubber O Ring Seal Making Machine/Rubber Vulcanizing Press
Rubber O Ring Seal Making Machine/Rubber Vulcanizing Press
Rubber O Ring Seal Making Machine/Rubber Vulcanizing Press
Rubber O Ring Seal Making Machine/Rubber Vulcanizing Press
Rubber O Ring Seal Making Machine/Rubber Vulcanizing Press
Specifications
Brand Name :
HHS
Model Number :
XLB200-1200
Certification :
CE
Place of Origin :
Qingdao Shangdong
MOQ :
1 set
Price :
USD 4000-10000
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60 sets/Year
Delivery Time :
15-30 work days
Packaging Details :
standard wood package or based on clients request
Type :
Vulcanizer
Colour :
all colour
Voltage :
customized
Power(W) :
5.5KW
Temperature :
max 300 degree
Working Layers :
1-4layers
Plates :
300-2100mm
Hot Plates Material :
Q-235 material.
Heating :
electricity , steam heating , conduction oil heating .
Weight :
3000 kg
advantage :
effective
Description

Product Application

This machine is suitable for producing various kinds of industrial rubber parts ,auto parts , bottle stopper , melamine and multi layer molded products for civil use

Main Features

1.2RT/3RT/4RT mold ejector mold opening device , which is suitable for two layer ad three layers molds

2.The oil system is unique in design with good stability , fast lift-up and lift-down speed compared with other brands when unloading /loading mold

3.With function of slow speed alignment adjusting , the adjustment is more precise and safe

4.The accurate placement of the loading/unloading mold has the 100% placement safety design , protecting the mold from being damaged

5.The speed of mold raising and closing can be adjusted accurately and safe

Model
XLB-100
XLB-160T
XLB-250
XLB-300T
Total pressure
100T
160T
250T
300T
plate size
450*450mm
500*500mm
650*600mm
700*700mm
daylight
300mm
300mm
300mm
300mm
plunger stroke
300mm
300mm
300mm
300mm
unit pressure
4.9Mpa
6.4Mpa
7Mpa
6.1 Mpa
motor
3 kw
4 kw
5.5 kw
7.5 kw
function
quick mold opening / mold ejector /tilting plate


Rubber O Ring Seal Making Machine/Rubber Vulcanizing Press

Rubber O Ring Seal Making Machine/Rubber Vulcanizing PressRubber O Ring Seal Making Machine/Rubber Vulcanizing PressRubber O Ring Seal Making Machine/Rubber Vulcanizing Press

Rubber O Ring Seal Making Machine/Rubber Vulcanizing Press

Rubber O Ring Seal Making Machine/Rubber Vulcanizing Press

Rubber O Ring Seal Making Machine/Rubber Vulcanizing PressRubber O Ring Seal Making Machine/Rubber Vulcanizing PressRubber O Ring Seal Making Machine/Rubber Vulcanizing PressRubber O Ring Seal Making Machine/Rubber Vulcanizing Press
