XJL150 700kg/H To 1200kg/H Rubber Strainer For Filtering
XJL150 700kg/H To 1200kg/H Rubber Strainer For Filtering
XJL150 700kg/H To 1200kg/H Rubber Strainer For Filtering
XJL150 700kg/H To 1200kg/H Rubber Strainer For Filtering
XJL150 700kg/H To 1200kg/H Rubber Strainer For Filtering
XJL150 700kg/H To 1200kg/H Rubber Strainer For Filtering
Specifications
Brand Name :
HHS
Model Number :
XJ-65-200
Certification :
CE; ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
USD:40000-80000 /SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
50 sets/month
Delivery Time :
20 working days
Packaging Details :
wood package /20-40 container
Condition :
New
Output (kg/h) :
400kg/hour
Screw diameter :
150 mm
L/D :
4.8
Voltage :
380V/50HZ or as your requirements
Dimension(L*W*H) :
3200*1200*1620mm
Power (kW) :
110
Weight (KG) :
1500 KG
Description

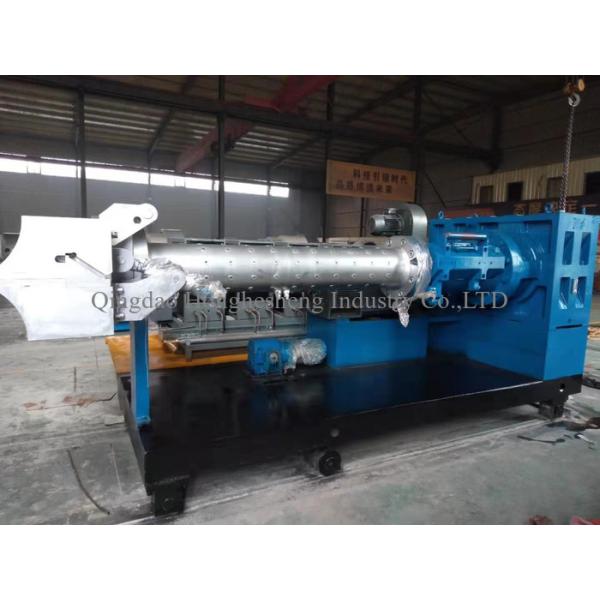

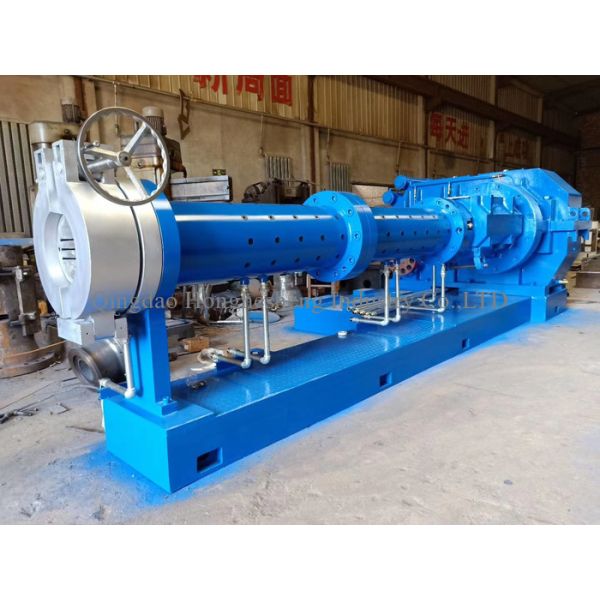

XJL-150 Rubber Strainer/Rubber Filtering Machine

Rubber extruder machinery is one of the most widely used important equipments. It is mainly used in tire tread, gaskets, tape, and other rubber extrusion.

It is energy saving, high productivity , good plasitcization and refined glue quality characteristic.

Usage of Our Rubber Extruder Machine

For profiling of extrudand,rubber covering of filter cable of rubber compound,rubber covering of press and tinsel,etc.

Features of Our Rubber Extruder Machine

1 The machine is equipped with inner tube and tire tread extrusion heads ,and can also be equipped with other extrusion heads as required by users.
2 A machine body temperature measuring and indicating device is installed.The feeding zone over 150 is equipped with side rolls for the enhancement of feeding capability.
3 The screws and bushes are subjected to nitrogenation treatment to get enough strength and wear-resistance.
4 The reducer has a forced lubrication unti,which is featured by high transmission efficiency,long service life and low noise.
5 The machine over 150 is driven by a variable-speed motor.
6 The side rolls are designed as side-open type for easy rubber removal

Technical Parameters of Our Rubber Extruder Machine

Parameters Version
XJ-65 XJ-85 XJ-115 XJ-150 XJ-200
Screw outer diameter 65 85 115 150 200
Length –diameter ratio 4 4.3 4.8 4.43 4.35
Compression ration 1.3 1.3 1.34
Screw rotation speed(min) 20.27.35.47 28.40.56.80 33.46.60 27-81 22.4-67.2
Power 7.5 11/15 22 18.3-55 25-75
Product capacity(kg/h) 50-80 70-210 100-420 700-1200 1500-2200
Steam pressure 0.2-0.3 0.3-0.4 0.4-0.6 0.6 0.6-0.8
Cooling water pressure 0.2-0.3 0.2-0.3 0.2-0.3 0.2 0.2-0.3
Compress air pressure 0.3-0.6
Size 1630*604*1050 2050*700*1200 1630*604*1050 3411*814*1470 4564*1800*150
Weight (kg) 1200 2500 3000 5000 8000
