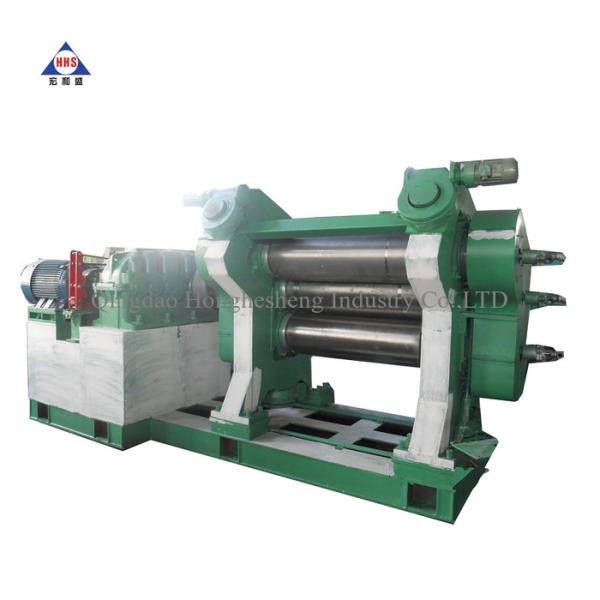

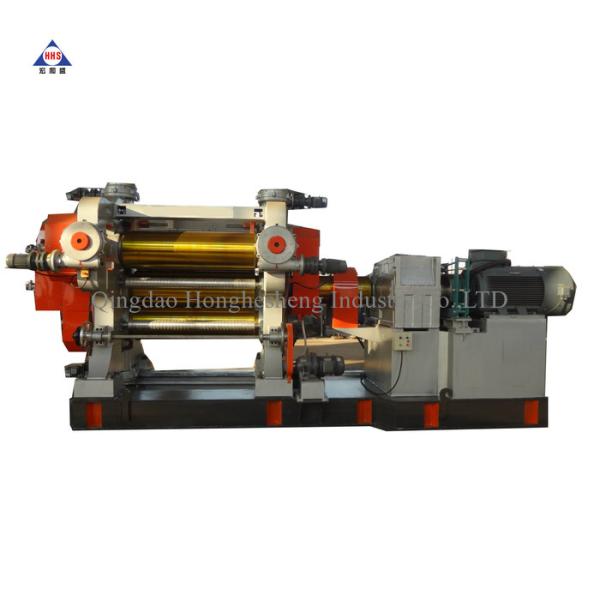

610x1730mm Fabric Four Roll Rubber Calender Machine Length 1200mm
610x1730mm Fabric Four Roll Rubber Calender Machine Length 1200mm
610x1730mm Fabric Four Roll Rubber Calender Machine Length 1200mm
610x1730mm Fabric Four Roll Rubber Calender Machine Length 1200mm
610x1730mm Fabric Four Roll Rubber Calender Machine Length 1200mm
610x1730mm Fabric Four Roll Rubber Calender Machine Length 1200mm
610x1730mm Fabric Four Roll Rubber Calender Machine Length 1200mm
610x1730mm Fabric Four Roll Rubber Calender Machine Length 1200mm
610x1730mm Fabric Four Roll Rubber Calender Machine Length 1200mm
610x1730mm Fabric Four Roll Rubber Calender Machine Length 1200mm
Specifications
Brand Name :
honghesheng
Model Number :
XSY1200-1400
Certification :
CE/ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD:5000-90000 /SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,
Supply Ability :
100 sets/month
Delivery Time :
30 SETS/MONTH
Packaging Details :
wood package/20-40 gp
Model :
XY-3I 1730
Roll diameter (mm) :
610mm
Roll working length (mm) :
1730
Roll speed ratio :
1:01:01 1:1.4:1
Middle-roll linear speed (m/min) :
5.4-54
Adjusting nip range (mm) :
0-20
Description

Four Roll Rubber Calender/ Calendering Machine/Fabric Roller Length 1200mm Calender

Usage:

the calender is mainly used for cord, canvas and fabric frictioning cord single or double-coating with one time connectively as well as stock sheeting etc.

technial specification:

Model XY-3I 630 XY-3I 1120A
XY-3 1120A
XY-3l1120A		 XY-3I 1400 XY-3I 1200
XY-3I 1500		 XY-3I 1730 XY-3I 2130
Roll diameter (mm) 230 360 400 450 610 710
Roll working length (mm) 630 1120 1400 1200(1500) 1730 2130
Roll speed ratio 1:01:01
1:1.42:1		 1:01:01
0.733:1:1
0.733:1:0.733		 1:01:01
1:1.383:1.383
1:1.383:1		 1:01:01
1:1.5:1		 1:01:01
1:1.4:1		 1:01:01
1:1.48:1
Middle-roll linear speed (m/min) 7.97 7.0-21.06 8.8-26.39 8.36-25.08 5.4-54 8-50
Adjusting nip range (mm) 0-7 0-10 0-10 0-6 0-20 0-20
Min.Calendering product thickness (mm) 0.2 0.2 0.2 0.15 0.15 0.15
Calendering product width (mm) 100-500 500-920 1200 1100(1400) 1500 1900
Motor power (kw) 7.5 40/13.3 55/18.3 75/25 132 185
Overall dimensions (mm)

2570×740×

1500

5550×1640×

2120

6500×1500×

2440

7120(7420)×2200×

2900

7010×3950×

3730

7650×4560×

4080
Weight (kg) ~4200 ~12750 ~26000 ~27000 ~52000 ~67000
Features

Model

Item

XY-4I 630

XY-4L 630

XY-4630

 XY-41120A XY-41400 XY -41500 XY-41730 XY-42130 XY-42430
Roller dia 230 360 400 450 610 710 810
Roller wording length 630 1120 1400 1500 1730 2130 2430
Roller ratio 1:1:1:1 0.73:1:1:0.73 1:1.38:1.38:1 1:1.5:1.5:1

1:1.4:1.4:1

1:1.4:1.4:1.4

 1:1.5:1.5:1 1:1.5:1.5:1
Middle roll linear speed r/min 2.1-21 2-20.1 3-26.3 2.5-25 8-50 3-30 2-20
Adjusting range 0-10 0-10 0-10 0-6 20 0-20 0.5-25
Min.calendering product thickness 0.2 0.2 0.2 0.2 0.15 0.15 ±0.1
Calendering product width 100-500 500-920 1200 1250 1500 1900 2150
Motor power kW 15 55 75 110 160 185 280

Overall dimensions

 L 3300 6600 6500 6580 7010 9800
W 940 1620 1970 2460 4150 4260
H 2350 2490 2740 2920 3730 5720
About weight t 4.8 14.6 18.6 33.5 62 100 126
