Specifications
Model Number :
SP25-15/1A
Brand Name :
OEM
Place of Origin :
Jiangsu, China
MOQ :
200
Material :
PU/PVC
Temperature range :
-10/+80 degree
Total thickness :
2.1 mm
Pattern thickness :
-
Cover thickness :
0.6 mm
Cover hardness :
80/85 shore-A
Weight :
2.0 kg/m2
Effective pull :
8 N/mm
Support type :
Slide, Roller
Fabric plies :
2
Top material :
PVC
Bottom material :
PVC belt with diamond pattern
Pattern :
diamond, smooth, lattice
Color options :
Black, white, green
Lateral stability :
Yes
Description
Product Description

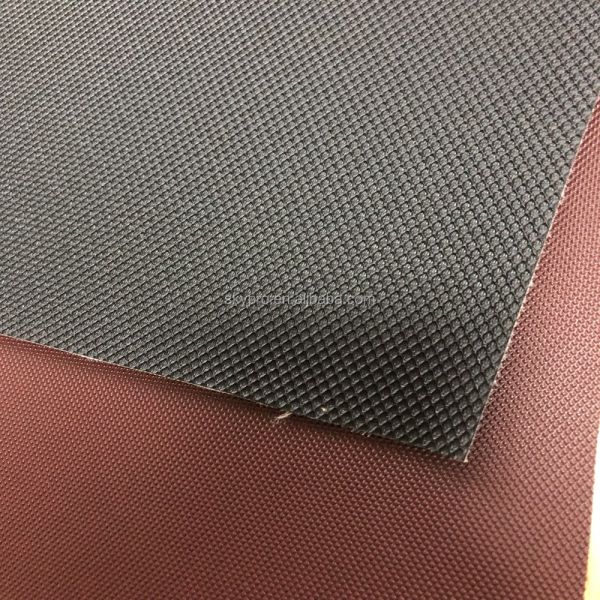

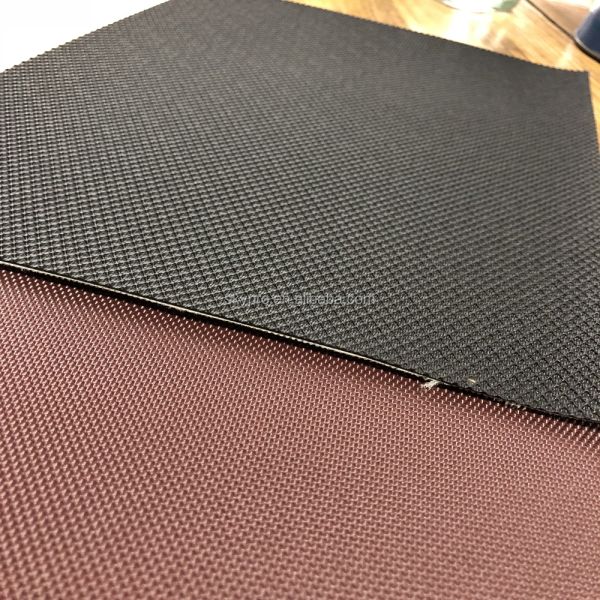

Hot sale black diamond pvc conveyor belt for treadmill walking belt on selling

PVC conveyor belts are made of PVC which is commonly abbreviated PVC and polyester fabric, it's working temperate range is from -10 to 80 degrees, with good lateral stability, now it is widely use in airports, postal automation, parcel handling, treadmills, packagin and wrapping, confectionery industry, food processing industry, paper printing industry and so on..

We could provide PVC conveyor belts with specional functons such as cold,heat, abrasion resistance, antislip, anti-static features which can suit different enviromental conditions.The different widths, patterns, colors, plies, thicknesss, profiles all are available according to your request.

Type
SP25-15/1A
Pattern
-diamond,smooth,lattice
Color
Black,white,green
Top
PVC
Bottom
PVC belt with diamond pattern
Number of fabric plies
2
Total thickness
2.1 mm
Pattern thickness
-
Cover thickness
0.6 mm
Cover hardness
80/85 shore-A
Weight
2.0 kg/m2
Effective pull at 1% elongation
8 N/mm
Temperature
-15 ℃ ~ +80 ℃
Type of support
Slide, Roller
Characteristic
Lateral stability
Property
Non adhesive surface
Application
General; Logistics and food industry

Packing and transportation:

Packing way

Packed in roll or flat sheet,50-100kg/roll or according to specific requests from clients

Packing material

Inner PE film+ outer Woven plastic bags as standard, palletized for extra reinforcement if necessary

Shipping marks

Neutral packing with printed marks.

Delivery time

15 days since receipt of PO and down payment

Freight

Sea(FCL & LCL) or air freight

Special size

We provide cutting services for special sizes

Lamination

We provides extra lamination with PSA, textiles or other materials.

FAQ(Frequently Asked Questions)
1. What is the capability of your company ?

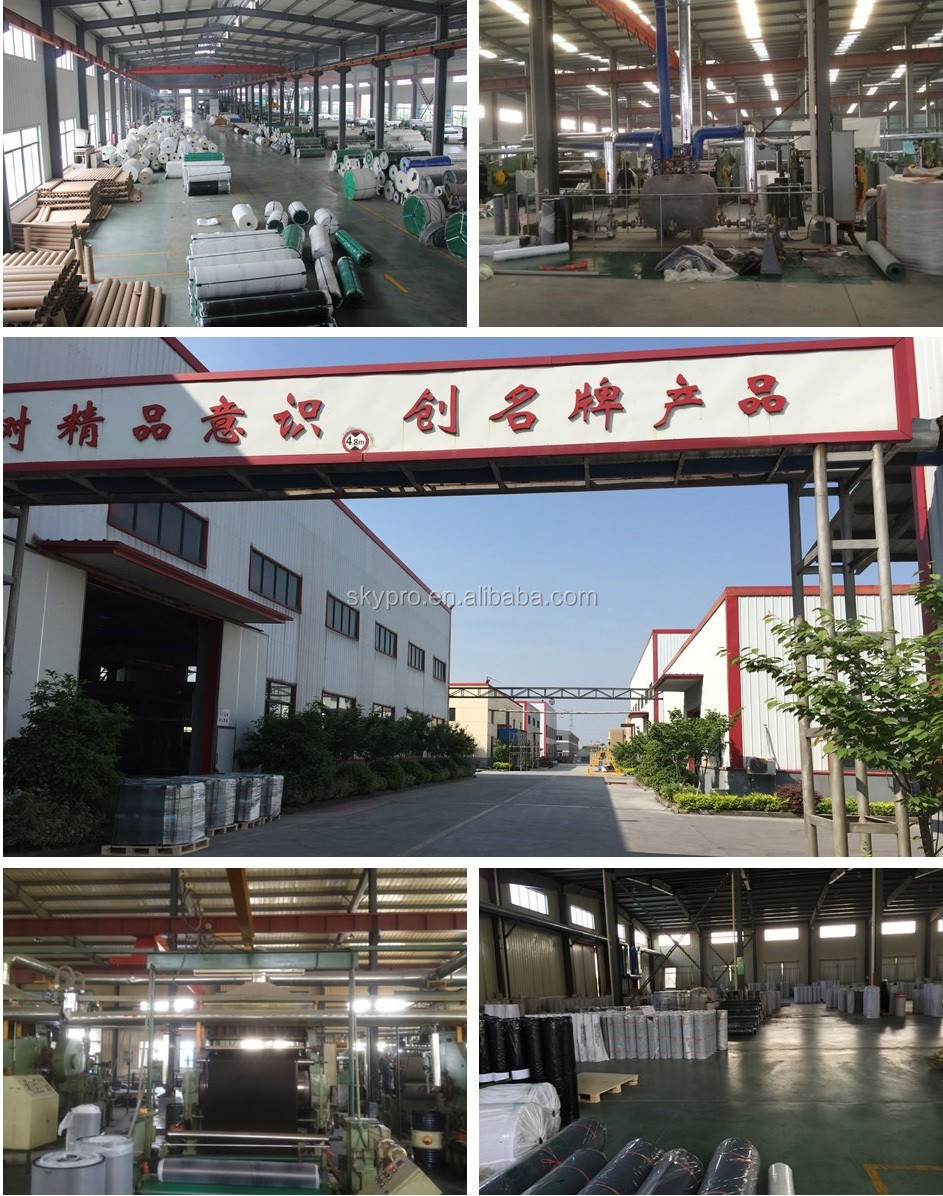

Skypro is a professional manufacturer of rubber sheet for more than two decades.
Top 10 biggest rubber factory in China.

2.What is production capability each year?
We produce more than 18000 tons of rubber sheet products each year.

3.How can I get some samples?
We are pleased to offer you free samples. New clients are expected to pay for the delivery cost, this charge will be deducted from the payment for formal order.
