Specifications
Model Number :
SY009
Brand Name :
Skypro
MOQ :
100 Piece/Pieces
Delivery Time :
10 working days after received your payment
Surface :
Textured or Smooth
Payment Terms :
T/T or western Union,L/C
Elongation :
200%-450%
Application :
Shock Absorber Bumper Washer Shock Absorber
Feature :
Excellent Resistance
Supply Ability :
1000ton per month
Product Name :
Rubber Shock Absorber Pads
Price :
negotiable
Density :
1.3~1.8g/cm3
Certification :
ROHS/SGS/REACH
Place of Origin :
China
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Description
Pentagon Rubber Cushion Pad Shock Absorber Bumper Washer
High-performance rubber damping gasket designed for superior shock absorption and vibration isolation in industrial applications.
NBR Nitrile Rubber Material
NBR provides excellent resistance to most types of oils including mineral, animal, vegetable oils, gasoline, diesel, light heating oils, and mixtures of alcohol and gasoline. Ideal for gaskets and applications requiring oil resistance.
Temperature Rating: Up to +80°C
Product Specifications
Colors Natural, black, pink, green, blue, red, purple, white, etc.
Width Up to 750mm as standard
Thickness 0.2mm to 3.0mm
Fire Safety Information
Sheeting should be protected during handling and storage from naked flames as rubber is flammable. Non-smoking restrictions are advised in storage areas.
Packing and Transportation
Packing Method Packed in roll or flat sheet, 50-100kg/roll or according to specific client requests
Packing Material Inner PE film + outer woven plastic bags as standard, palletized for extra reinforcement if necessary
Shipping Marks Neutral packing with printed marks
Delivery Time 15 days since receipt of PO and down payment
Freight Options Sea (FCL & LCL) or air freight
Custom Sizes We provide cutting services for special sizes
Lamination Services We provide extra lamination with PSA, textiles or other materials
Frequently Asked Questions
  • What is the capability of your company?
    Skypro is a professional manufacturer of rubber sheet for more than two decades. Top 10 biggest rubber factory in China.
  • What is production capability each year?
    We produce more than 18,000 tons of rubber sheet products each year.
  • How can I get some samples?
    We are pleased to offer you free samples. New clients are expected to pay for the delivery cost, which will be deducted from the payment for formal order.
Rubber Material Comparison Guide
Comprehensive comparison of various rubber types and their properties for industrial applications:
Rubber Type (ASTM) IR SBR BR CR NBR
Chemical Structure Isoprene Rubber, Cis 1,4- Polyisoprene "Synthetic Natural Rubber" Styrene Butadiene Rubber Polybutadiene Rubber Poly-2-chlorobutadiene -1,3 chloroprene Rubber, Neoprene Butadiene Acrylnitrile Rubber, Nitrile Rubber
Main Characteristics High flexibility, good comprehensive physical mechanic performance Better wear-resistant and anti-aging function than NR, lower prices Same wear-resistant with NR and better flexible and lower temperature resistant than NR Good climate resistant, ozone proof, hot resistance and chemical resistant Good oil-resistant, wear-resistant and anti-aging
Hardness Range (Shore A) 20-100 40-100 30-100 45-120 30-130
Temperature Range (°C) -75 to 90 -60 to 100 -100 to 100 -50 to 120 -50 to 120
Oil Resistance Bad Bad Bad Good Excellent
Rubber Type (ASTM) EPDM IIR CSM SIR FKM
Chemical Structure Ethylene Propylene Terpolymer Rubber Isobutene-Isoprene (butyl) Rubber Chlorosulfonated Polyethyelene Silicone Rubber Vinylidene Fluoride Hexaflyoropropylene Rubber, FKM
Main Characteristics Good anti-aging, ozone proof, polar liquid resistant, good electric performance, lightest rubber Good climate resistant, ozone proof, gas penetrating resistant, polar solvent resistant Better wear-resistant and anti-aging function than NR, lower prices Good cold & hot resistant Best hot resistant and chemical resistant
Hardness Range (Shore A) 30-100 20-90 50-95 20-95 60-90
Temperature Range (°C) -60 to 150 -60 to 150 -60 to 150 -120 to 280 -50 to 300
Oil Resistance Bad Middle Good Middle Excellent

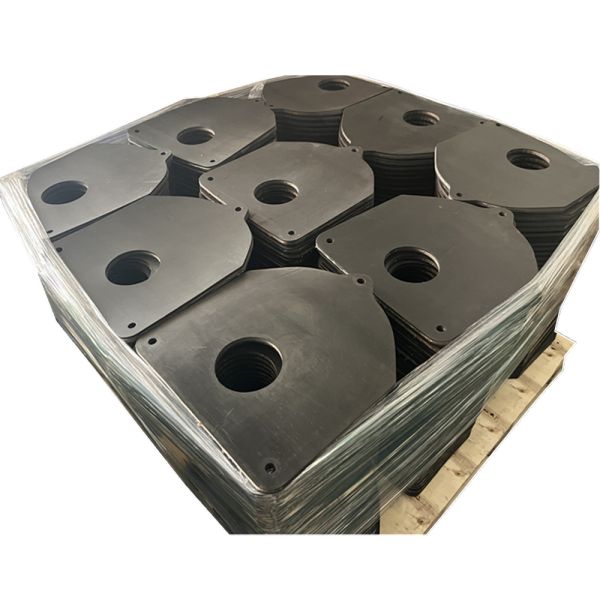

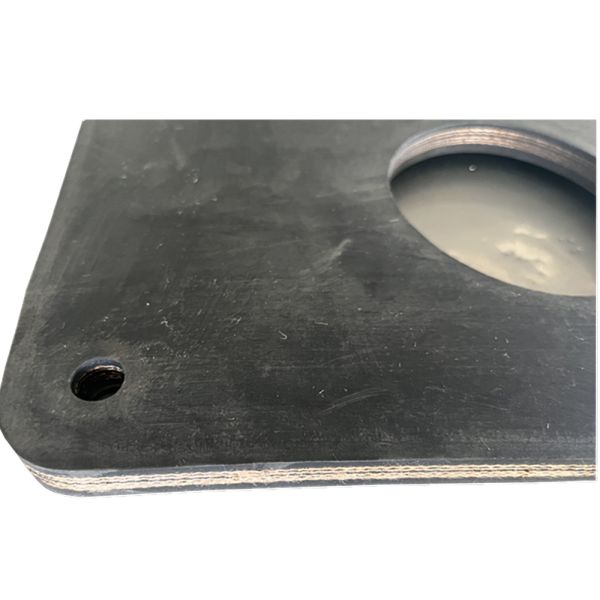

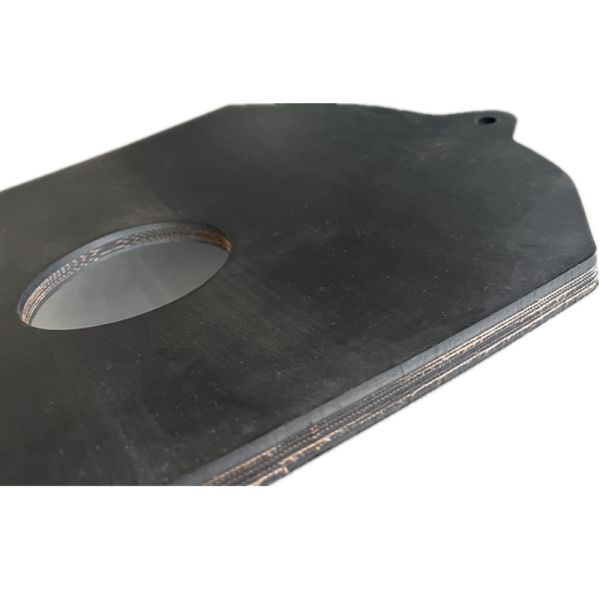

Product Images
Pentagon Rubber Cushion Pad Shock Absorber Bumper Washer Shock Absorber Rubber Mat Rubber Damping Gasket Pentagon Rubber Cushion Pad Shock Absorber Bumper Washer Shock Absorber Rubber Mat Rubber Damping Gasket Pentagon Rubber Cushion Pad Shock Absorber Bumper Washer Shock Absorber Rubber Mat Rubber Damping Gasket
