Flange Connection Ss304 Stainless Steel Braided Flexible Metal Hose
Flange Connection Ss304 Stainless Steel Braided Flexible Metal Hose
Flange Connection Ss304 Stainless Steel Braided Flexible Metal Hose
Flange Connection Ss304 Stainless Steel Braided Flexible Metal Hose
Flange Connection Ss304 Stainless Steel Braided Flexible Metal Hose
Flange Connection Ss304 Stainless Steel Braided Flexible Metal Hose
Specifications
Brand Name :
Lianghe
Model Number :
JTW
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
$11.8-$20.8
Payment Terms :
T/T, D/A, D/P, Western Union, L/C, MoneyGram
Supply Ability :
1000 sets per month
Delivery Time :
5-12 work days
Packaging Details :
Wooden case packing
Size :
DN8 ~ DN400mm
Length :
Customized
Working pressure :
PN10 - PN40
Standard of flange :
DIN JIS ANSI etc.
Material of flange :
Stainless steel304, 316
Material of bellow :
Stainless steel304, 316,etc.
Processing Service :
Welding
Welding Line Type :
Seamless
Type :
Metal Flexible Hose
Description

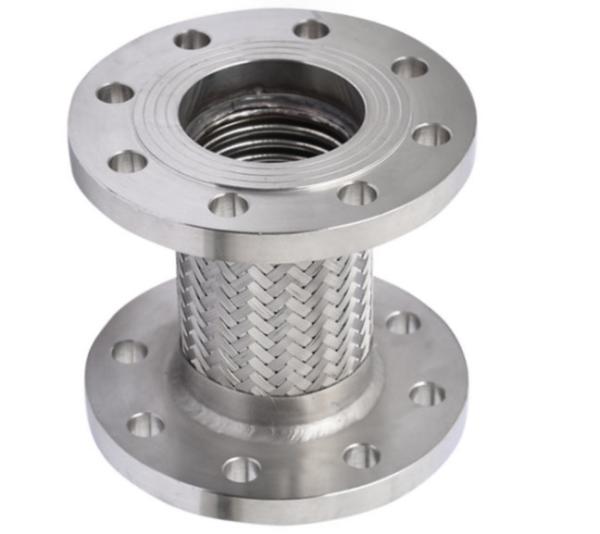

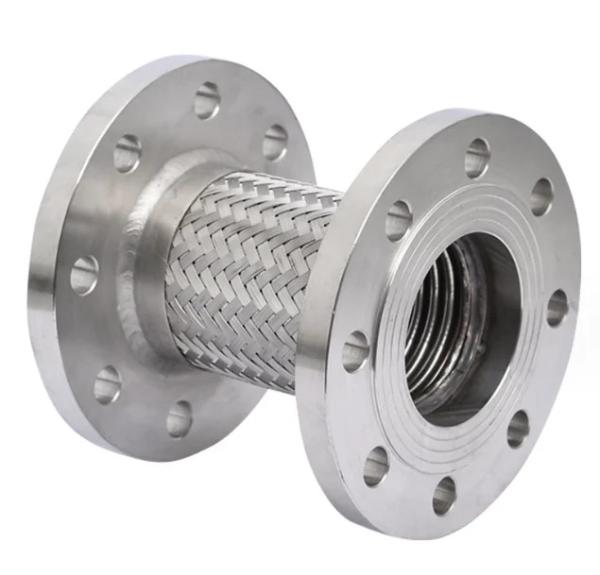

Flange Connection Ss304 Stainless Steel Braided Flexible Metal Hose

Flanged Flexible Metal Hose is a kind of flexible hose with high quality in modern industrial pipeline.The inner tube of metal bellows hose is spiral or annular thin-wall stainless steel bellows, the outer braid mesh of bellow pipe(corrugated pipe) is made of stainless steel wire and steel belt according to certain parameters,the joints or flanges on both ends of the hose are matched to the joint or flange of the customer's pipe.

Flange Connection Ss304 Stainless Steel Braided Flexible Metal Hose

Character of flanged flexible metal hose
Flanged Flexible Metal Hose has good softness, anti-fatigue, high pressure resistant, high and low temperature resistant, corrosion resistant and other characters, comparing with other hoses(rubber and plastic hose),the service life of metal hose is much higher, so it has high comprehensive economical benefits.And wtih the development of modern industry, the demand for hig pressure resistance and high temperature resistant bellows metal hose (corrugated metal hose) is also increasing.

Detailed parameters of metal hose

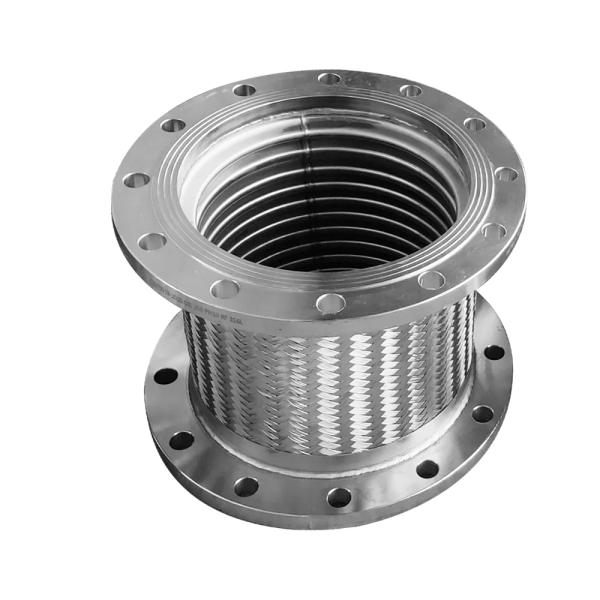

Flange Connection Ss304 Stainless Steel Braided Flexible Metal Hose

NO Name Material
1 Bellow SS304,SS316,SS316L,etc
2 Sleeve SS304,SS316,SS316L,etc
3 Flange Q235,SS304,SS316,SS316L,etc

Technical parameter of metal hose flexible

Nominal diameter

DN

 Inner diameter Outer diameter Minimum bending radius Working pressure
Bellows Braid mesh Static Dynamic Single braid mesh Double braid mesh
8 8.8 13.2 14.4 50 110 15 20
10 11.7 16.5 17.7 65 145 185 20
15 13.5 19.5 21.1 80 180 18 20
20 20.0 27 28.6 120 270 10 15
25 27.0 34.5 36.1 160 360 6.3 10
32 32.0 40 41.6 175 400 4.0 6.3
40 39.6 52 53.6 225 510 4.0 6.3
50 49.7 62 63.6 280 640 3.0 5.0
65 61.2 80.2 81.8 410 915 3.0 5.0
80 79.0 96.3 97.9 486 1030 3.0 5.0
100 101.2 119.6 121.2 610 1340 2.5 4.0
125 124.1 145.3 146.9 700 1540 2.5 4.0
150 149.4 180.8 182.4 810 1780 2.5 4.0
200 176.0 240 243.2 1000 2000 2.5 4.0
250 248.0 290 294 1250 2500 2.5 4.0
300 298.0 350 354 1500 3000 1.6 2.5
350 347.0 400 404.8 1750 3500 1.6 2.5
400 397.6 460 464.8 2000 4000 1.6 2.5

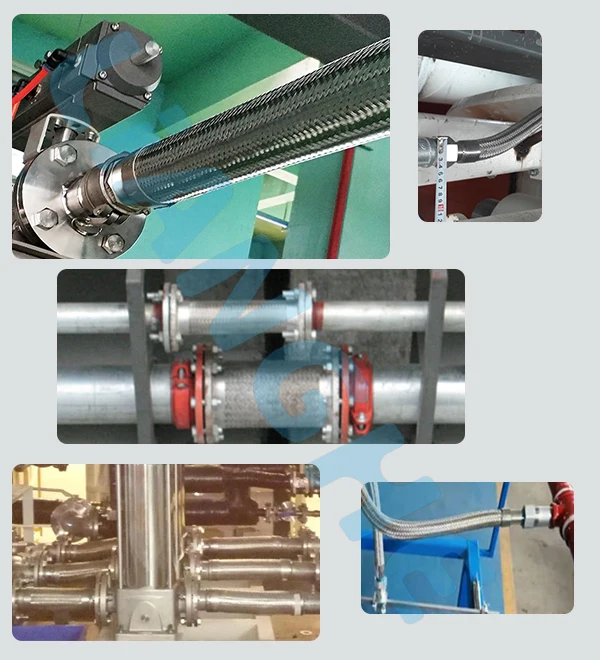

Application range

Flange Connection Ss304 Stainless Steel Braided Flexible Metal Hose

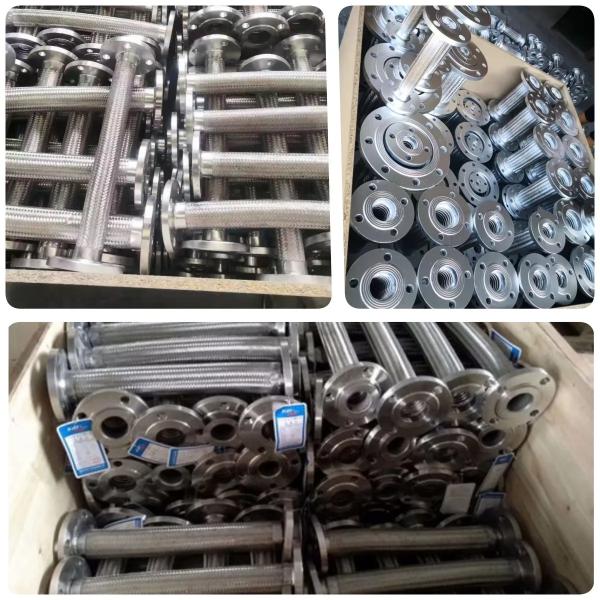

Packing


Inner: plastic film, then put into carton case.
Outer: safe firmed export plywood case, marking on carton case and wooden case can be customized, or packing as per your requests.


Shipping
1.We could deliver the goods by international express, such as DHL, UPS, TNT, EMS, others.

2.You could also choose the transportation according to your schedule and budget.
3.Or you could use your own cargo agent.

Flange Connection Ss304 Stainless Steel Braided Flexible Metal Hose

FAQ

Q:Could you follow the customer's specific requirement?
A:Yes, we could do it according to your specific requirement.

Q:What are your payment terms?
A:T/T (30% as desposit paid, the rest 70% will be paid before delivery), L/C at sight, andothers you viable, others.

Q:And what's your packing methods?
A:Wrap the products with plastic film first, then pack it into wooden cases.


Q:Where is your nearest loading port?
A:Shanghai, Qingdao or Tianjin, in China.

Q:Do you accept small quantity order?
A:Of course we do.

Q:And what are your terms of shipment and delivery?
A:The shipment usually by sea or air.
