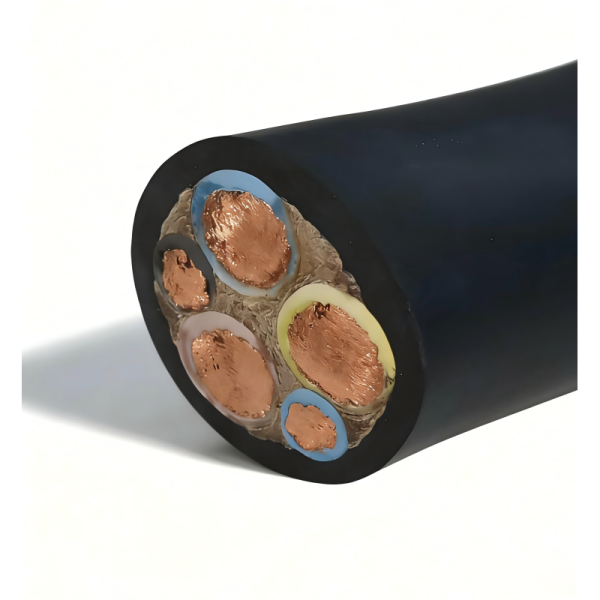

YC/H07RN-F 0.3-50mm² 450/750V EPR Insulated Flame Retardant High Tensile Strength for Industrial Workshops
YC/H07RN-F 0.3-50mm² 450/750V EPR Insulated Flame Retardant High Tensile Strength for Industrial Workshops
YC/H07RN-F 0.3-50mm² 450/750V EPR Insulated Flame Retardant High Tensile Strength for Industrial Workshops
YC/H07RN-F 0.3-50mm² 450/750V EPR Insulated Flame Retardant High Tensile Strength for Industrial Workshops
YC/H07RN-F 0.3-50mm² 450/750V EPR Insulated Flame Retardant High Tensile Strength for Industrial Workshops
YC/H07RN-F 0.3-50mm² 450/750V EPR Insulated Flame Retardant High Tensile Strength for Industrial Workshops
YC/H07RN-F 0.3-50mm² 450/750V EPR Insulated Flame Retardant High Tensile Strength for Industrial Workshops
YC/H07RN-F 0.3-50mm² 450/750V EPR Insulated Flame Retardant High Tensile Strength for Industrial Workshops
Specifications
Brand Name :
Ke Fei Te
Model Number :
YC
Certification :
CCC,ISO9001
Place of Origin :
Chongqing, China
MOQ :
500 meters
Price :
$0.20-1.80/meters
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Delivery Time :
4-12DAYS
Packaging Details :
wooden drum,wooden pallet,woven bag
Insulation Material :
EPR
Type :
LOW VOLTAGE Cable
Application :
Power supply for mechanical equipment, metallurgy and heavy industry
Conductor Material :
Annealed copper conductor
Jacket :
Rubber
Size :
1mm,1.5mm,2.5mm,4mm,6mm,10mm,25mm,35mm,50mm and so on
Product Name :
H07RN-F Rubber cable
Shape :
round wire
Feature :
flexible,movable, oil resistance ,waterproof and so on
Conductor :
Pure Copper
Insulation :
EPR Rubber
Sheath :
Rubber Sheath
Rated voltage :
450/750V
Core :
Single Core
Description
YC Power Cable - Heavy-Duty EPR Insulated Rubber Cable
450/750V H07RN-F single copper conductor heavy duty rubber sheath power cable designed for demanding industrial applications.
Product Overview
This flexible rubber cable features multiple strands of annealed copper conductor with EPR rubber insulation and rubber sheath. Its superior flexibility and tensile strength make it ideal for movable electrical equipment in both indoor and outdoor environments, particularly in demanding sectors like power generation, metallurgy, and chemical industries.
Key Specifications
  • Conductor: Stranded Annealed Copper Core
  • Insulation: EPR (Ethylene Propylene Rubber)
  • Sheath: Heavy-Duty Rubber
  • Configuration: Single Core
  • Voltage Rating: 450/750V
  • Temperature Range: -30°C to +70°C (90℃ max)
  • Special Features: Movable, Flexible, oil resistant, small bending radius
YC/H07RN-F 0.3-50mm² 450/750V EPR Insulated Flame Retardant High Tensile Strength for Industrial Workshops
Applications
Flexible rubber cables offer exceptional wear resistance, oil resistance, weather resistance, high temperature tolerance, mechanical damage protection, and superior flexibility. These properties make them suitable for complex and harsh working environments involving frequent movement, mechanical friction, and oil exposure.
YC/H07RN-F 0.3-50mm² 450/750V EPR Insulated Flame Retardant High Tensile Strength for Industrial Workshops
Technical Characteristics
Temperature Ratings
  • Fixed installations: -30°C to +60°C
  • Fixed protected installations: +85°C
  • Flexed applications: -15°C to +60°C
  • Insulation tested to +90°C
Minimum Bending Radius
  • Fixed installations: 4 x overall diameter
  • Flexed applications: 6 x overall diameter
Product Specifications
Product Name H07RN-F Rubber Cable
Brand Ke Fei Te
Model YC
Conductor Material Annealed copper conductor
Insulation Material EPR
Jacket General Rubber Sheath
Color Black
Shape Round wire
Feature Flame retardant, soft and tensile resistant
Company Profile
Chongqing Kefei Cable Group Co., Ltd. has specialized in research, development, and production of rubber cables for over 40 years. As a large enterprise dedicated to cable manufacturing, we produce various electrical cables including mining cables, rubber sheath cable series, shield machine special high voltage cables, and other specialized series. Our flexible cable series benefits from more than 20 years of expertise and can be customized to meet specific customer requirements.
Our products are distributed worldwide and widely used across various sectors including coal mining, power stations, and transportation. We are recognized for our excellent quality and superior after-sales service by customers both domestically and internationally.
YC/H07RN-F 0.3-50mm² 450/750V EPR Insulated Flame Retardant High Tensile Strength for Industrial Workshops
Our Advantages
  • Advanced Technology
  • High Quality Design
  • Perfect Testing Equipment
  • Strict Quality Control
  • Mature Process Flow
Production Equipment
YC/H07RN-F 0.3-50mm² 450/750V EPR Insulated Flame Retardant High Tensile Strength for Industrial Workshops YC/H07RN-F 0.3-50mm² 450/750V EPR Insulated Flame Retardant High Tensile Strength for Industrial Workshops YC/H07RN-F 0.3-50mm² 450/750V EPR Insulated Flame Retardant High Tensile Strength for Industrial Workshops YC/H07RN-F 0.3-50mm² 450/750V EPR Insulated Flame Retardant High Tensile Strength for Industrial Workshops YC/H07RN-F 0.3-50mm² 450/750V EPR Insulated Flame Retardant High Tensile Strength for Industrial Workshops YC/H07RN-F 0.3-50mm² 450/750V EPR Insulated Flame Retardant High Tensile Strength for Industrial Workshops
Exhibition
YC/H07RN-F 0.3-50mm² 450/750V EPR Insulated Flame Retardant High Tensile Strength for Industrial Workshops YC/H07RN-F 0.3-50mm² 450/750V EPR Insulated Flame Retardant High Tensile Strength for Industrial Workshops YC/H07RN-F 0.3-50mm² 450/750V EPR Insulated Flame Retardant High Tensile Strength for Industrial Workshops
Certifications
YC/H07RN-F 0.3-50mm² 450/750V EPR Insulated Flame Retardant High Tensile Strength for Industrial Workshops YC/H07RN-F 0.3-50mm² 450/750V EPR Insulated Flame Retardant High Tensile Strength for Industrial Workshops YC/H07RN-F 0.3-50mm² 450/750V EPR Insulated Flame Retardant High Tensile Strength for Industrial Workshops YC/H07RN-F 0.3-50mm² 450/750V EPR Insulated Flame Retardant High Tensile Strength for Industrial Workshops YC/H07RN-F 0.3-50mm² 450/750V EPR Insulated Flame Retardant High Tensile Strength for Industrial Workshops
Packing & Delivery
YC/H07RN-F 0.3-50mm² 450/750V EPR Insulated Flame Retardant High Tensile Strength for Industrial Workshops YC/H07RN-F 0.3-50mm² 450/750V EPR Insulated Flame Retardant High Tensile Strength for Industrial Workshops YC/H07RN-F 0.3-50mm² 450/750V EPR Insulated Flame Retardant High Tensile Strength for Industrial Workshops YC/H07RN-F 0.3-50mm² 450/750V EPR Insulated Flame Retardant High Tensile Strength for Industrial Workshops
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a production manufacturer. We only produce the best quality, and you can rest assured of the quality.
Can you produce and manufacture products according to customer requirements?
Yes, we can customize the product according to your requirements.
How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
