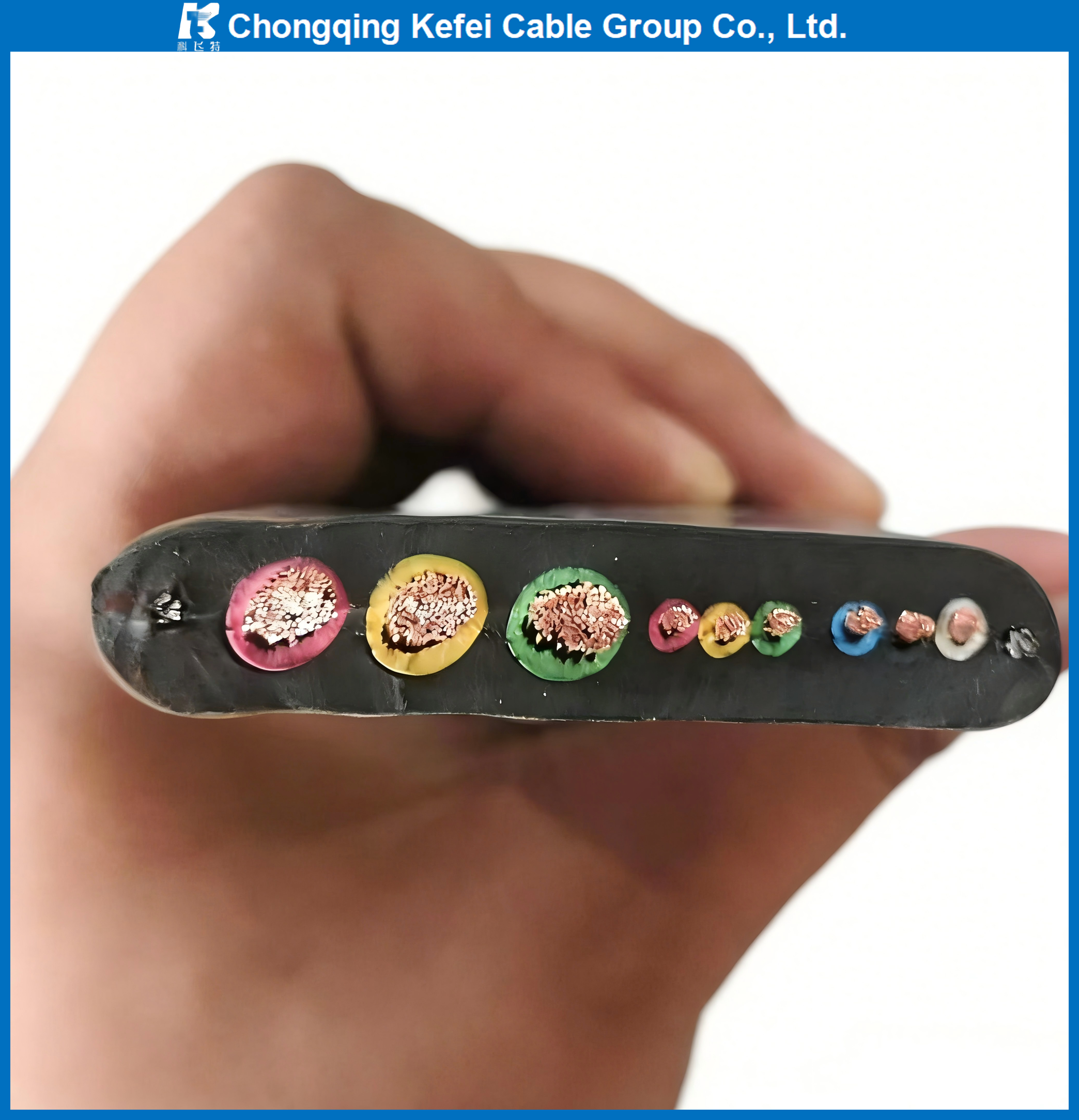

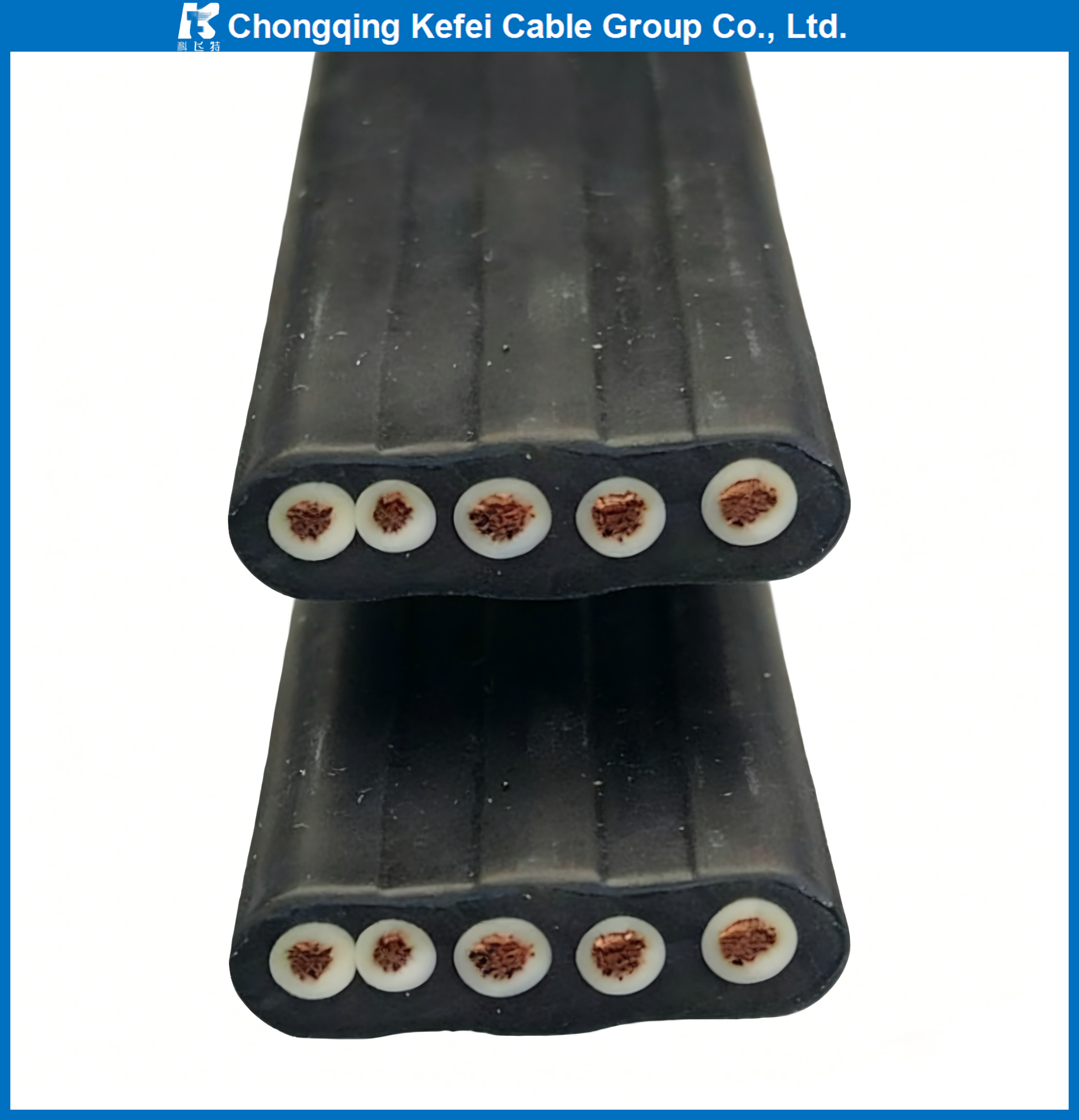

YFFB Stranded Copper High Quality Flexible Flat Elevator Lifting Cable Coil Low Voltage 450V/750V Rubber Insulation
YFFB Stranded Copper High Quality Flexible Flat Elevator Lifting Cable Coil Low Voltage 450V/750V Rubber Insulation
YFFB Stranded Copper High Quality Flexible Flat Elevator Lifting Cable Coil Low Voltage 450V/750V Rubber Insulation
YFFB Stranded Copper High Quality Flexible Flat Elevator Lifting Cable Coil Low Voltage 450V/750V Rubber Insulation
YFFB Stranded Copper High Quality Flexible Flat Elevator Lifting Cable Coil Low Voltage 450V/750V Rubber Insulation
YFFB Stranded Copper High Quality Flexible Flat Elevator Lifting Cable Coil Low Voltage 450V/750V Rubber Insulation
Specifications
Brand Name :
Ke Fei Te
Model Number :
YFFB
Certification :
ISO
Place of Origin :
Chongqing, China
MOQ :
500 meters
Price :
$0.86-8/meters
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Delivery Time :
5-12DAYS
Packaging Details :
Wooden drum，wooden pallet，woven bag
Working Temperature :
70°C
Conductor :
Bare Copper
Rated Current :
16A
Insulation Material :
Rubber
Feature :
Waterproof, Tensile Resistance , Soft,flexible
Application :
Lifts, Large Cranes, Submersible Pump, Mobile Device
Description
High-Temperature Resistant YFFB Low Voltage 450/750V Copper Conductor Rubber Insulated Elevator Flat Belt Traction Cable
Low Voltage 3 Core 4 Core Rubber Insulated Flexible Cable Flat Elevator Travel Power Cord. 450/750V EPR Rubber insulation Cable Oil Resistant YFFB Cable available in sizes including 3*35+1*10mm, 3*16mm, 5*6mm, and 4*25mm. Flexible Flat Shape Elevator Power Cord designed for industrial and lifting machinery applications with frequent movement, limited space, and complex environments.
Product Specifications
  • Conductor: Stranded copper wires for enhanced flexibility and bending performance
  • Sheath: Chloroprene rubber with excellent weather and chemical corrosion resistance
  • Insulation: EPR Rubber with excellent electrical insulation, oil resistance, and low-temperature resistance
  • Voltage: 450/750V (Low Voltage)
  • Shape: Flat design for higher space utilization and better bending performance
  • No. of Cores: 3, 4, 5, 6, 7, 8 cores available
  • Cross Section: 1mm, 2.5mm, 4mm, 6mm, 10mm, 25mm, 35mm, 50mm and more

YFFB Stranded Copper High Quality Flexible Flat Elevator Lifting Cable Coil Low Voltage 450V/750V Rubber Insulation

Applications
Made with pure copper stranded conductors, EPR insulation, and oil-resistant rubber sheath for applications requiring frequent movement, bending, and high environmental adaptability.
  • Industrial Field: Automated production lines and CNC machines
  • Lifting & Transportation: Gantry cranes, hoists, belt conveyors
  • Mobile Equipment: Electric tools, stage lighting and sound systems
  • Outdoor Projects: Construction sites and municipal projects
  • Special Environments: Ships, mines with vibration, humidity and fire prevention requirements

YFFB Stranded Copper High Quality Flexible Flat Elevator Lifting Cable Coil Low Voltage 450V/750V Rubber Insulation

YFFB Stranded Copper High Quality Flexible Flat Elevator Lifting Cable Coil Low Voltage 450V/750V Rubber Insulation
Quality Assurance
  • Every production process has specialized quality testing
  • Professional engineers conduct quality inspections
  • All products pass CCC, ISO certifications and comply with IEC standards
Company Profile
Chongqing Kefei Cable Group Co., Ltd. has focused on R&D and production of rubber cable for 40 years. We specialize in mining cables, rubber sheath cable series, shield machine special high voltage cable and other series, with particular expertise in flexible cables. Our products are sold worldwide and used in coal mines, power stations, transportation and other fields.
Our Advantages
  • Advanced Technology
  • High Quality Design
  • Perfect Testing Equipment
  • Strict Quality Control
  • Mature Process Flow
YFFB Stranded Copper High Quality Flexible Flat Elevator Lifting Cable Coil Low Voltage 450V/750V Rubber Insulation
Packing & Delivery
Professional, environmentally friendly, convenient and efficient packaging services to ensure the safety of your goods.
YFFB Stranded Copper High Quality Flexible Flat Elevator Lifting Cable Coil Low Voltage 450V/750V Rubber Insulation YFFB Stranded Copper High Quality Flexible Flat Elevator Lifting Cable Coil Low Voltage 450V/750V Rubber Insulation YFFB Stranded Copper High Quality Flexible Flat Elevator Lifting Cable Coil Low Voltage 450V/750V Rubber Insulation
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a production manufacturer, producing only the best quality products.
How can I place an order?
Please provide detailed requirements for a prompt quote. For design discussions, contact us via Skype/email/phone to avoid delays.
Can you produce products according to customer requirements?
Yes, we can customize products according to your specifications.
How can we guarantee quality?
Pre-production samples before mass production and final inspection before shipment ensure consistent quality.
